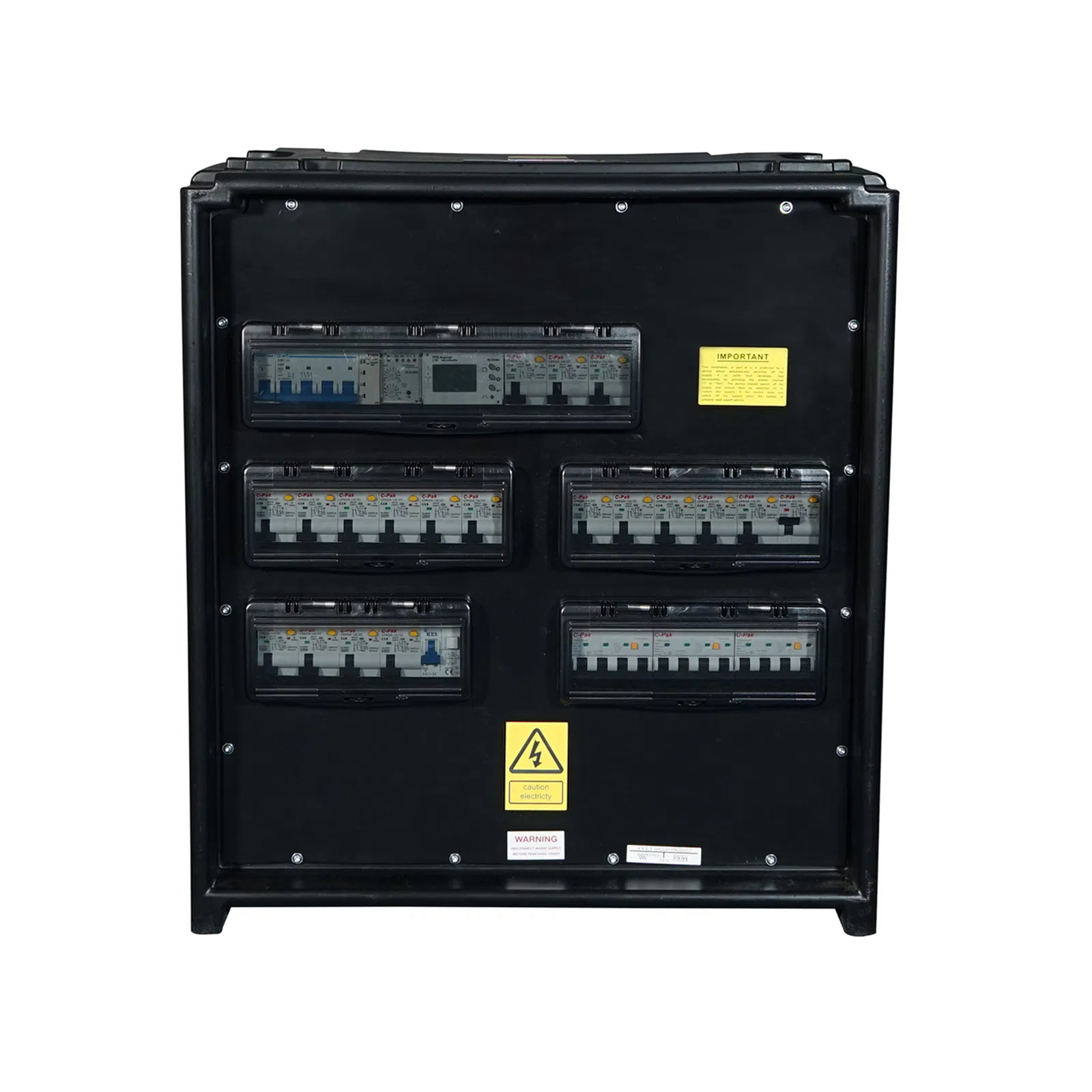

MERZ Distribution Box 63A 3PH to 32A/16A/13A/TRUE1/Socapex (Variable ELR)

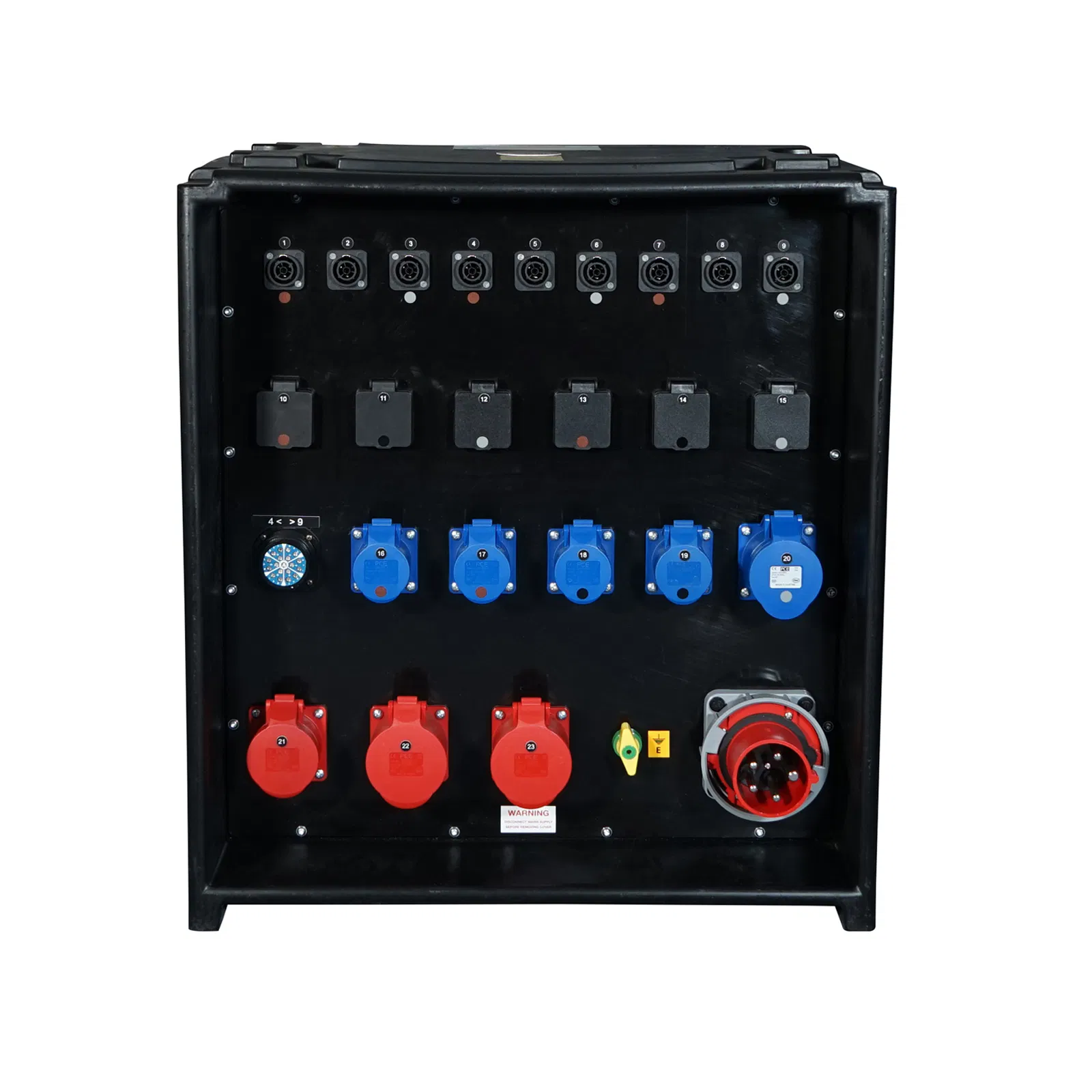

MERZ Distribution Box 63A 3PH to 32A/16A/13A/TRUE1/Socapex (Variable ELR) - Image 2

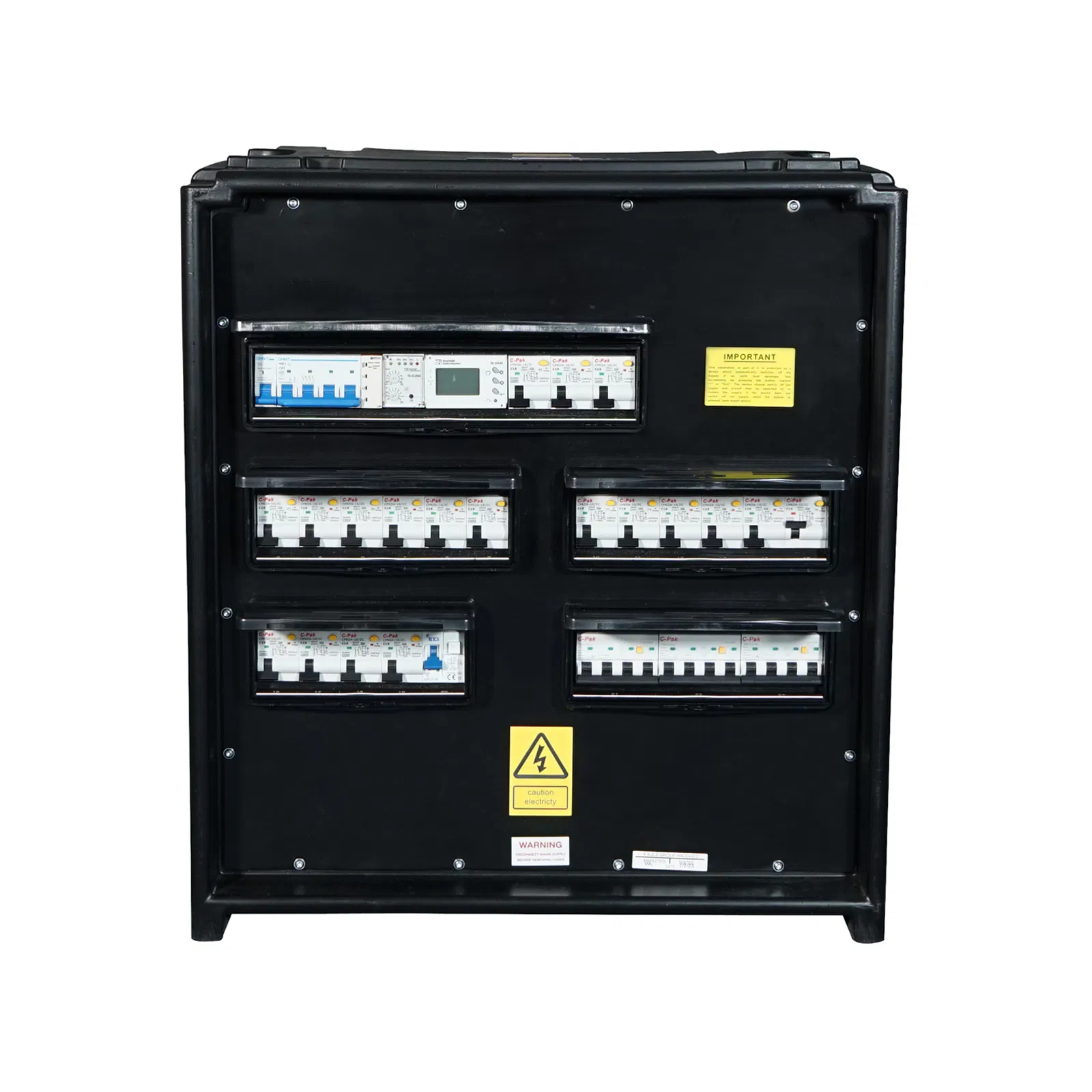

MERZ Distribution Box 63A 3PH to 32A/16A/13A/TRUE1/Socapex (Variable ELR) - Image 3

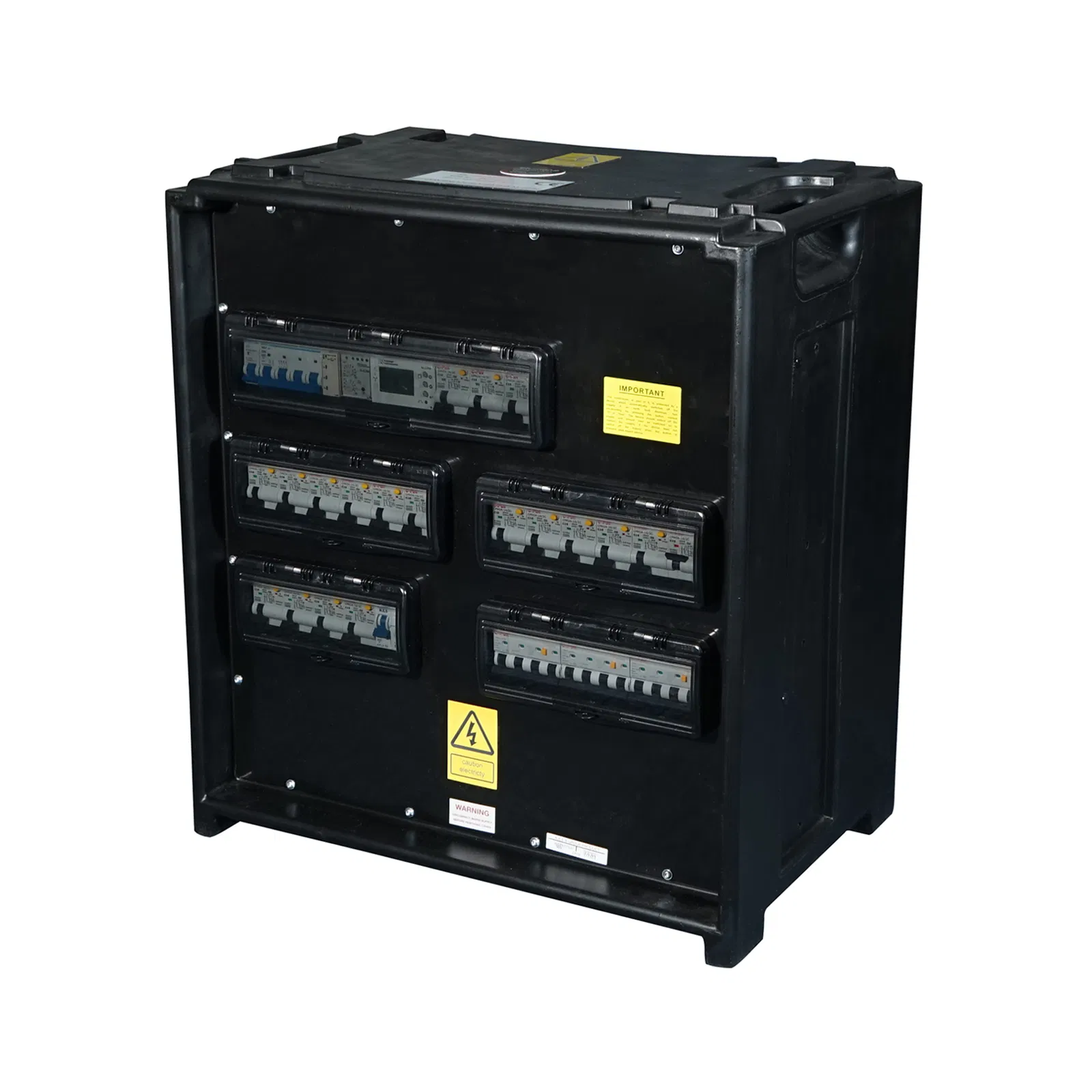

MERZ Distribution Box 63A 3PH to 32A/16A/13A/TRUE1/Socapex (Variable ELR) - Image 4

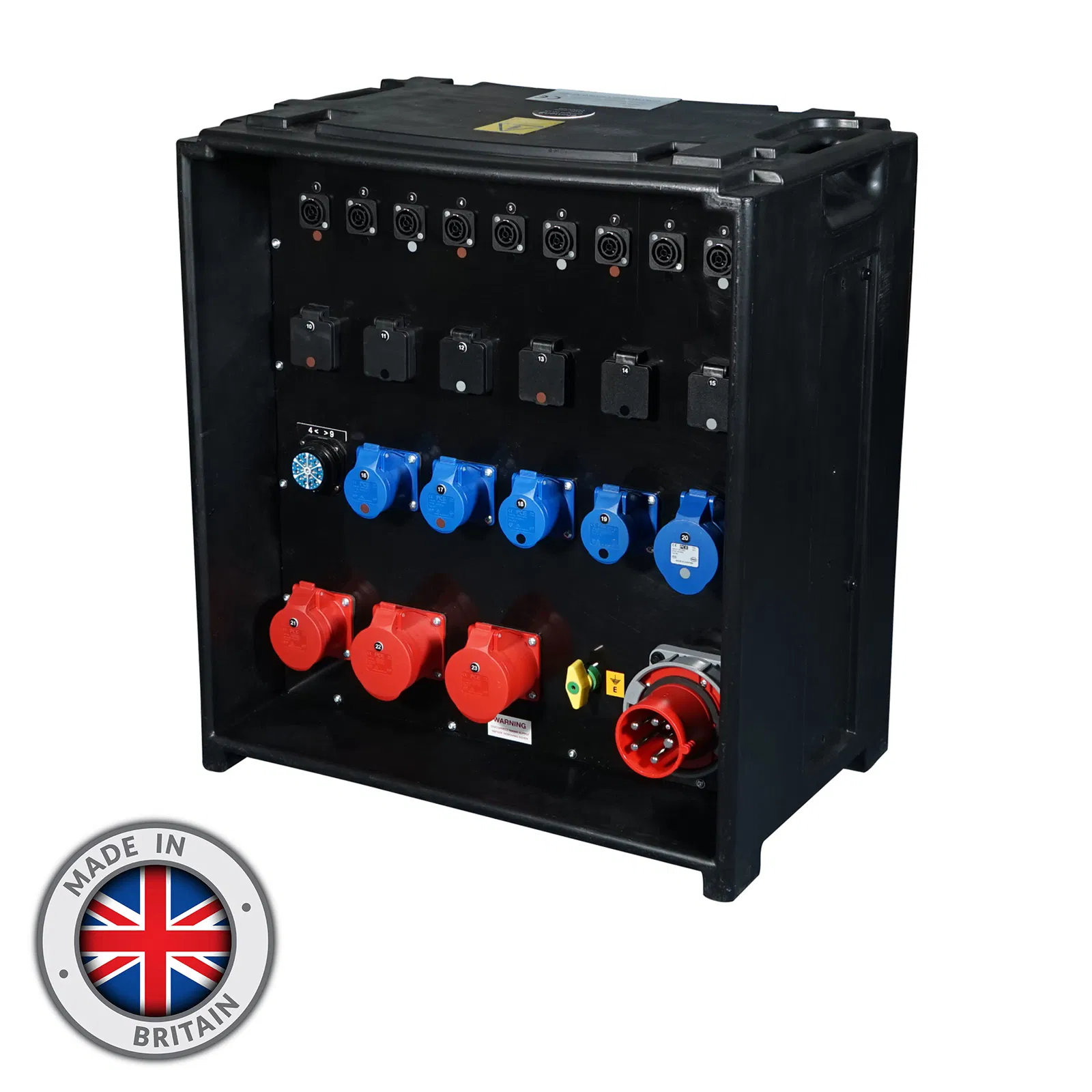

MERZ Distribution Box 63A 3PH to 32A/16A/13A/TRUE1/Socapex (Variable ELR) - Image 5
MERZ Distribution Box 63A 3PH to 32A/16A/13A/TRUE1/Socapex (Variable ELR) - Image 6

MERZ Distribution Box 63A 3PH to 32A/16A/13A/TRUE1/Socapex (Variable ELR)

SKU: CONN385 Categories: , Tags: , ,

MERZ Distribution Box 63A 3PH to 32A/16A/13A/TRUE1/Socapex (Variable ELR)

The Elumen8 63A distribution boxes are manufactured using PCE components fitted into a MERZ enclosure, creating a robust, lightweight unit made of shock-resistant thermoplastic. Suitable for events and rental, they are IP44 splash proof rated.

£3,925.00

View your Basket

Description

The Elumen8 63A distribution boxes are manufactured using PCE components fitted into a MERZ enclosure, creating a robust, lightweight unit made of shock-resistant thermoplastic. Suitable for events and rental, they are IP44 splash proof rated.

Requires a three-phase input supply, but it distributes power to a mix of three-phase and single-phase outputs. That makes it a hybrid unit, ideal for setups where you need to power both types of equipment.

Features

  • Made in Britain
  • Handy, robust distribution box made of shock-resistant thermoplastic
  • IP44 rated

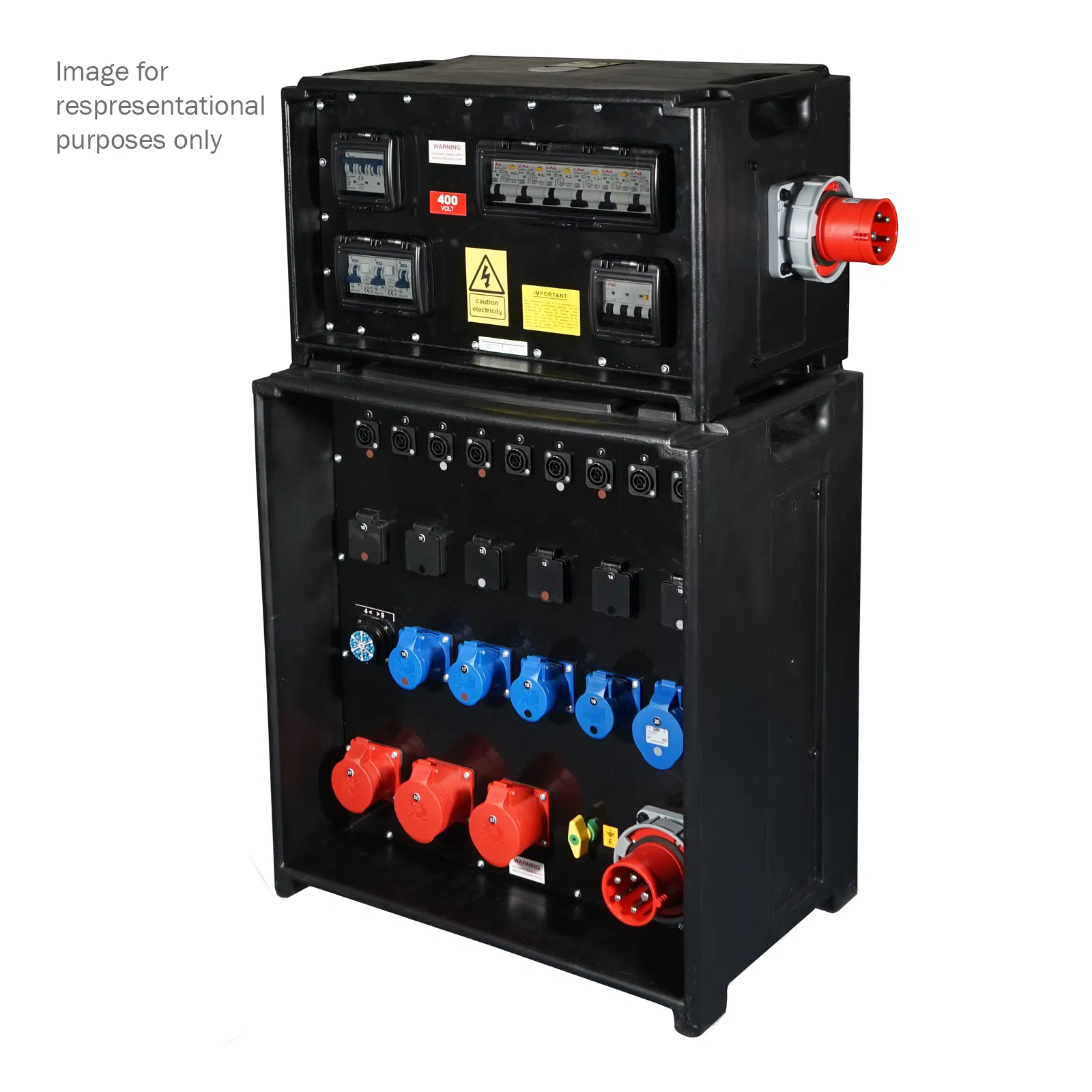

  • Stackable design for space saving
  • External earth stud
  • Variable earth leakage relay
  • Phase sequence/failure indication
  • Digital multi-meter

Specifications

  • Input: 63A 400V 3P+N+E IP67 appliance inlet with 4-Pole MCB
  • Outputs: 2 x 32A 415V 3P+N+E IP44 sockets each protected by 32A 30mA 4-Pole RCBO, 1 x 16A 415V 3P+N+E IP44 sockets protected by 16A 30mA 4-Pole RCBO, 1 x 32A 230V 2P+E IP44 sockets protected by 32A 30mA 2-Pole RCBO, 4 x 16A 230V 2P+E IP44 sockets each protected by 16A 30mA 2-Pole RCBO, 4 x 13A 230V 2P+E IP44 sockets each protected by 10A 30mA 2-Pole RCBO, 3 x Neutrik TRUE1 230V 2P+E IP65 sockets each protected by 16A 30mA 2-Pole RCBO, 1 x 19-Pin Socapex in parallel with 6 x Neutrik TRUE1 230V 2P+E IP65 sockets each protected by 16A 30mA 2-Pole RCBO
  • Dimensions (H x W x D): 669 x 600 x 400mm
  • Weight: 29.2kg

Additional information

Weight 29.2 kg
Dimensions 40 × 60 × 66.9 cm
Product Brands

Elumen8
