Name: MERZ Distribution Box 63A 3PH to 32A/16A RCBO (Midnight Black) - Crystal Sound and Light
SKU: CONN378
Price: 1675.00 GBP
Availability: InStock

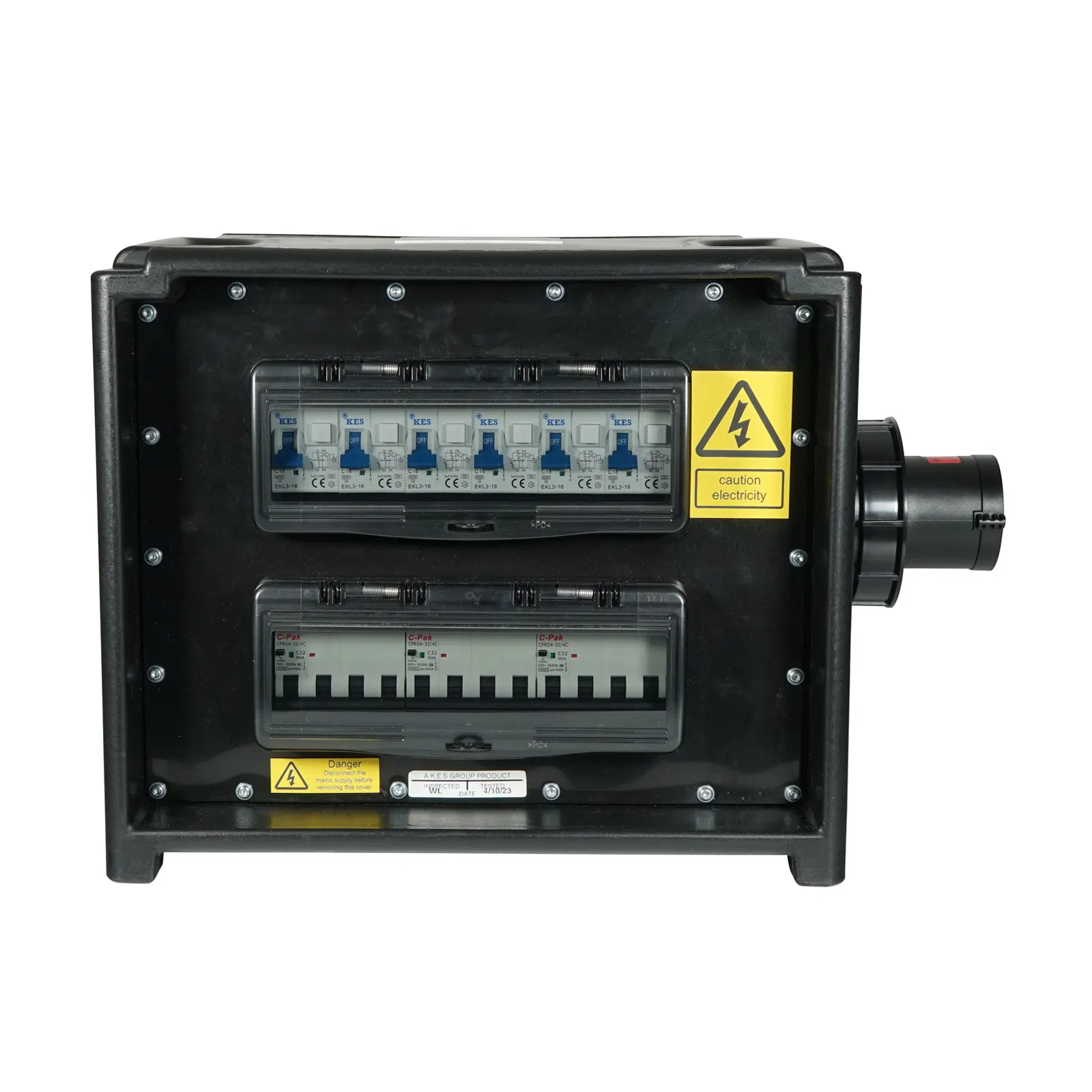

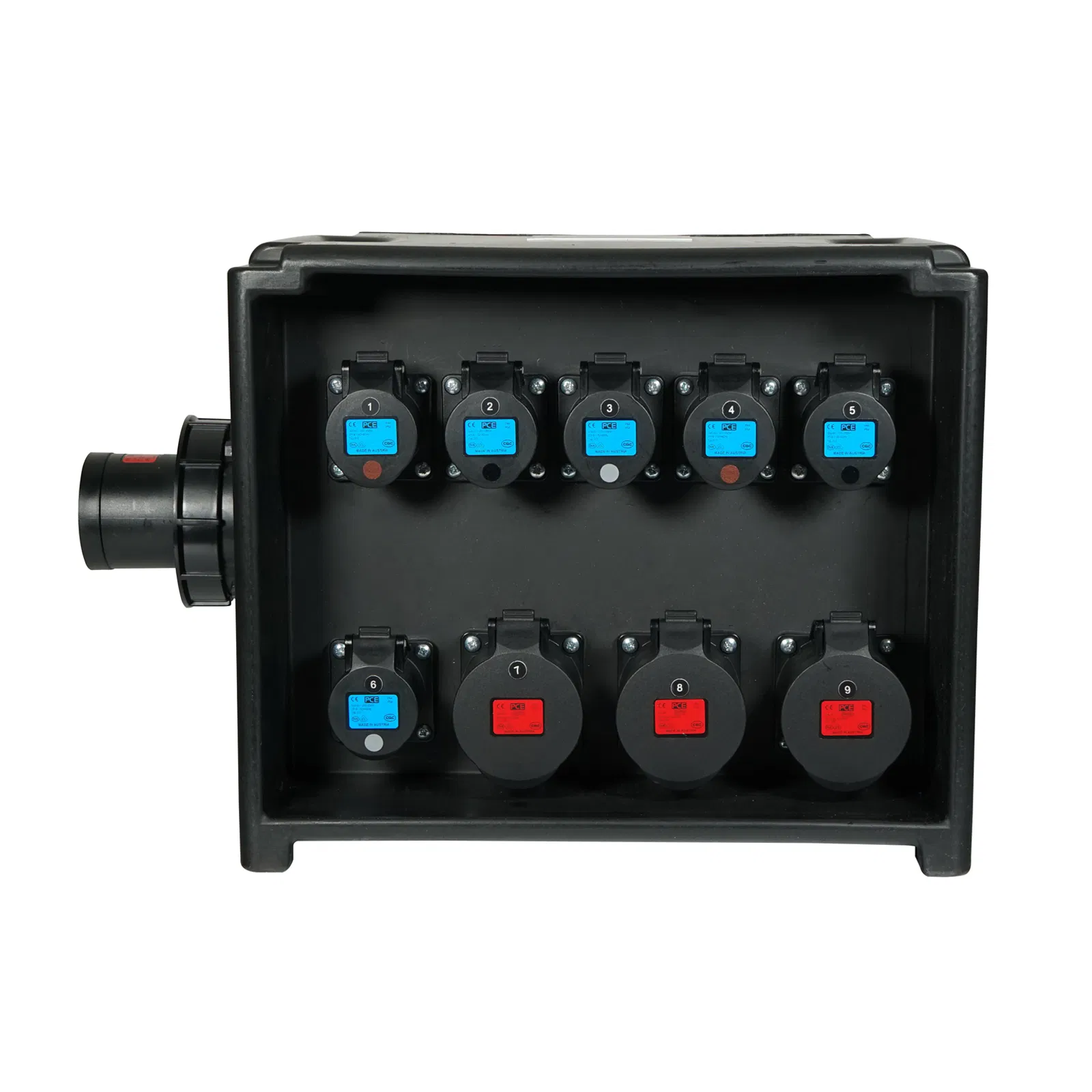

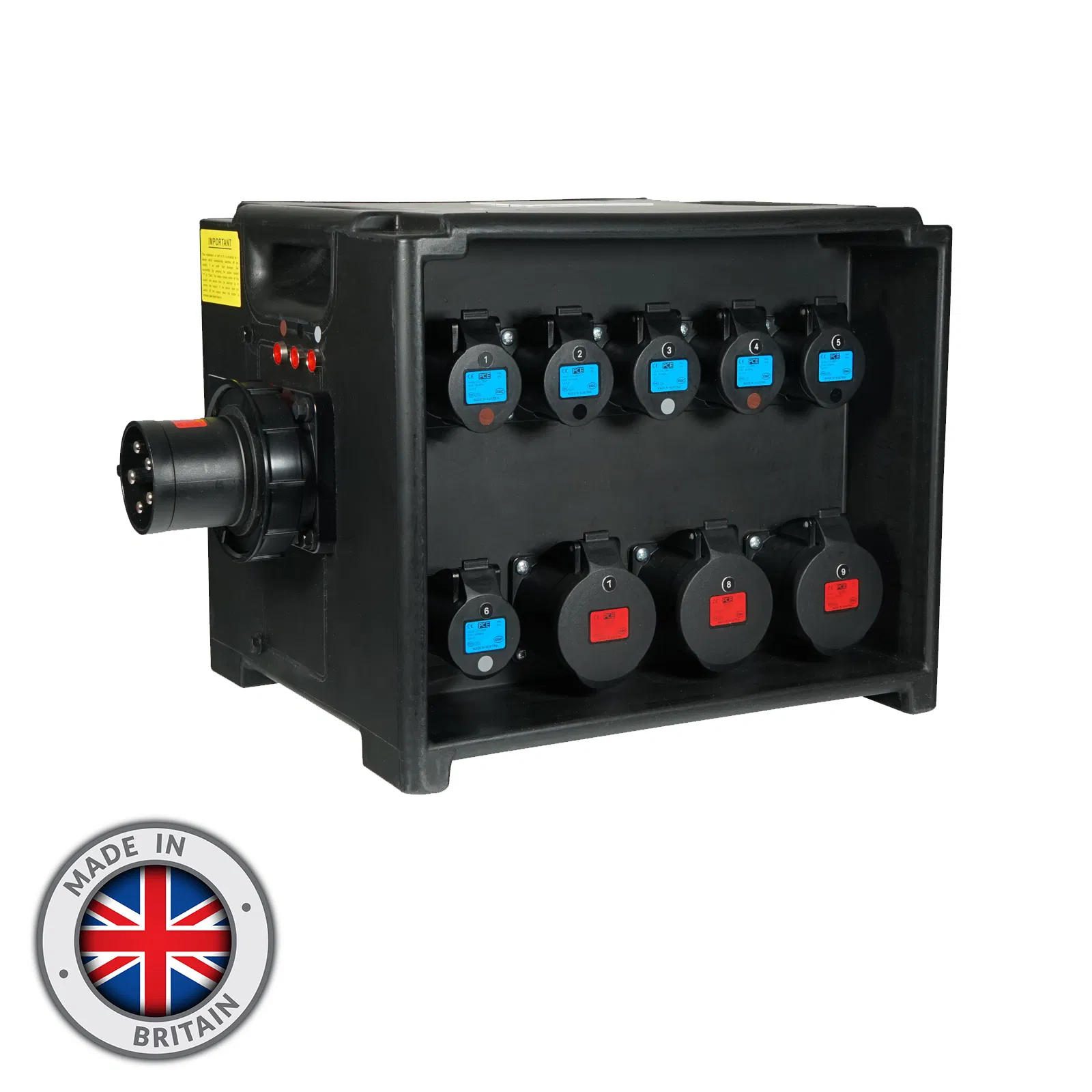

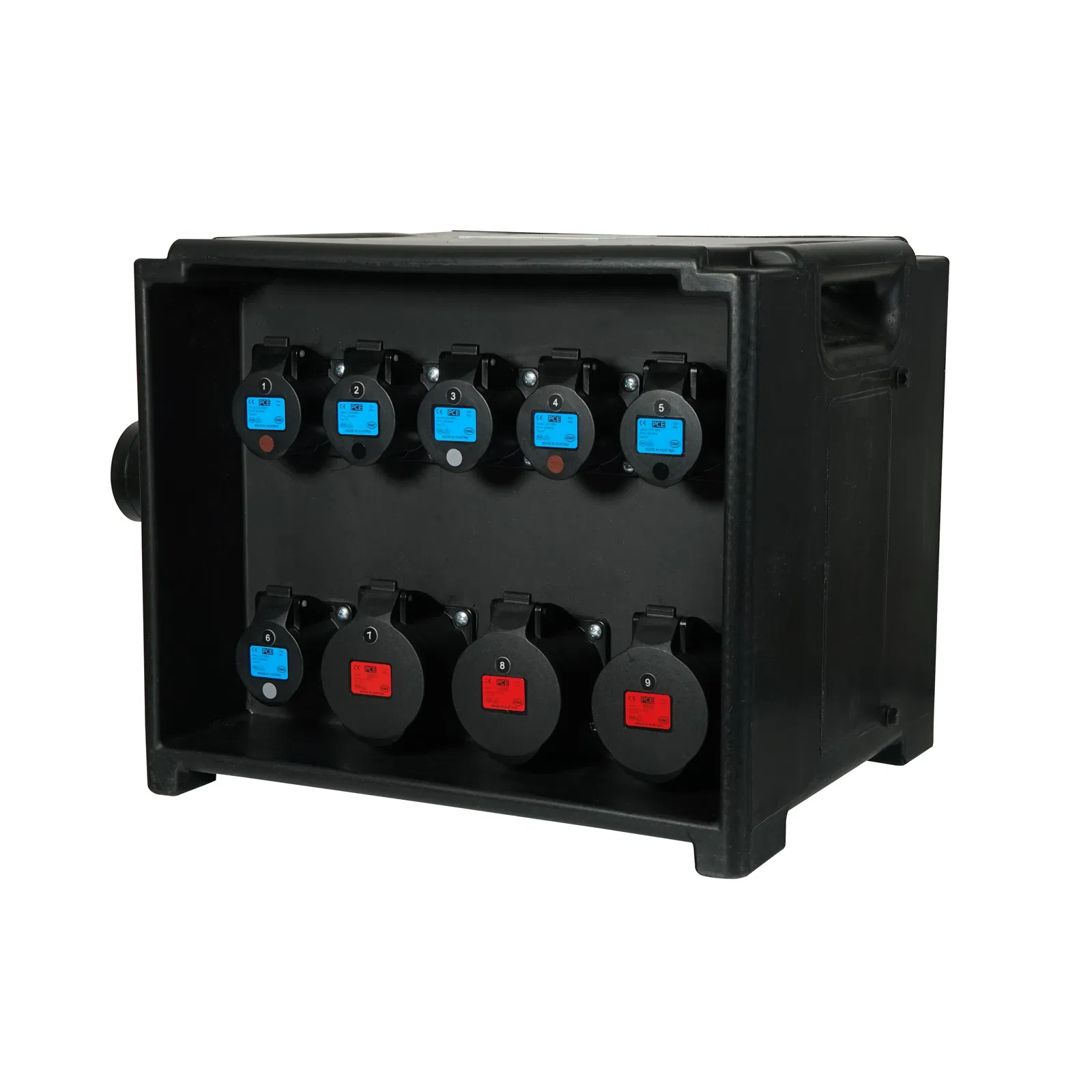

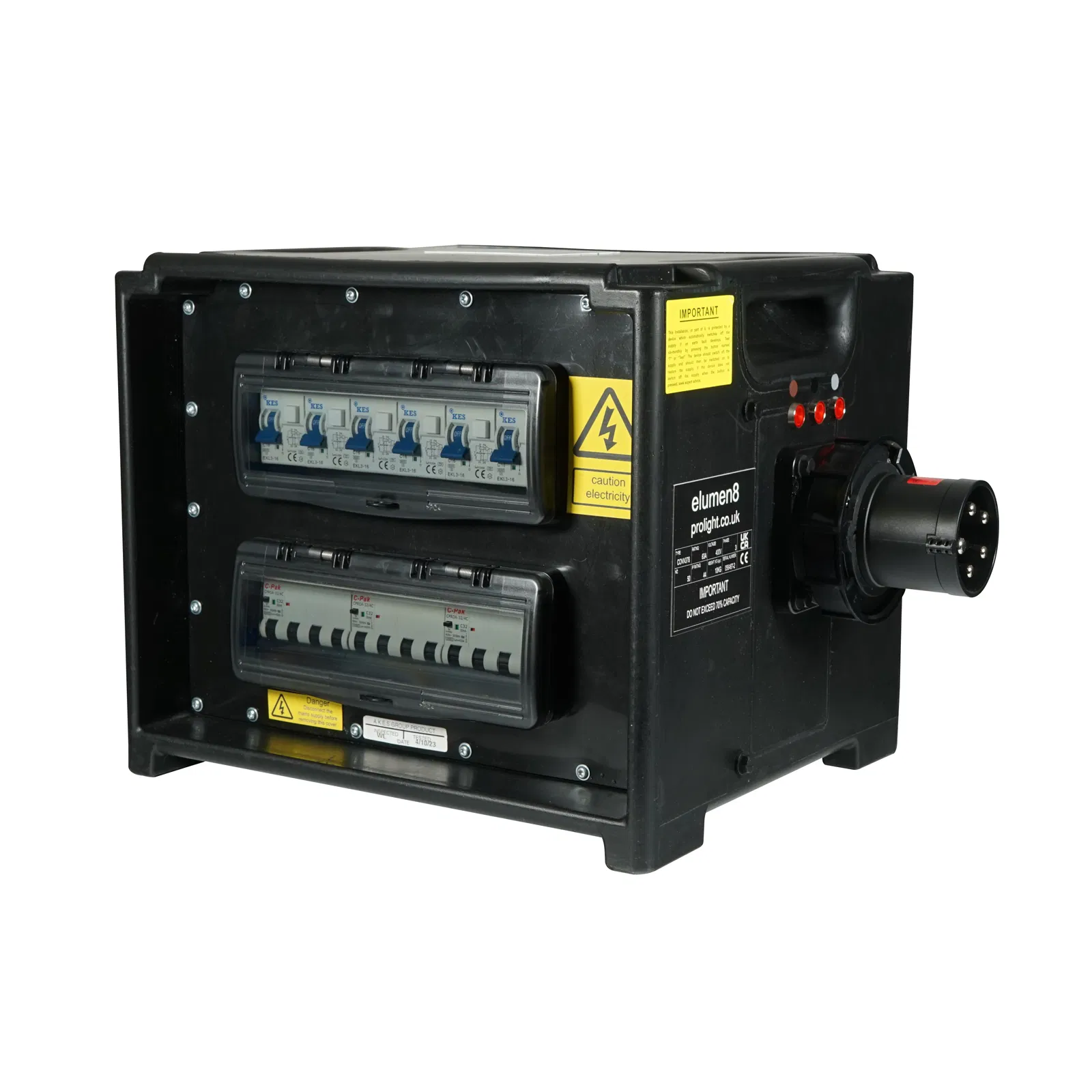

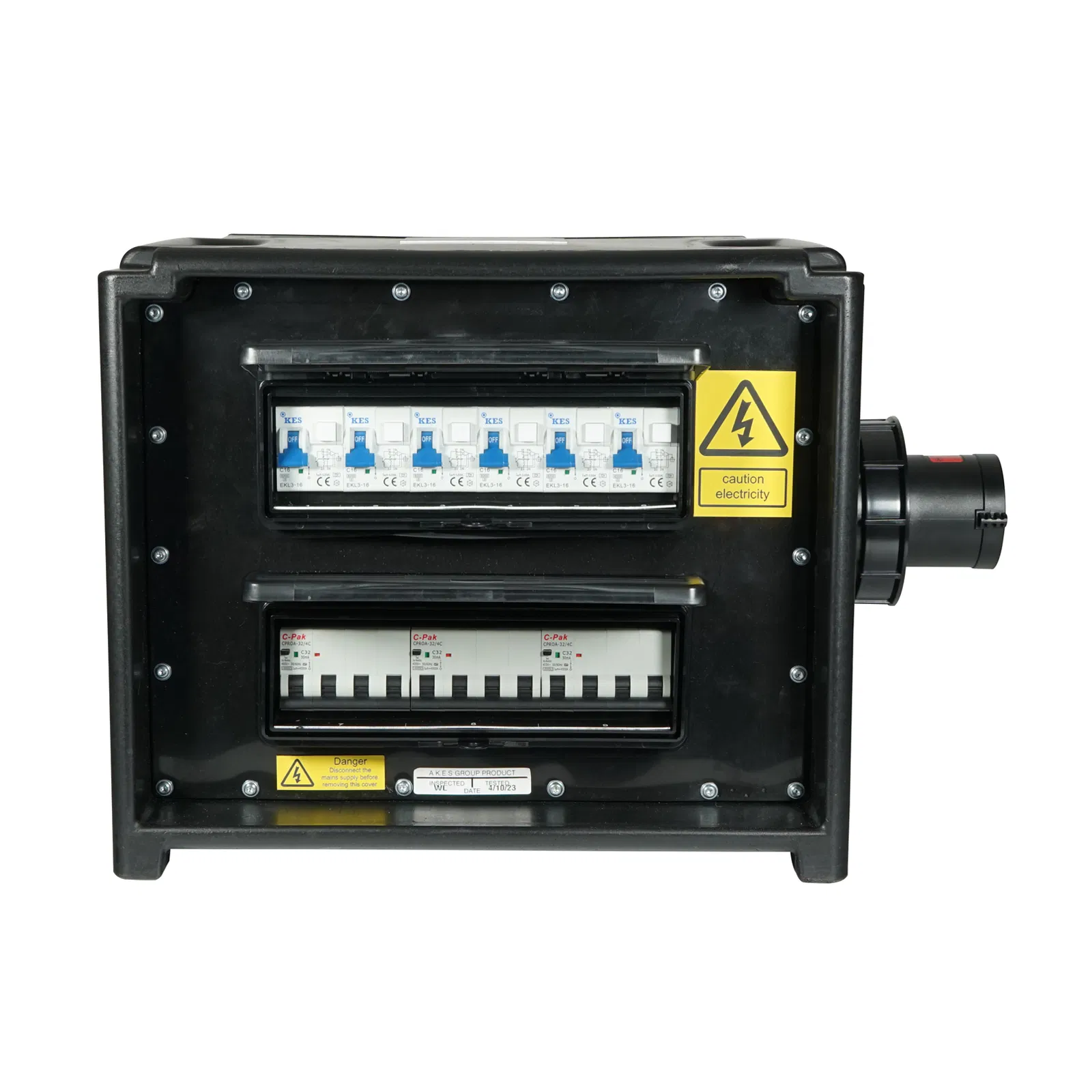

MERZ Distribution Box 63A 3PH to 32A/16A RCBO (Midnight Black)

The Elumen8 63A distribution boxes are manufactured using PCE components fitted into a MERZ enclosure creating a robust, lightweight unit made of shock-resistant thermoplastic.

Suitable for events and rental they are IP44 splash proof rated. Fitted with PCE Midnight black connectors to allow the distribution unit to blend into stage environments.

£1,675.00

Description

Features

Made in Britain

Handy, robust distribution box made of shock-resistant thermoplastic

IP44 rated

PCE Midnight black connectors

Stackable design for space saving

Neon indicators for visible confirmation of incoming supply

Specifications

Input: 63A 400V 3P+N+E IP67 appliance inlet
Outputs: 3 x 32A 415V 3P+N+E IP44 sockets each protected by 32A 30mA 4-Pole RCBO, 6 x 16A 230V 2P+E IP44 sockets each protected by 16A 30mA 2-Pole RCBO
Dimensions (H x W x D): 340 x 520 x 350mm
Weight: 13.5kg
