Name: MERZ Distribution Box 63A 3PH to 32A/16A RCD/MCB (A81)
SKU: CONN085
Price: 885.00 GBP
Availability: InStock

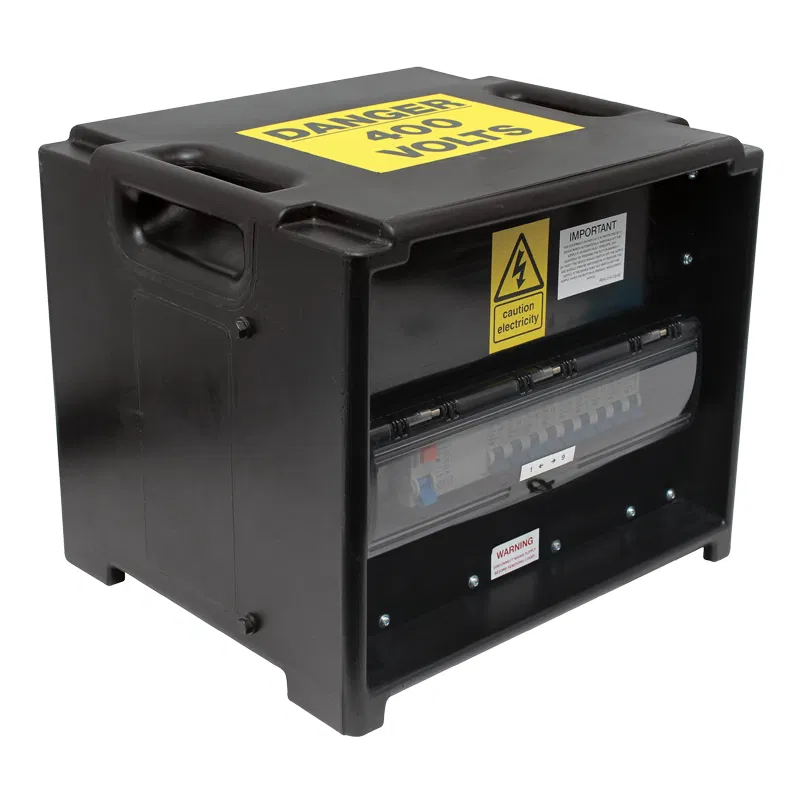

MERZ Distribution Box 63A 3PH to 32A/16A RCD/MCB (A81)

These PCE MERZ 63A distribution boxes are robust, lightweight and made of shock-resistant thermoplastic.

Suitable for events and rental, they are IP44 splash proof rated.

£885.00

Description

These PCE MERZ 63A distribution boxes are robust, lightweight and made of shock-resistant thermoplastic.

Features

Handy, robust and lightweight distribution box made of shock-resistant thermoplastic

IP44 rated

Stackable design for space saving

Made in the EU

Specifications

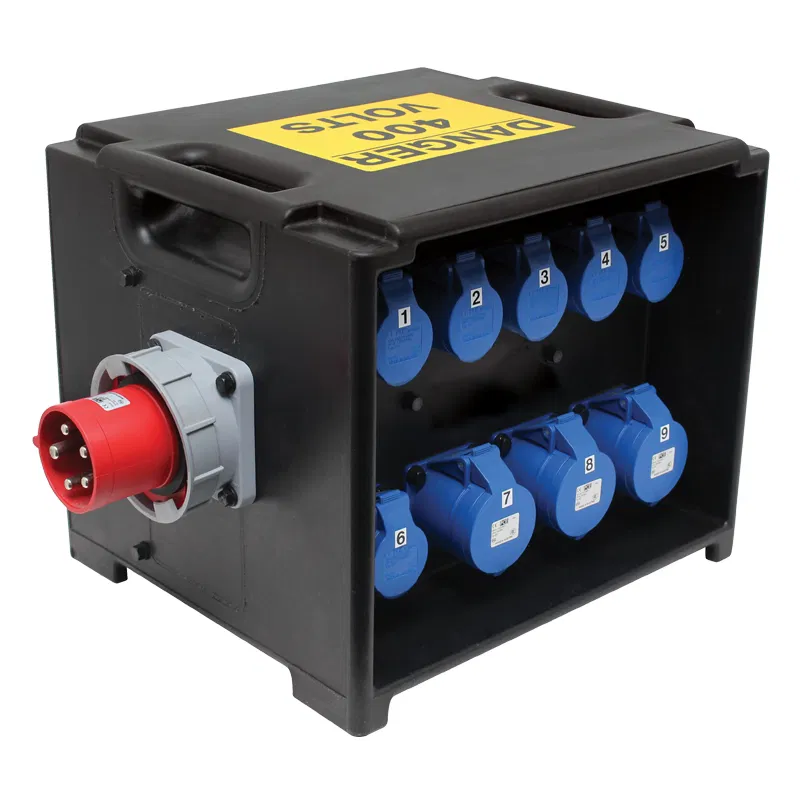

Input: 63A 415V~50/60Hz 5-Pin 3P+N+E IP44 chassis plug

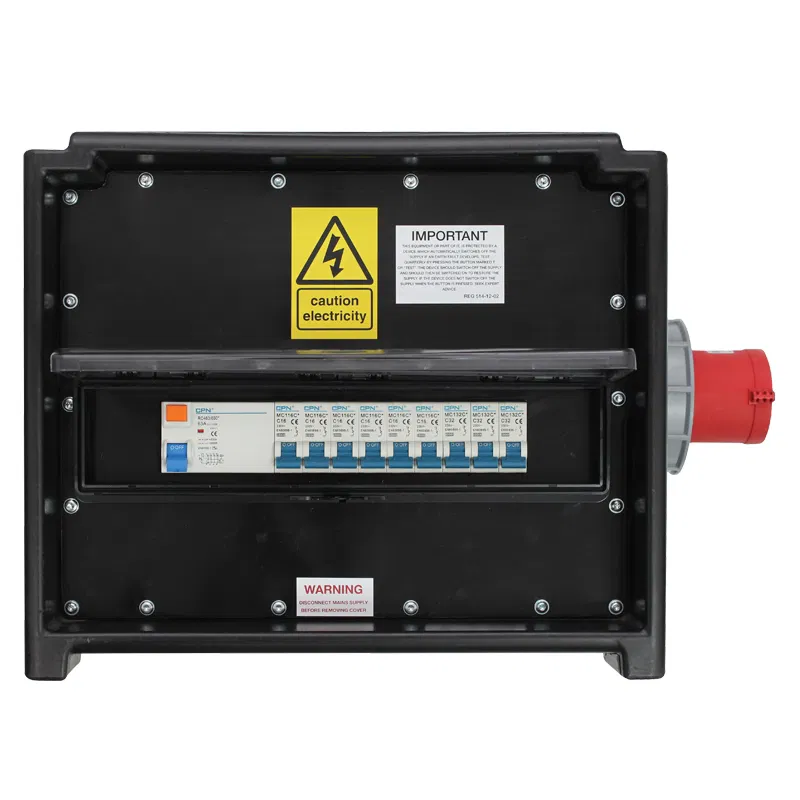

Outputs: 3 x 32A 220-250V~50/60Hz 2P+E sockets, 6 x 16A 220-250V~50/60Hz 2P+E sockets each protected by a C type MCB
Overall protection via 30mA 4-Pole RCD
Dimensions (H x W x D): 345 x 520 x 350mm
Weight: 10.6kg

Weight

10.6 kg

Dimensions

35 × 52 × 34.3 cm
