Name: Distribution Box 63A 3PH to 32A RCBO
SKU: CONN365
Price: 1390.00 GBP
Availability: InStock

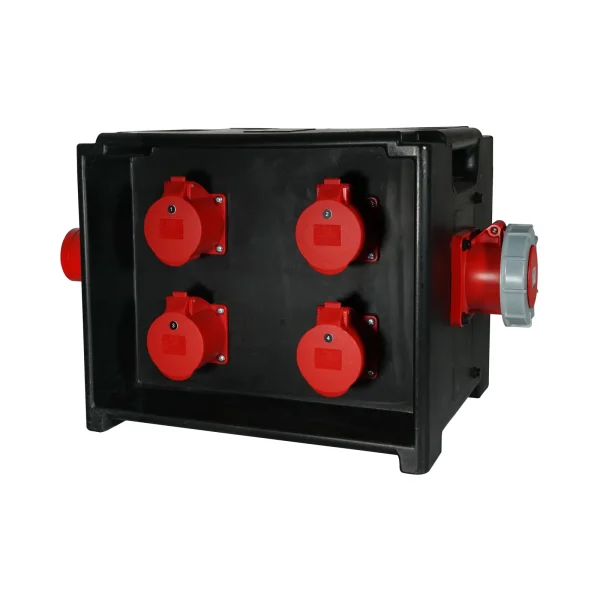

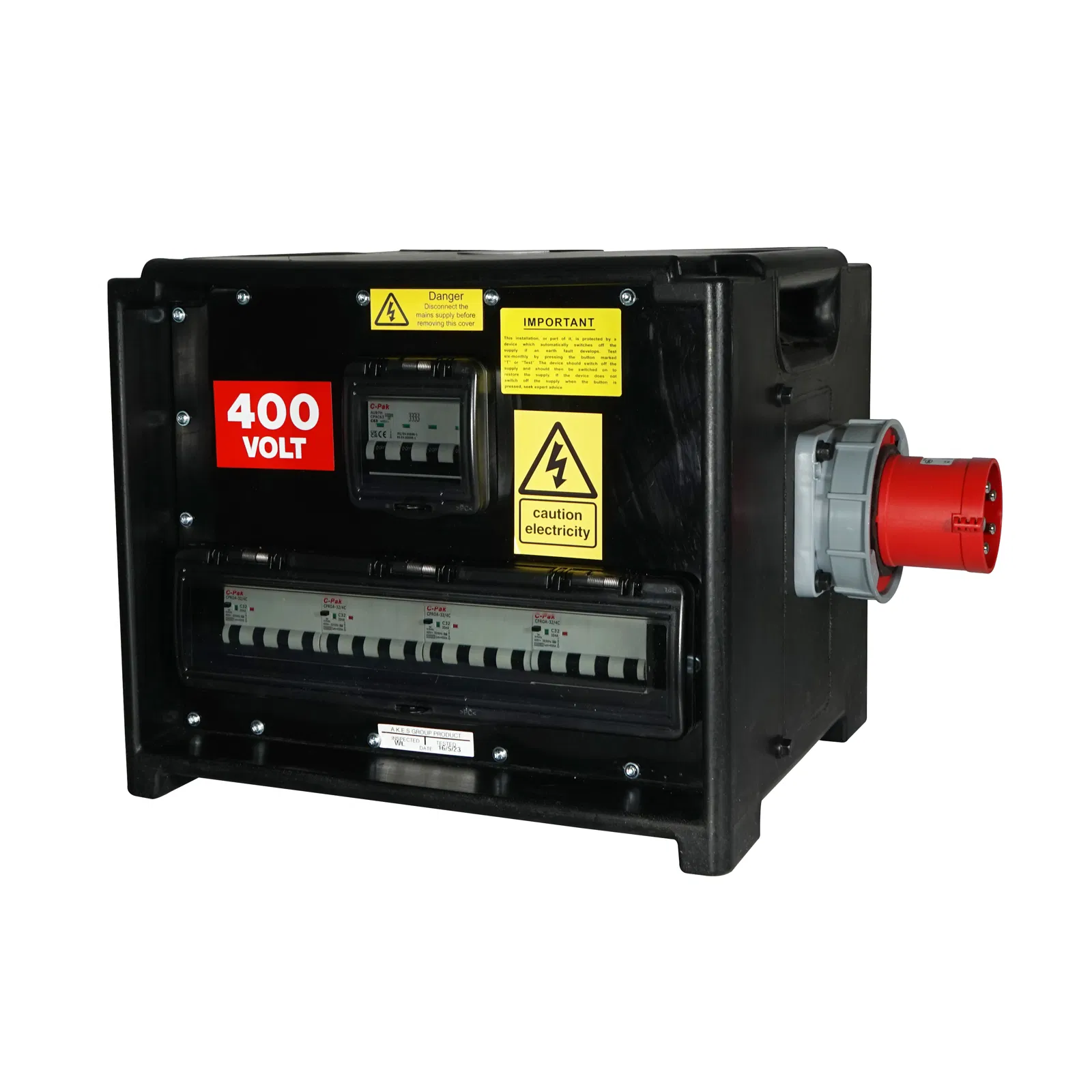

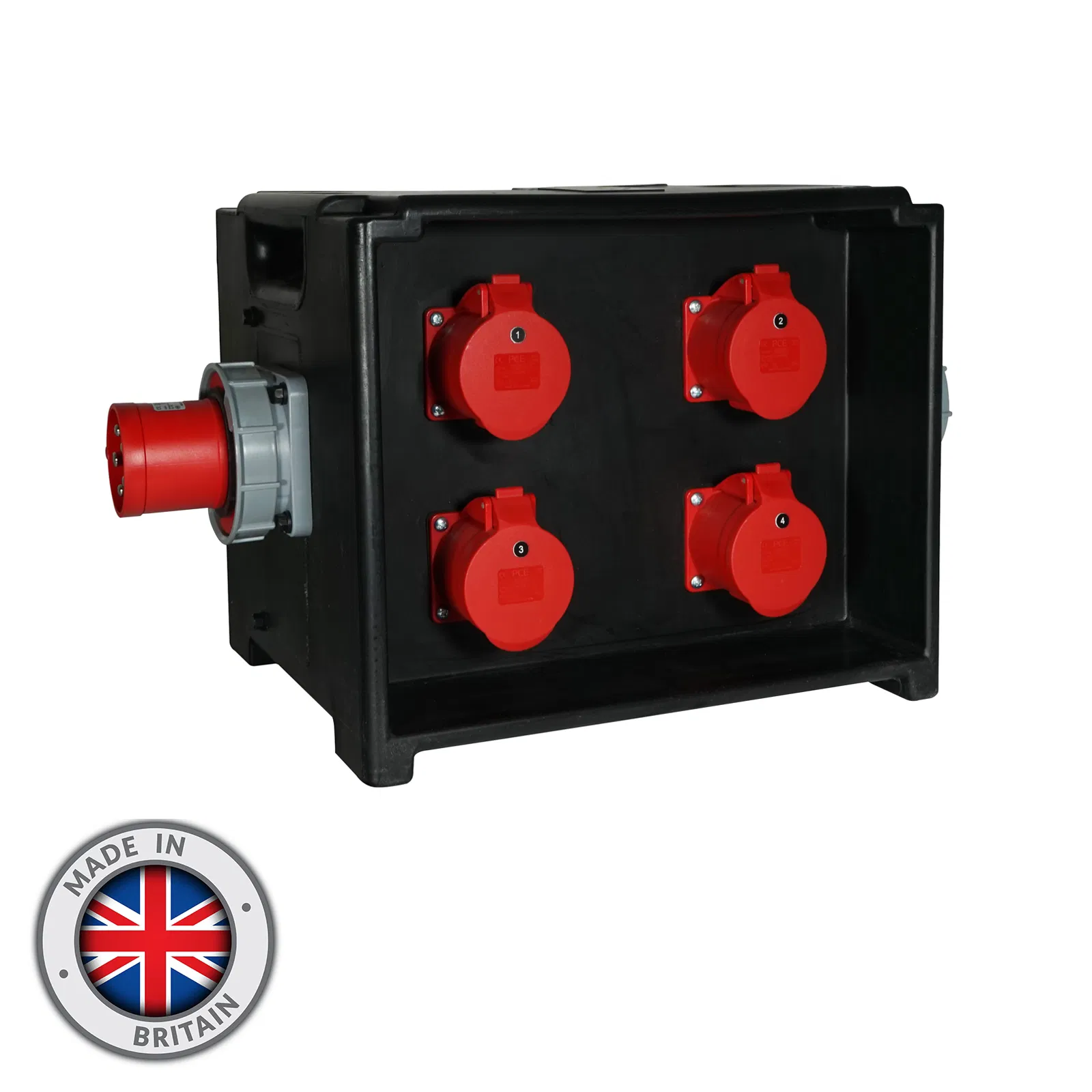

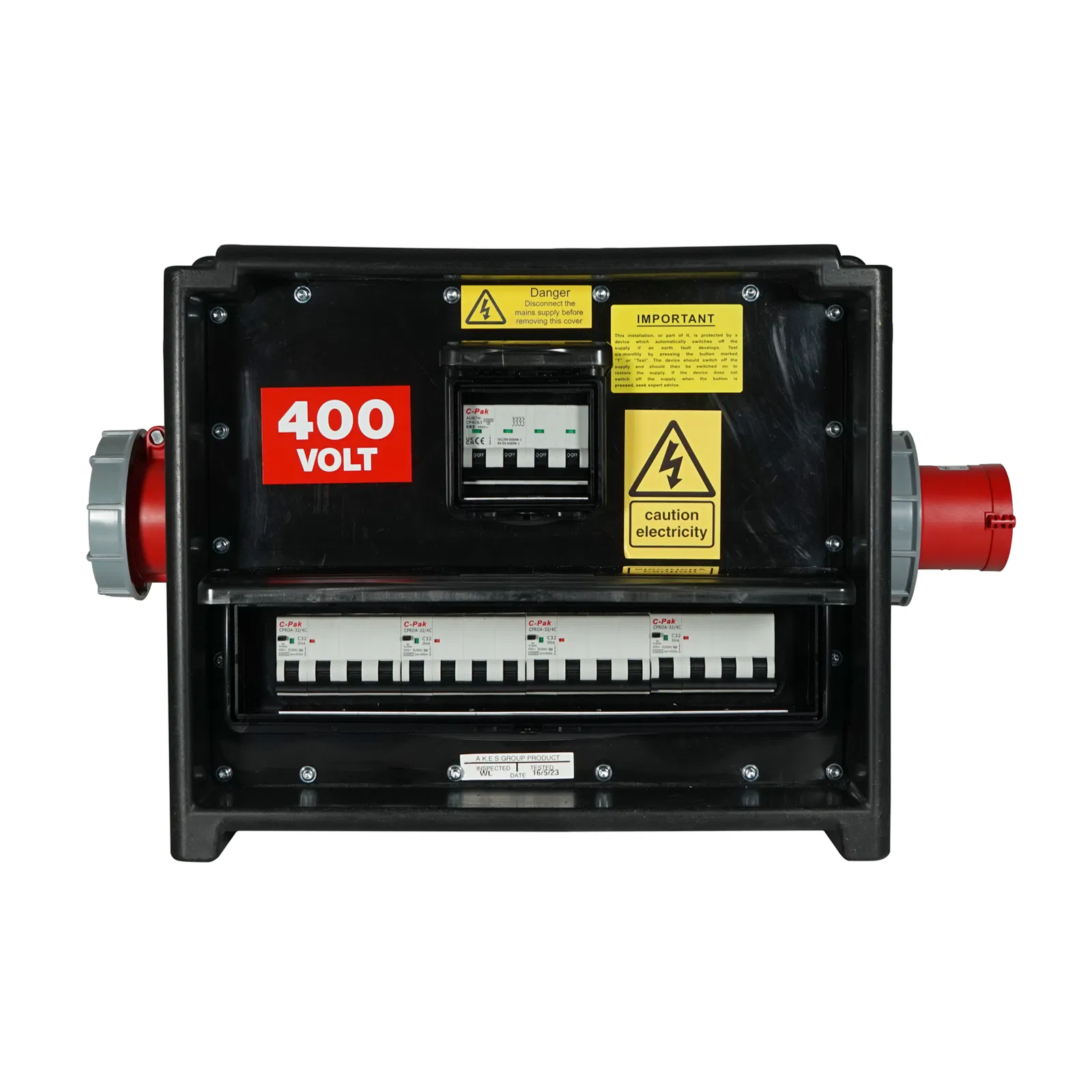

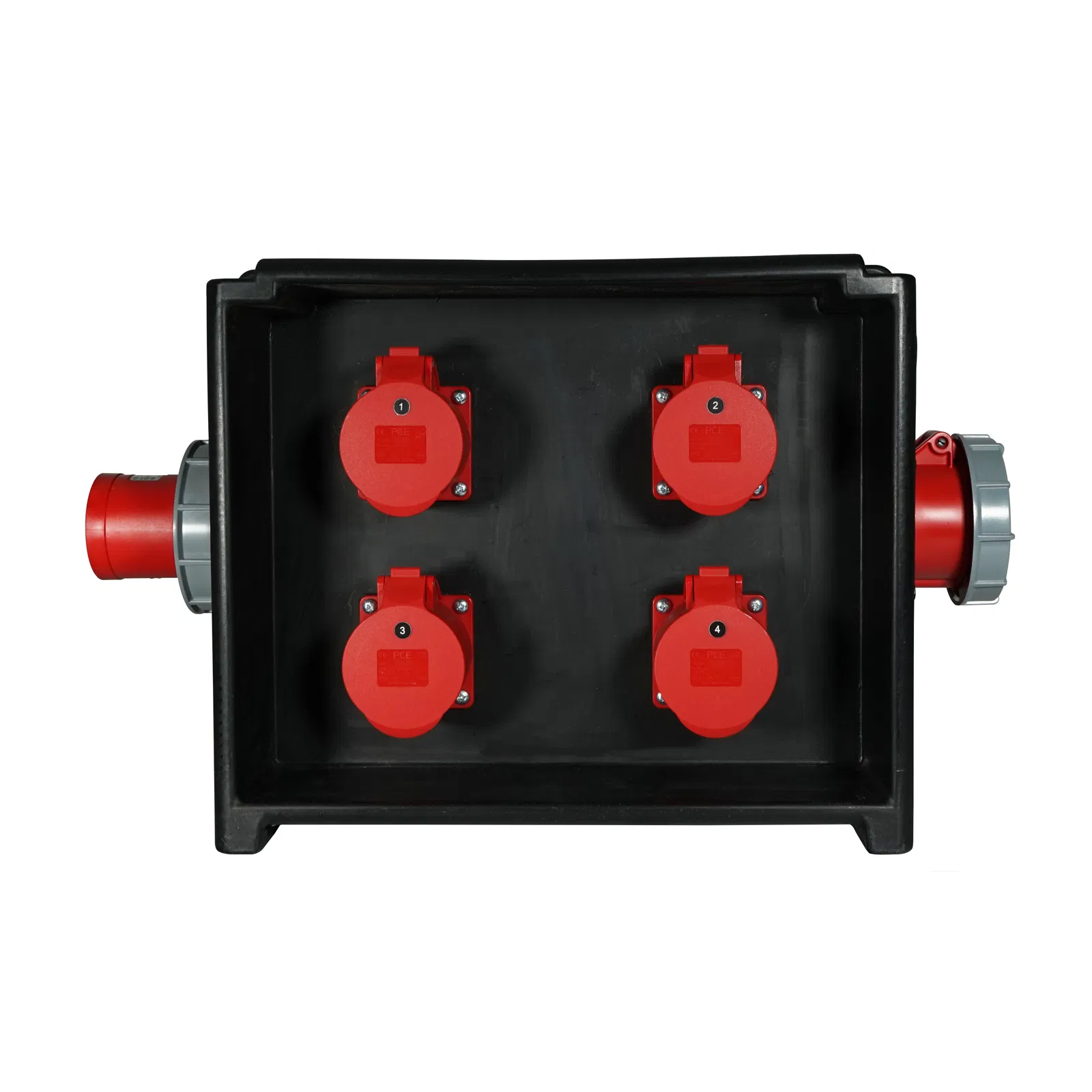

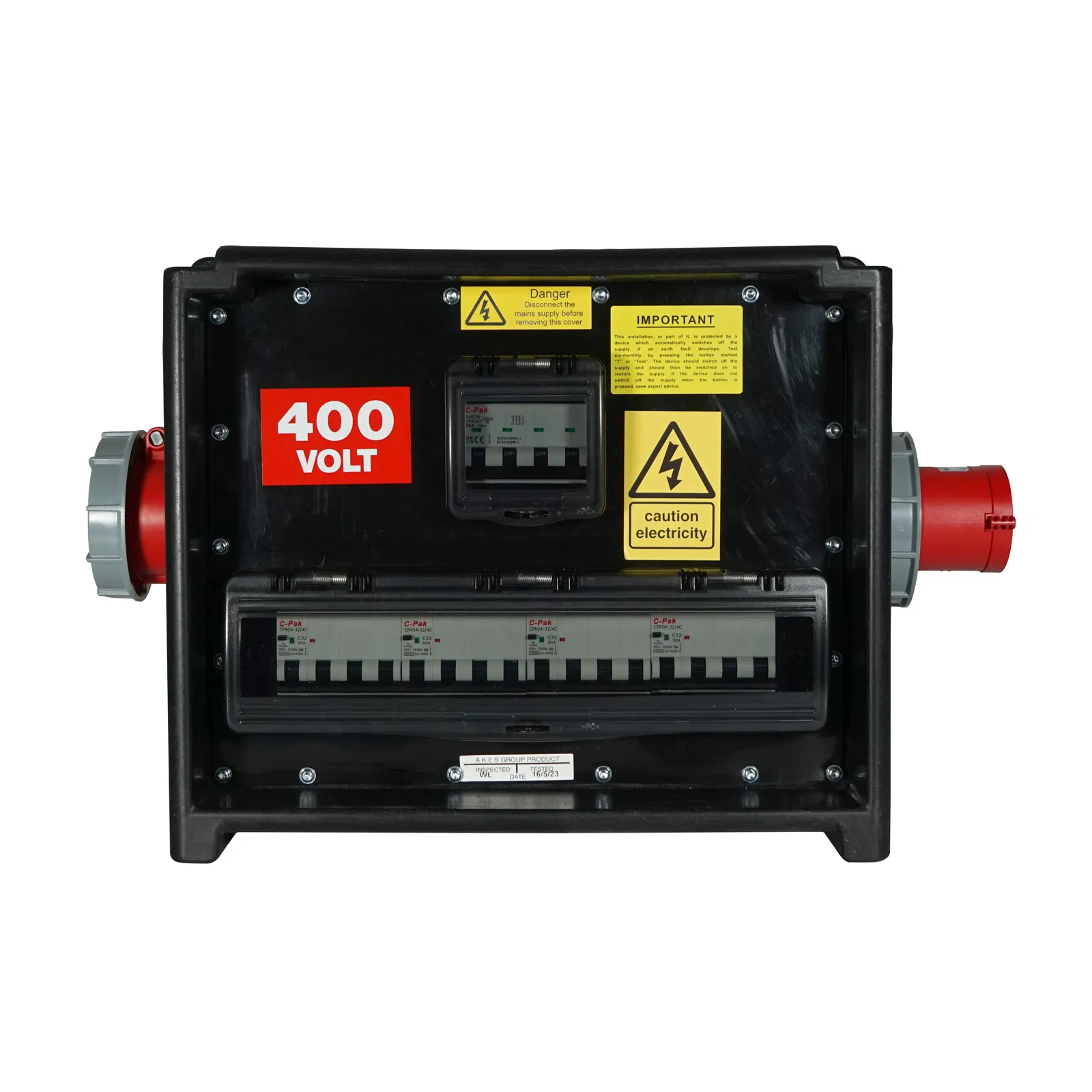

MERZ Distribution Box 63A 3PH to 32A RCBO

These PCE MERZ 63A distribution boxes are robust, lightweight and made of shock-resistant thermoplastic. Suitable for events and rental, they are IP44 splash proof rated. Manufactured with 63A 3phase input protected by a 4-Pole Type-C MCB.

£1,390.00

Description

Features

Made in Britain

Handy, robust and lightweight distribution box made of shock-resistant thermoplastic

IP44 rated

Stackable design for space saving

Specifications

Input: 63A 415V~50/60Hz 5-Pin 3P+N+E IP67 chassis plug protected by a 4-Pole type C MCB
Outputs: 4 x 32A 400V~50/60Hz 3P+N+E IP44 sockets each protected by 32A 30mA 4-Pole Type-A RCBO
Dimensions (H x W x D): 193 x 579 x 343mm
Weight: 13.6kg
