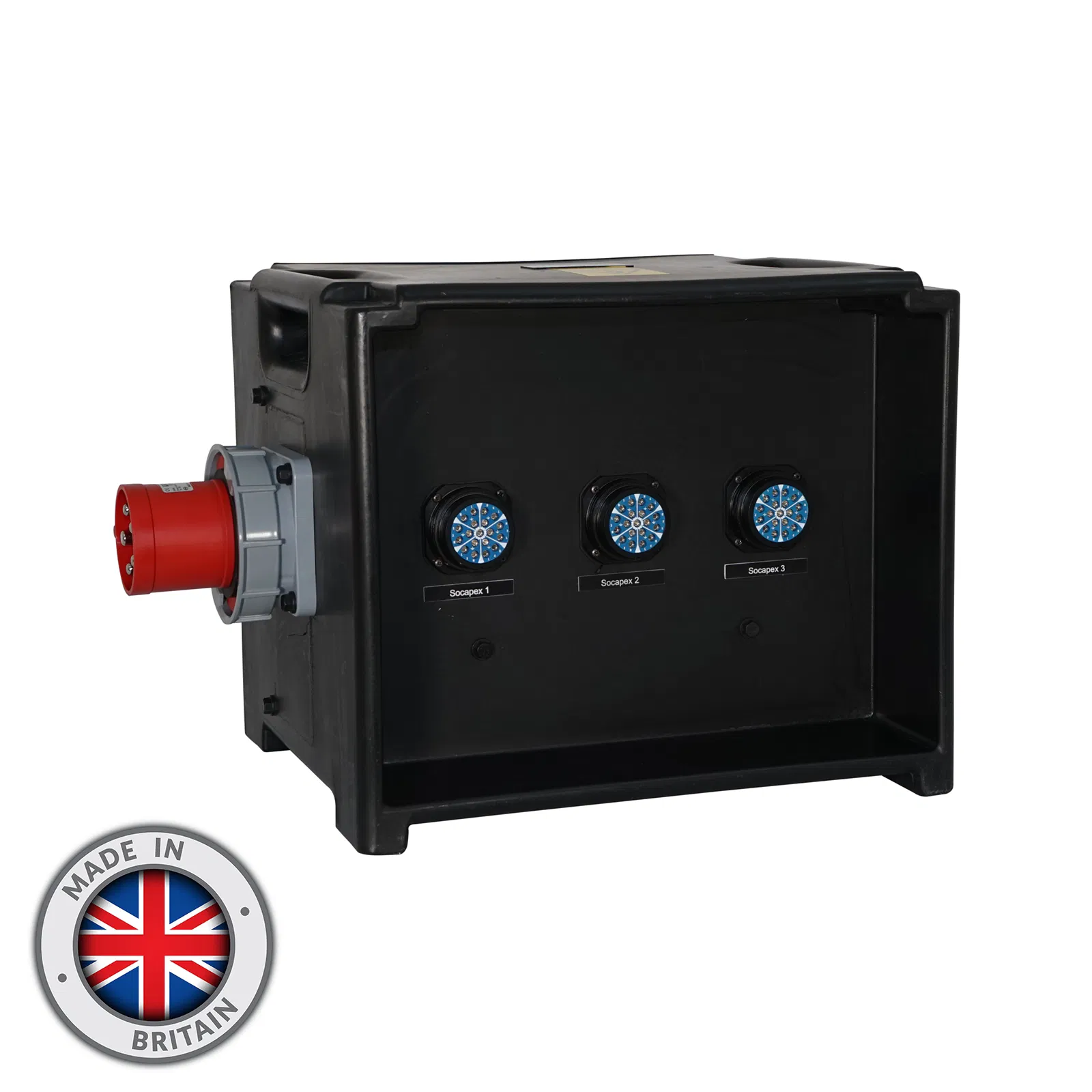

MERZ Distribution Box 63A 3PH to Socapex

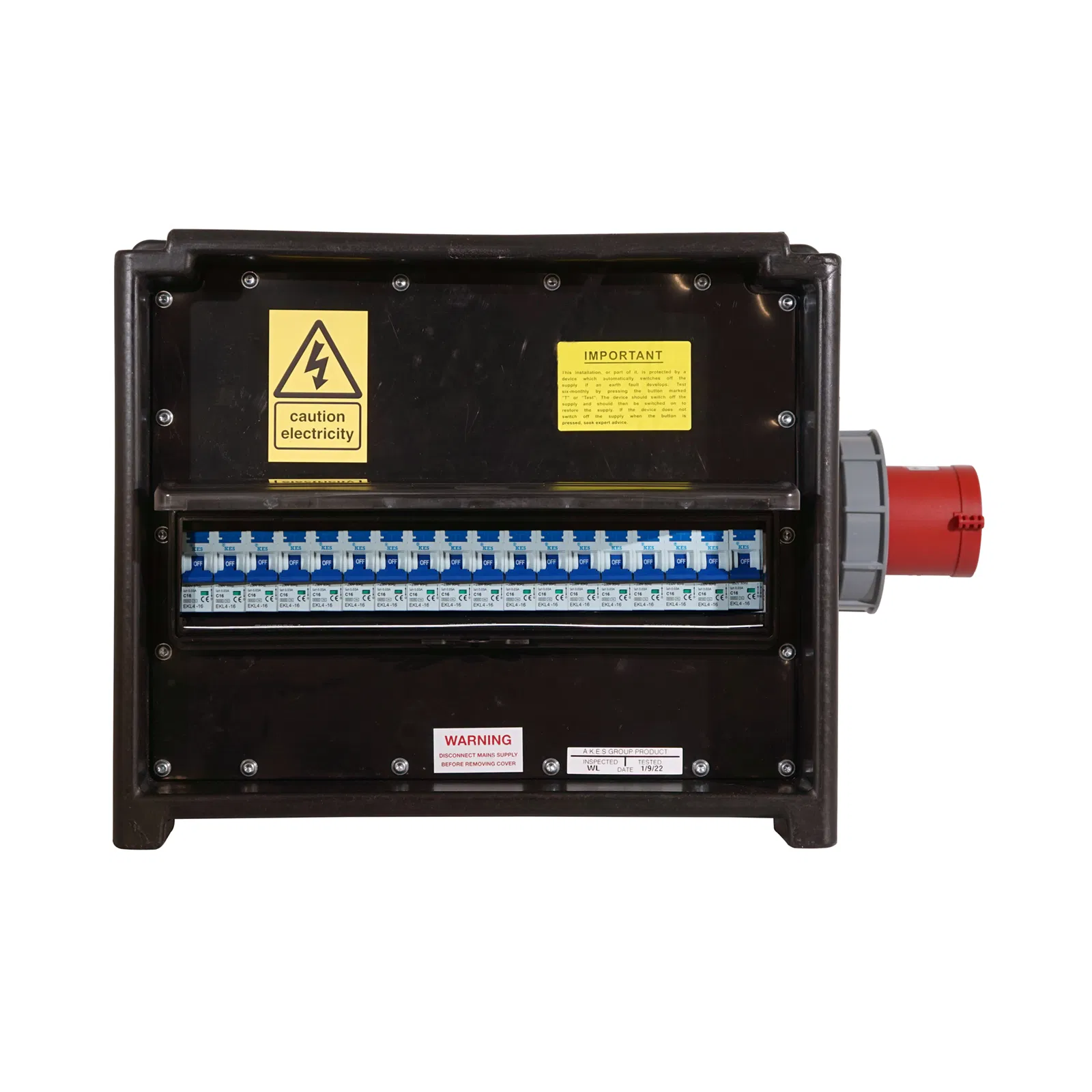

MERZ Distribution Box 63A 3PH to Socapex - Image 2

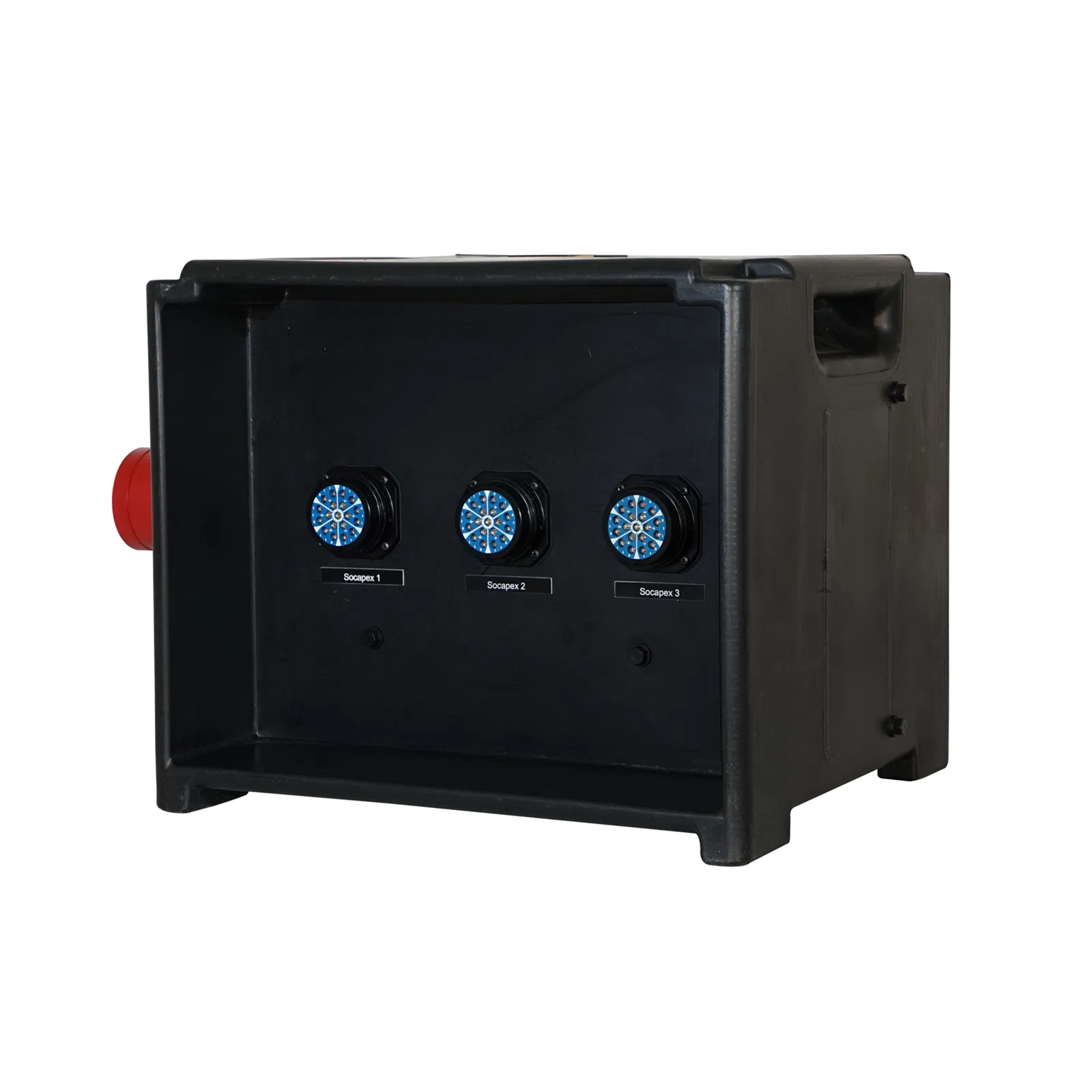

MERZ Distribution Box 63A 3PH to Socapex - Image 3

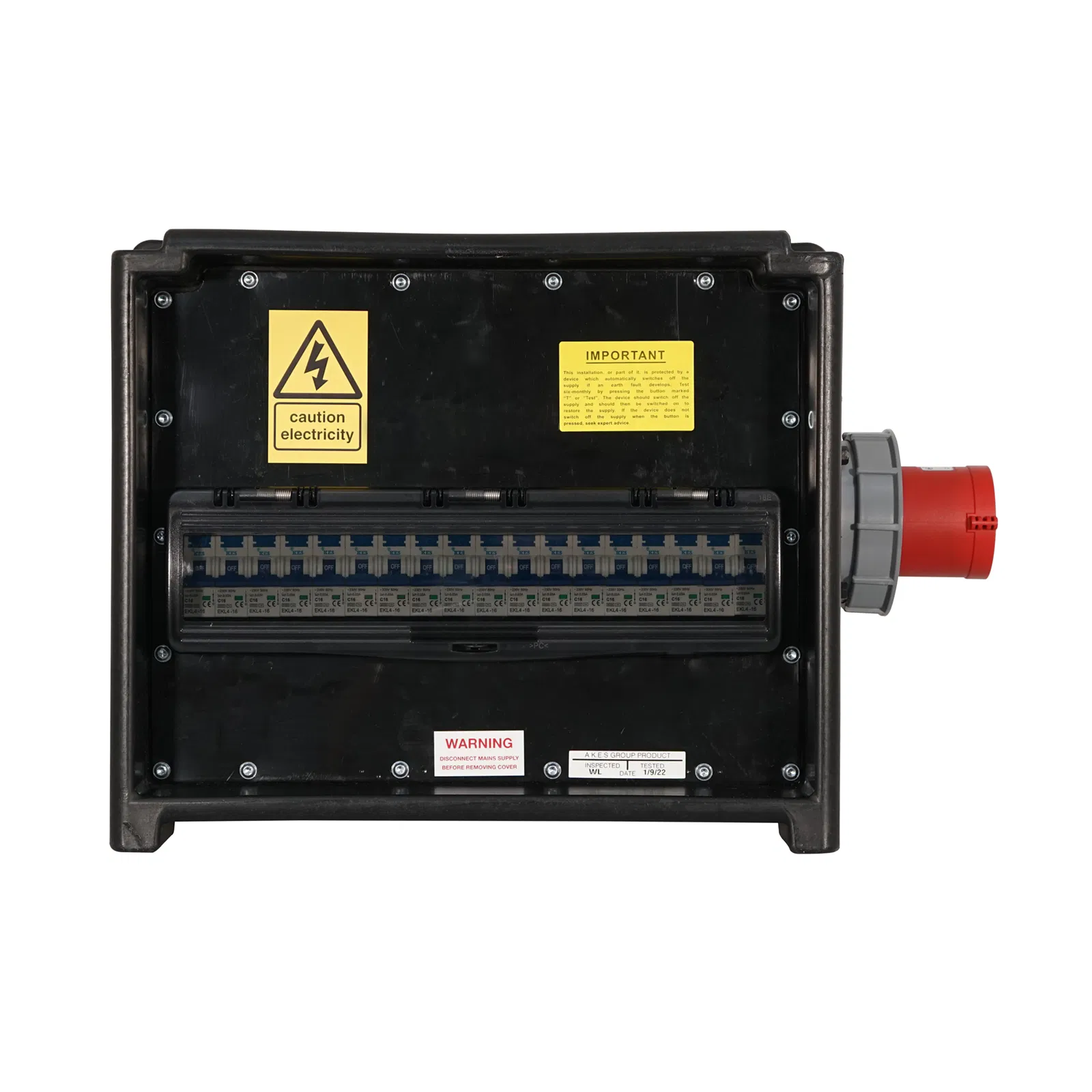

MERZ Distribution Box 63A 3PH to Socapex - Image 4

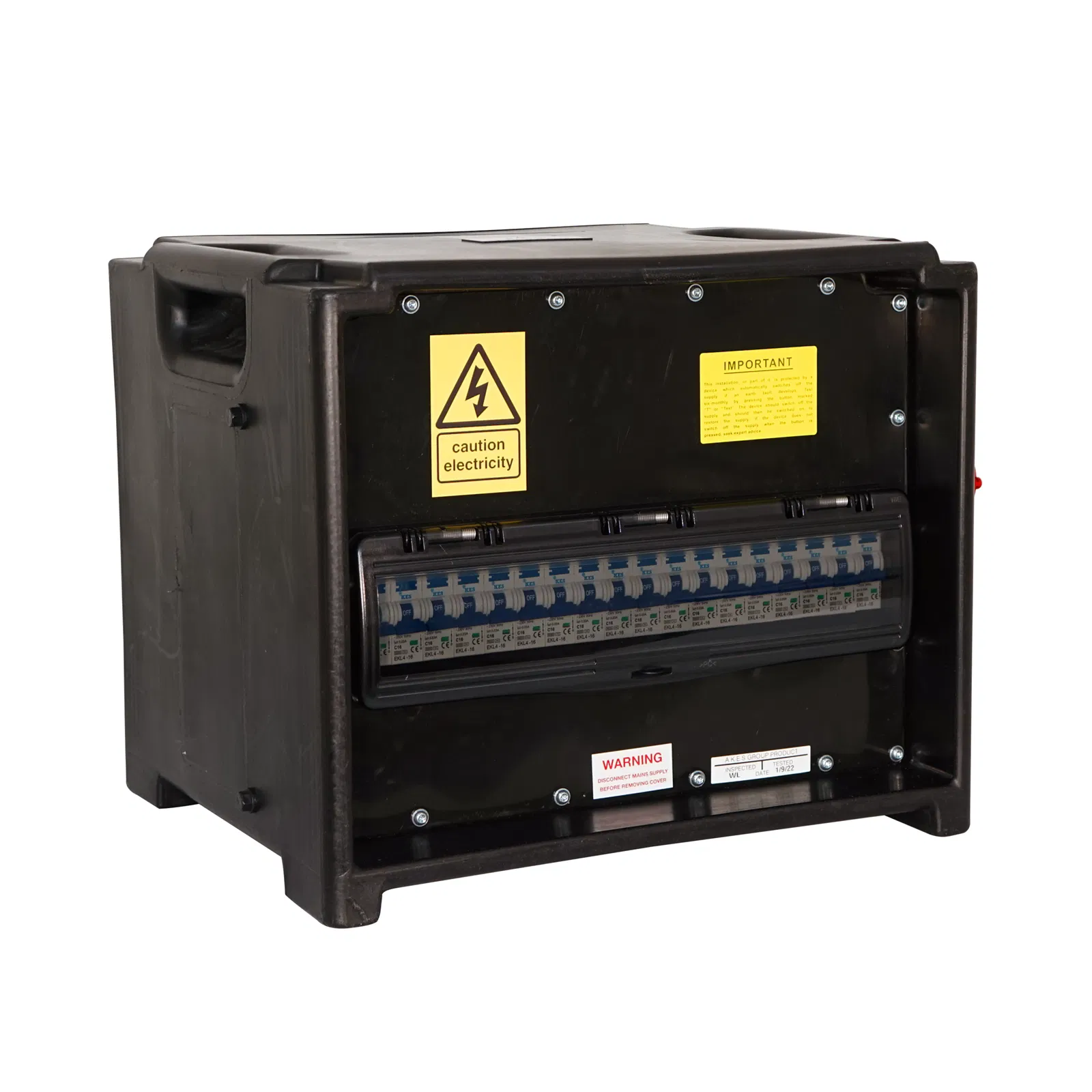

MERZ Distribution Box 63A 3PH to Socapex - Image 5

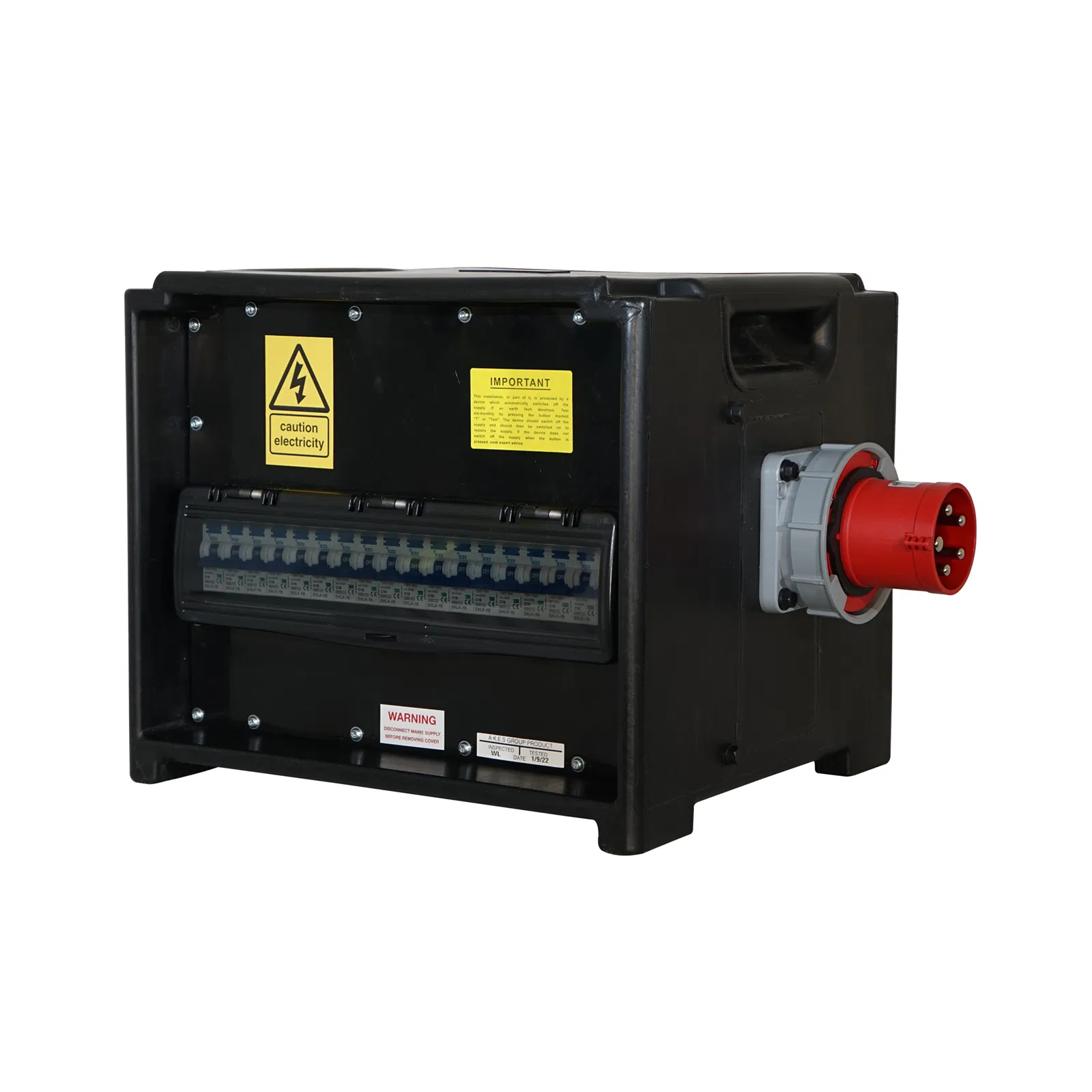

MERZ Distribution Box 63A 3PH to Socapex - Image 6

MERZ Distribution Box 63A 3PH to Socapex

SKU: CONN360 Categories: , Tags: , ,

MERZ Distribution Box 63A3PH to Socapex

These PCE MERZ 63A distribution boxes are robust, lightweight and made of shock-resistant thermoplastic. Suitable for events and rental, they are IP44 splash proof rated.

£2,055.00

View your Basket

Description

These PCE MERZ 63A distribution boxes are robust, lightweight and made of shock-resistant thermoplastic. Suitable for events and rental, they are IP44 splash proof rated.

Requires a three-phase input supply, but distributes power to single-phase outputs via Socapex connectors – each carrying 6 × 16A circuit.  Ideal for splitting a three-phase feed into multiple single-phase circuits.

Features

  • Made in Britain
  • Handy, robust and lightweight distribution box made of shock-resistant thermoplastic
  • IP44 rated
  • Stackable design for space saving

Specifications

  • Input: 63A 415V~50/60Hz 5-Pin 3P+N+E IP67 chassis inlet
  • Outputs: 3 x 19pin Socapex sockets each protected by 6 x 16A 30mA 2p Type C RCBO

Additional information

Weight 5 kg
