MERZ Distribution Box 63A to 32A/16A RCBO

These PCE MERZ distribution boxes are robust, lightweight and made of shock-resistant thermoplastic. Suitable for events and rental, they are IP44 splash proof rated.

£999.00

View your Basket

Description

These PCE MERZ distribution boxes are robust, lightweight and made of shock-resistant thermoplastic. Suitable for events and rental, they are IP44 splash proof rated.

Requires a three-phase input supply, but distributes power to single-phase outputs only — making it ideal for splitting a three-phase feed into separate single-phase circuits.

Features

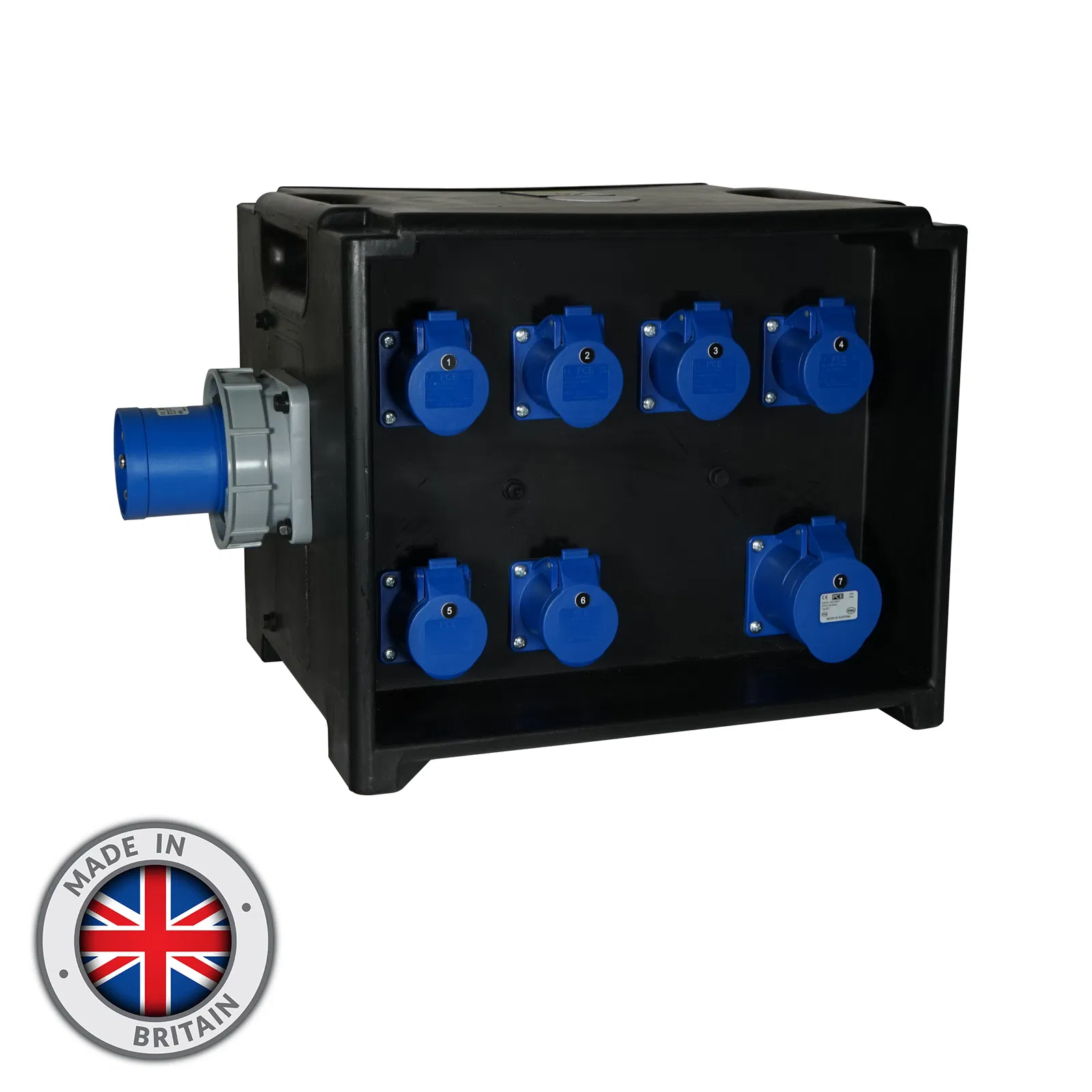

  • Made in Britain
  • Handy, robust and lightweight distribution box made of shock-resistant thermoplastic
  • IP44 rated
  • Stackable design for space saving

Specifications

  • Input: 63A 240V~50/60Hz 5-Pin 1P+N+E IP67 chassis plug

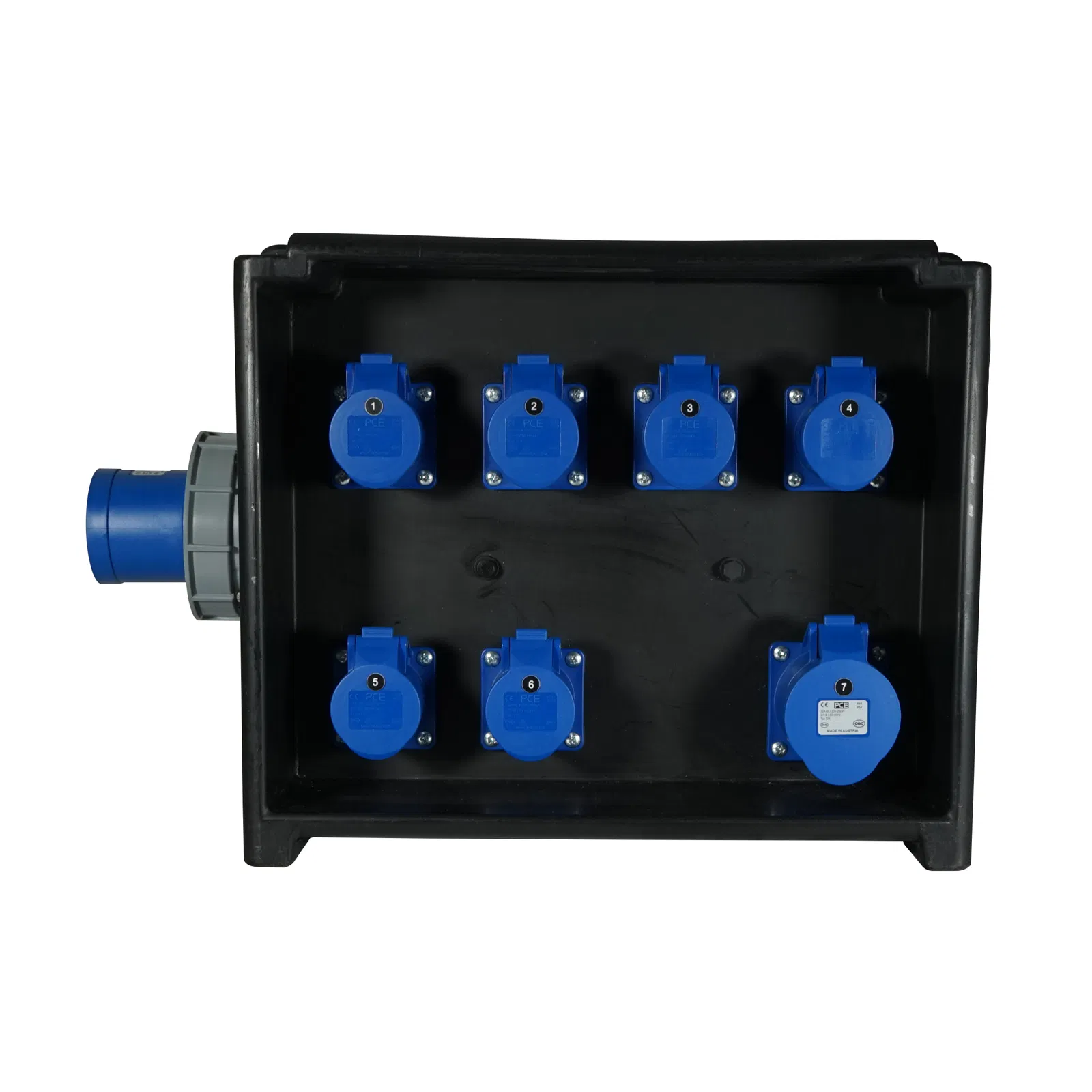

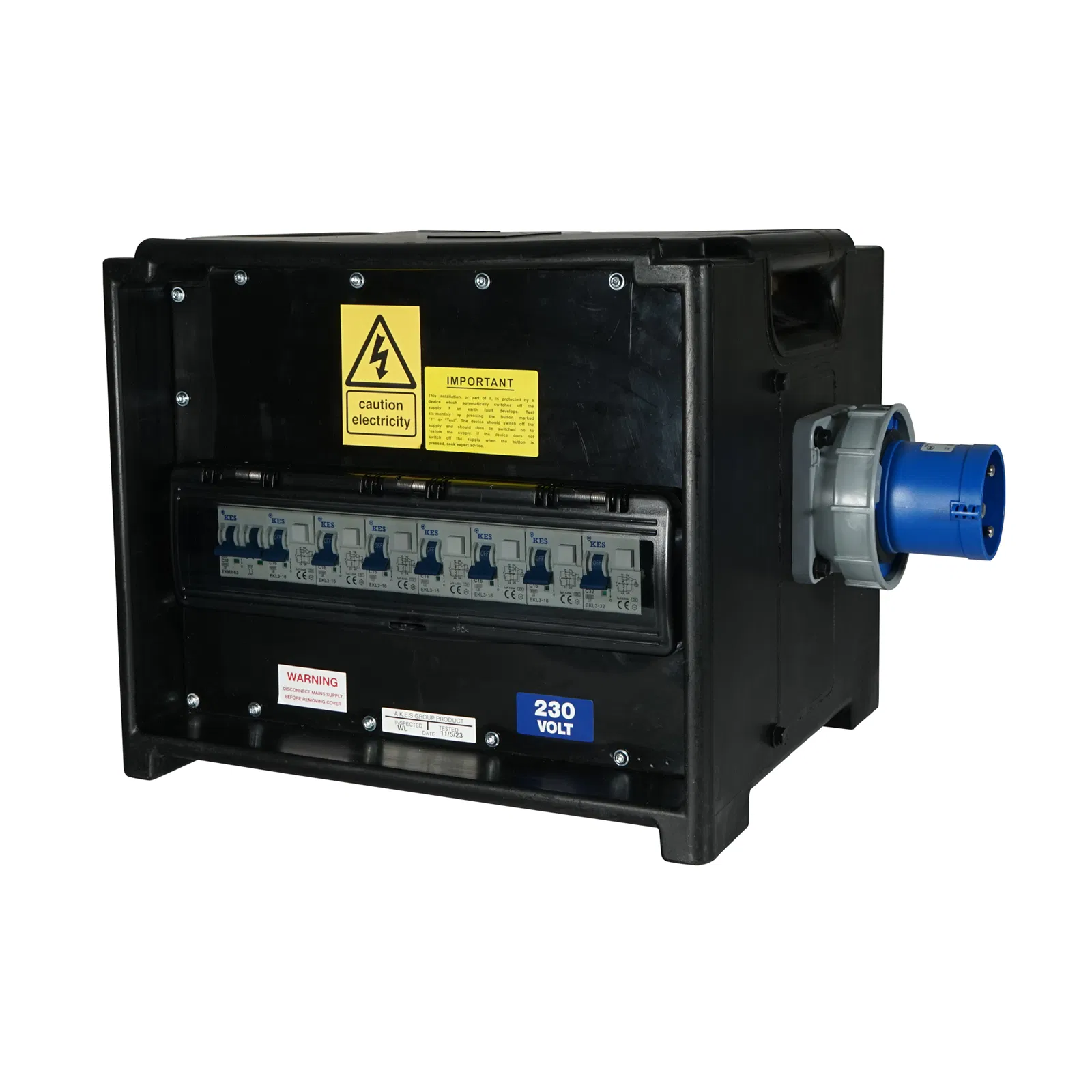

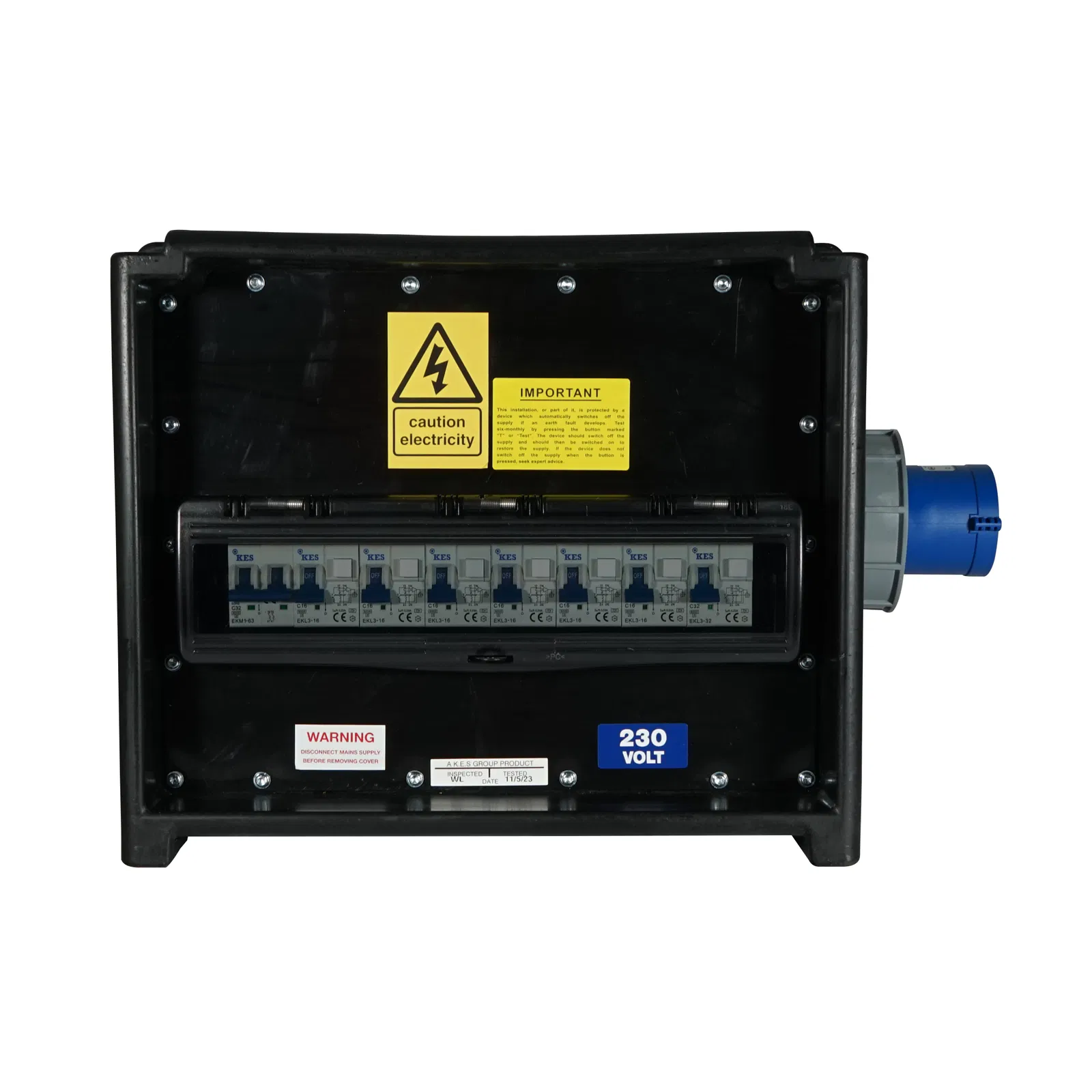

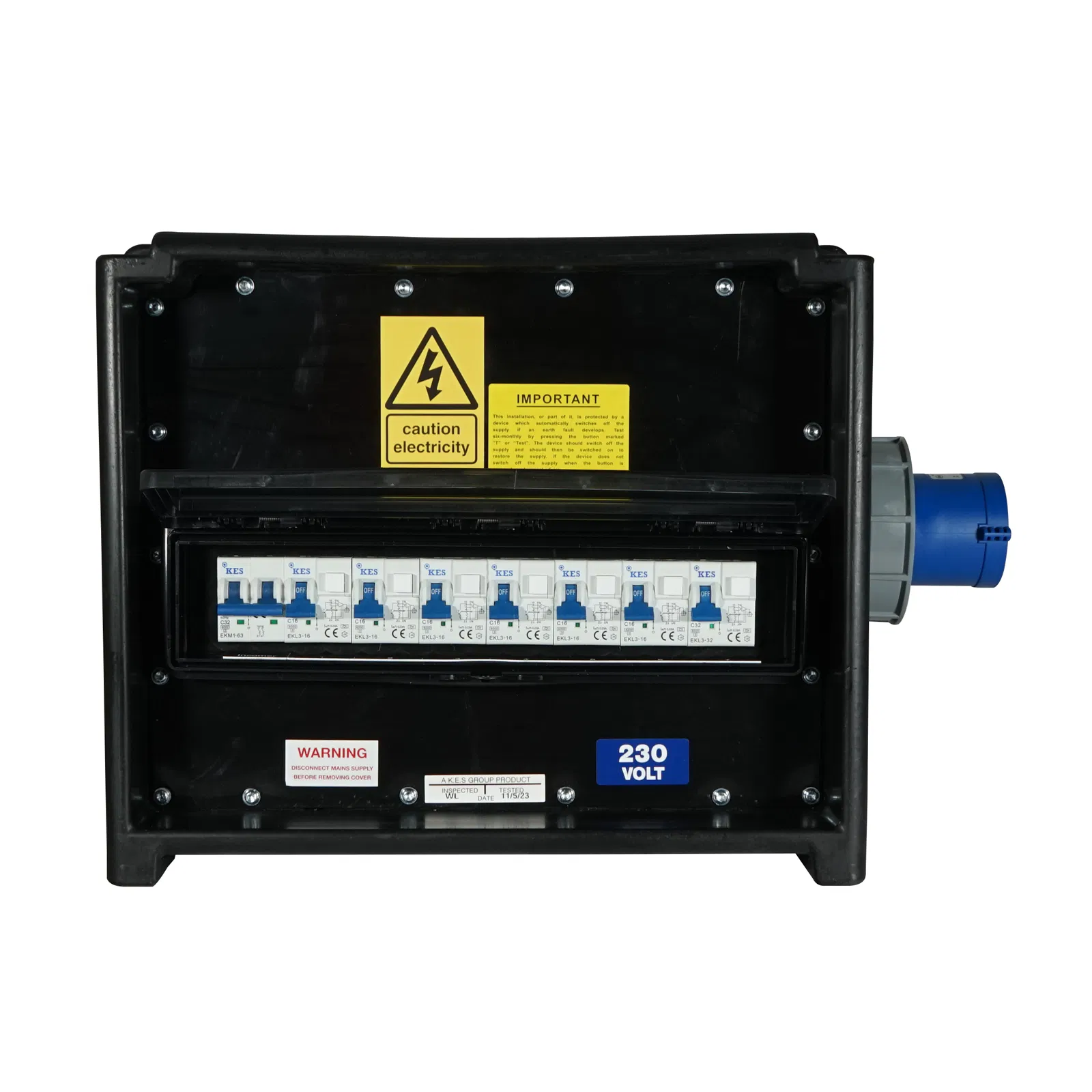

  • Outputs: 1 x 32A 220-250V~50/60Hz 2P+E sockets, 6 x 16A 220-250V~50/60Hz 2P+E sockets each protected by a C type dual pole RCBO
  • Dimensions (H x W x D): 343 x 508 x 343mm
  • Weight: 10.5kg

Additional information

Weight 10.5 kg
Dimensions 34.3 × 50.8 × 34.3 cm
