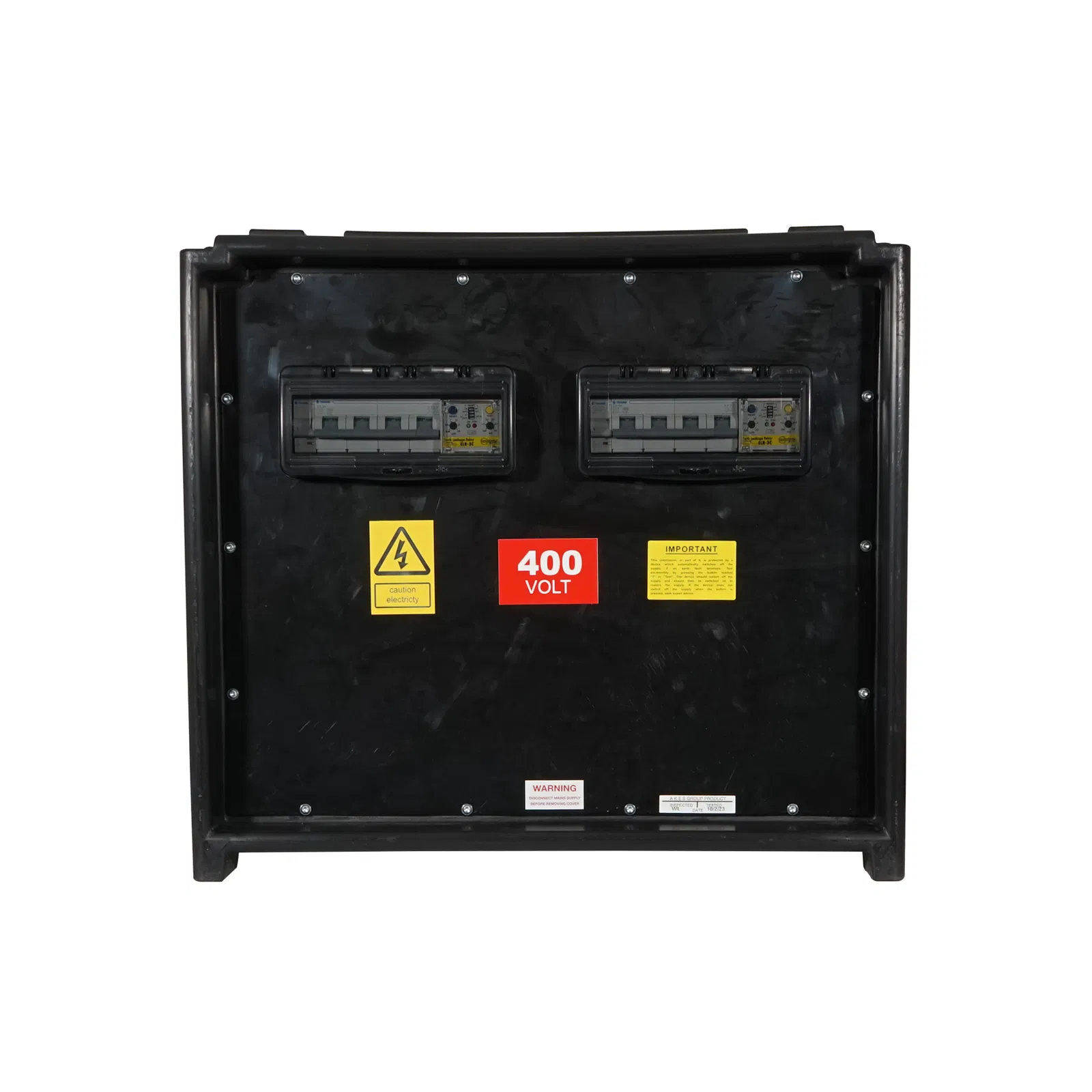

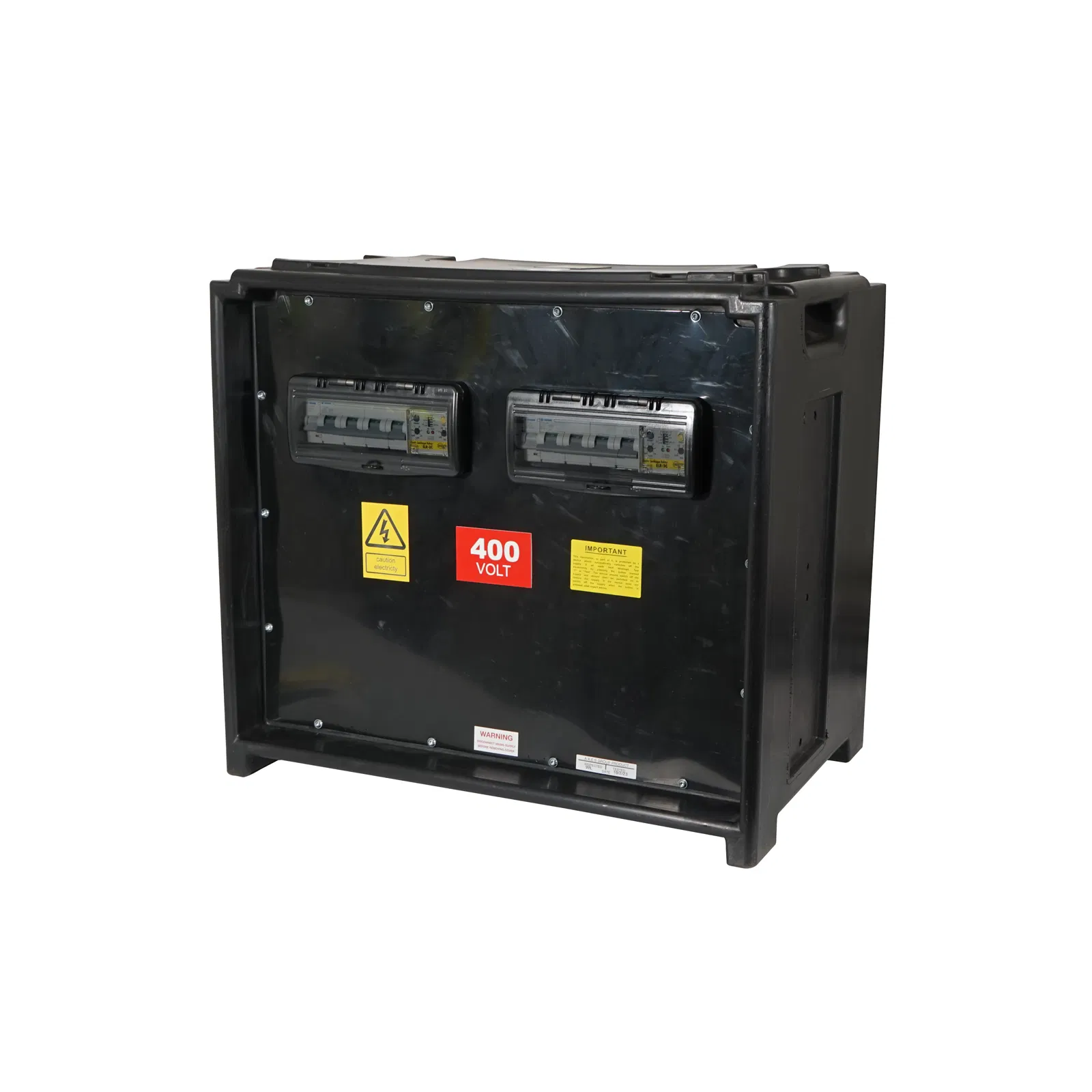

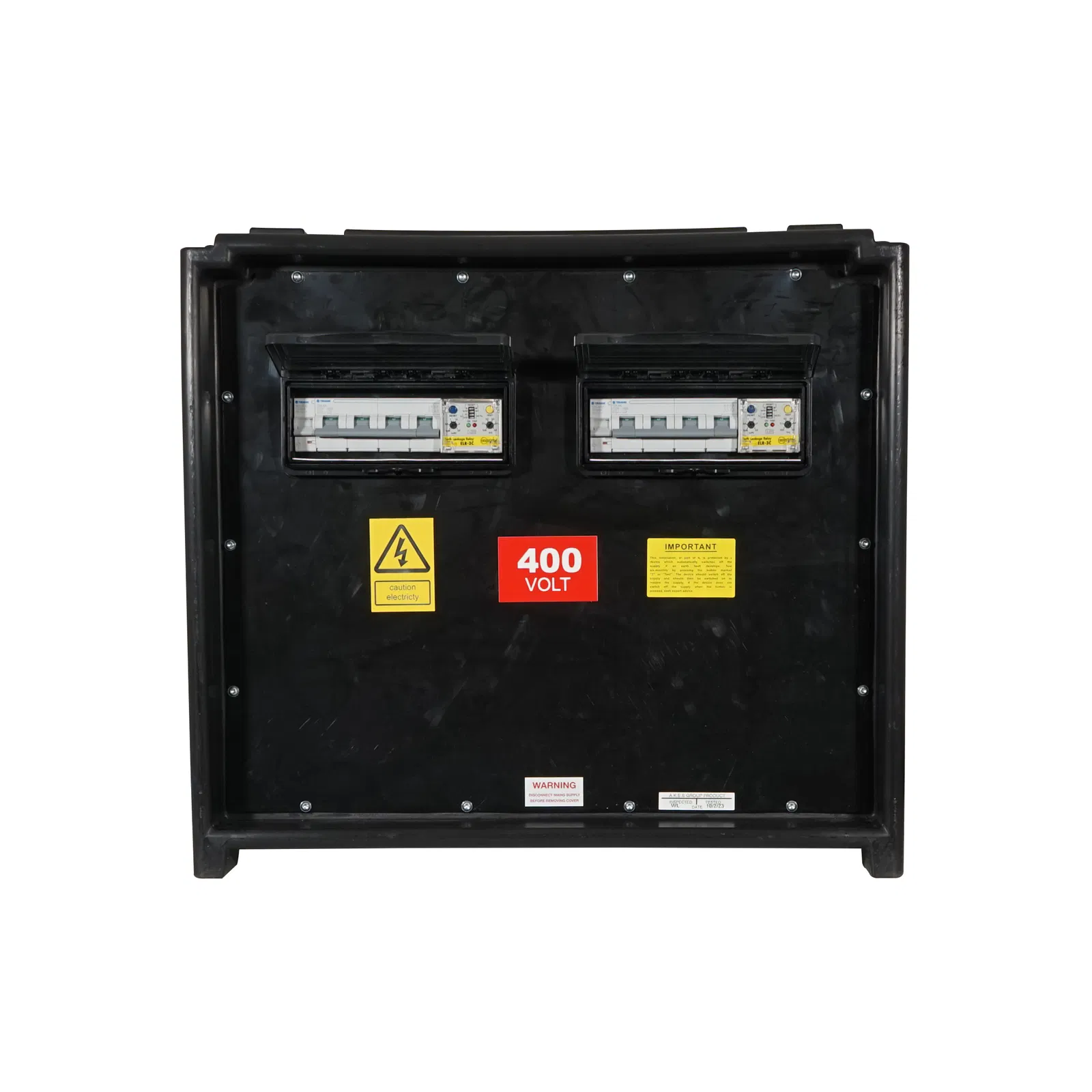

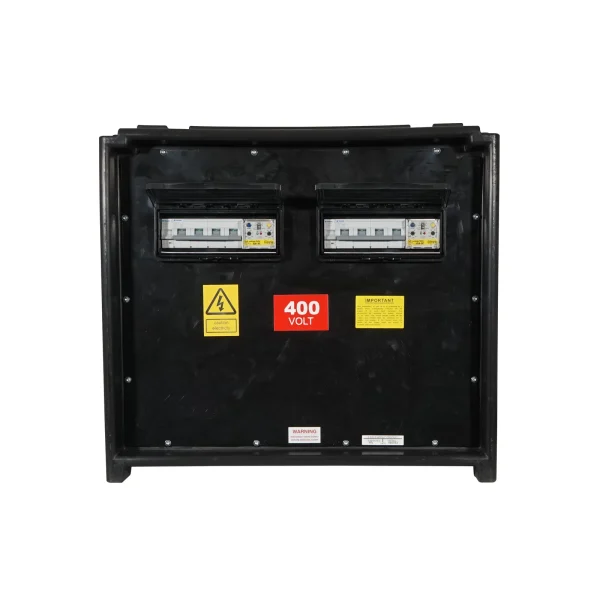

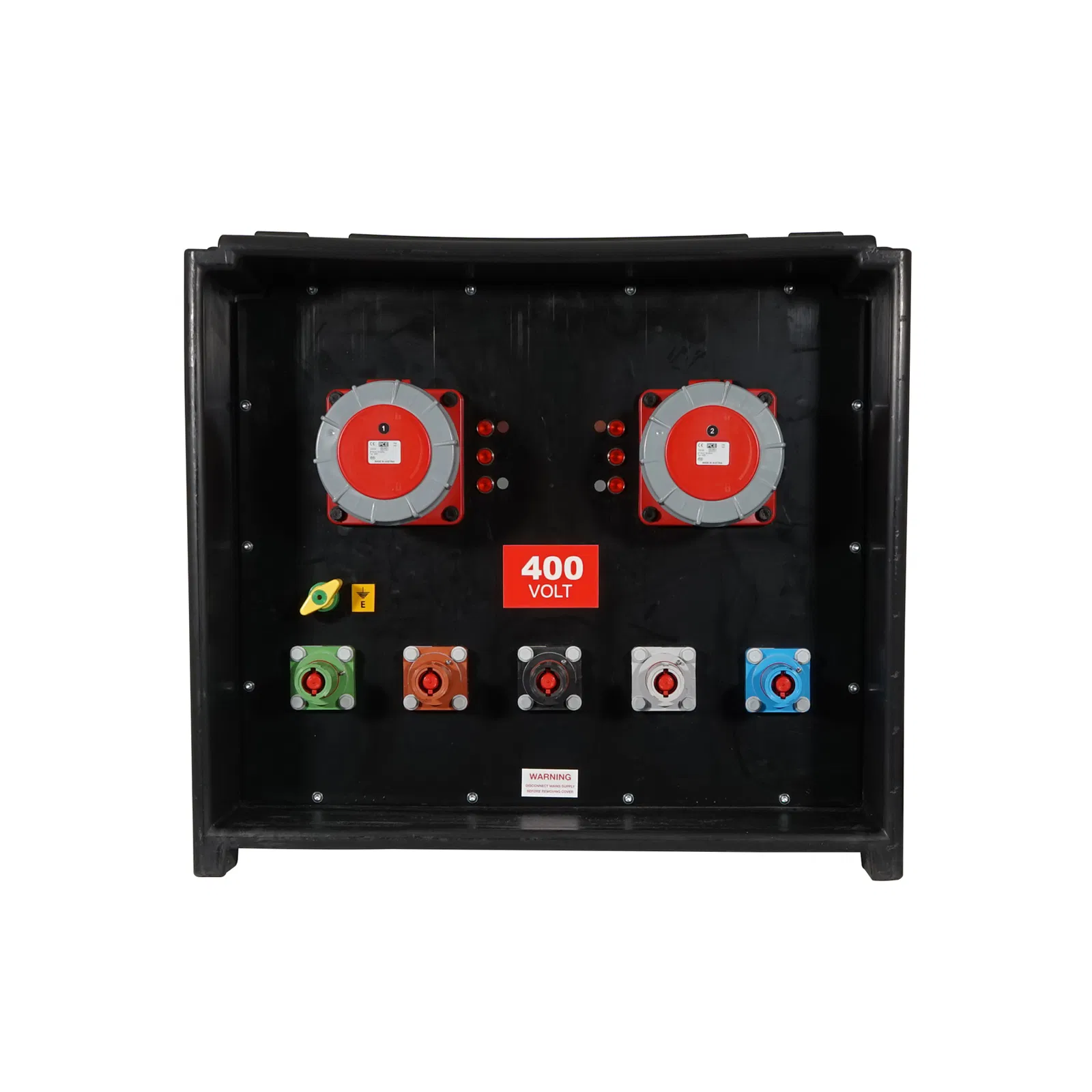

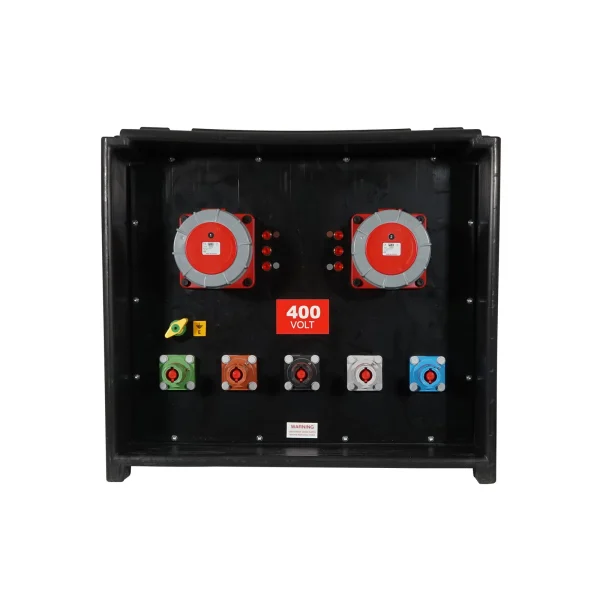

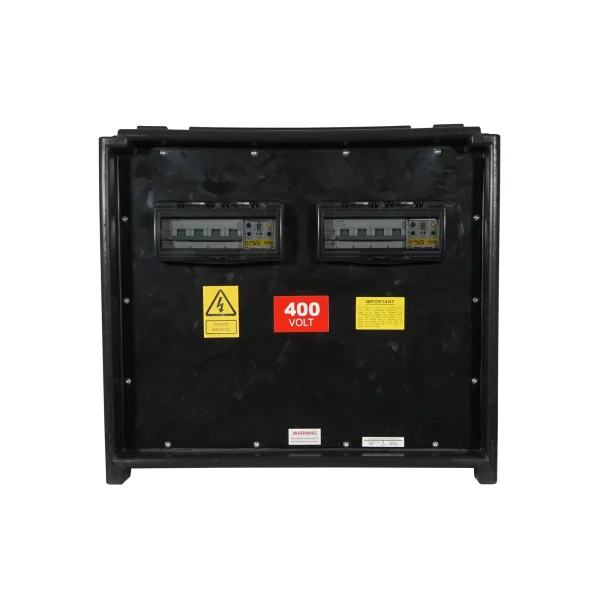

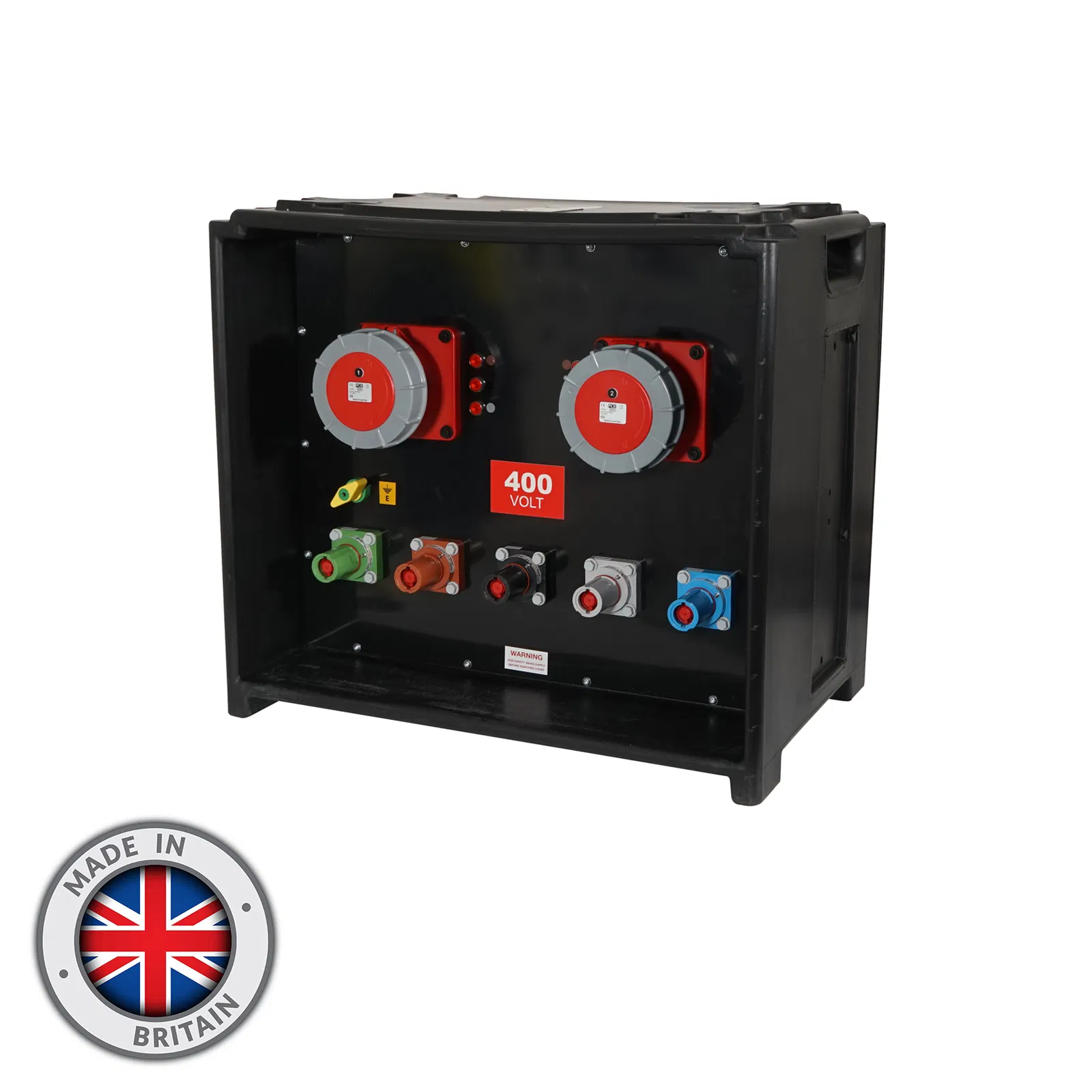

MERZ Distribution Box Powerlock to 125A 3PH

SKU: CONN392 Categories: , Tags: , ,

MERZ Distribution Box Powerlock to 125A 3PH

These PCE MERZ distribution boxes are robust, lightweight and made from shock-resistant thermoplastic. Suitable for events and rental, these 500A boxes are IP44 splash proof rated.

£3,025.00

View your Basket

Description

These PCE MERZ distribution boxes are robust, lightweight and made from shock-resistant thermoplastic. Suitable for events and rental, these 500A boxes are IP44 splash proof rated.

Features

  • Made in Britain
  • Handy, robust and lightweight distribution box made of shock-resistant thermoplastic
  • IP44 rated
  • Stackable design for space saving

Specifications

  • Input: 5 x 500A Power Lock appliance inlets (L1, L2, L3, N + E)
  • Outputs: 125A 400V 3P+N+E IP67 socket each protected by a 125A 4P MCB with variable earth leakage relay
  • Dimensions (H x W x D): 545 x 600 x 400mm
  • Weight: 21.9kg

Additional information

Weight 21.9 kg
Dimensions 40 × 60 × 54.5 cm
