Description

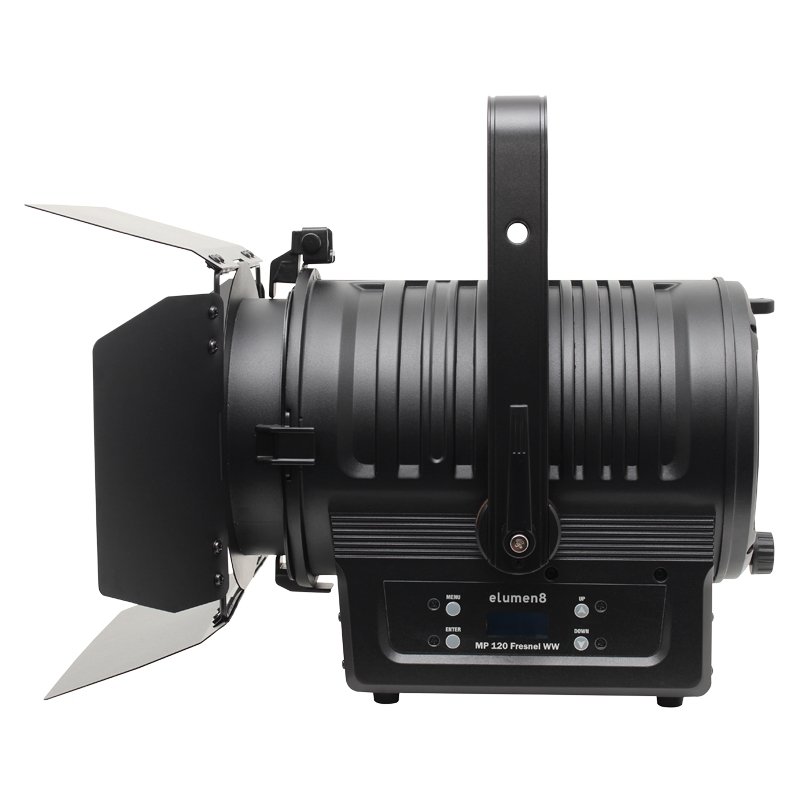

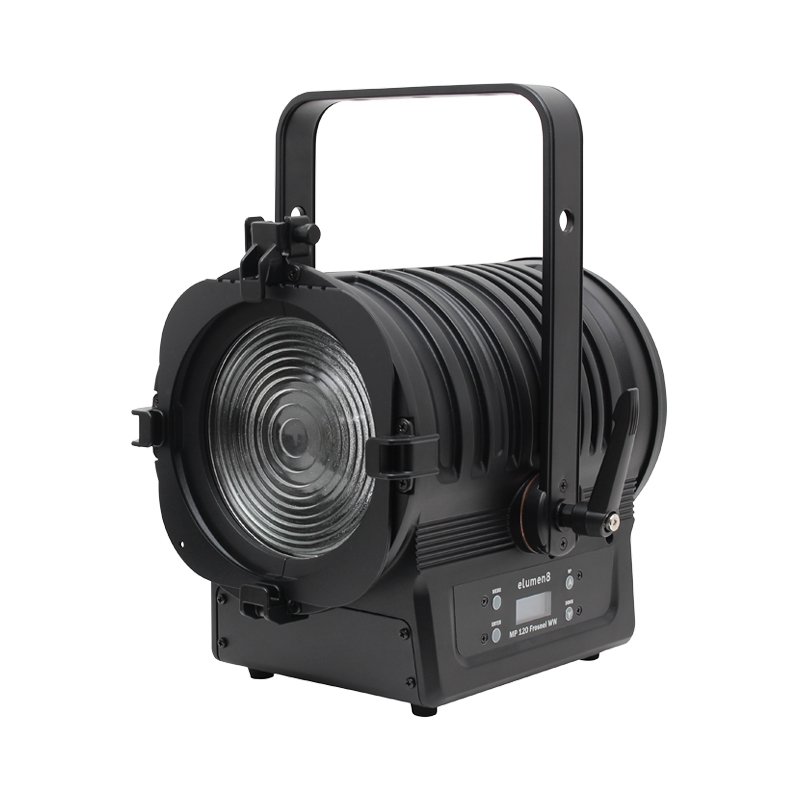

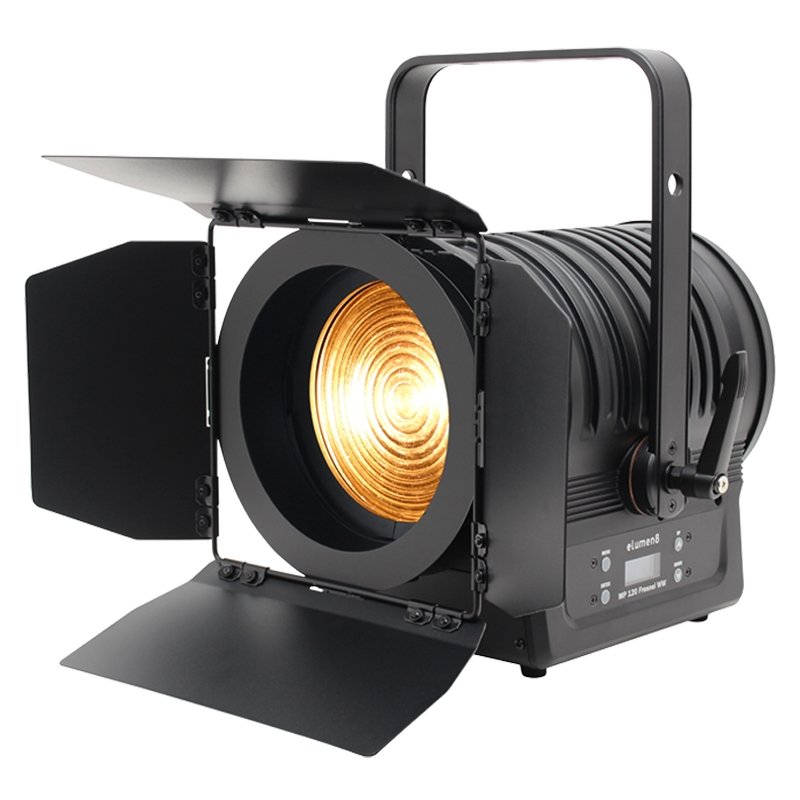

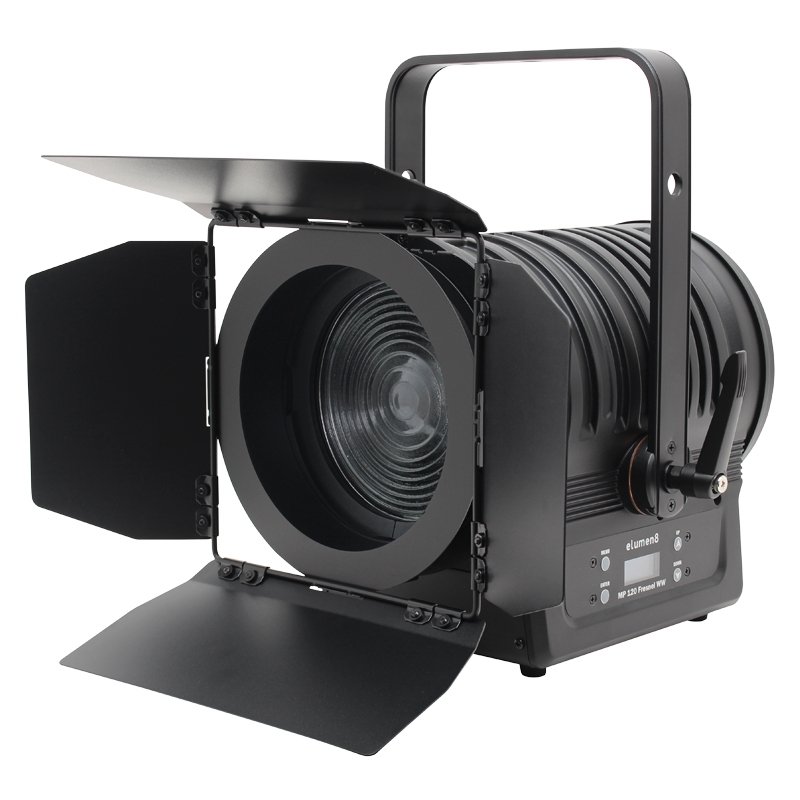

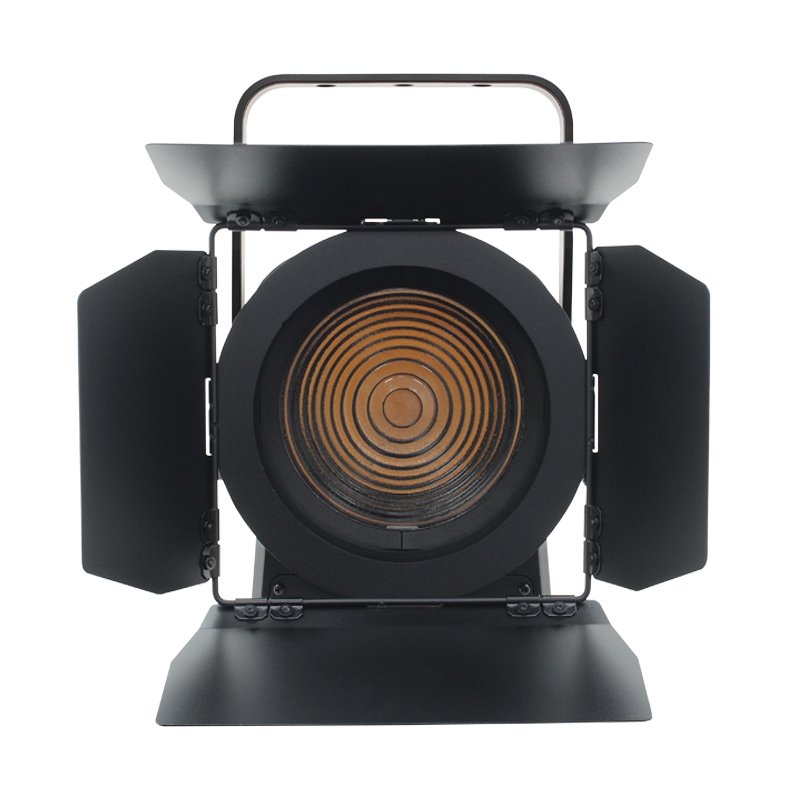

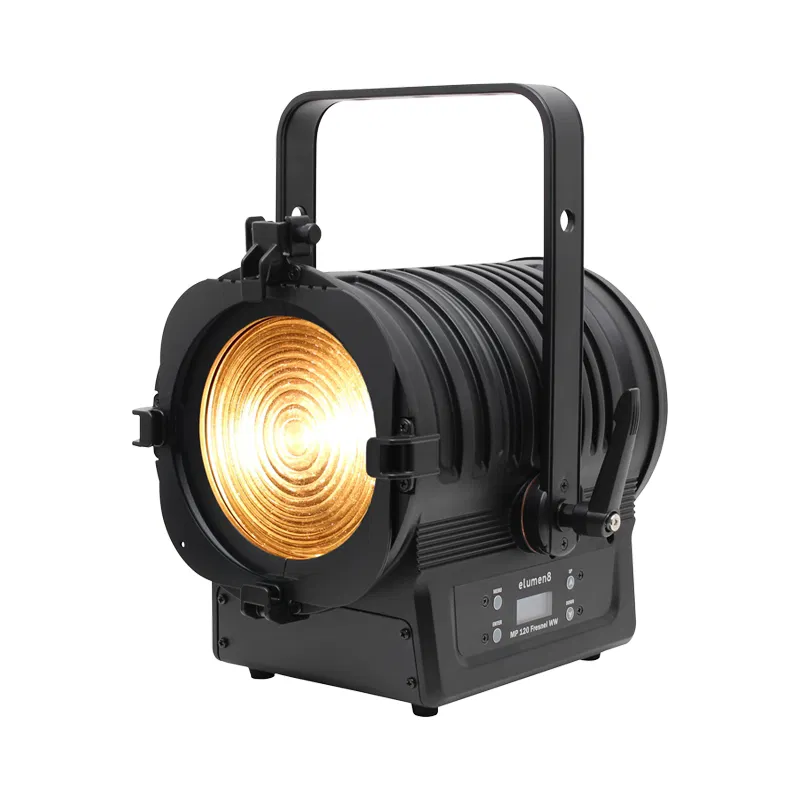

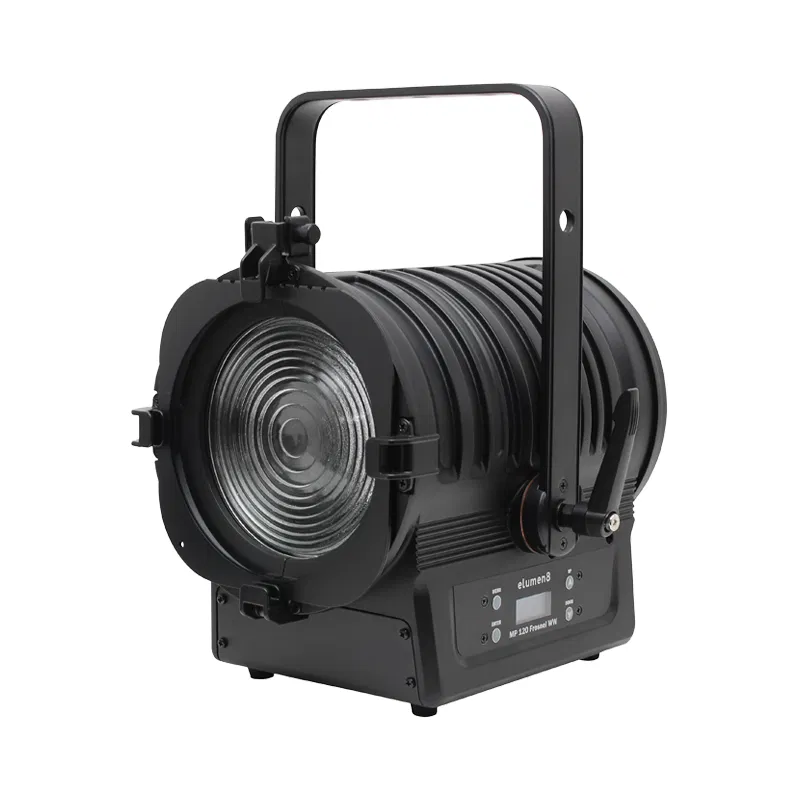

The MP 120 LED Fresnel WW lighting fixtures come equipped with a 20cm Fresnel lens and are powered with a 120W, 3,000K COB LED. Producing a soft-edged beam, the units not only have a manually adjustable beam angle 19°- 37°, they also come supplied with barn doors to further control the beam, making them ideal for stage and theatrical lighting applications.

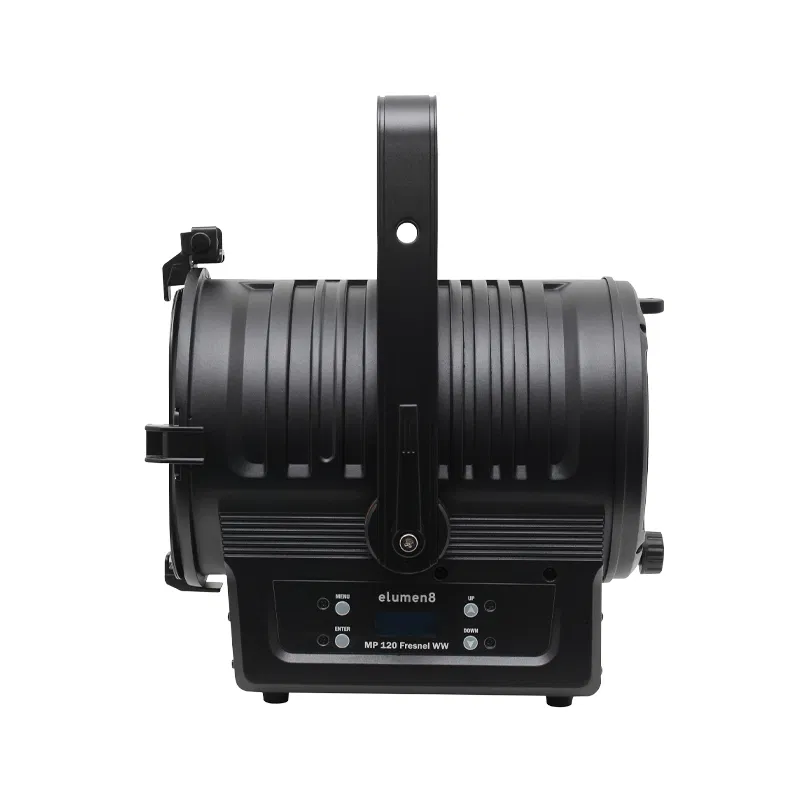

These Fresnels provide a superb light output and benefit from temperature-controlled fan cooling for whisper-quiet operation. The 4-button display allows users to select DMX and manual dimming modes along with dimming curves, whilst the powerCON and DMX inputs/outputs allow multiple units to be daisy-chained in an array, further enhancing their flexibility.

Features

• 2-year warranty
• 1 x 120W warm white COB LED (3,000K)
• Manually adjustable beam angle: 19°- 37°
• 19° – 14,800 Lux @ 2m, 37° – 3,349 Lux @ 2m
• CRI: 95
• Refresh rate: 1.5kHz
• DMX channels: 1/3 or 5 selectable
• RDM (Remote Device Management)
• 0 – 100% 8 or 16 bit dimming
• Variable strobe
• 4 dimming curves in both LED and halogen profiles: Linear, square law, inverse square law and S-curve
• 4-button menu with LCD display

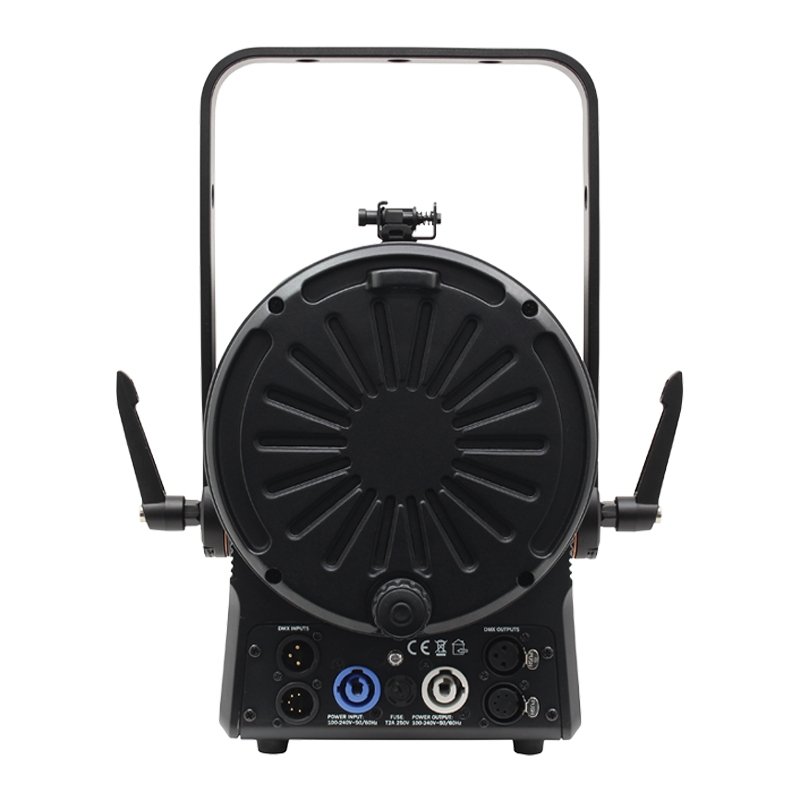

• powerCON input/output
• 5-Pin XLR input/output
• 3-Pin XLR input/output
• Temperature controlled fan
• Filter frame and barn doors included

Specifications

• Power consumption: 136W
• Power supply: 100~240V, 50/60Hz
• Fuse: T2A 250V
• Dimensions (H x W x D): 371 x 301 x 318mm
• Weight: 7.8kg
