Description

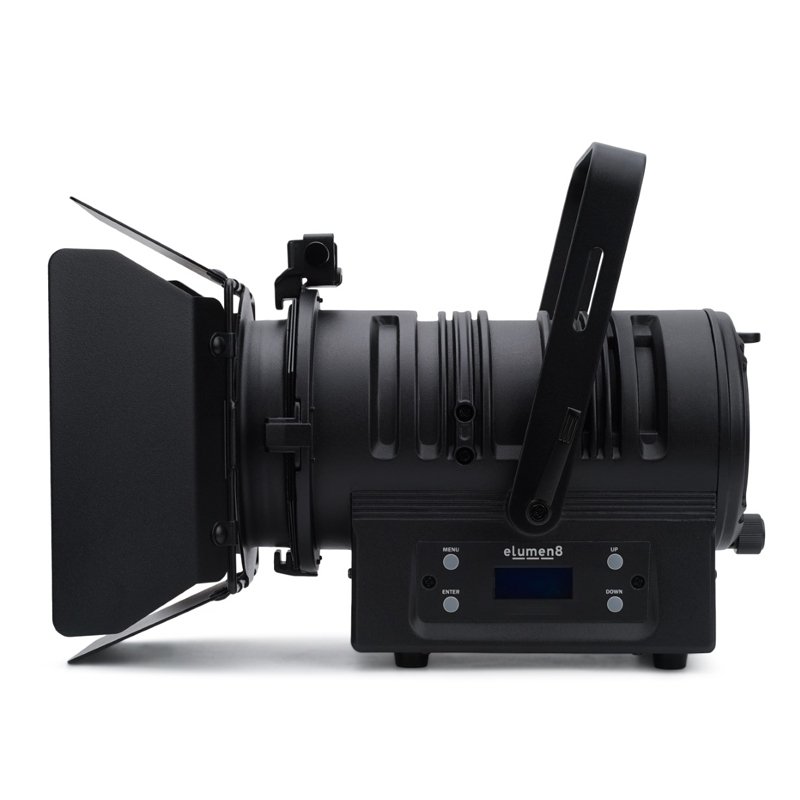

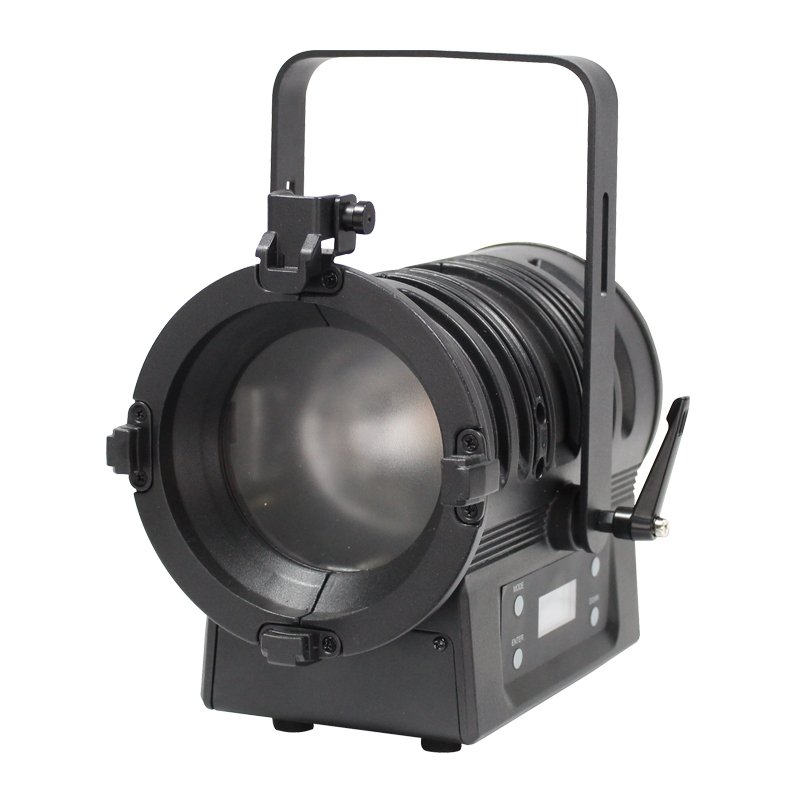

The MP 60 LED Fresnel WW MKII Fresnel family are compact, robust and easy to use general-purpose stage lighting fixtures ideal for small stages, studios and display lighting applications.

These fixtures provide a superb light output and convection convection-cooled for silent operation. The 4-button display allows users to select DMX and manual dimming modes along with dimming curves.

Features

• 2-year warranty
• 1 x 60W warm white COB LED (3,200K)
• Manually adjustable beam angle: 10°- 50°
• 10° – 5,475 Lux @ 2m, 50° – 1,260 Lux @ 2m
• CRI: 91
• Refresh rate: 1.8kHz
• DMX channels: 1 or 2 selectable
• RDM (Remote Device Management)
• 0-100% dimming curves in both LED and halogen profiles: Linear, square law, inverse square law and S-curve
• 4-button menu with LCD display
• Power consumption: 70W
• Power supply: 100~240V, 50/60Hz

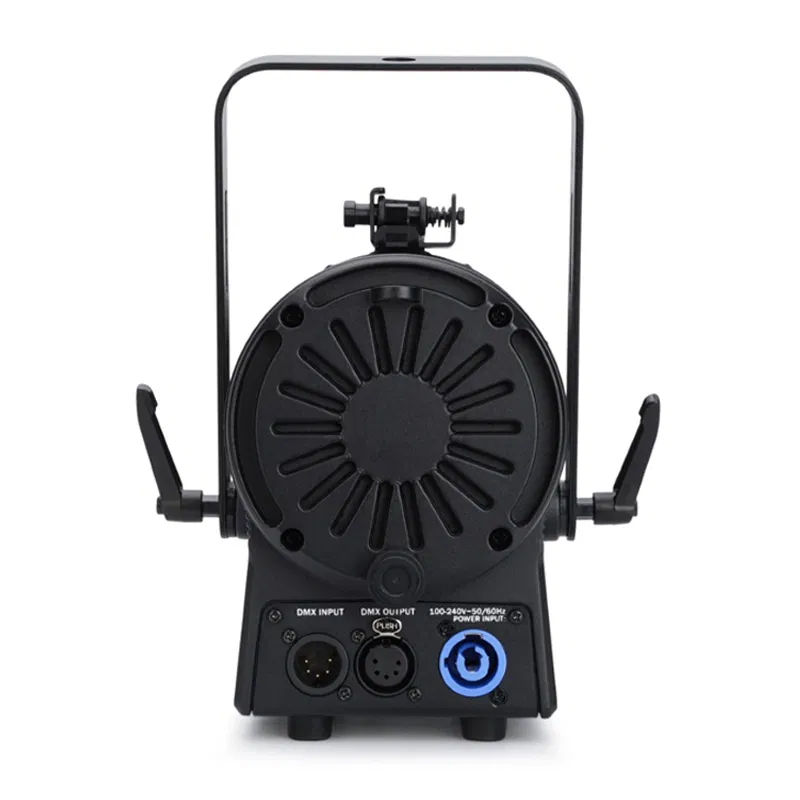

• powerCON input
• 5-Pin XLR input/output

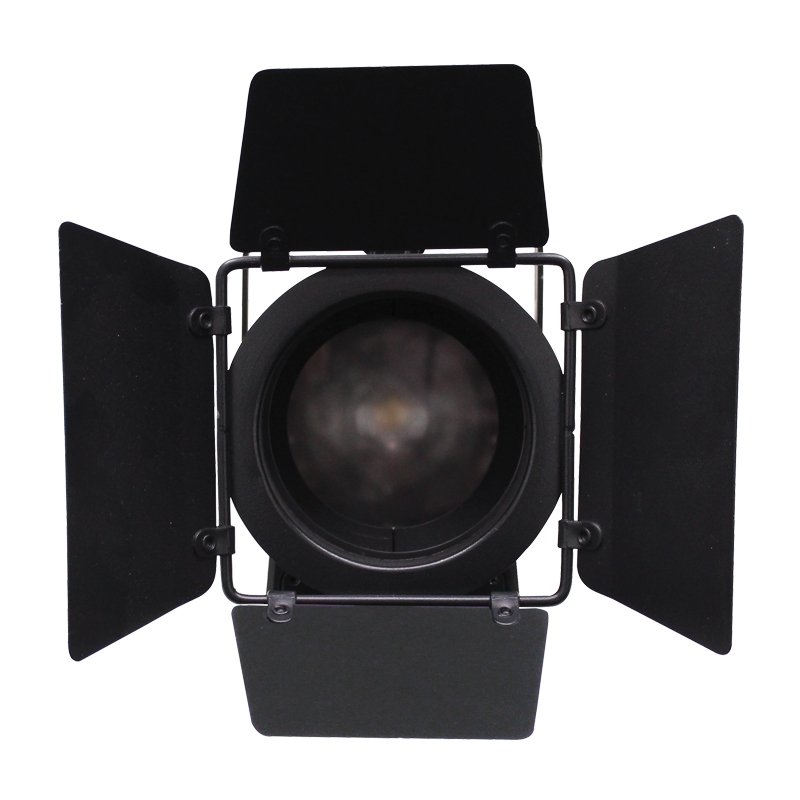

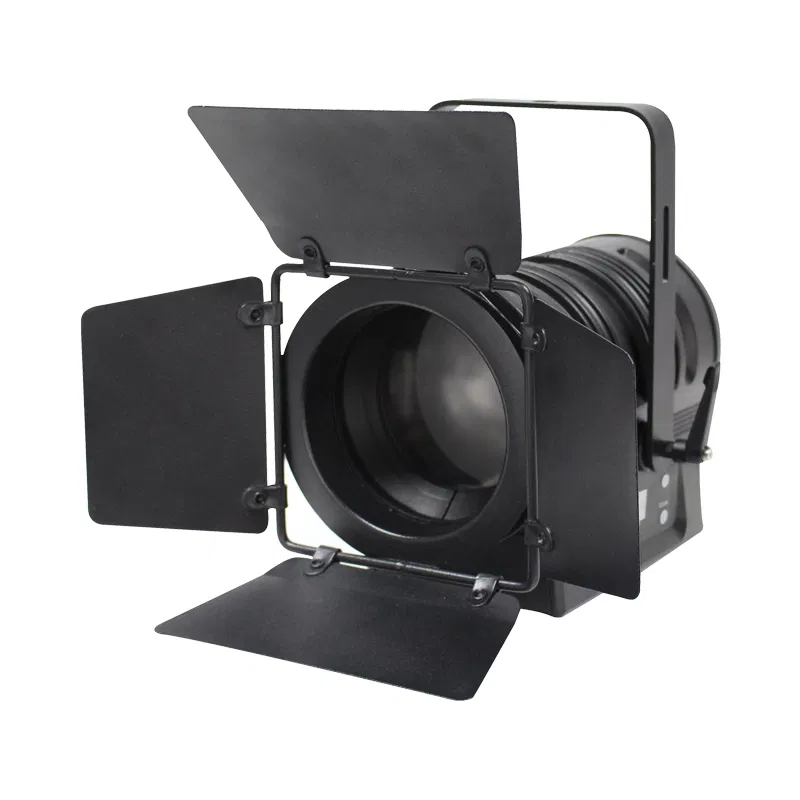

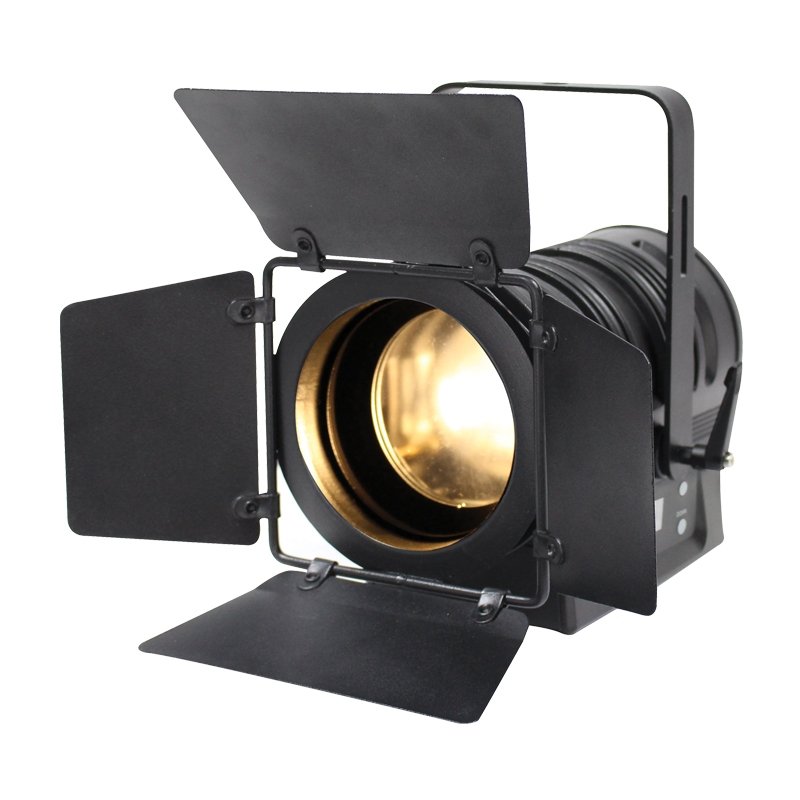

• Filter frame and barn doors included
• Convection cooled

Dimensions

• Dimensions (HxWxD): 250 x 210 x 265mm
• Weight: 3.8kg
• Packed Dims (HxWxD): 26.5 x 21.5 x 34.5cm
• Packed Weight: 4.5kg

Downloads

• ELUM104_Manual
• ELUM104_ManualMKII
