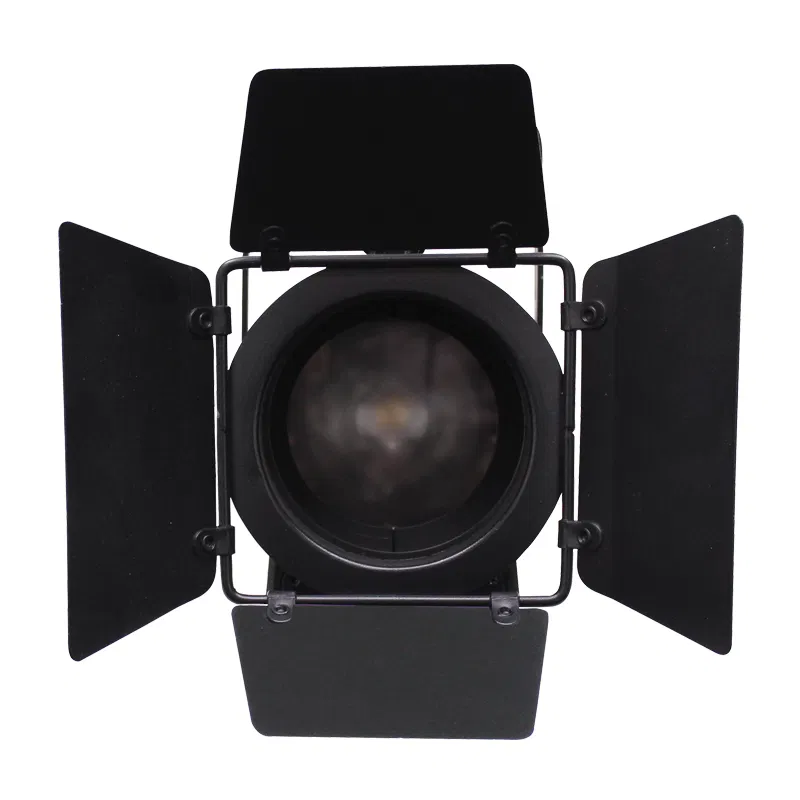

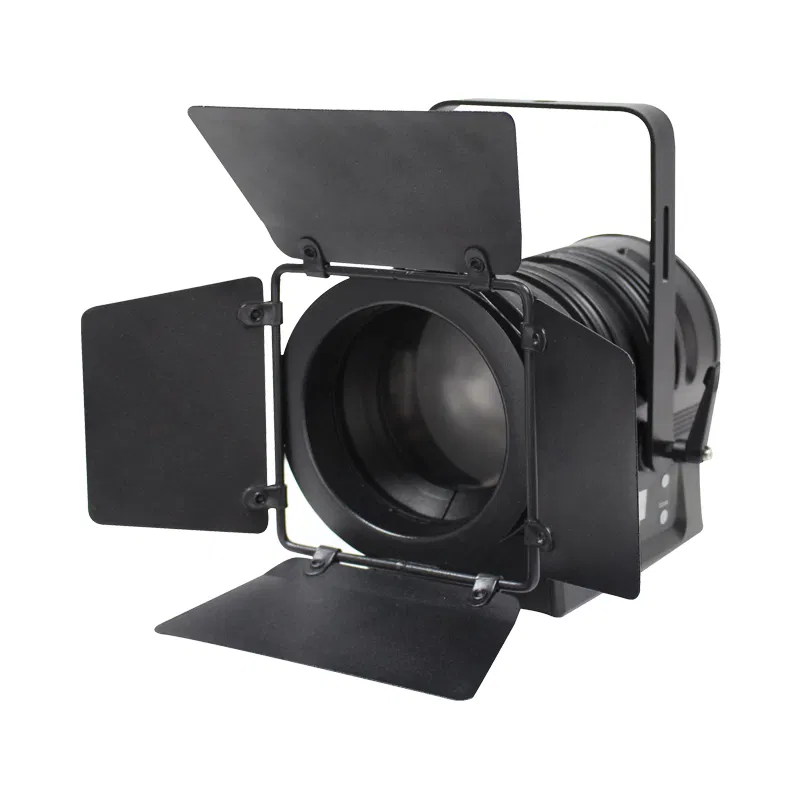

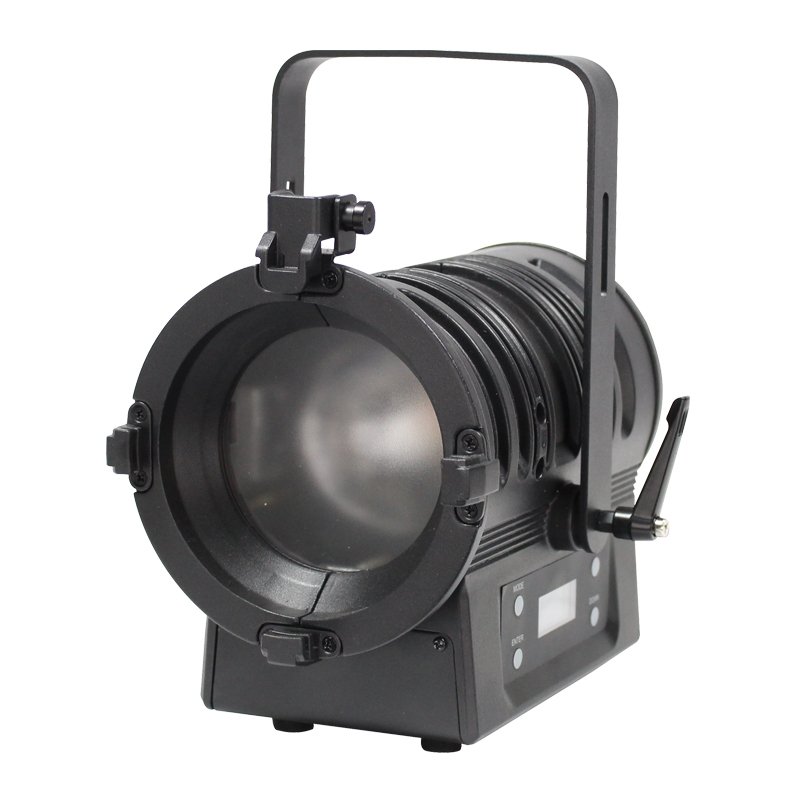

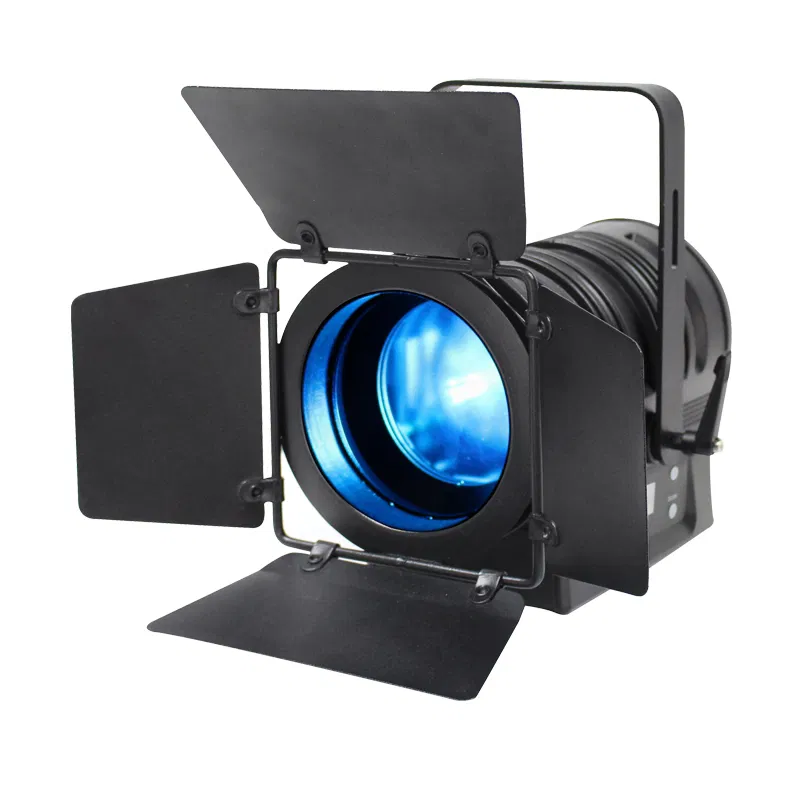

The MP LED Fresnel family are compact, robust and easy to use general purpose stage lighting fixtures ideal for small stages, studios and display lighting applications.

These fixtures provide a superb light output and benefit from temperature controlled fan cooling for whisper quiet operation. The 4-button display allows users to select DMX and manual dimming modes along with dimming curves.

Features

• 2-year warranty
• 1 x 75W quad-colour COB LED (RGBW)
• Manually adjustable beam angle: 10°- 50°
• 10° – 6,031 Lux @ 2m (full on), 50° – 630 Lux @ 2m (full on)
• Refresh rate: 1.8kHz
• DMX channels: 4/5 or 7 selectable
• RDM (Remote Device Management)
• 0-100% dimming
• 4 dimming curves in both LED and halogen profiles: Linear, square law, inverse square law and S-curve

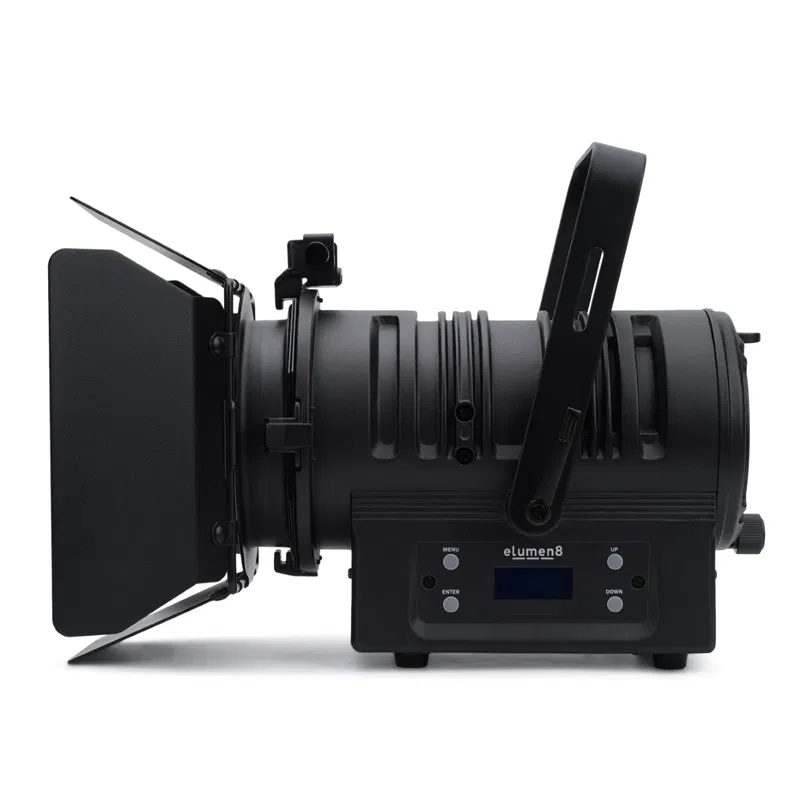

• 4-button menu with LCD display

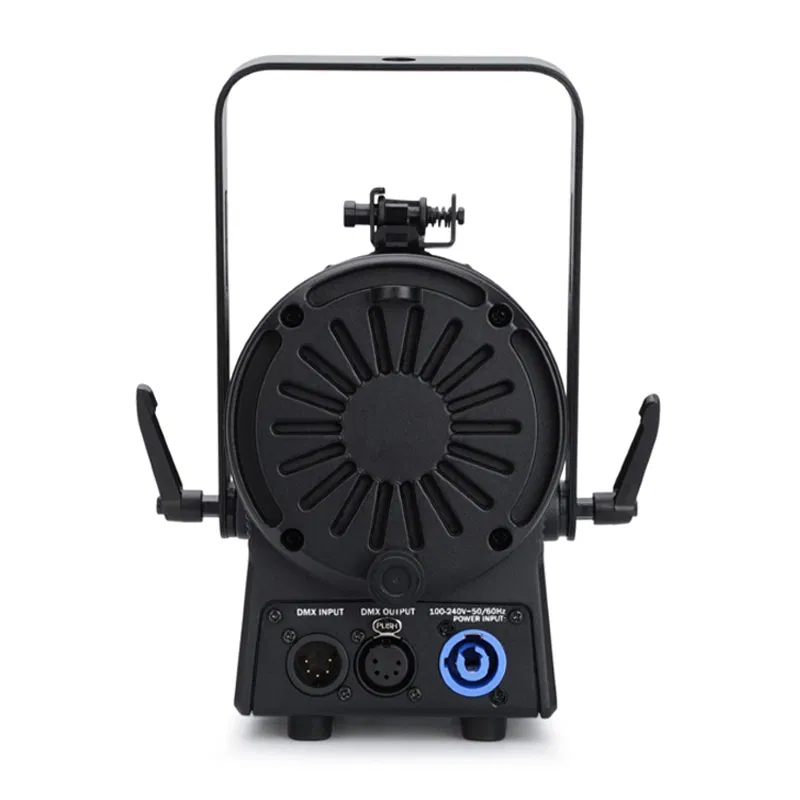

• powerCON input
• 5-Pin XLR input/output
• Filter frame and barn doors included
• Temperature controlled fan

Specifications

• Power consumption: 86W
• Power supply: 100~240V, 50/60Hz
• Dimensions (H x W x D): 250 x 210 x 265mm
• Weight: 3.8kg
