Description

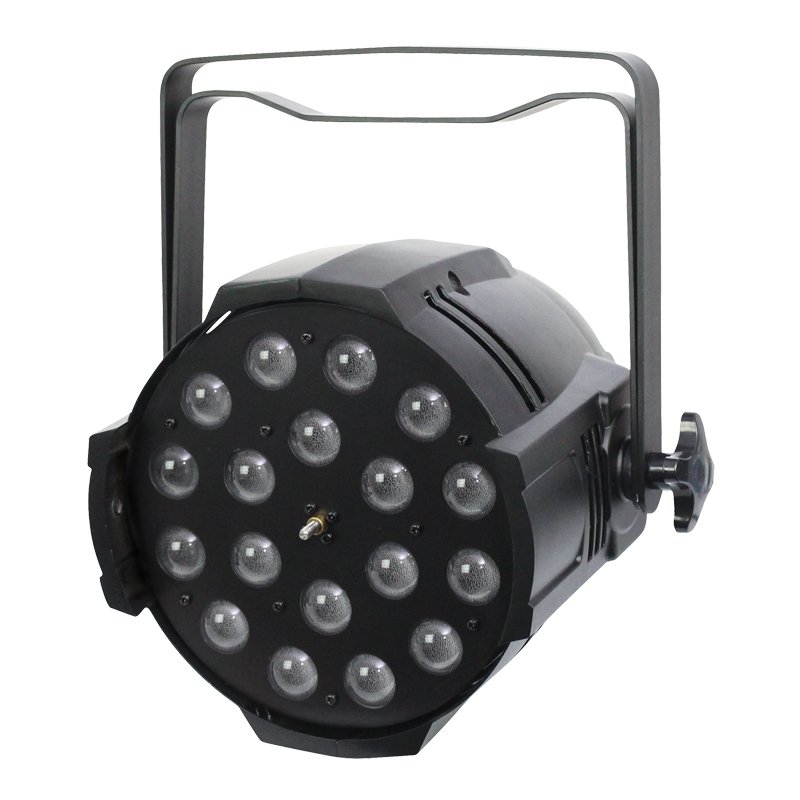

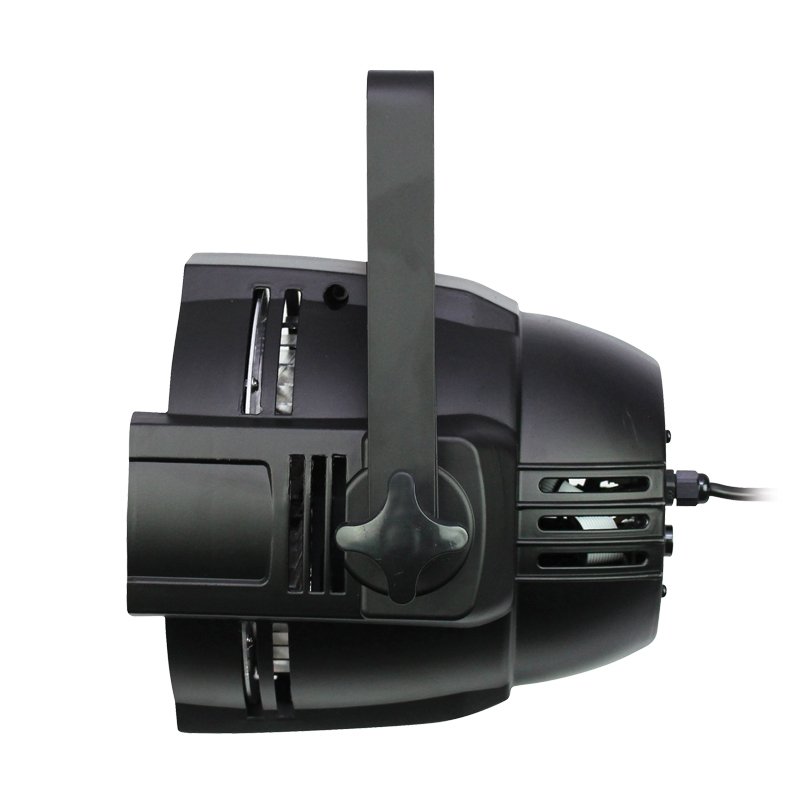

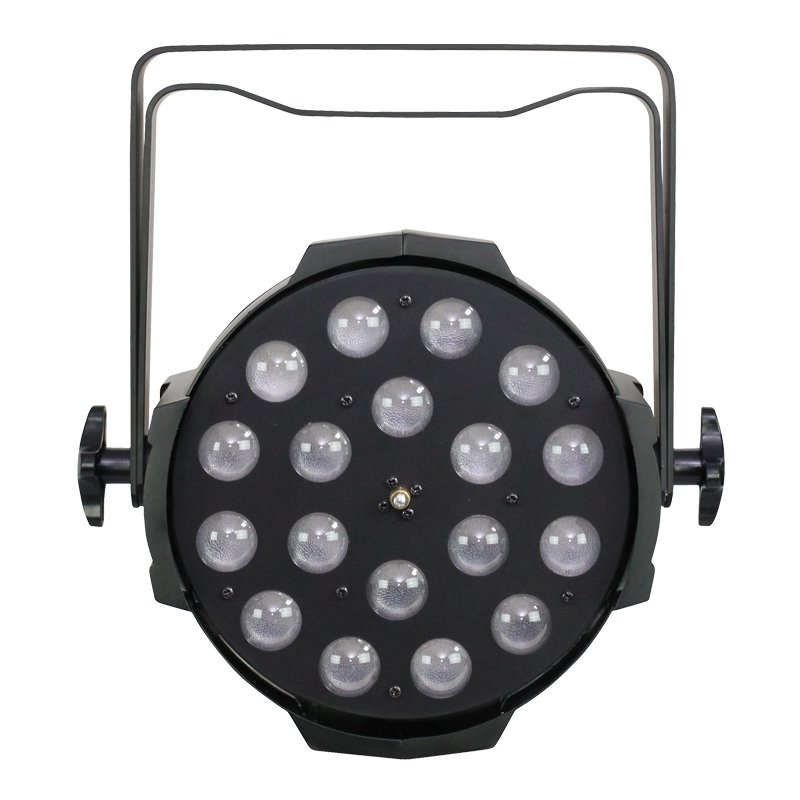

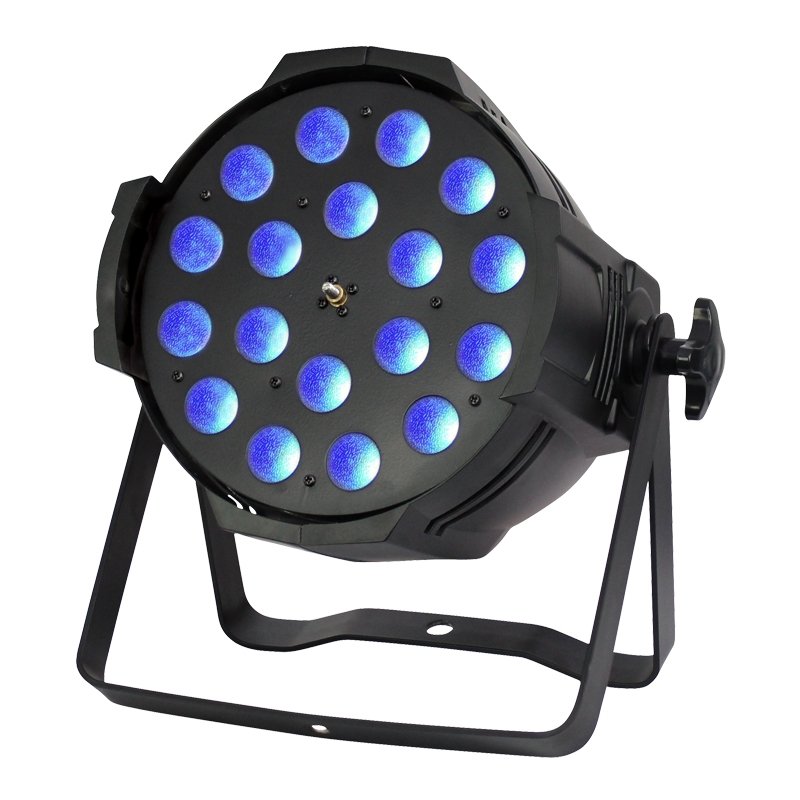

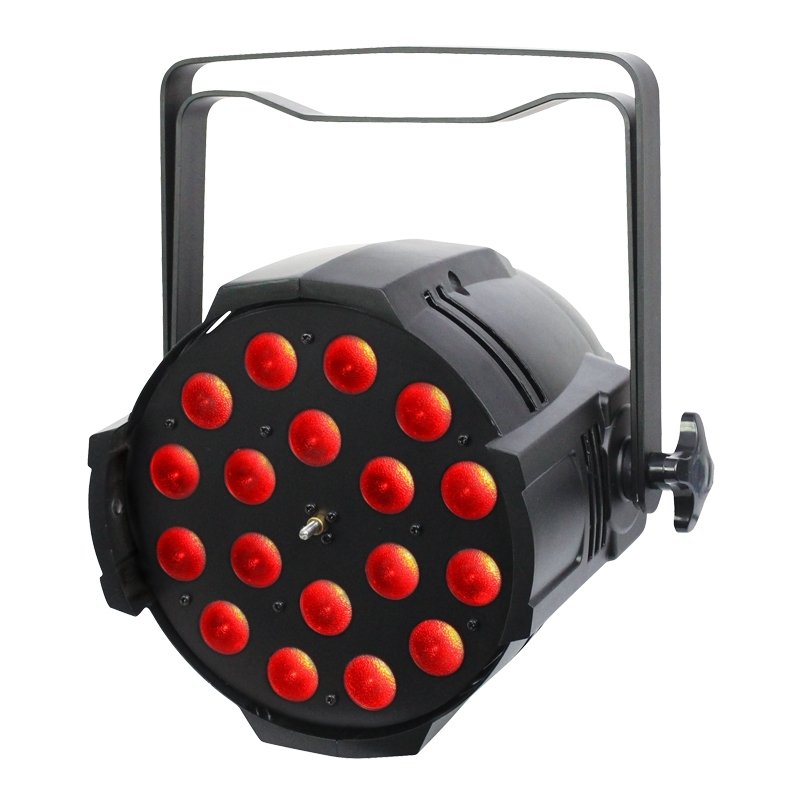

The Performer 18 Series Quad Zoom 18 x 8W quad-colour LEDs and a spectacular 25°-75° zoom feature creating a wide wash or focused beam, ideal for stage productions, concerts or conferences.

This fixture offers superior performance in a robust, yet lightweight cast aluminium housing, and features a simple-to-operate 4-button menu that allows users to select several operation modes.

Features

• 18 x 8W quad-colour LEDs (RGBW)
• Adjustable beam angle: 25°- 75°
• 25° 3,119 Lux @ 2m (full on)
• 75° 845 Lux @ 2m (full on)
• Power consumption: 148W
• Power supply: 100~240V, 50/60Hz
• Fuse: T2.5A 250V
• 2kHz refresh rate
• DMX channels: 6 or 8 selectable
• Static colour, colour fade, colour change, auto run, sound active and master/slave modes
• 0 – 100% dimming
• Bracket allows for multiple rigging and floor-standing applications

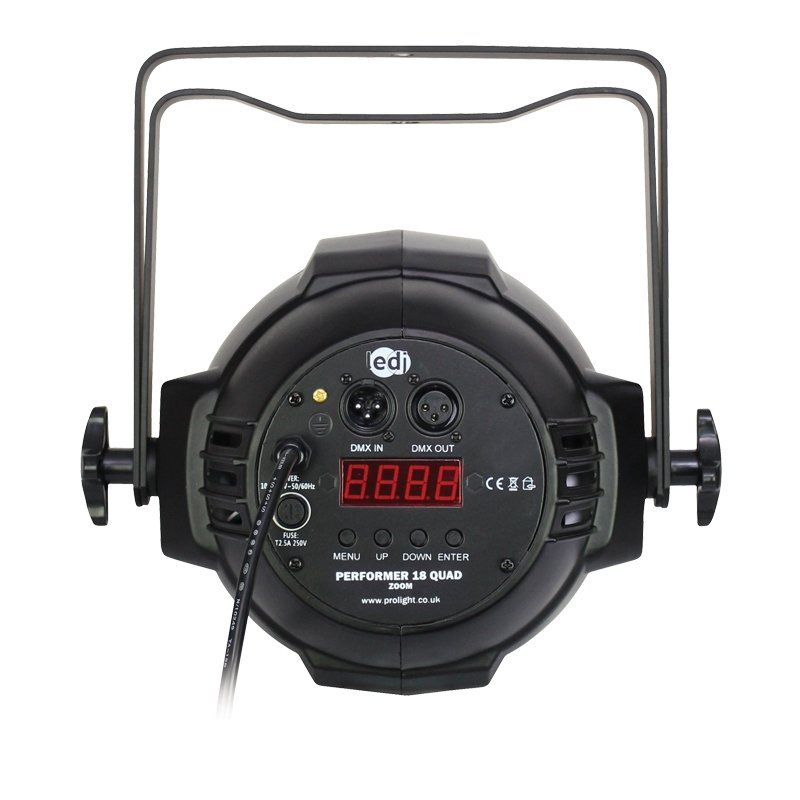

• 4-button menu with LED display
• Captive power connection
• 3-Pin XLR input/output
• Fan cooled

Dimensions

• Dimensions (HxWxD): 290 x 290 x 260mm
• Weight: 2.7kg
• Packed Dims (HxWxD): 36 x 25 x 25.5cm
• Packed Weight: 3.4kg

Downloads

• LEDJ252D_Manual
