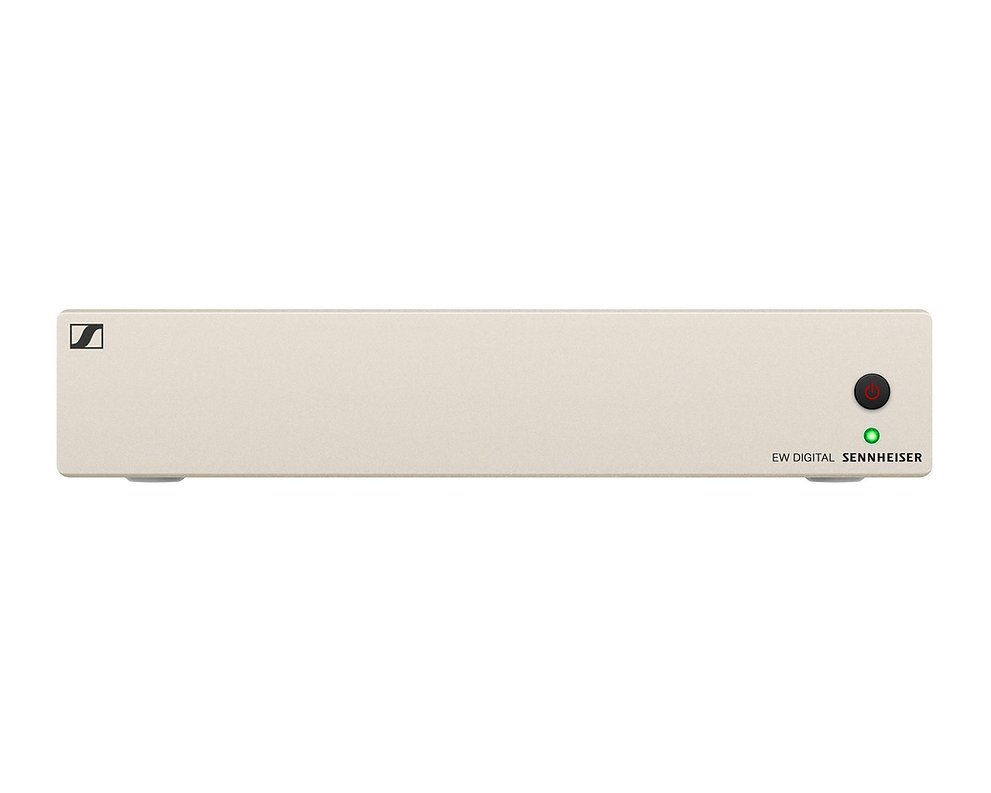

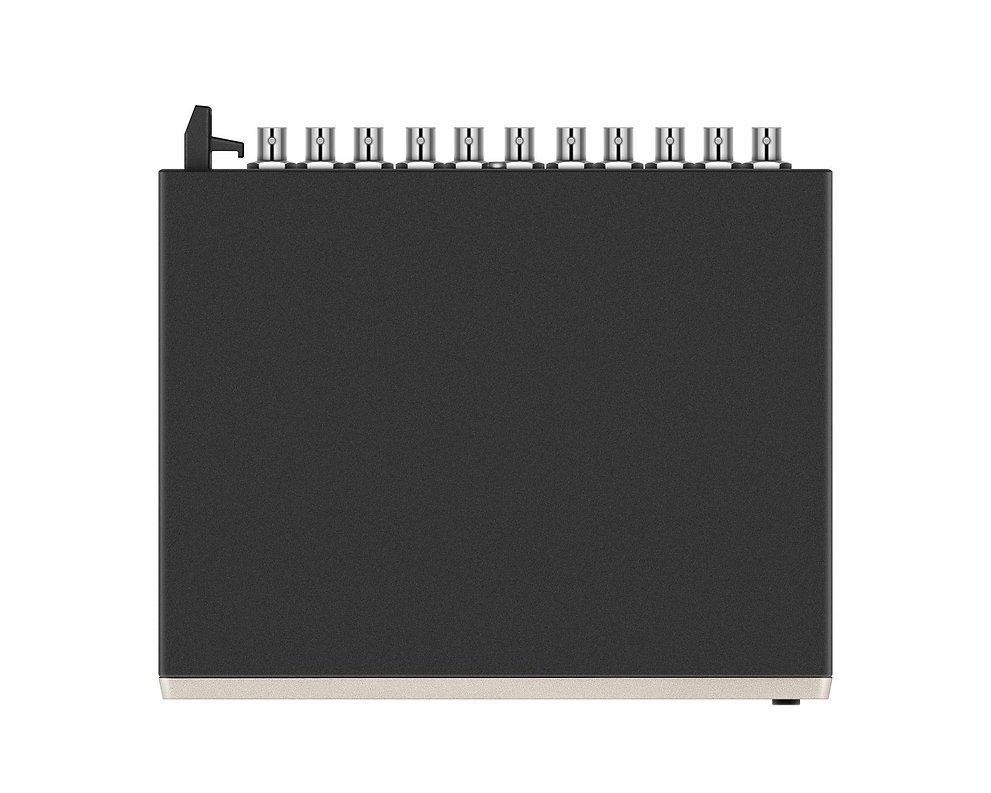

Sennheiser EW-D ASA CH38 Antenna Splitter

Evolution Wireless Digital ASA Active Antenna Splitter with 8 BNC Cables (Q-R-S) CH38

Antenna Splitter for EW-D/EW-DX/EW100/EW300/EW500

Active Antenna Splitter for use with Evolution Wireless Digital systems.

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound.

The EW-D ASA does not supply power to EW-DX receivers.



£682.80

Description

Features

  • REPLACEMENT FOR ASA214 ANTENNA SPLITTER
  • Compatible with EW-D, EW-DX and G3/G4 EW100, EW300 & EW500 (CH38) Systems
  • Supplys power to EW-D receivers but NOT TO EW-DX receivers
  • Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
  • Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
  • Auto scan creates reliable connections with minimal time and effort
  • 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
  • Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
  • 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
  • 2,240 selectable frequencies allow for fine tuning
  • Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Specifications

  • Frequency ranges
    • EW-D ASA (Q-R-S):  470 – 694 MHz
    • EW-D ASA CN/ANZ (Q-R-S):  470 – 694 MHz
    • EW-D ASA (T-U-V-W):  694 – 1075 MHz
    • EW-D ASA (X-Y):
      1350 – 1805

      MHz

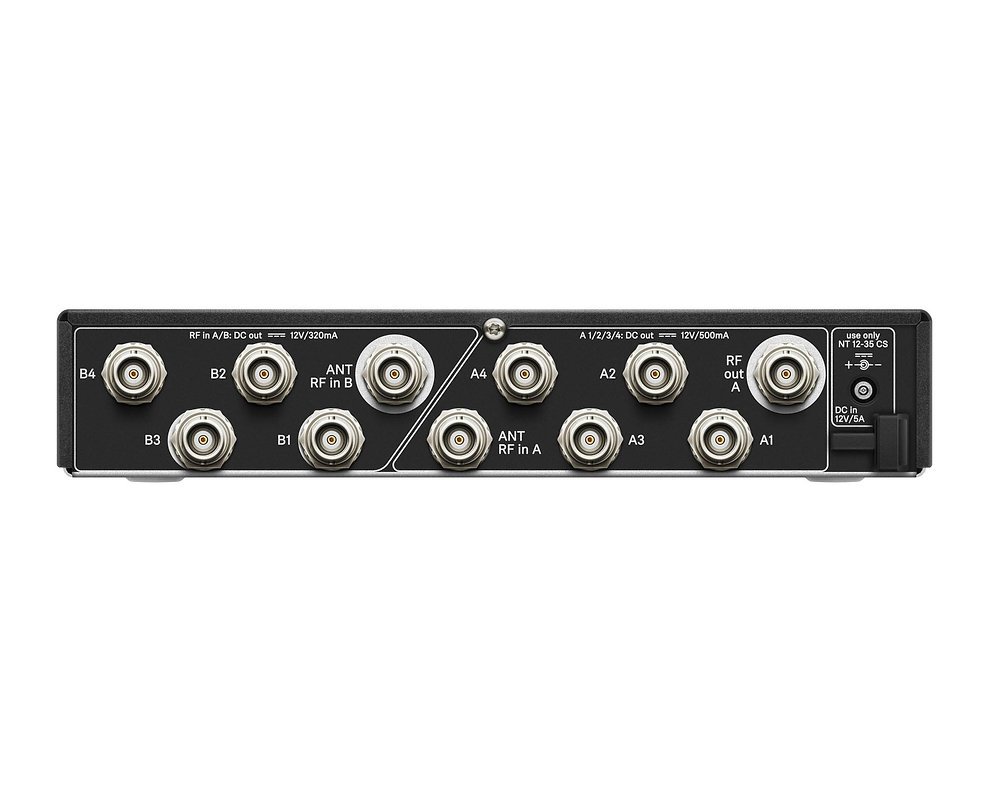

  • Antenna splitter:   2 x 1:4 or 1 x 1:8, active
  • Gain
    • in A – out A: 0 ± 1 dB
    • in A – out A1 … A4: 0 ± 1 dB
    • in B – out B1 … B4: 0 ± 1 dB
  • IIP3:  > 25 dBm
  • Impedance:  50 Ω
  • Reflection loss:  10 dB (all RF outputs)
  • Operating voltage:  DC +12 V from NT 12-35 CS power supply unit
  • Current consumption:  210 mA
  • Total current consumption:  max. 3 A (with 4 EW-D EM and connected EW-D AB)
  • Supply for antenna boosters at ANT RF in A and ANT RF in B:  DC 12 V; 320 mA
  • Supply for receivers at A1 to A4
    • DC 12 V
    • Typically 350 mA, max. 500 mA
  • Dimensions:  Approx. 212 x 168 x 43 mm
  • Weight:  Approx. 1100 g
  • Operating temperature range:  -10 °C – +55 °C (14 °F – 131 °F)
  • Storage temperature range:  -20 °C – +70 °C (-4 °F – 158 °F)
  • Relative humidity:  5 – 95 % (non-condensing)

What’s in the Box?

  • 1x EW-D ASA Active Antenna Splitter
  • 1x NT 12-35 CS power supply for EW-D ASA

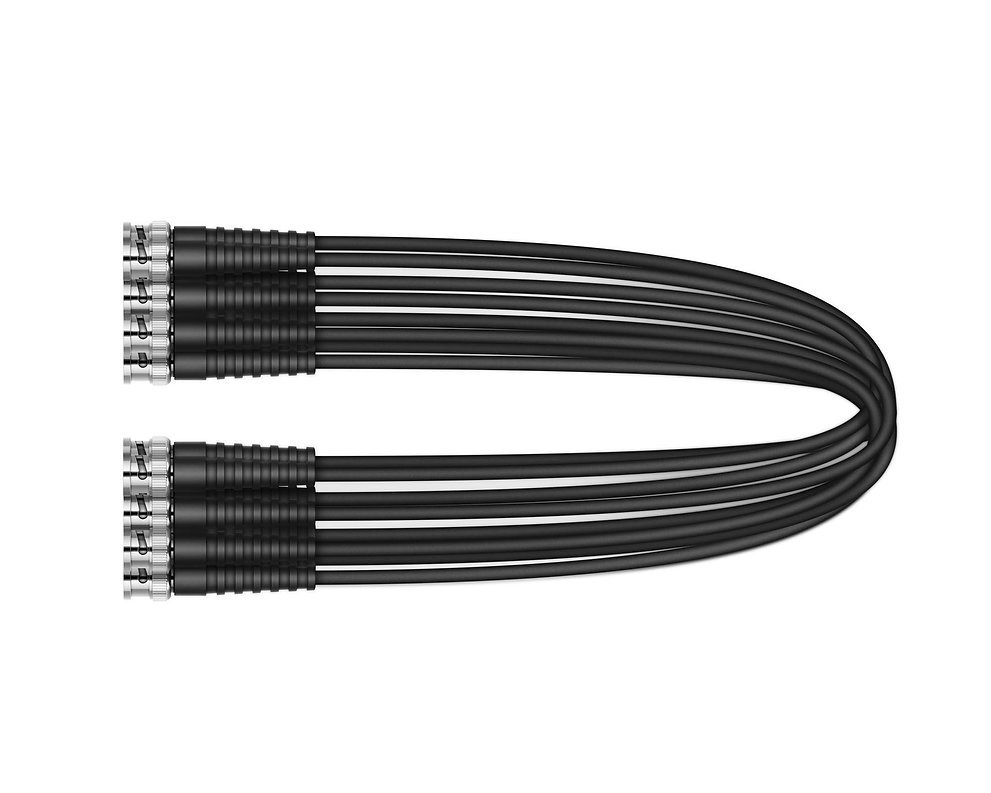

  • 8x BNC antenna interconnect cables
