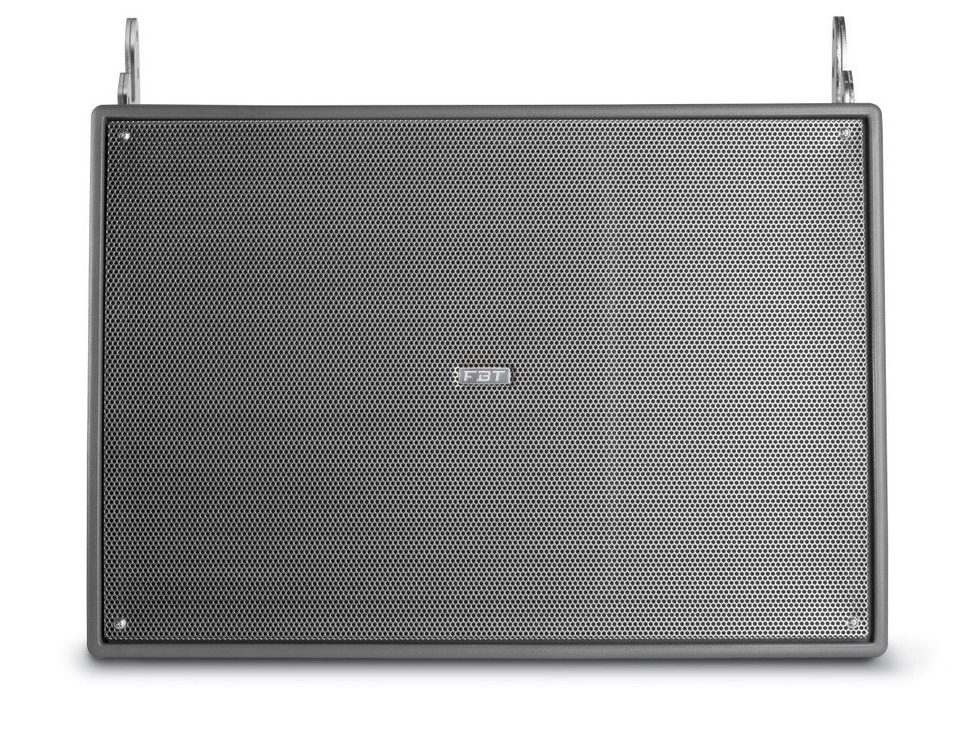

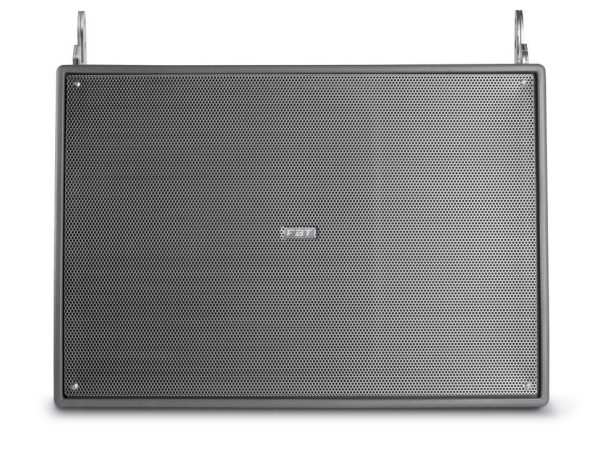

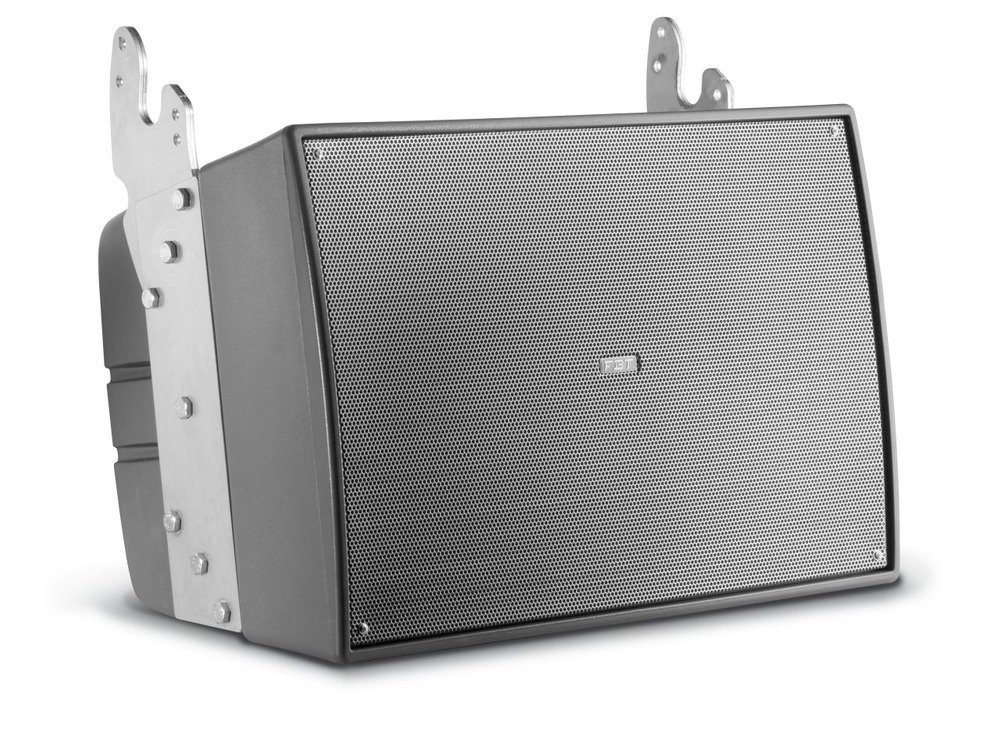

Shadow 142L

14” Line Array Speaker System
1000W / 8ohm – 137dB SPL

The SHADOW 142L is a weatherproof, full-range, two-way loudspeaker system that offers high performance and efficiency for a variety of professional indoor and outdoor applications.

This horn-loaded design features a smooth frequency response and very high efficiency, ensuring excellent music reproduction quality and clear, intelligible speech.

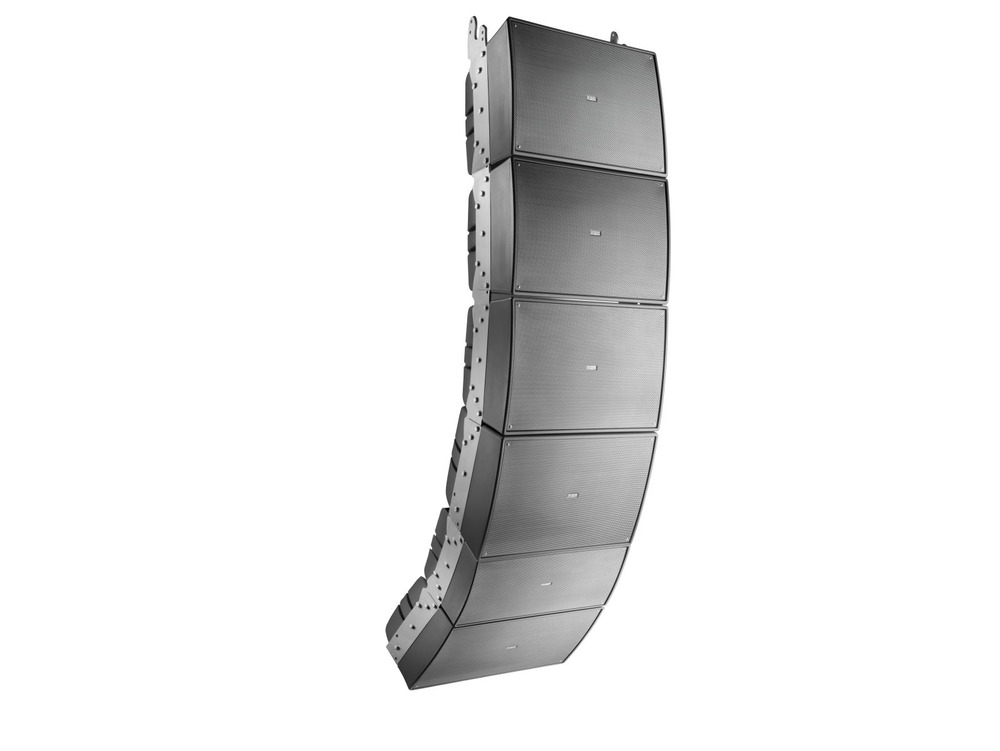

The line array configuration makes the SHADOW 142L ideal for convention centers, stadiums, arenas, and many other installations where long-throw, full-range sound reproduction is required.

The SHADOW 142L is a flyable passive line array system. A recommended amplifier of 1000W at 8 ohms will deliver 137dB SPL. Its IP55 weather-resistant rating makes it ideal for both indoor and outdoor venues. Featuring one 1x 14″ woofer and 2 x 1.4″ HF drivers deliver 100H x 15V degree dispersion.



£1,910.05

Description

Features

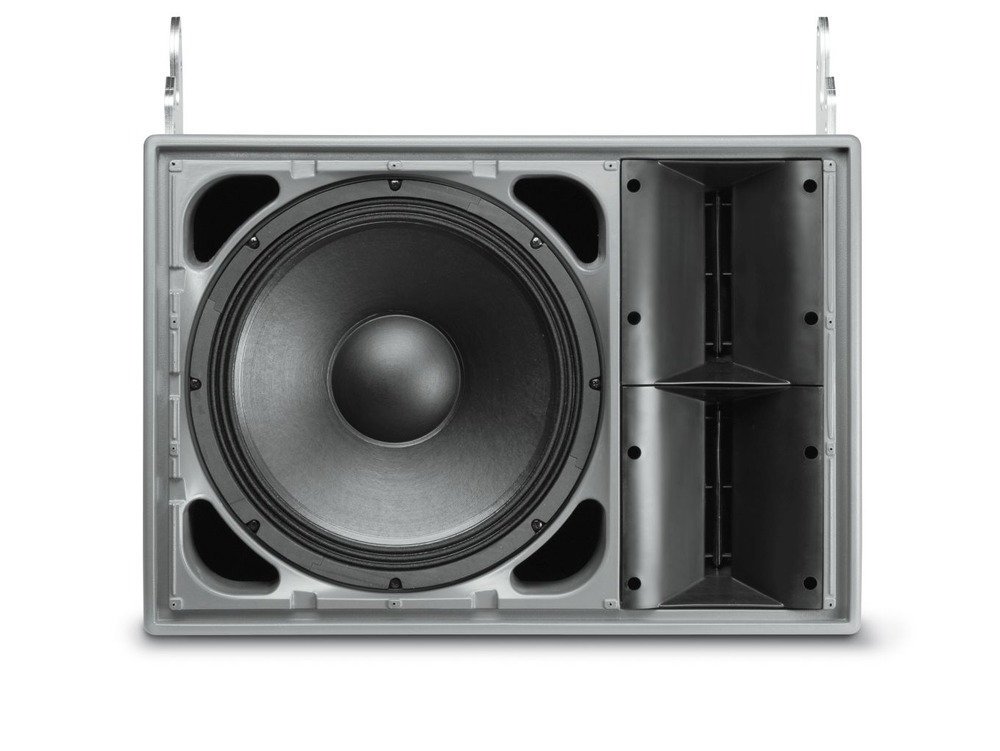

  • 14” woofer with a 3” coil.
  • HF section is a constant directivity horn loaded to 2×1.4” driver with a 2.5” coil for smooth, wide dispersion.
  • Sturdy molded polyethylene curved enclosure, full UV protection.

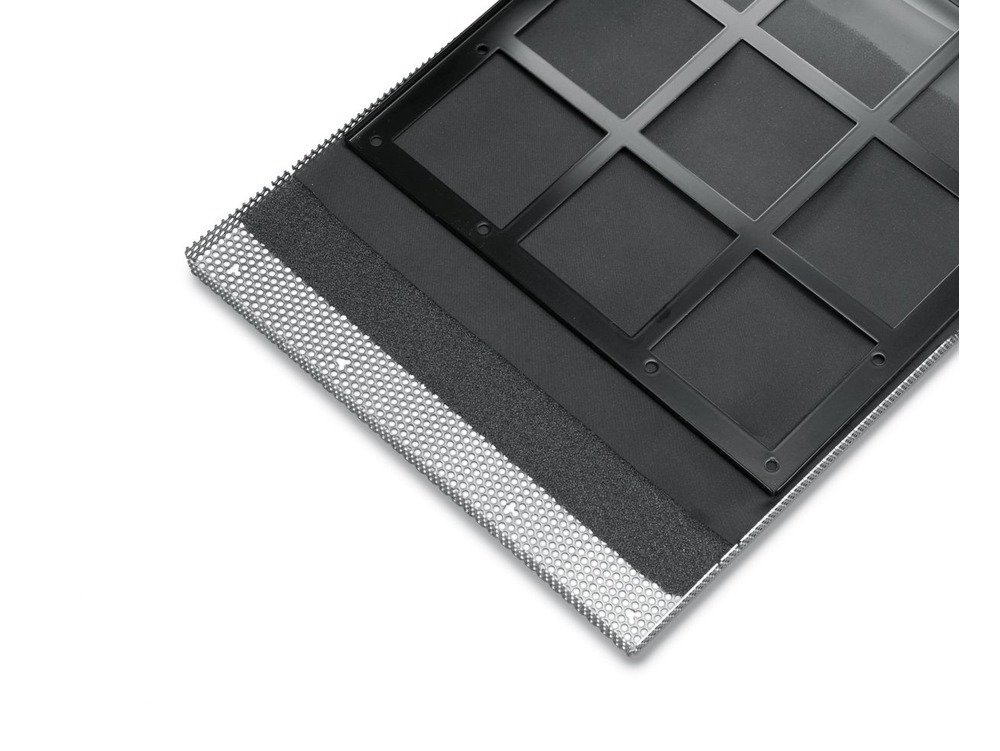

  • Water-stop grill with 3 layers of protection.
  • IP55 weather resistant.
  • 100° x 15° coverage.
  • 7.5° or 15° adjustable angle.
  • Standard grey finishes,

Specifications

  • Configuration: 2 Way
  • Frequency response: 60hz – 20 kHz
  • Low frequency woofer: 14
  • High frequency driver: 2x 1.4
  • Maximum SPL cont/peak: 126.5 / 137db
  • Dispersion: 100 x 15 (H x V)
  • Input impedance: 8 Ohm (8/8 Optional)
  • Crossover frequency: 1.2kHz (Opti Bi-amp)
  • Input connector: 2x Amphenol LTW 4 Pole
  • Net Dimension (WxHxD): 615 x 430 x 514mm
  • Net Weight: 38kg
  • Transport Dimension (WxHxD): 715 x 530 x 515mm
  • Transport Weight: 40kg
