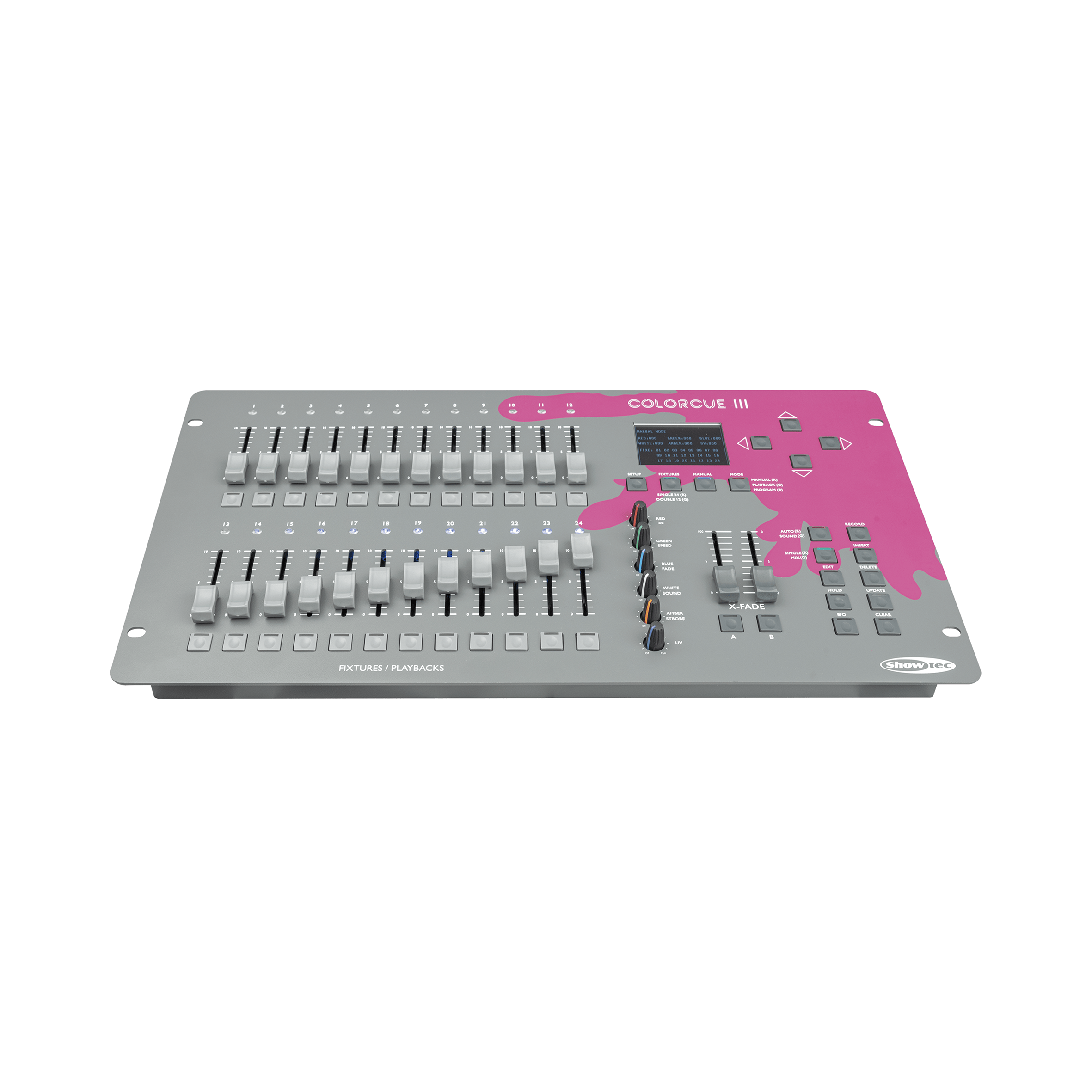

Showtec ColorCue 3



SKU: 50705 Categories: , Tags: ,

The Showtec ColorCue 3 is a compact 24‑fader LED DMX controller designed for quick and intuitive control of RGB to RGBWA‑UV fixtures. Offering up to 144 DMX channels, per‑fader memory buttons, two master faders and an LED display. It supports 24 user colours and 24 chases with up to 99 steps with playback options in Manual, Auto or Sound‑controlled mode.

  • Intelligent 24-fader LED DMX controller
  • Suitable for 3 to 6 colour LEDs
  • 24 user colours
  • 24 user chases with up to 99 steps
  • Manual, Auto run and Sound-controlled mode

£280.70

Description

The Showtec ColorCue 3 is an intelligent 24-fader LED DMX controller for easily controlling 3 to 6 colour LED fixtures with up to 144 DMX channels, suitable for any venue. Its 6 potentiometers enable a quick control for various colour engines, from 3-colour RGB to 6-colour RGBWA-UV. The ColorCue 3 comes with a memory button below every fader for smart control over your colours, chases and user settings.

Equipped with 2 smart master faders and an intuitive LED display, you can easily control 2 sections and attach fixtures to any of the 24 available fader. For changing colours and effects in a loop, you can create and playback 24 chases with a maximum of 99 steps per chase. The chase can be controlled in either Manual, Auto run and Sound-controlled mode.

Specifications Control and Programming

  • Control Mode: Built-in Program, Manual, MIDI, Static Dimmer
  • DMX Channels: 144
  • Protocols: DMX
  • Display: LCD
  • Buttons: 44
  • Faders: 26
  • Memories: 1000

Electrical Specifications and Connections

  • Power Supply: 12 V DC
  • Power Consumption: 15 W
  • Power Connector In: Low Voltage DC plug
  • DMX Connector Out: XLR 3P
  • Audio Triggers: 1

Mechanical Specifications

  • Rack Units: 6 U
  • IP Rating: IP20 (indoor use only)
  • Housing: Metal
  • Colour: Grey, Magenta

Dimensions

  • Installation Depth (Excl. Connector): 80 mm (3.15″)
  • Dimensions (LxWxH):  482 x 261 x 80 mm / 18.976″ x 10.276″ x 3.15″ inch
  • Weight: 3.6 kg / 7.937 lb

Product Properties

  • LED Indicators: Operation mode, Output level

Thermal Specifications

  • Maximum Ambient Temperature: 40 °C (104 °F)

Included Items

  • Included Cables: None
  • Included Accessories: Adapter



Additional information

Weight 5.4 kg
Dimensions 48.2 × 26.1 × 8 cm
