Description

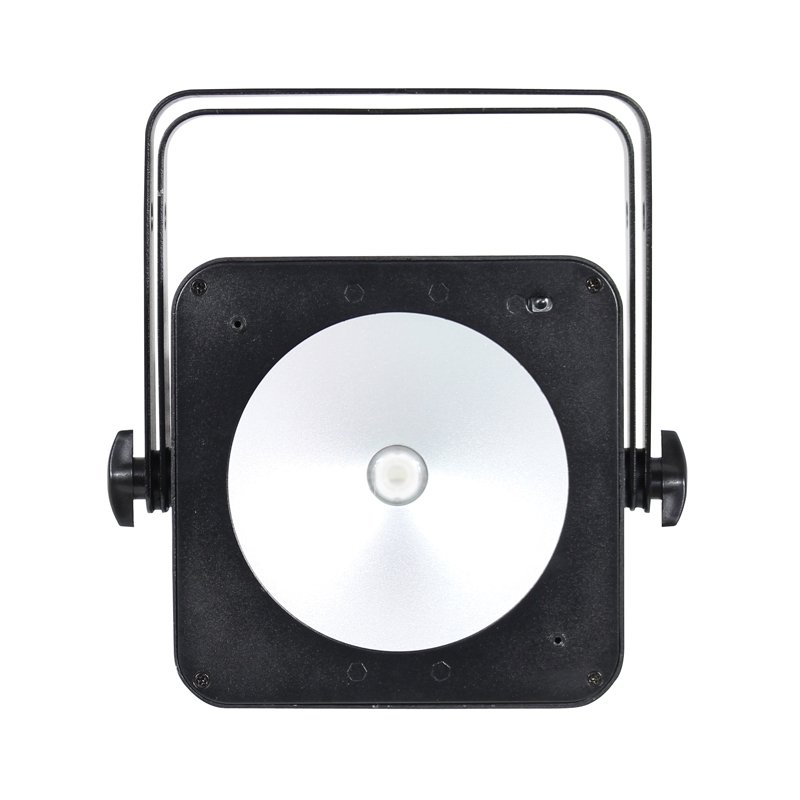

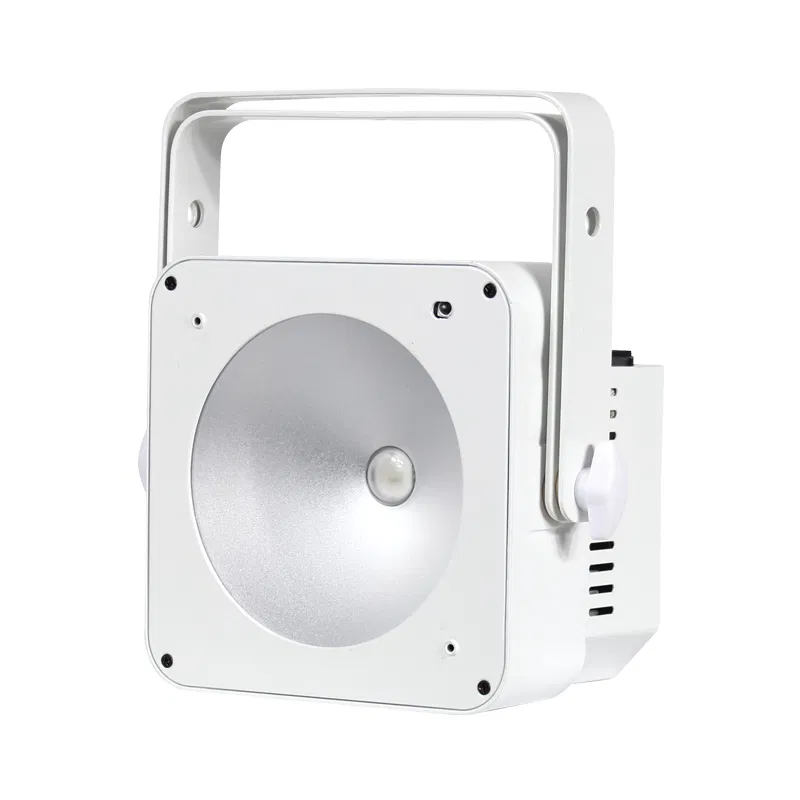

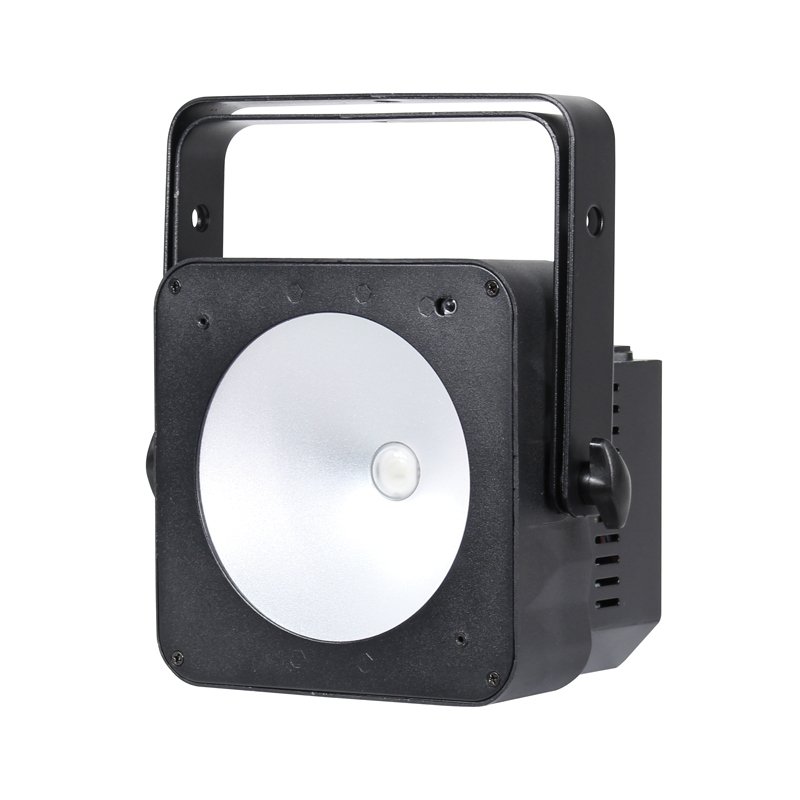

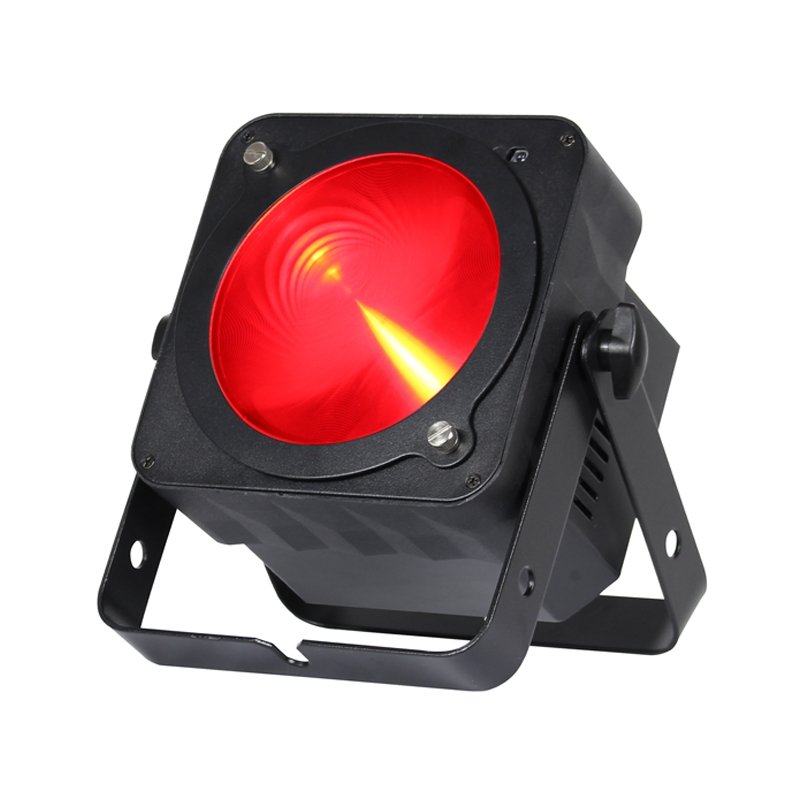

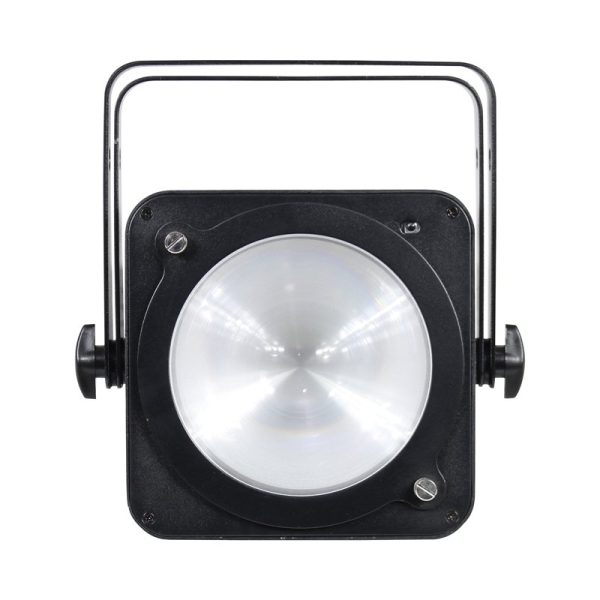

Housing a tri-colour 36W RGB COB LED, the Slimline 1T36 COB gives smooth colour mixing from rich saturated hues to subtle pastel shades. These units have rugged, all-metal housing, side entry XLR and power connections and measure only 120mm in depth for easy transportation and installation. They feature a super wide 110° beam angle ideal for washing walls, CYCs and stages in colour, and can be operated in sound active, stand-alone, master/slave or DMX modes.

Features

• 1 x 36W tri-colour COB LED (RGB)
• Beam angle: 110°

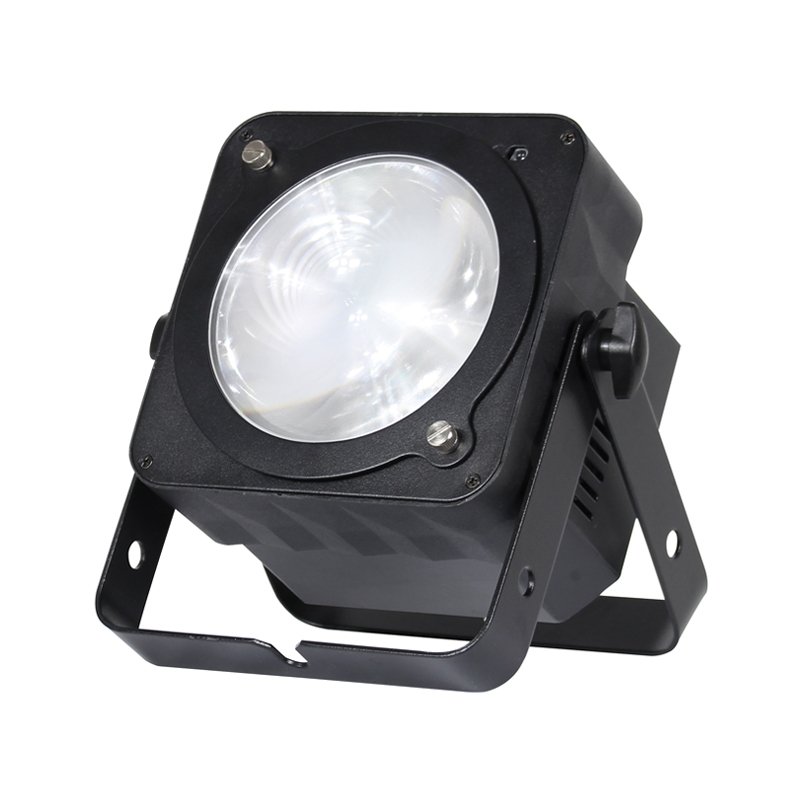

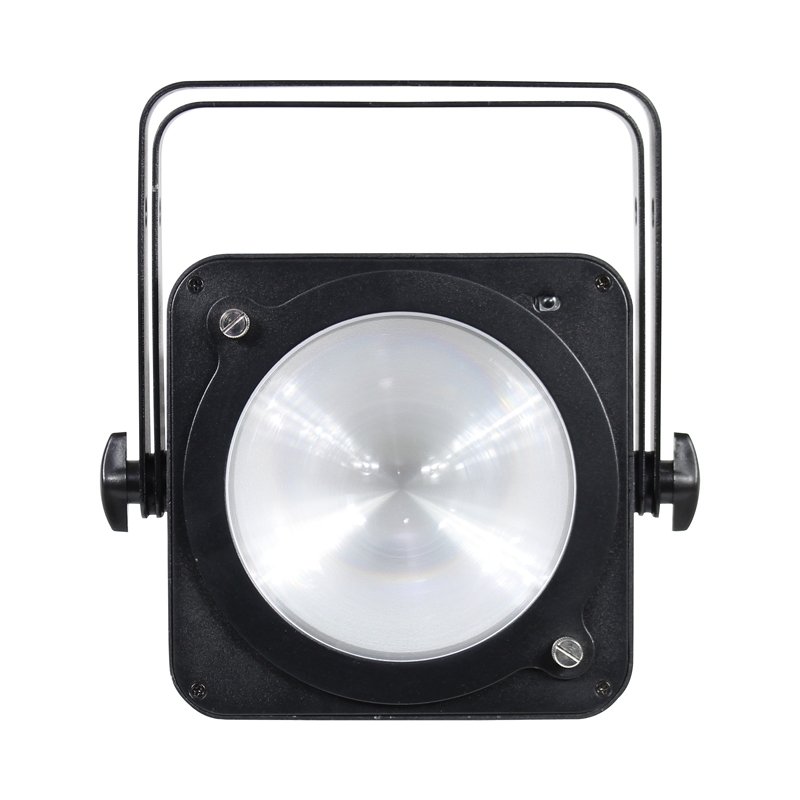

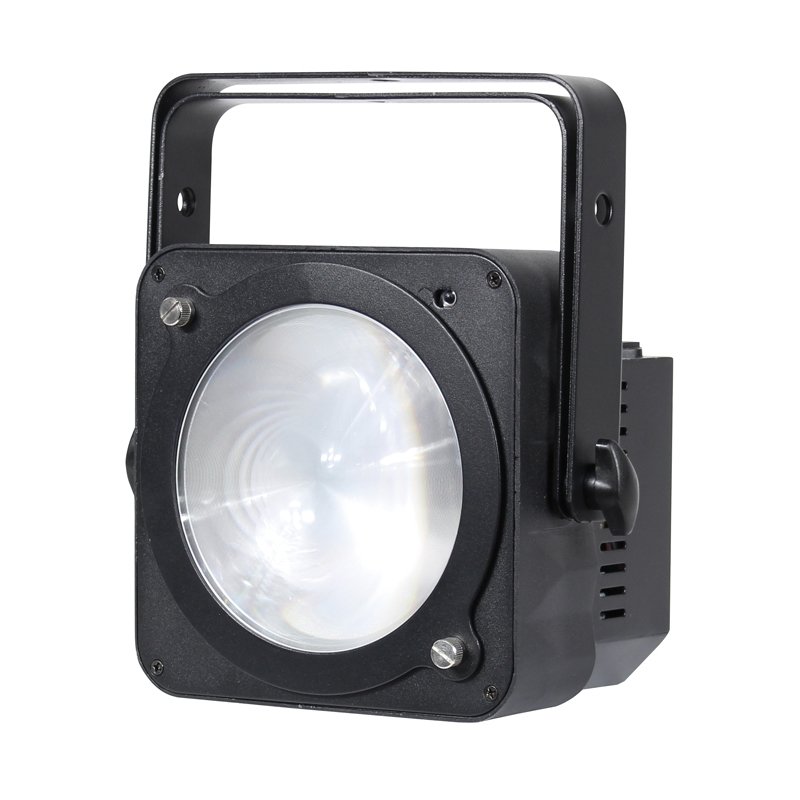

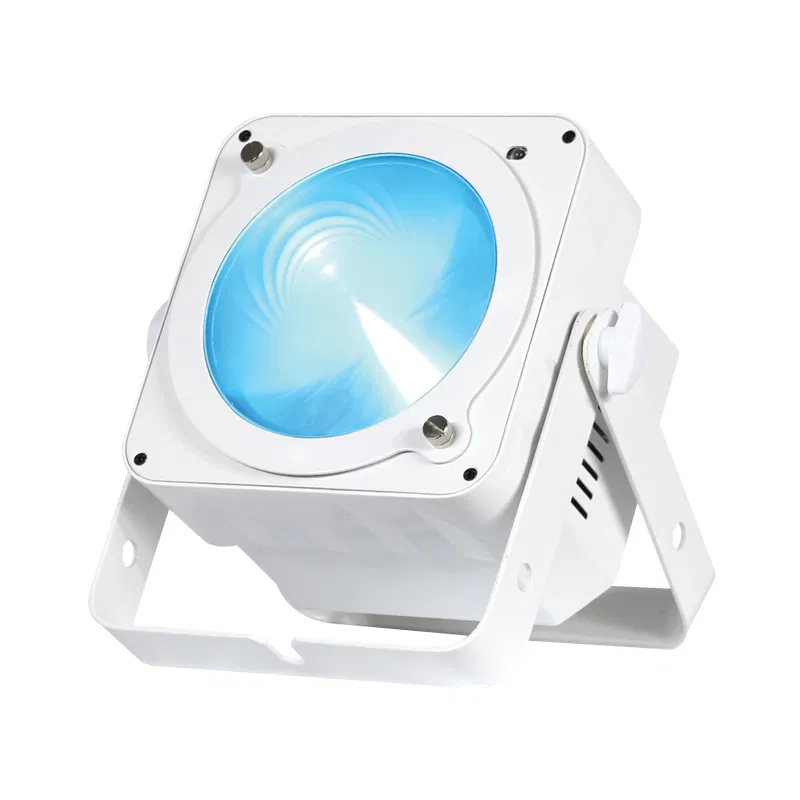

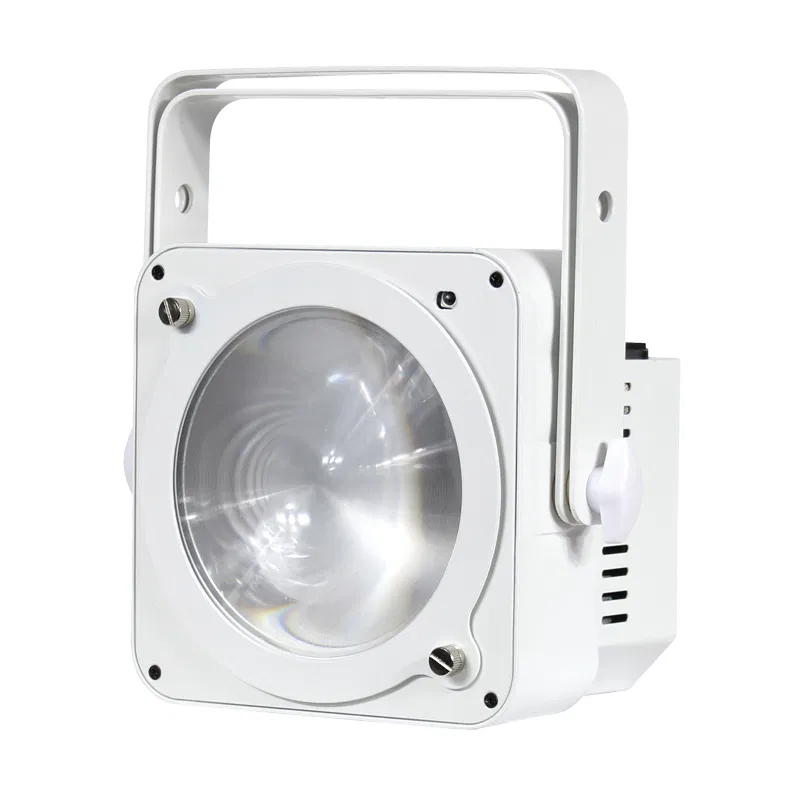

• Beam angle with supplied lens: 20° (field angle: 28°)
• 130 Lux @ 2m (full on @ 110°), 1,688 Lux @ 2m (full on @ 20°)
• Refresh rate: 1.1kHz
• DMX channels: 3 or 5 selectable
• Power consumption: 40W
• Power supply: 100-240V~50/60Hz
• Fuse: F1A 250V
• Static colour, colour change, colour fade, auto run, sound active and master/slave modes
• 0 – 100% dimming
• Variable strobe
• Bracket allows for multiple rigging or floor-standing applications
• Rubber feet allow the panel to sit flat on the floor for up lighting
• 4-button menu with LED display

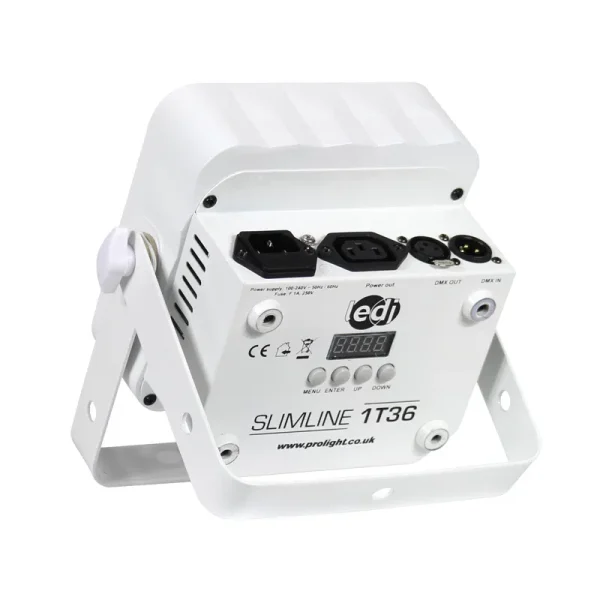

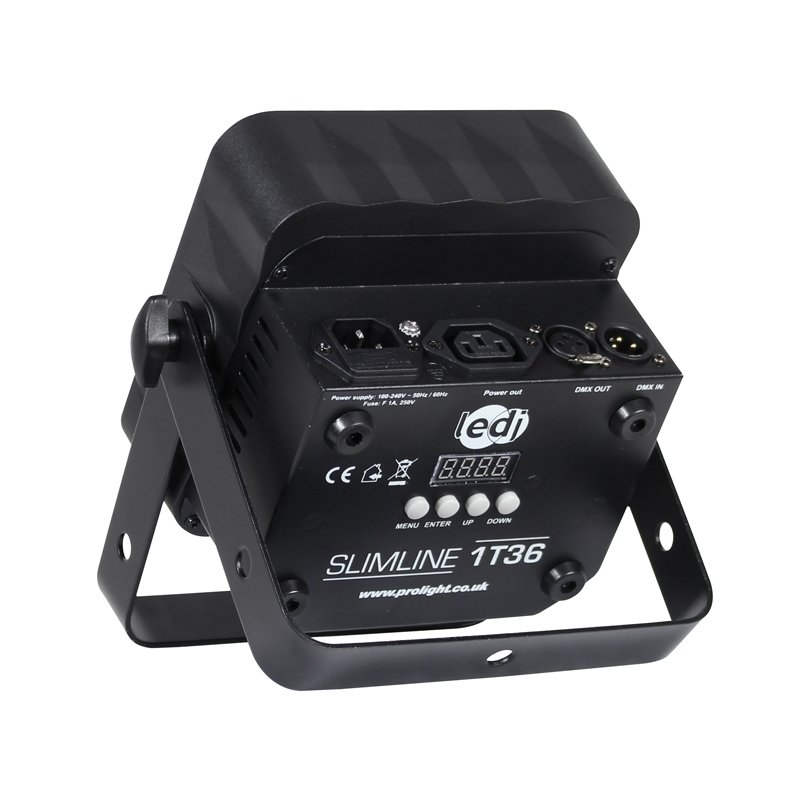

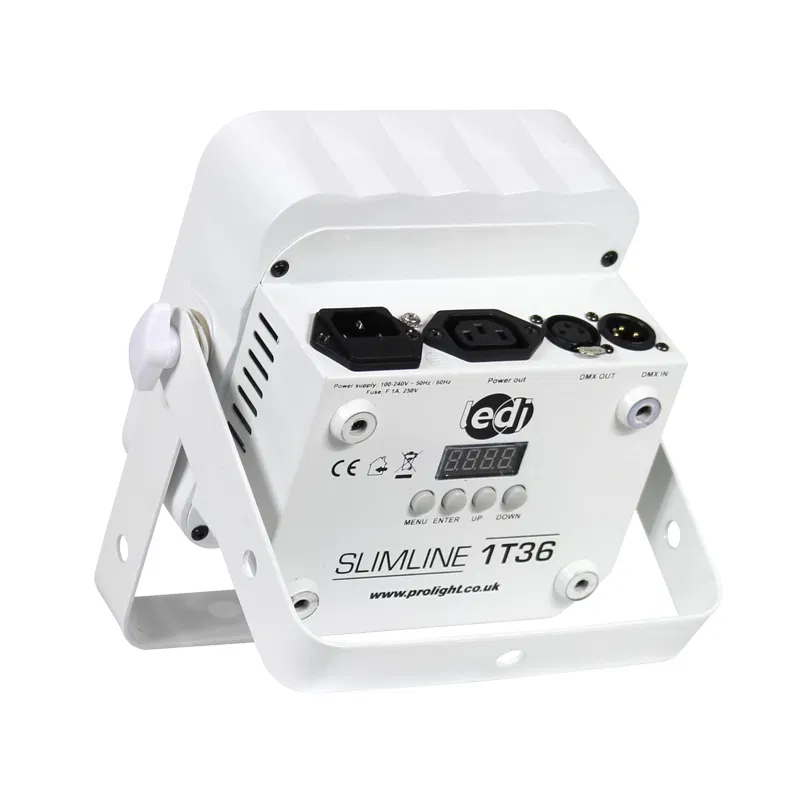

• Side entry XLR and power connections
• IEC power input/output
• 3-Pin XLR input/output
• Convection cooled
• Optional IR remote (LEDJ90B)

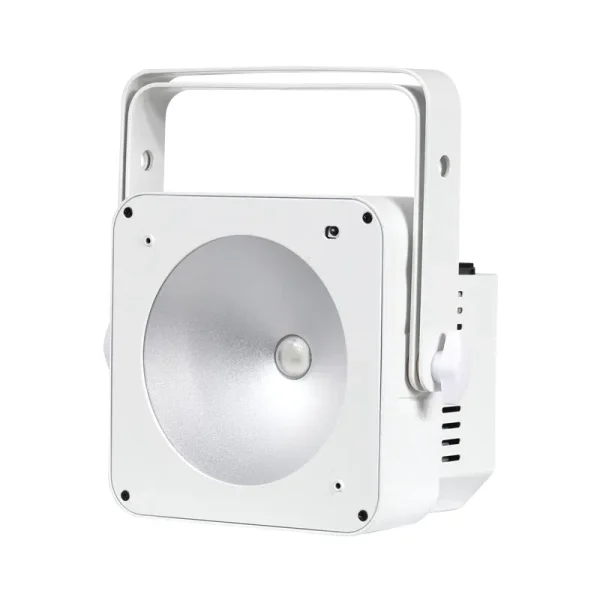

• Colour available in Black or White

Dimensions

• Dimensions (HxWxD): 210 x 220 x 120mm
• Weight: 2.1kg
• Packed Dims (HxWxD): 27 x 23.5 x 17.5cm
• Packed Weight: 2.5kg

Downloads

• LEDJ57_Manual
