Description

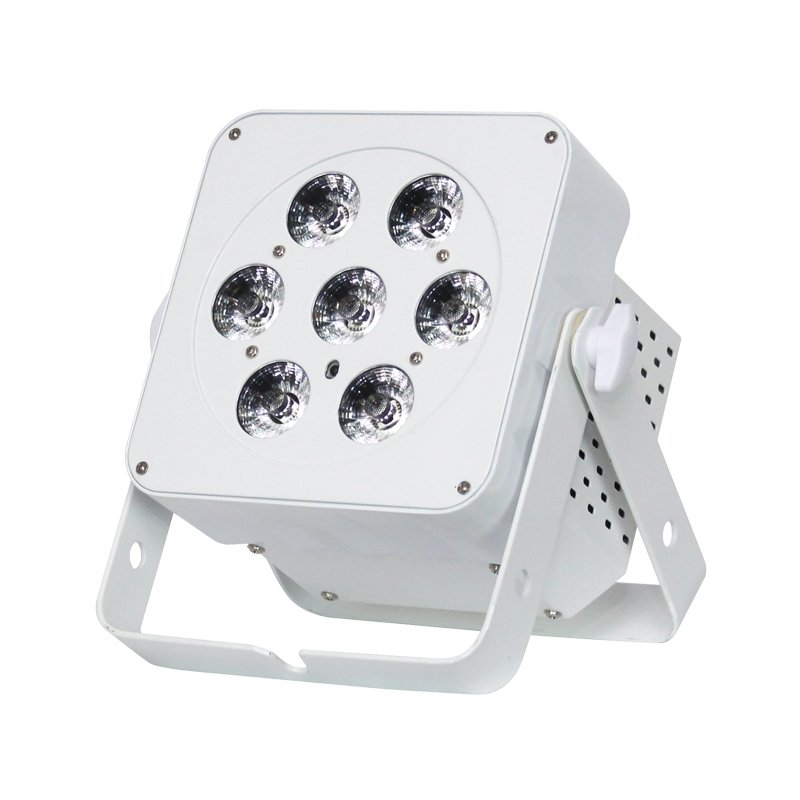

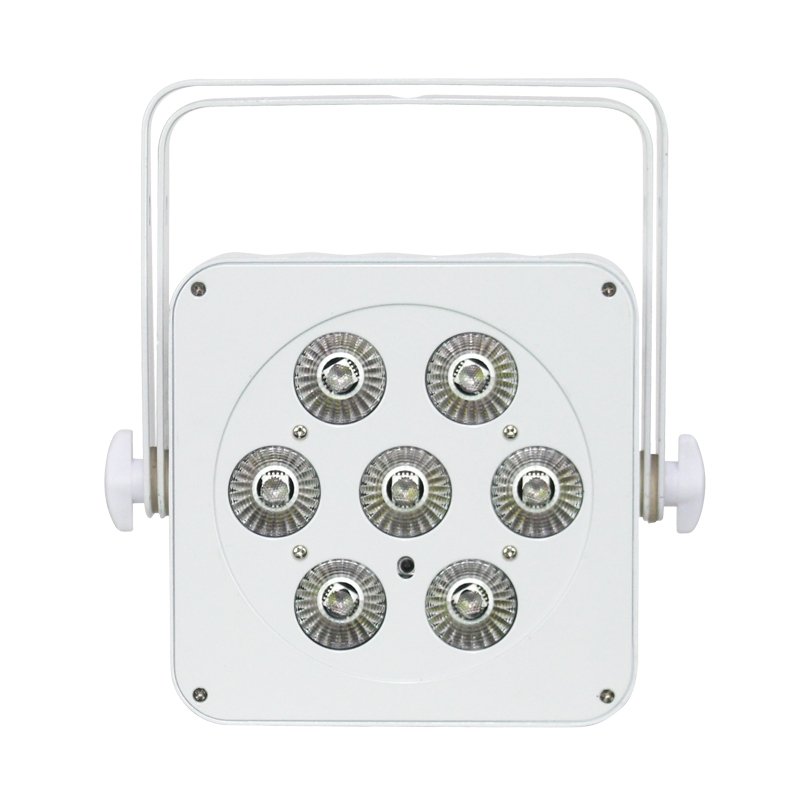

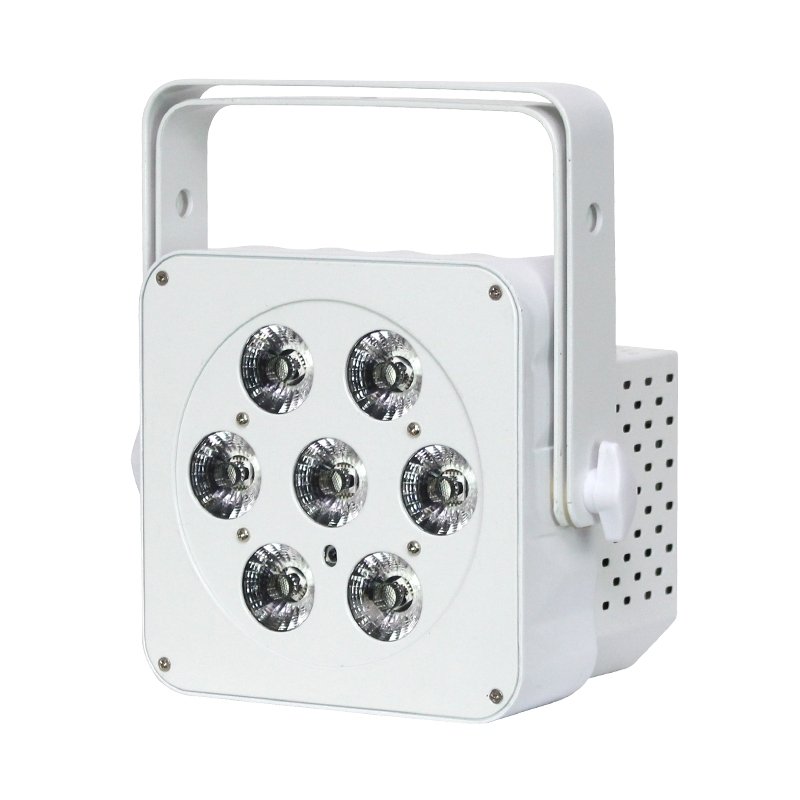

Housing 7 x 6W six-colour LEDs, the Slimline 7HEX6 RGBWAUV White Housing gives smooth colour mixing from rich saturated hues to subtle pastel shades. These units have rugged, all-metal housings and measure only 124mm in depth for easy transportation and installation.

They are also convection cooled for silent operation and feature a 30° beam angle. The 4-button LED menu or optional IR remote allow easy access to the functions, including DMX, master/slave, sound active and standalone.

Features

• 7 x 6W six-colour LEDs (RGBWAUV)
• Beam angle: 30° (field angle: 40°)
• 1,483 Lux @ 2m
• Refresh rate: 400Hz
• DMX channels: 2/3/3/4/4/5/6 or 9 selectable
• RDM (Remote Device Management)
• Static colour, colour change, colour fade, auto, sound active and master/slave modes
• 0 – 100% dimming
• Variable strobe
• Bracket allows for multiple rigging or floor-standing applications
• Rubber feet allow the panel to sit flat on the floor for up lighting
• 4-button menu with LED display

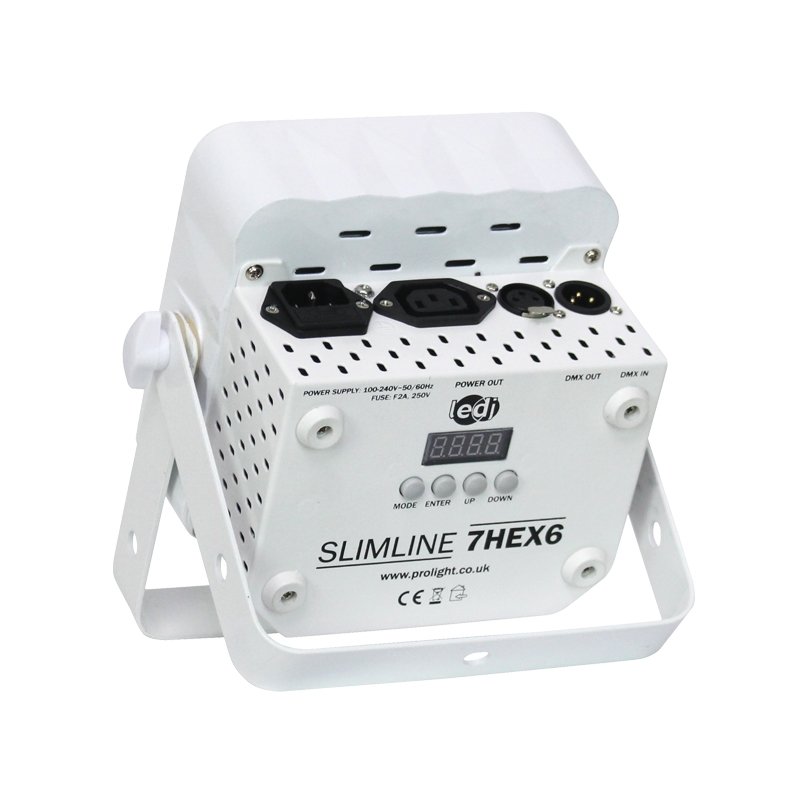

• Side entry XLR and power connections
• IEC power input/output
• 3-Pin XLR input/output
• Convection cooled
• Optional IR remote (LEDJ90F)

Specifications

• Power consumption: 50W
• Power supply: 100~240V, 50/60Hz
• Fuse: F2A 250V
• Dimensions (H x W x D): 212 x 222 x 124mm
• Weight: 2kg
