Description

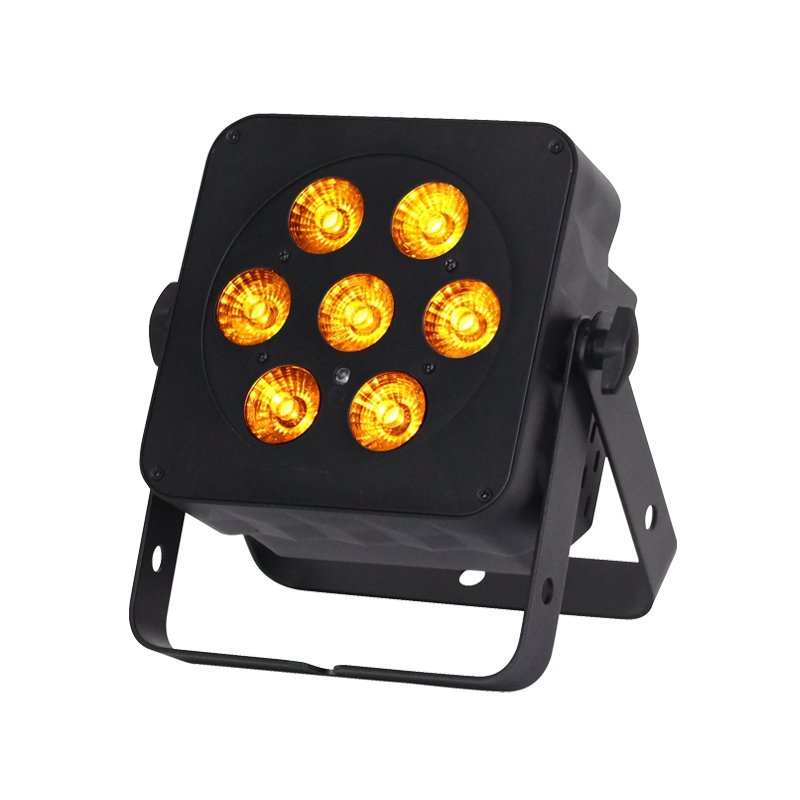

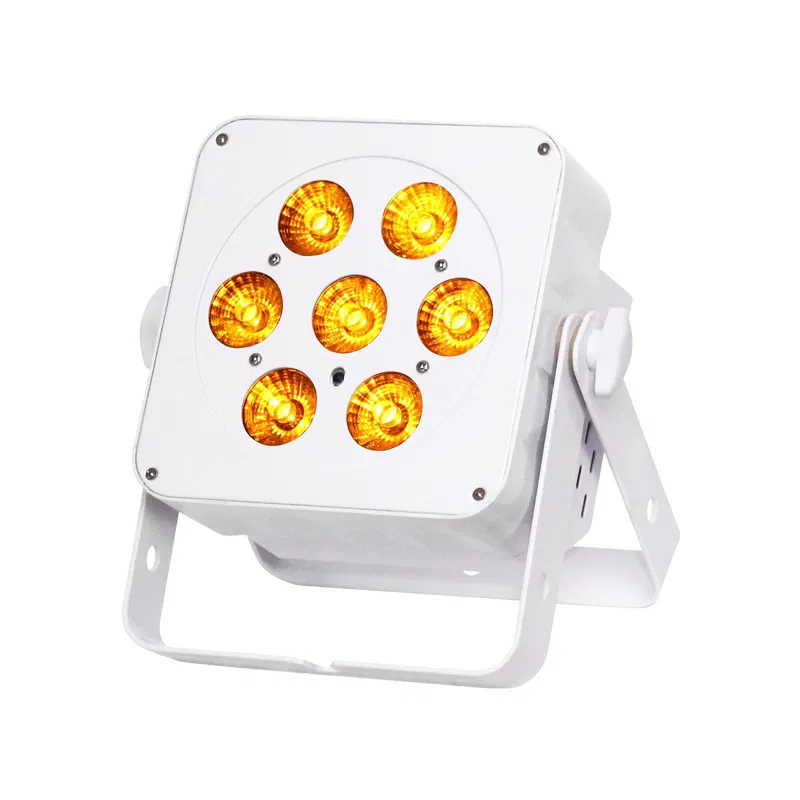

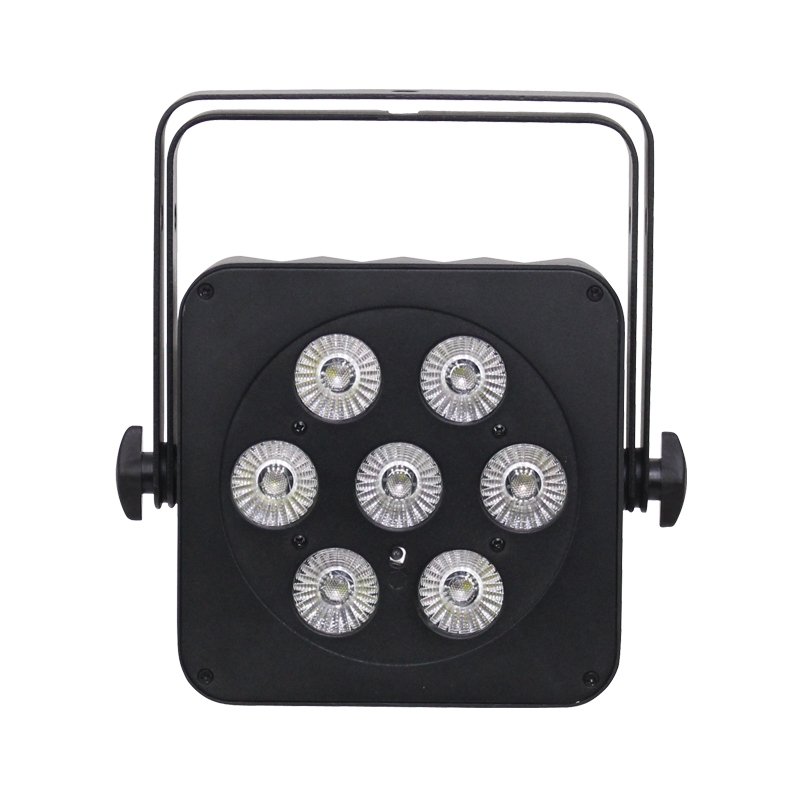

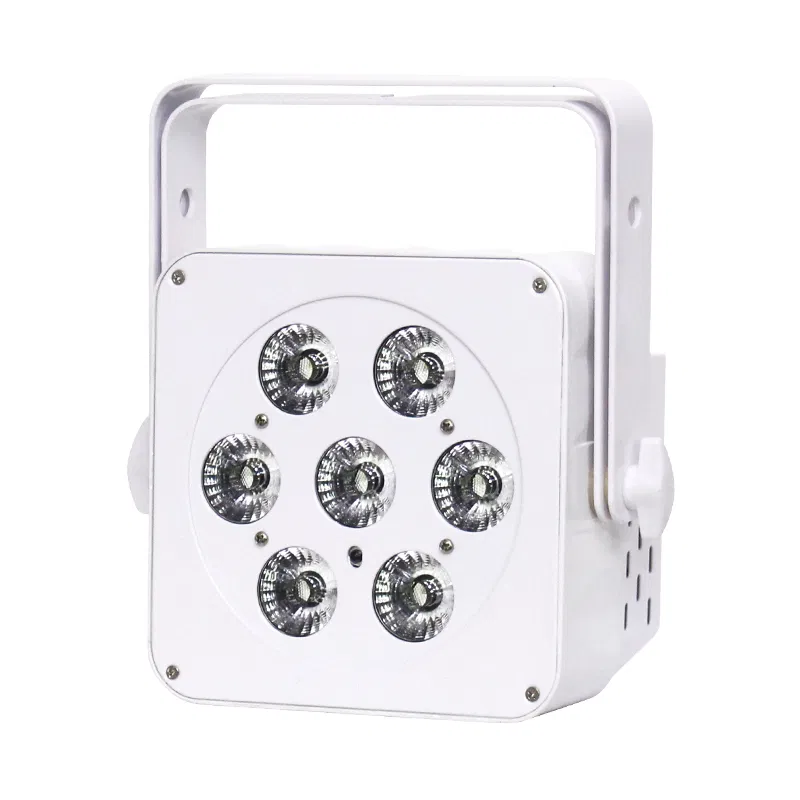

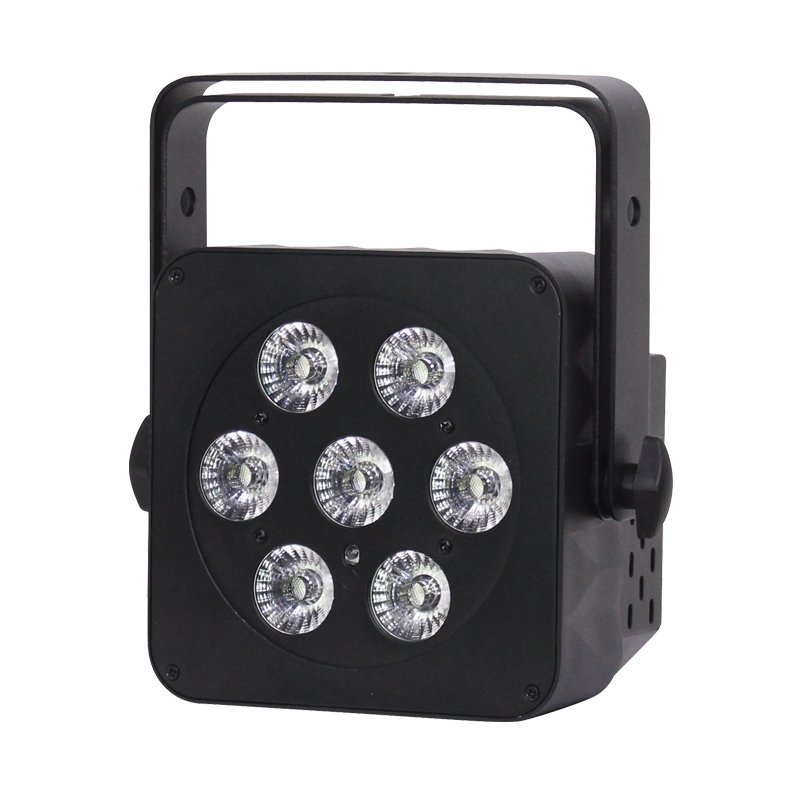

Slimline 7Q5 RGBA – housing 7 x 5W quad-colour LEDs including amber, the Slimline 7Q5 produces a wide spectrum of smooth colours from rich saturated hues to subtle pastel shades. These units have rugged, all-metal housings and measure only 99mm in depth for easy transportation and installation.

They are also convection cooled for silent operation and feature a 25° beam angle. The 4-button LED menu or optional IR remote allows easy access to the functions, including DMX, master/slave, sound active and stand-alone.

Features

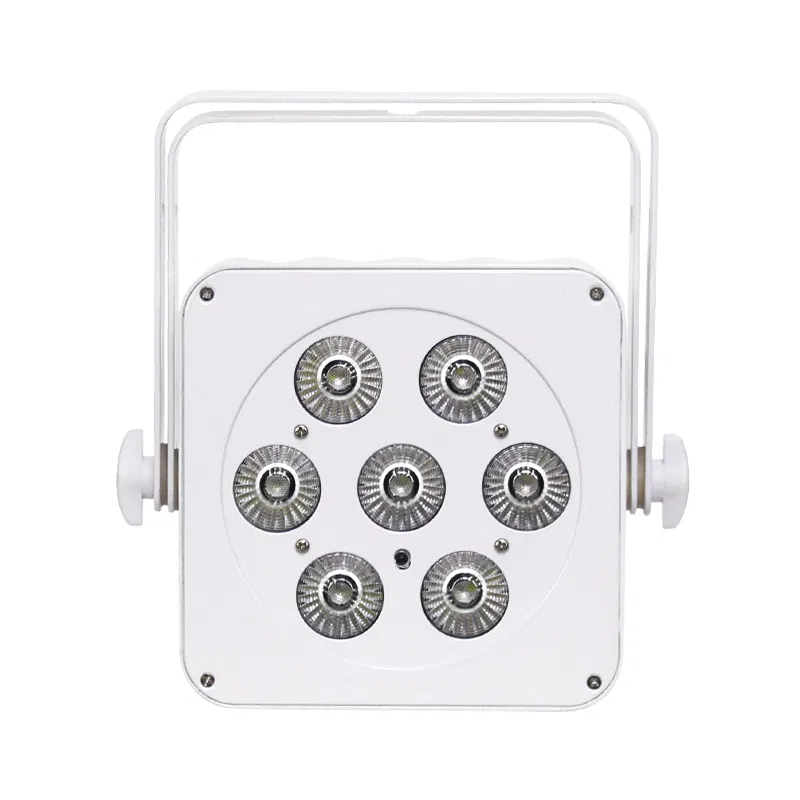

• 7 x 5W quad-colour LEDs (RGBA)
• Beam angle: 25° (field angle: 40°)
• 1,810 Lux @ 2m
• Refresh rate: 400Hz
• DMX channels: 2/3/4 or 7 selectable
• Static colour, colour change, colour fade, auto, sound active and master/slave modes
• 0 – 100% dimming
• Variable strobe
• Bracket allows for multiple rigging or floor-standing applications
• Rubber feet allow the panel to sit flat on the floor for up lighting

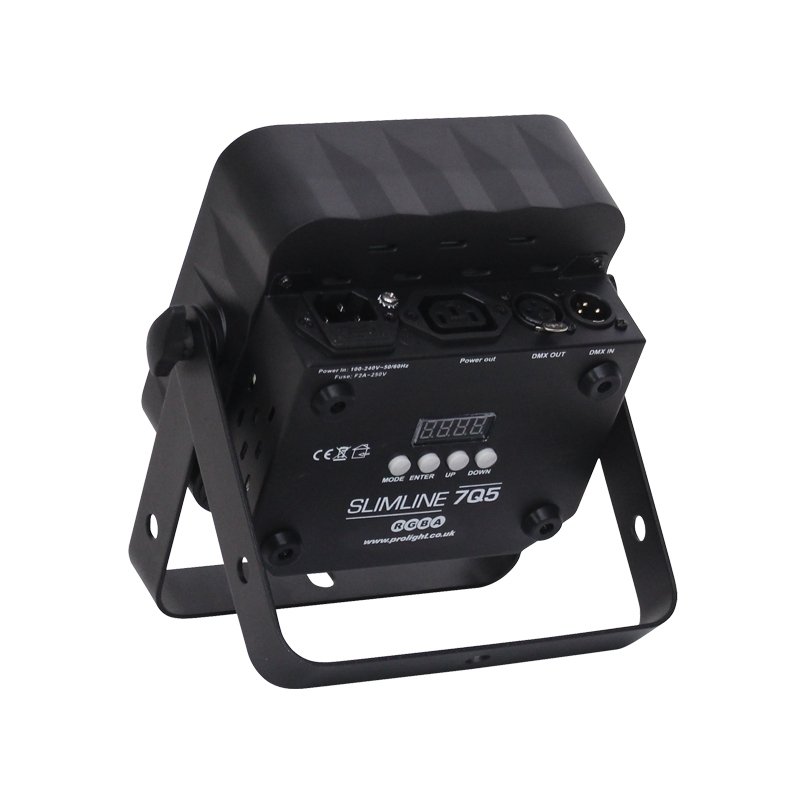

• 4-button menu with LED display

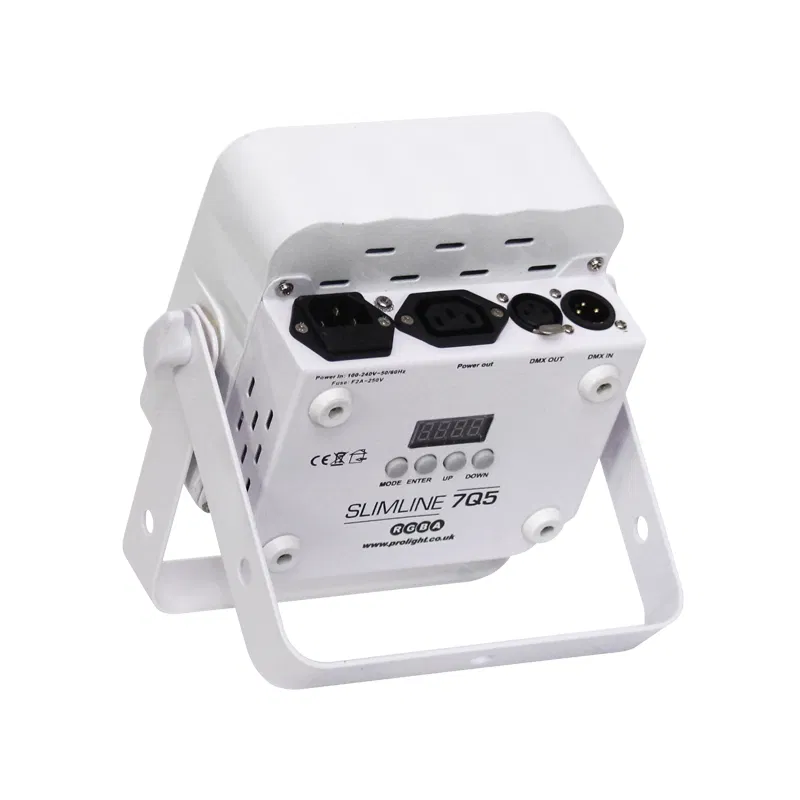

• Side entry XLR and power connections
• IEC power input/output
• 3-Pin XLR input/output
• Convection cooled
• Optional IR remote (LEDJ90C)

Specifications

• Power consumption: 45W
• Power supply: 100~240V, 50/60Hz
• Fuse: F2A 250V
• Dimensions (H x W x D): 202 x 224 x 99mm
• Weight: 2.5kg
