Description

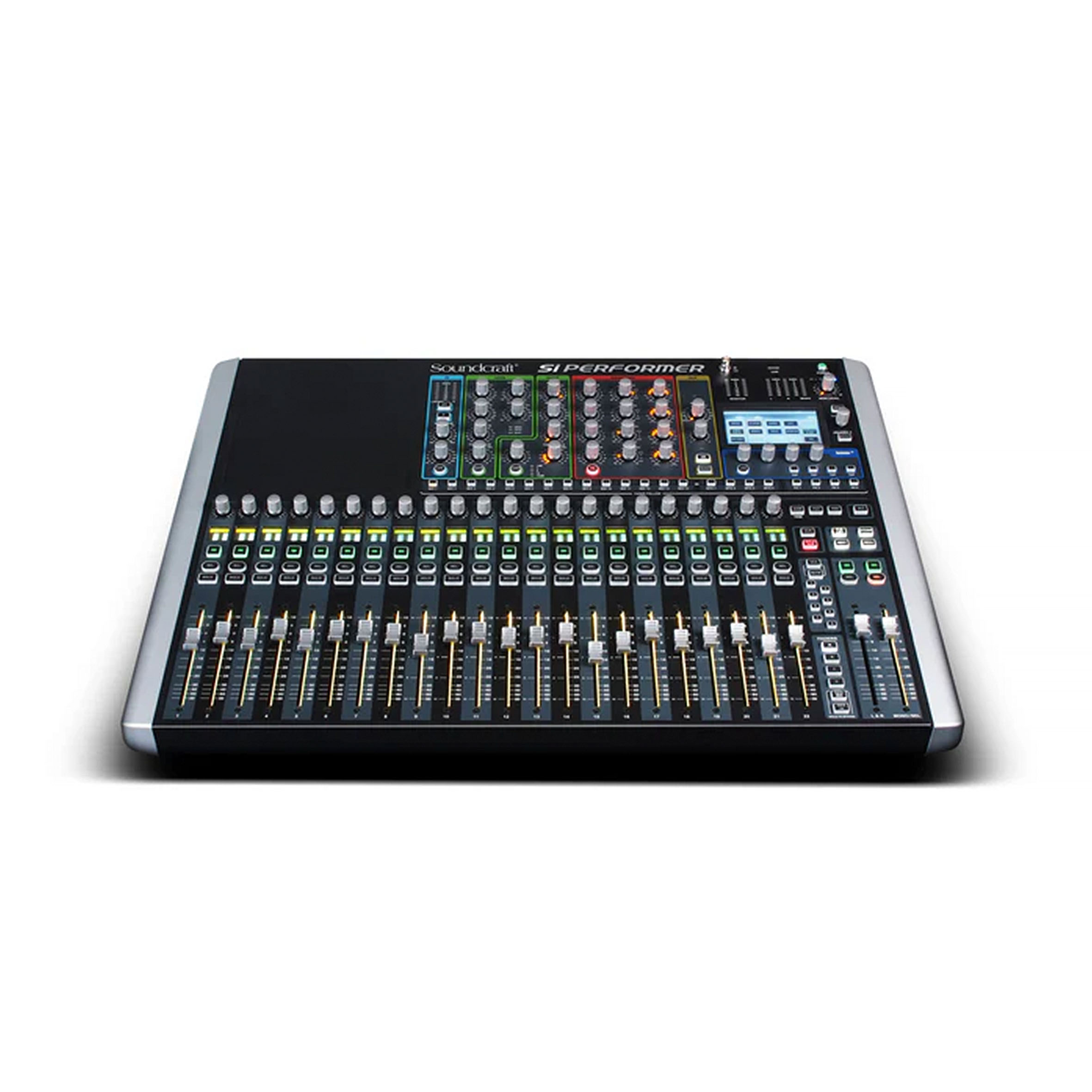

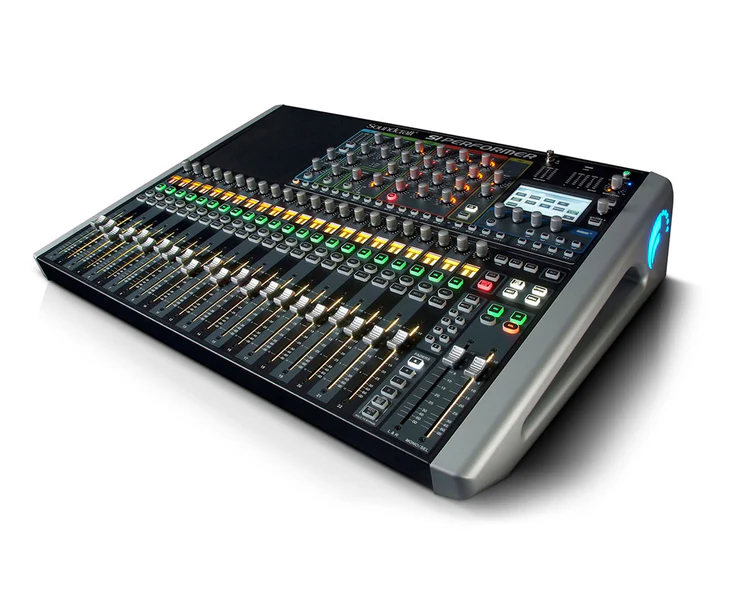

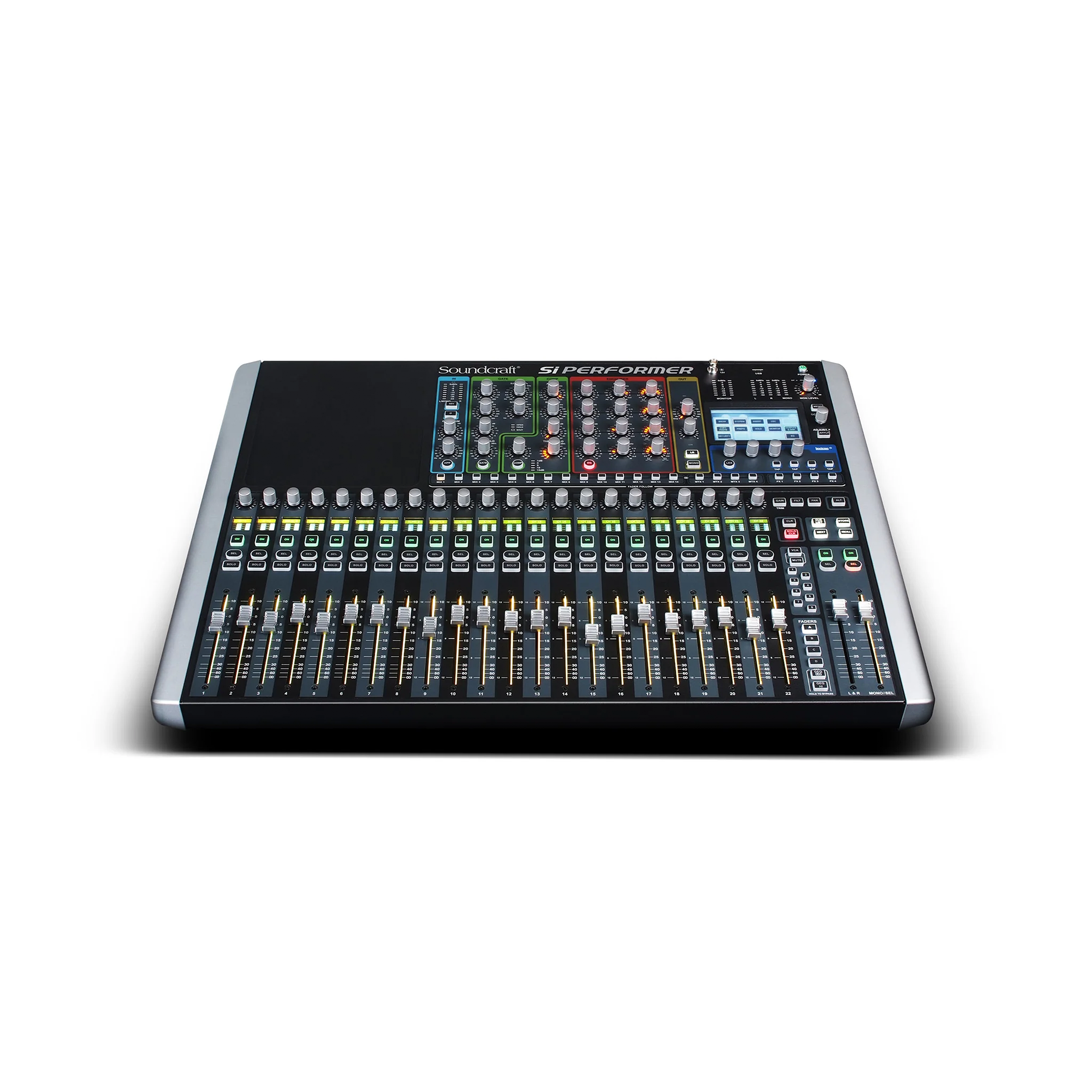

The Si Performer 2 24Ch Digital Mixer with DMX Light Control, local recallable mic pre amps and 8 stereo inputs, along with two ViSi Connect™ option card slots with an additional 128×96 input/output paths (one 64×64 expansion slot and another 64×32 expansion slot).

Able to utilise Si series ViSi Connect™ option cards, the Si Performer gives a large range of additional digital I/O connectivity including the MultiDigital Card (Firewire/USB/ADAT), BSS Digital Audio Bus (BLU Link), Dante™, CAT5 or optical MADI, AVIOM™, CobraNet™ and others with a massive mix capacity of 64 mono inputs for a total of 80 inputs to mix.

Each input channel has dedicated processing for high pass filter, input delay, gate, compressor and parametric EQ. Keeping you in control are 8 VCA busses, 8 mute groups, FaderGlow, and colour backlit name displays on every channel so you are never lost.

Feature

• 24 mono mic inputs
• 8 line inputs
• 80 channels to mix
• 2 ViSi Connect™ option card slots for 128 x 96 input/output paths
• Pre/Post selection per input per bus
• Freely assignable faders and patching
• Soundcraft FaderGlow™
• Colour backlit LCD screens per fader
• GEQ on every bus
• 20 sub-group / aux busses
• 4 FX busses
• 8 Matrix busses
• LRC Mix busses
• LCR panning
• 4 Stereo Lexicon Effects engines
• Delay on inputs and outputs
• 8 Mute Groups
• 8 VCA Groups
• AES in and out
• DMX interface and control -control sound and light simultaneously
• Freely assignable insert loops
• Harman HiQnet integration
• Colour touch screen interface
• Comes with removable side cheeks

Specifications

• Frequency Response
  • Mic input to Line output: +0/-1dB, 20Hz – 20kHz
  • Stereo input to master output: +0.5/-0.5dB, 20Hz – 20kHz
• T.H.D. & Noise (10Hz – 22kHz)
  • Mic In (min gain) to Bus output: 0.006% @ 1kHz
  • Mic In (max gain) to Bus output: 0.008% @ 1kHz
  • Stereo input to master output: 0.005% @ 1kHz
• Mic Input E.I.N.
  • 22Hz-22kHz bandwidth, unweighted: <-126dBu (150 Ohm source)
• Residual Noise
  • Master output; no inputs routed, Mix fader @0dB: <-88dBu
• CMRR: 80dB @ 1kHz Mic input
• Sampling Frequency: 48kHz
• Convertor Resolution: 24 bit
• Latency
  • Mic Input to Bus output: < 1ms @48kHz
• DSP Resolution: 40-bit floating point
• Internal Clock
  • Accuracy: < +/- 50ppm
  • Jitter: < +/- 5ns
• Input & Output Levels
  • Mic Inputs: +23dBu max
  • Stereo Inputs / Returns: +22dBu max
  • Bus Outputs: +22dBu max
  • Nominal Operating Level: 0dBu (-22dBFS)
• Input & Output Impedances
  • Mic Inputs: 2 kOhms
  • All other analogue Inputs: >10 kOhms
  • Line Outputs: <75 Ohms
• Oscillator: 20Hz to 20kHz Sine/Pink Noise, variable level
• Filters
  • Channel HP Filter: 22Hz-1kHz, 18dB per octave
• EQ (Inputs and Bus Outputs)
  • HF: 22Hz-20kHz, +/-15dB, Q=0.3-6.0, bell or shelving
  • Hi-Mid: 22Hz-20kHz, +/-15dB, Q=0.3-6.0
  • Lo-Mid: 22Hz-20kHz, +/-15dB, Q=0.3-6.0
  • LF: 22Hz-20kHz, +/-15dB, Q=0.3-6.0, bell or shelving
• Metering:
  • 7x 8 segment meters for selected channel/bus, masters & monitors
  • Each fader strip offers 4 segment level plus gain reduction & Gate Closed status
• Mains Voltage Operating Range: 90-264V, 47-63Hz, autoranging
• Mains Power Consumption: 200W
• Temperature/Humidity Range
  • Operating Temperature Range: 0°C – 45°C (32°F – 113°F)
  • Relative Humidity: 0% – 90%, non-condensing Ta=40°C (104°F)
  • Storage Temperature Range: 20°C – 60°C (-4°F – 140°F)
• Dimensions (H x W x D): 170mm x 730mm x 536mm/6.7” x 28.75” x 21.2”
• Weights: 17kg/37lbs net
