Description

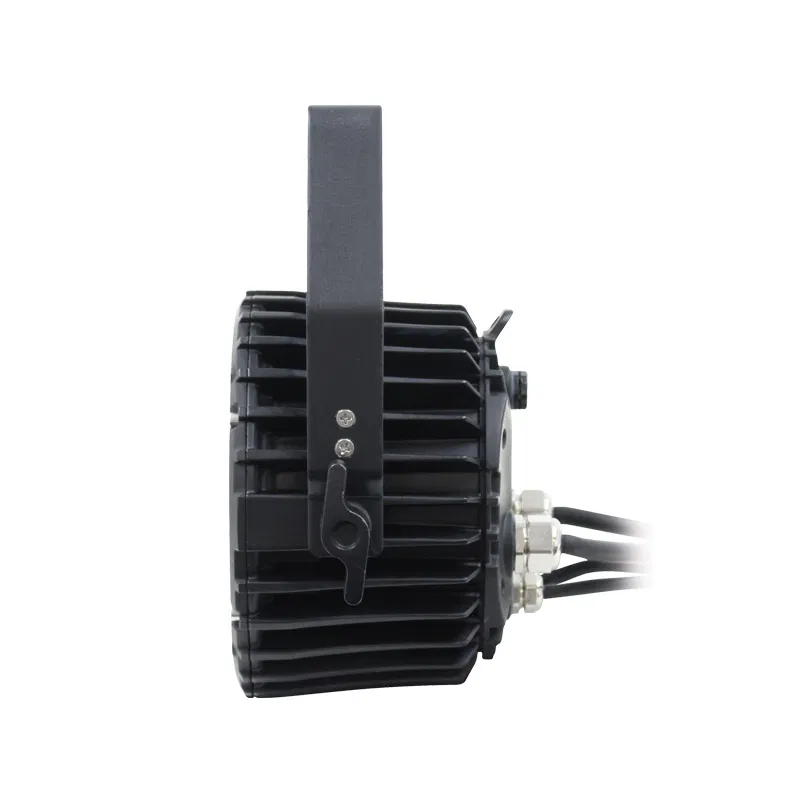

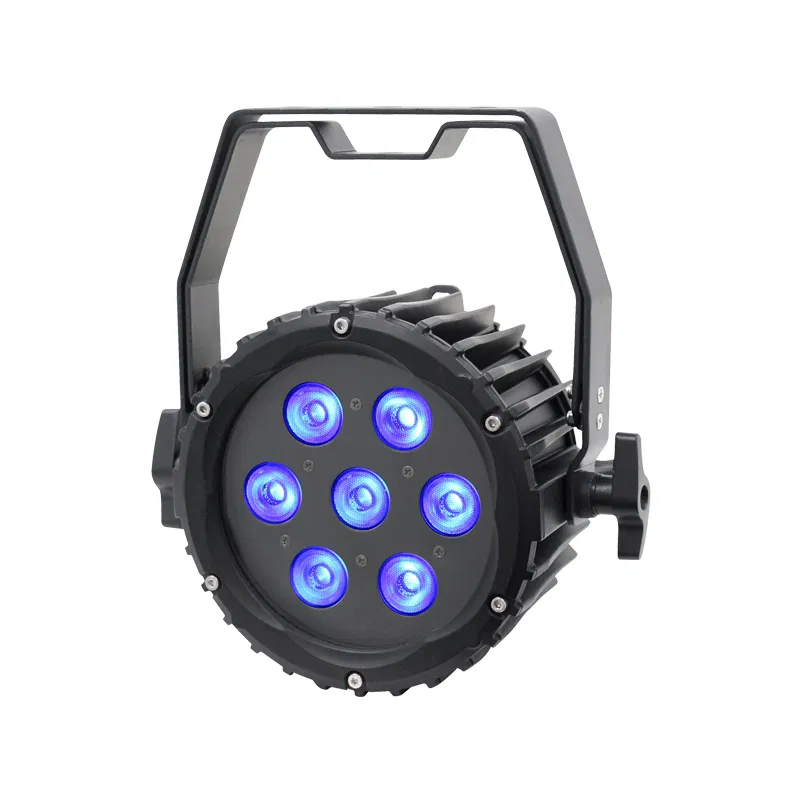

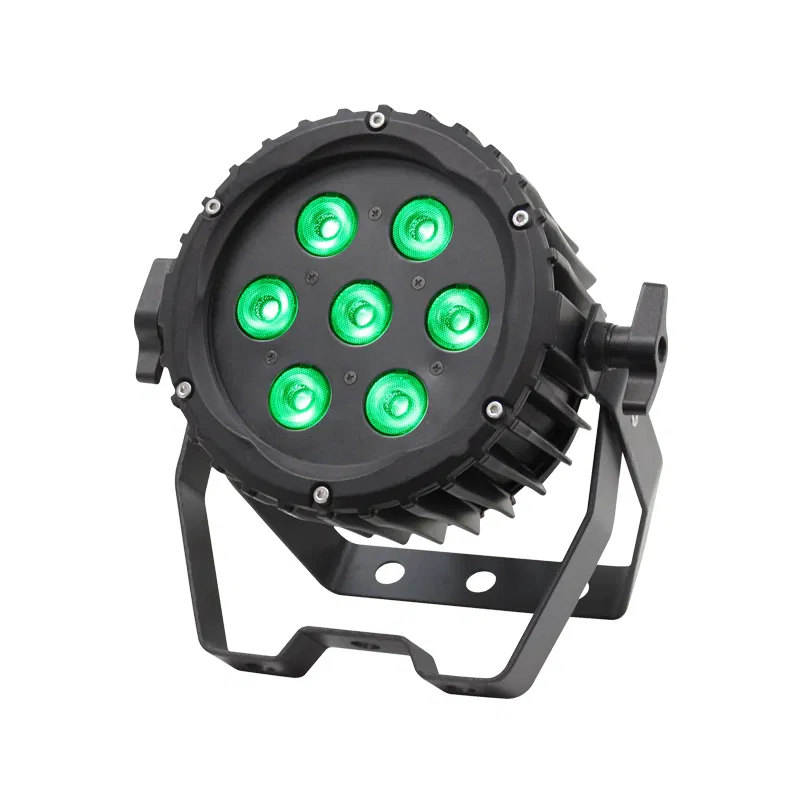

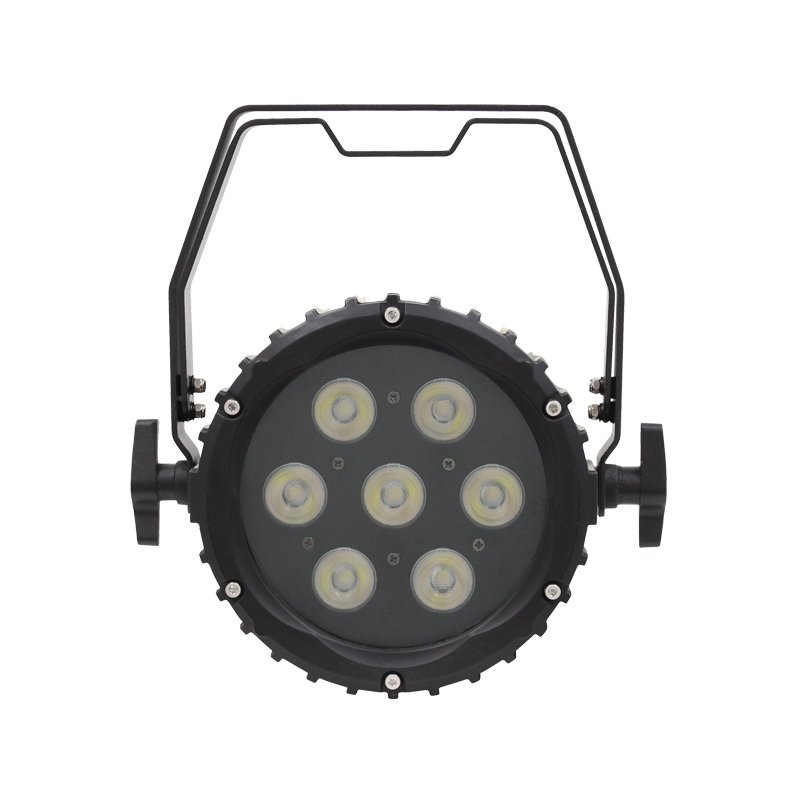

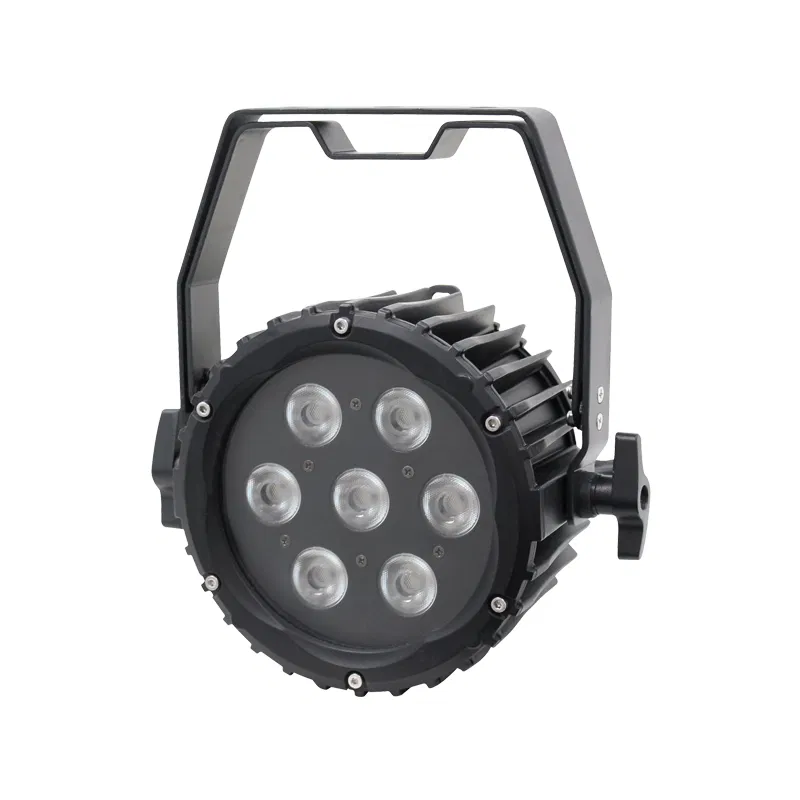

The Spectra Par 7Q8 Series Exterior Fixture features 7 x 8W quad-colour LEDs, delivering a smooth wash of colour, ranging from intense, rich saturated hues through to pastel shades. Controllable via the onboard 4-button LED menu system for auto, static colour or master/slave modes, with the option of DMX control for larger installations. The silent running, convection-cooled heavy-duty alloy enclosure features Hydralock connectors for both DMX and mains input/output.

Features

• 7 x 8W quad-colour LEDs (RGBW)
• Beam angle: 28°
• 1,762 Lux @ 2m (full on
• Refresh rate: 7.8kHz
• DMX channels: 4/6 or 8 selectable
• Power consumption: 60W
• Power supply: 100~240V, 50/60Hz
• IP rating: IP65
• Static colour, colour change, colour fade and master/slave modes
• 0 – 100% dimming
• Variable strobe
• Bracket allows for multiple rigging or floor-standing applications

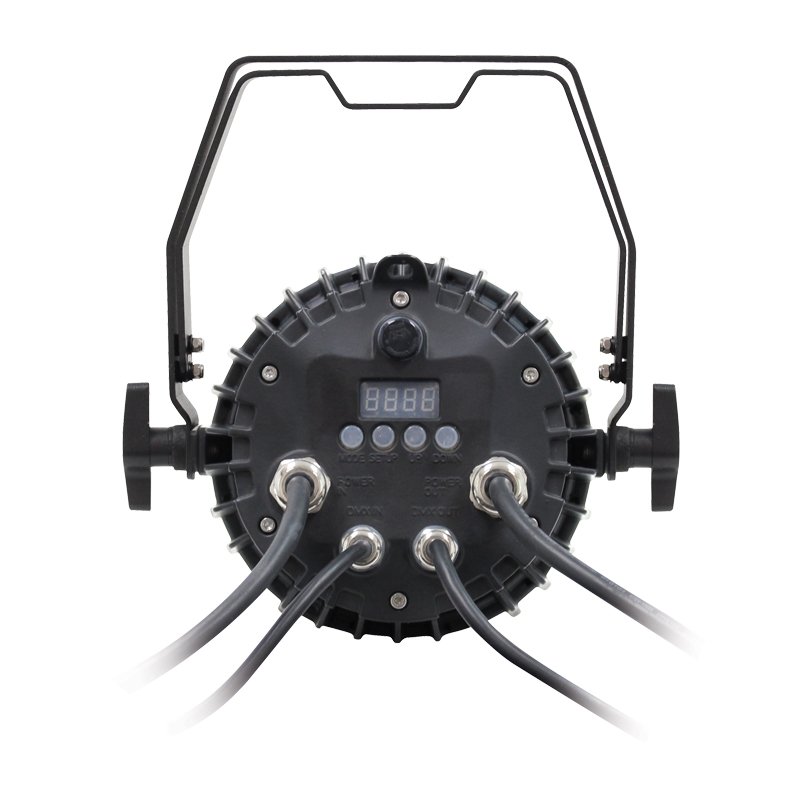

• 4-button menu with LED display

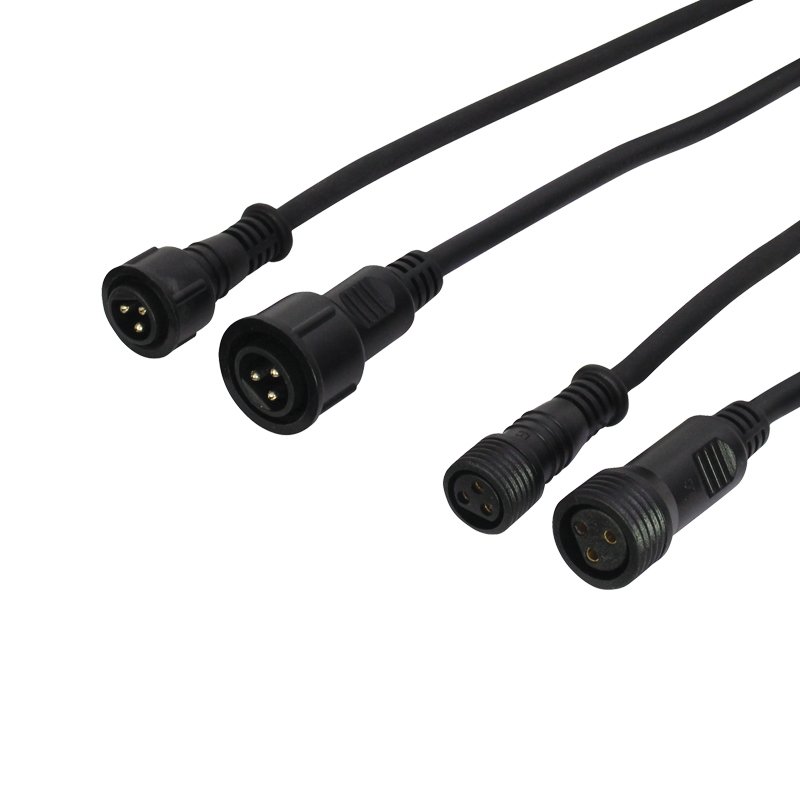

• Hydralock power input/output trailing connections
• Hydralock DMX input/output trailing connections
• Convection cooled

Dimensions

• Dimensions (HxWxD): 260 x 235 x 150mm
• Weight: 3.1kg
• Packed Dims (HxWxD): 18 x 30 x 27cm
• Packed Weight:3.7kg

Downloads

• LEDJ285_Manual
