Description

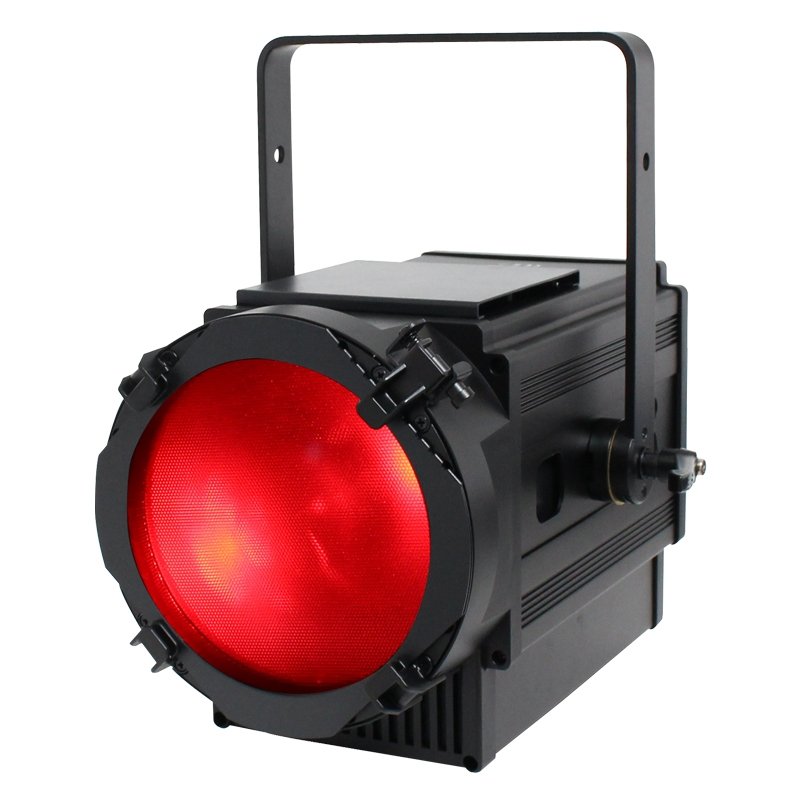

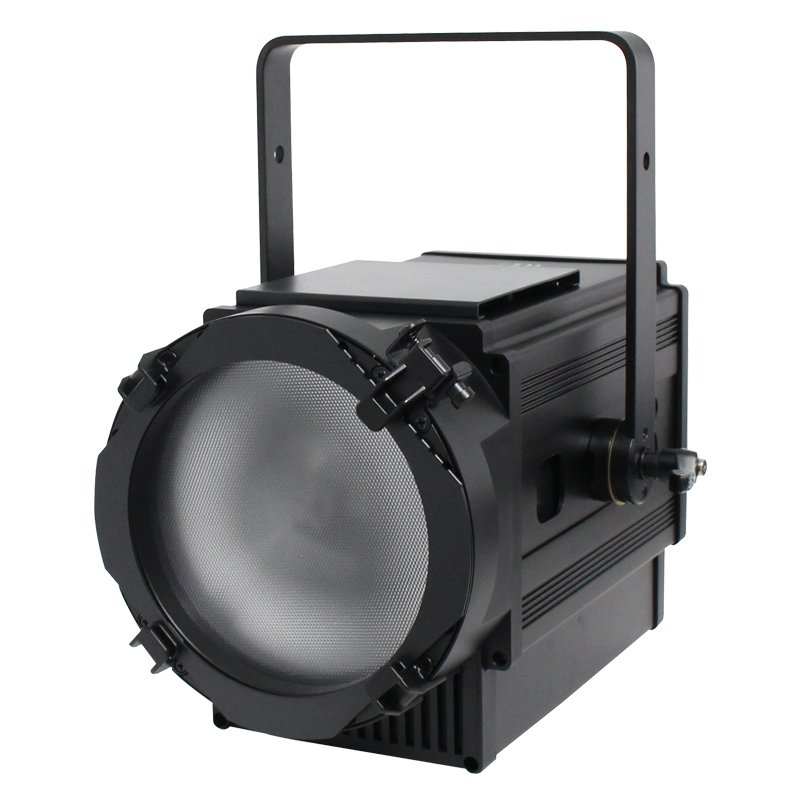

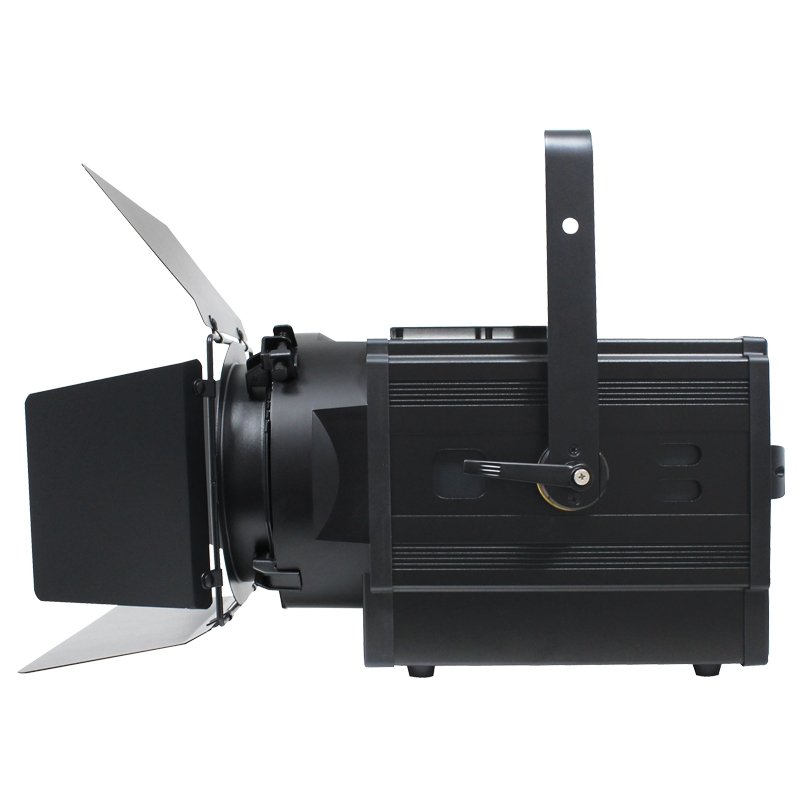

The TZ 350 LED Zoom Fresnel RGBW is a high-performance luminaire for general long-throw lighting applications.

This fixture offers a superior light output and is supplied with a filter frame and barn doors. The 4-button display allows users to select DMX and manual dimming modes along with dimming curves.

Features

• 2-year warranty
• 1 x 350W quad-colour COB LED (RGBW)
• Adjustable beam angle: 13°- 45°
• 13° – 24,500 Lux @ 2m (full on), 45° – 8,300 Lux @ 2m (full on)
• Refresh rate: 7.2kHz
• Motorised zoom
• DMX channels: 5 or 7 selectable
• RDM (Remote Device Management)
• 0 – 100% dimming
• Variable strobe
• 4 dimming curves in both LED and halogen profiles: Linear, square law, inverse square law and S-curve

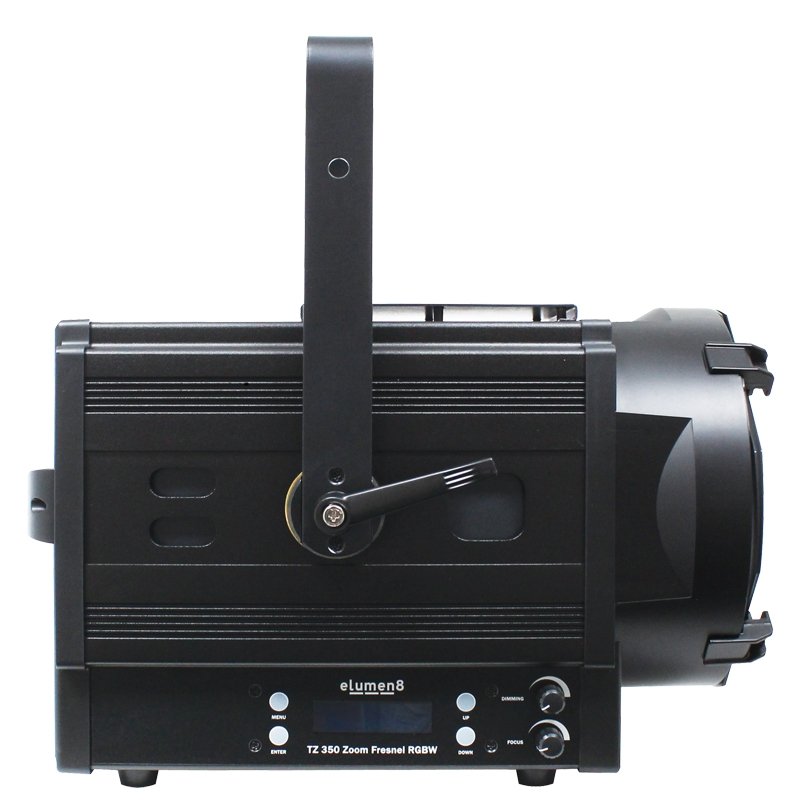

• 4-button menu with LCD display
• Power consumption: 415W
• Power supply: 110~240V, 50/60Hz
• Fuse: T3A 250V

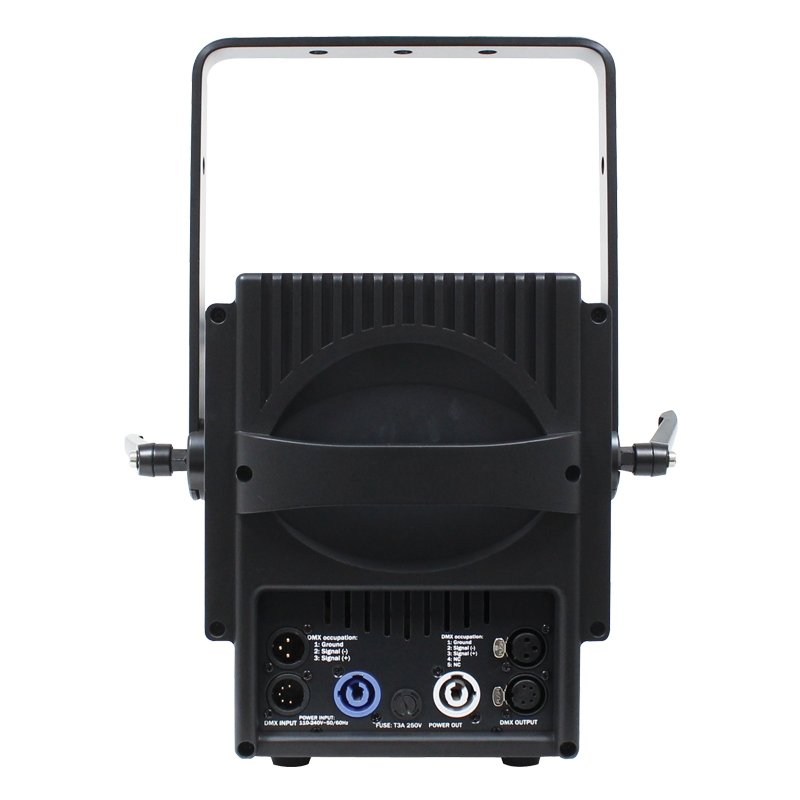

• powerCON input/output
• 5-Pin XLR input/output
• 3-Pin XLR input/output

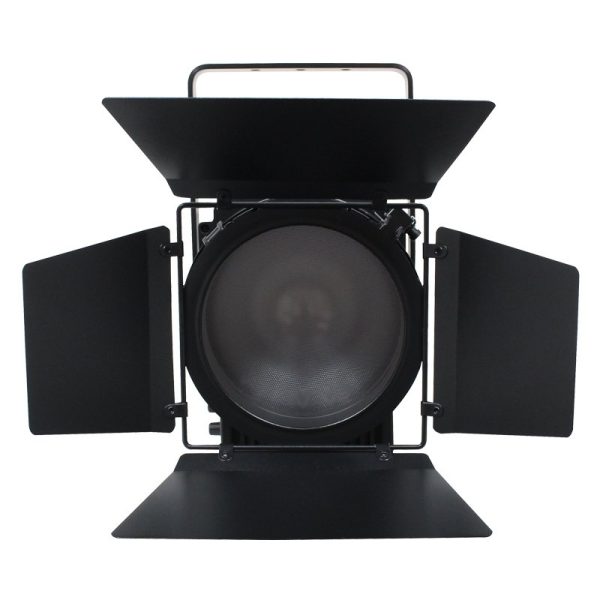

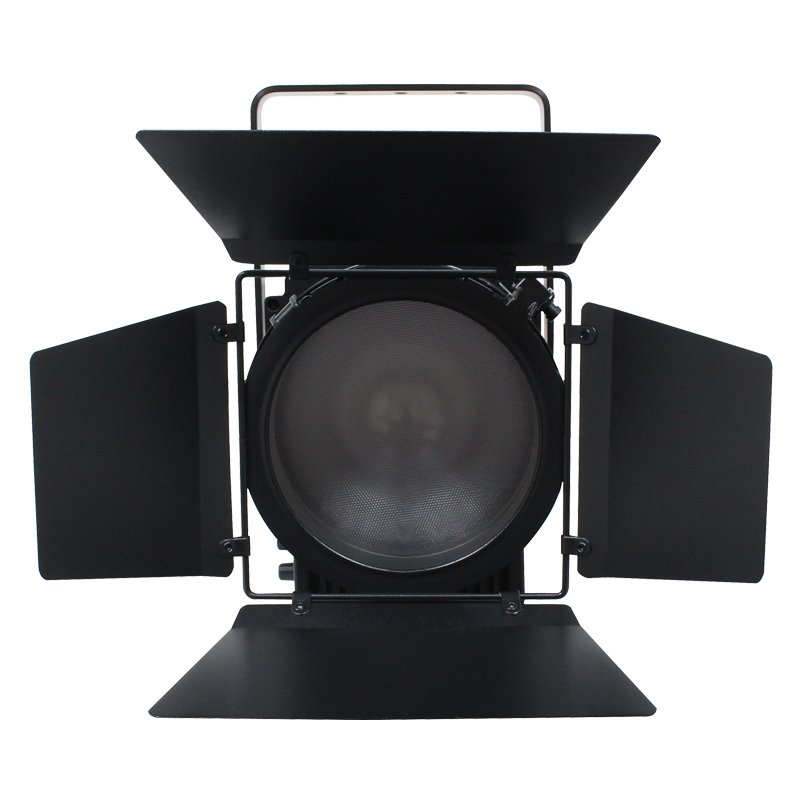

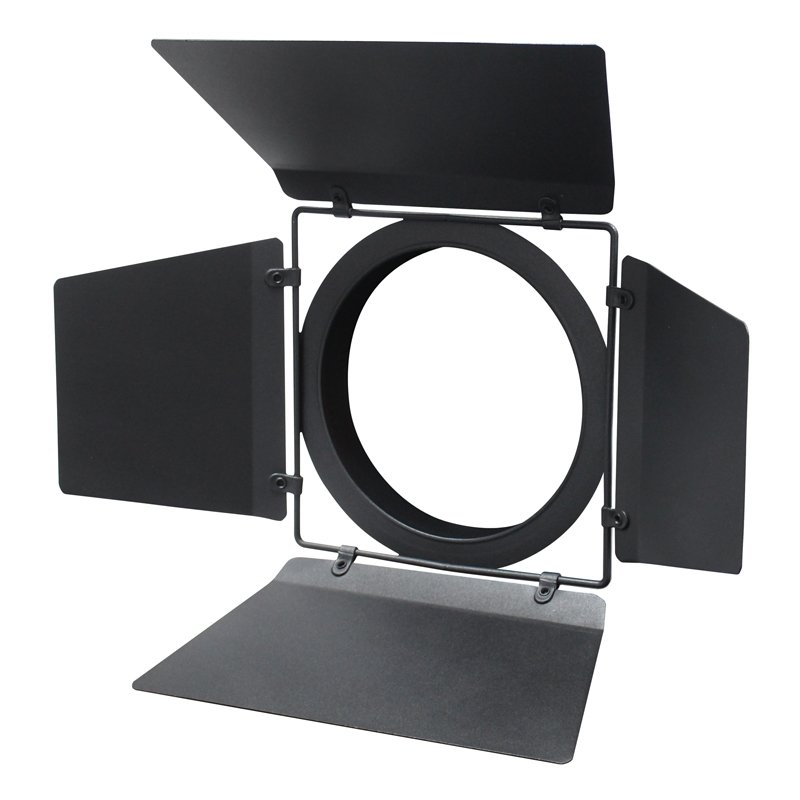

• Filter frame and barn doors included
• Fan cooled

Dimensions

• Dimensions (HxWxD): 399 x 336 x 420mm
• Weight: 8.1kg
• Packed Dims (HxWxD): 60 x 44 x 36cm
• Packed Weight: 15kg

Downloads

• ELUM109_Manual
