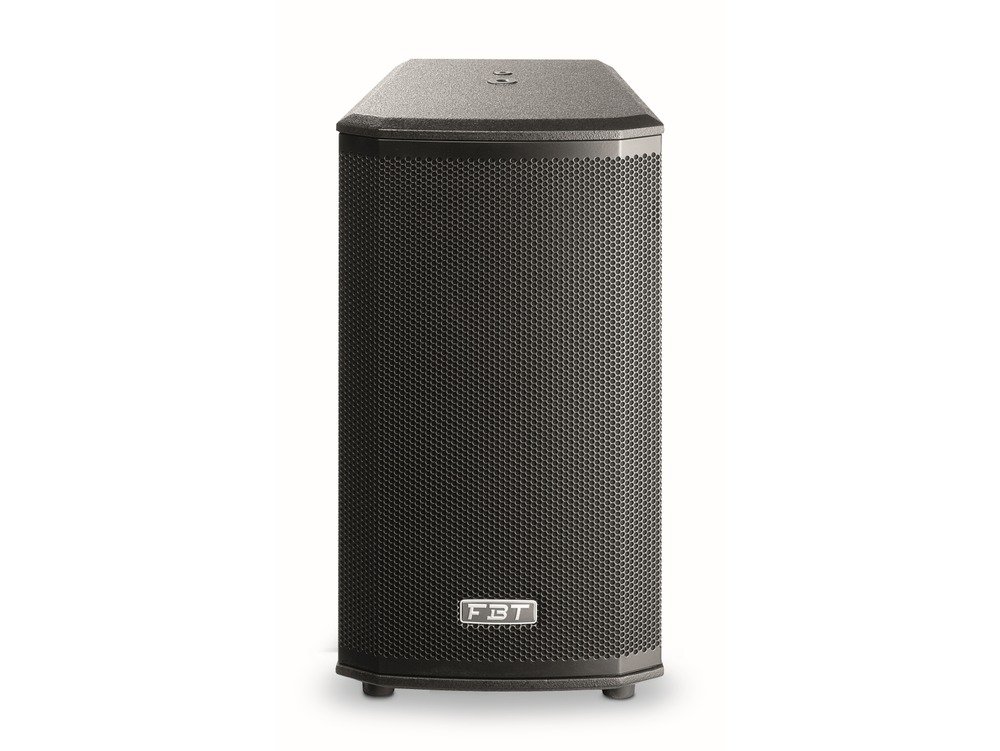

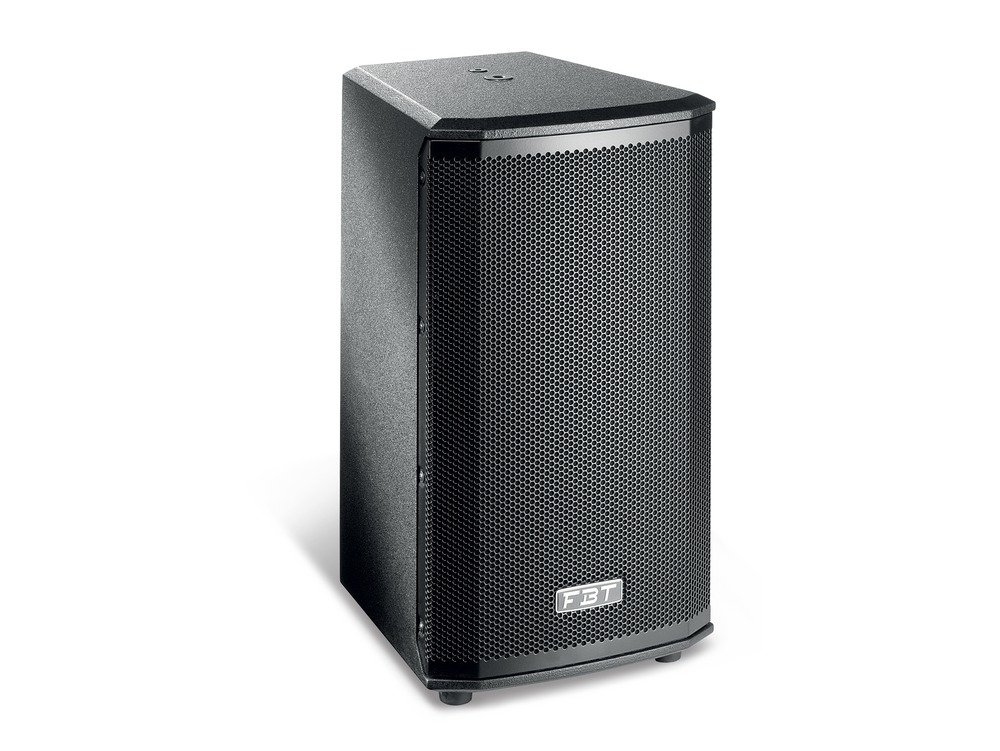

Ventis 108

2 Way Passive Speaker 8″+ 1″ – 250w

Ventis 108 is part of the Ventis range which are ideal for portable performance or fixed installation. This Passive speaker Features an 8″ woofer and a 1″ exit 1.4″VC compression driver. Recommended amplifier of 250 Watts at 8 Ohm will deliver 126dB SPL.

Connections via 2x Speakon NL4 In + Thru. All housed in a 15mm Baltic birch ply cabinet with 35mm pole mount and a full length grille. Optional brackets for installation are available.



£549.00

Description

The FBT VENTIS 108 has been designed to meet the highest standards in both performance and aesthetic appeal. The FBT VENTIS are as suitable for fixed installation and portable use as they are for use on stage.

The FBT VENTIS 108 incorporating an 8″ LF woofer with 2″ voice coil, custom made for FBT and 1″ exit throat B&C HF compression driver with 1.4″ voice coil; a fully rotatable constant directivity horn ensure accurate coverage (80°H x 50°V).

With a frequency range from 70Hz to 18kHz the FBT VENTIS 108 speaker provides high fidelity sound for both speech and music applications with a maximum SPL of 126dB. Ideal for small fixed installations the FBT VENTIS 108 speaker system has an impedance of 8Ohm and the internal crossover is at a fixed frequency of 1.8kHz.

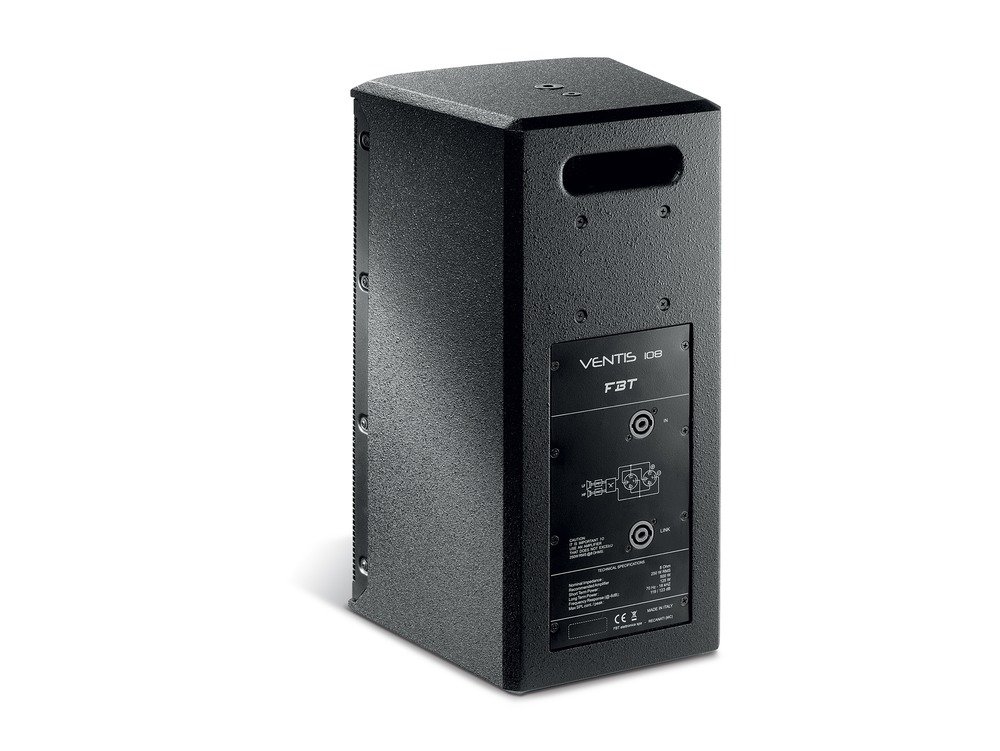

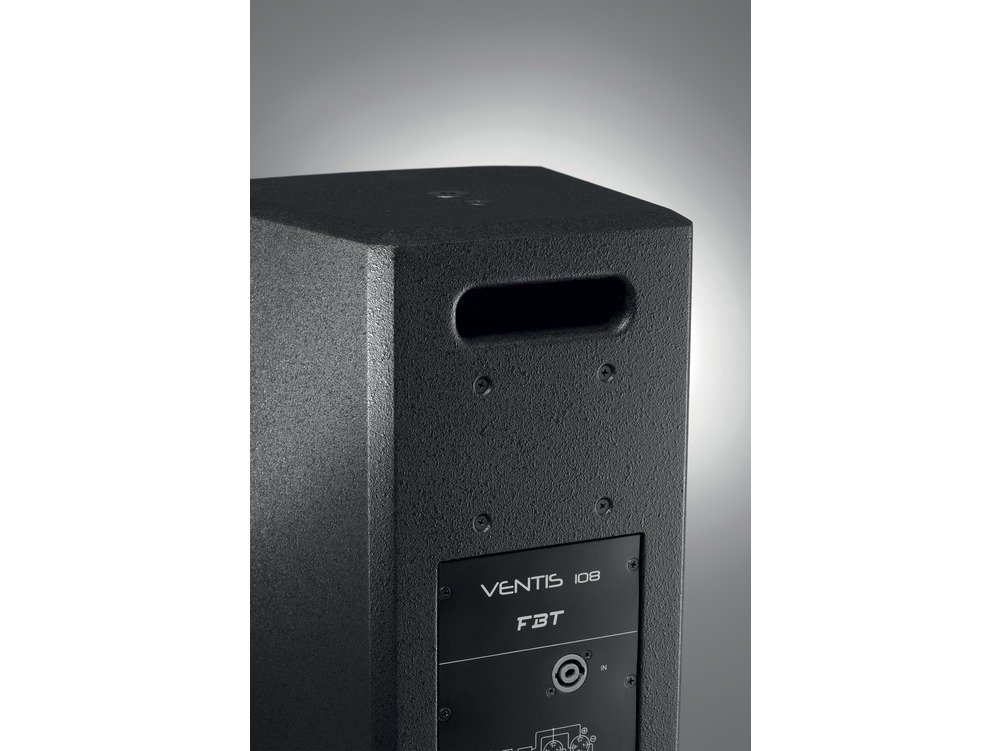

Constructed in 0.59″ birch plywood and includes one integrated handle on the rear of the speaker. Rear panel connections feature 2x Neutrik SpeakON NL4 connections for input and passthrough. The optional mounting bracket allows the FBT VENTIS 108 speaker to be surface mounted on walls or ceilings.

Features

  • Built-in passive crossover with soft-trip protection for the LF woofer and HF driver
  • Speakon NL-4 IN and LINK OUT connectors
  • 4 x M5 threaded rigging points and optional mounting hardware

Specifications

  • Crossover frequency: 1.8kHz
  • Recommended HP filter: 50Hz / 24dB oct
  • Configuration: 2 Way
  • Recommended Amplifier: 250W RMS
  • Long Term Power: 125W
  • Short Term Power: 500W
  • Sensitivity (@1W/1M: 95dB
  • Impedance: 8 Ohm
  • Frequency Response: 70Hz – 18kHz (@ -6dB)
  • Low Frequency Woofer: 8″ / 2″ coil
  • High Frequency Driver: 1″ / 1.4″ coil
  • Maximum SPL Cont/Peak: 21 / 126dB
  • Dispersion: 80°H x 50°V rotatable
  • Input Connector: 2x SpeakON NL4 (in & thru)
  • Net Dimension (WXHXD): 274 x 485 x 270 mm
  • Net Weight: 12.3kg
