SKU: 40680 Categories: , , Tags: , ,

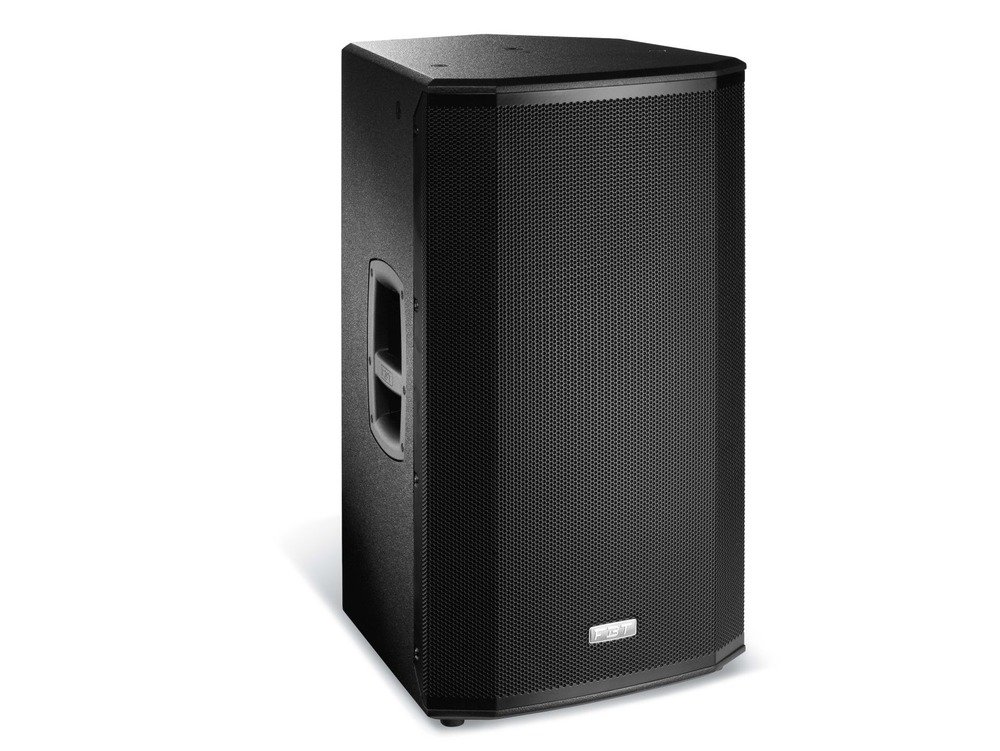

Ventis 115

2-way Passive speaker – 15″ + 1″ – 500Wrms

The Ventis 115 is part of the Ventis range which are ideal for portable performance or fixed installation. This passive speaker Features an 15 ” woofer and a 1″ exit 1.7″VC compression driver.

Recommended amplifer of 400 W at 8? will deliver 129 dB SPL connections via 2x Speakon NL4 In + Thru. All housed in a 15mm Baltic birch ply cabinet with 35mm pole mount and a full length grille.

Optional brackets for installation are available.



£910.00

Description

PASSIVE REINFORCEMENT SPEAKER – 500w / 8 OHM 130dB SPL

For the VENTIS range, quality and flexibility are the watchwords. Based on a powerful combination of B&C compression drivers and FBT’s own custom, long excursion woofers, the 115, 112 and 110 models are two-way, bass reflex designs housed in 15mm birch plywood. A full-grille design backed by specially treated acoustic cloth delivers the characteristic style for which FBT is known, while fully rotatable constant directivity horns ensure accurate coverage.

Features

  • 2-way, bass reflex design
  • 15 mm (0.59”) birch plywood scratch resistant enclosure and internal bracing
  • Built-in passive crossover with soft-trip protection for the LF woofer and HF driver
  • Speakon NL-4 IN and LINK OUT connectors

Specifications

  • Configuration: 2 Way
  • Frequency response: 50Hz – 18kHz -6dB
  • Low frequency woofer: 15″ / 2.5″ coil
  • High frequency driver: 1″ / 1.7″ coil
  • Input connector: 2x SpeakON NL4 (in & thru)
  • Net Dimension (WxHxD): 427 x 765 x 420mm
  • Net Weight: 24.5kg
  • Transport Dimension (WxHxD): 600 x 865 x 520mm
  • Transport Weight: 28.5kg
  • Recommended Amplifier: 500w RMS
  • Long term power: 250w
  • Short term power: 1000w
  • Recommended HP filter: 40Hz – 12-24dB/Oct
  • Maximum SPL continuous/peak: 126/130dB
  • Nominal Impedance: 8 Ohm
  • Sensitivity (@1W/1m): 99dB
  • Dispersion (H x V): 80? x 50? rotatable
