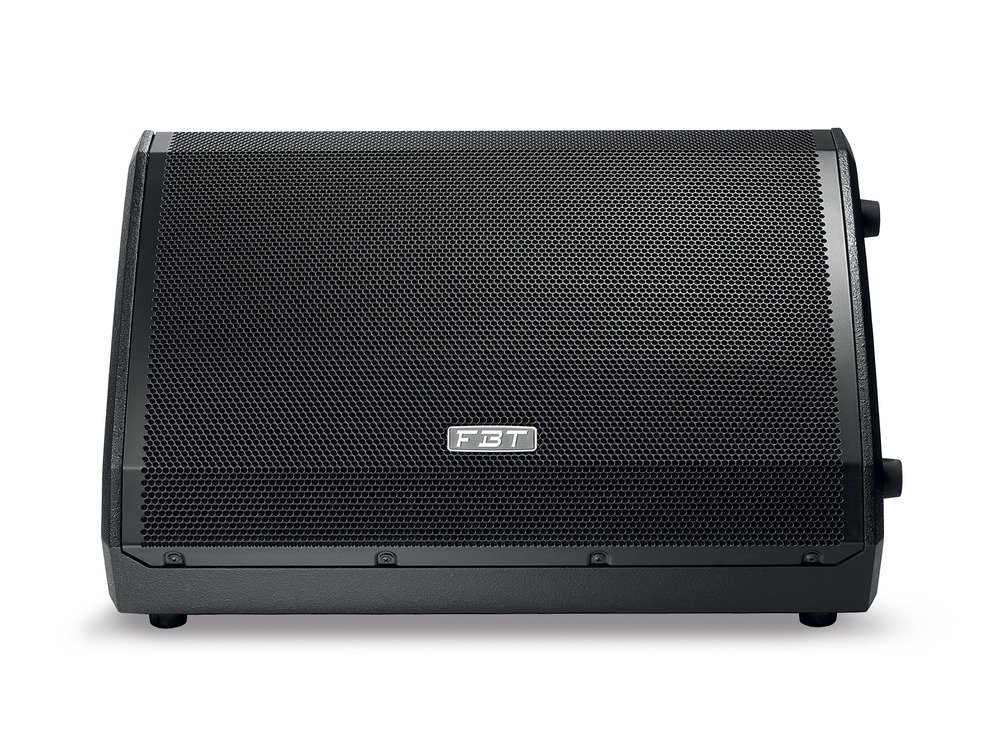

Ventis 115MA Active Stage Monitor

15″ + 1″ Conical Active Stage Monitor With DSP

Ventis 115MA is a dedicated floor monitor for use on small to medium-sized stages.

This active speaker features a 15″ coaxial custom woofer with a 2.5″ voice coil and a 1″ exit throat B&C with a 1.7″ voice coil. The built-in amp module provides 700W + 200W, delivering 130dB SPL.

Optional brackets for installation are available.



£1,187.00

Description

The 112MA and 115MA bring floor monitoring to VENTIS. Rated at 700W + 200W, the bi-amplified 112MA delivers 132dB SPL in a bass reflex design, using a 320mm (12) coaxial custom woofer with a 64mm (2.5) voice coil, 25mm (1) B&C throat and 44mm (1.7) voice coil.

The enclosure has a frequency response of 55Hz to 20kHz with 90° conical dispersion, while onboard DSP offers six factory presents for a broad range of scenarios. For flexibility in use, the monitor offers a 35mm (1.38) stand socket, two integrated carrying handles and an optional wall mount bracket.

Alternatively, the passive 112M is rated at 400W into 8ohm delivering 129dB SPL, with a built-in passive crossover and speakon NL-4 In and Link Out connectors.

Features

  • Bi-amped
  • Speakers equipped: 15″ Woofer and 1″ tweeter
  • Performance: 700 W Class D (LF) and 200 W Class H (HF)
  • DSP with 6 presets and 2 freely configureable memory slots
  • Housing material: 15 mm birch plywood
  • Coverage pattern (nominal): 90° conical
  • Frequency range: 55 Hz – 20.000 Hz (-6 dB)
  • Max SPL: 133 dB
  • Inputs: XLR / Jack combined input and RCA (“Cinch” stereo)
  • Left output: XLR male
  • Dimensions: (W x H x D): 632 x 354 x 516 mm
  • Weight: 21.3 kg
  • Colour: Black

Specifications

  • Configuration: 2-way coaxial
  • Built-in Amplifier LF/HF: 700W / 200W RMS
  • Built-in Amplifier Peak LF/HF: 1400 / 400W
  • Frequency Response: 50Hz – 20KHz -6dB
  • Low Frequency Woofer: 15 – 2.5 coil inch
  • High Frequency Driver: 1 – 1.7 coil inch
  • Maximum SPL Cont/Peak: 127 / 133 dB
  • Dispersion: 90° conical
  • Input Connector: XLR with loop, RCA ST
  • AC Power Requirements: 640VA
  • Power Cord: 5/16.4 m/ft
  • Net Dimension (WXHXD): 632x354x516 / 24.9×11.9×20.3 mm/inch
  • Net Weight: 21.3/46.9 kg/lb
  • Transport Dimension (WXHXD): 732x454x616 / 28.8×17.9×24.2 mm/inch
  • Transport Weight:25.8/56.9 kg/lb
