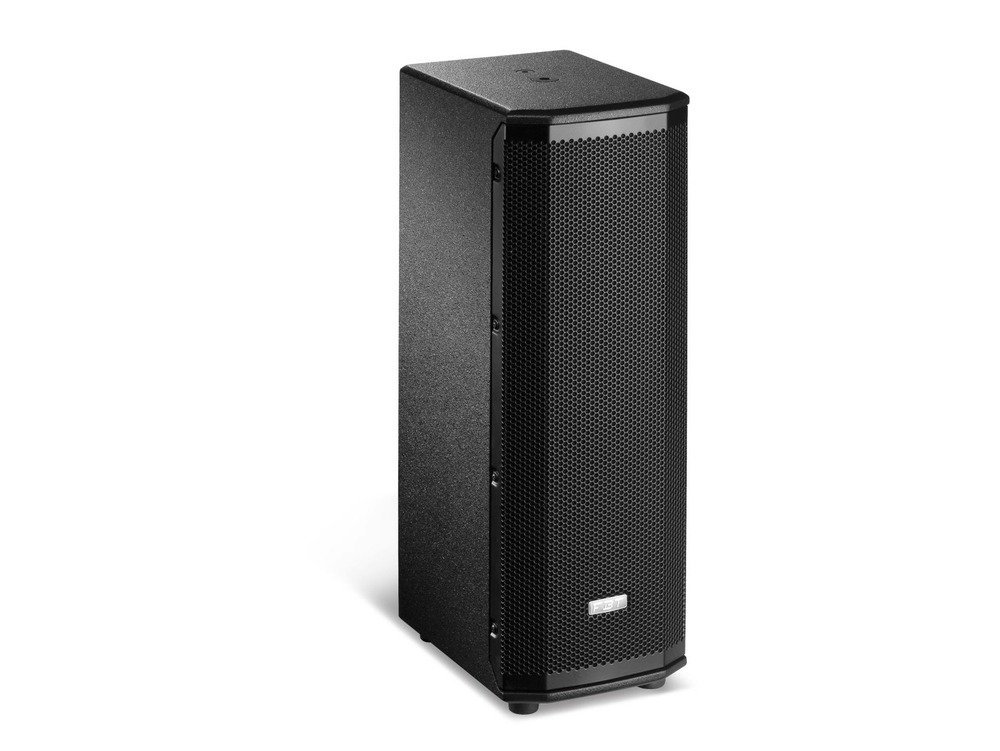

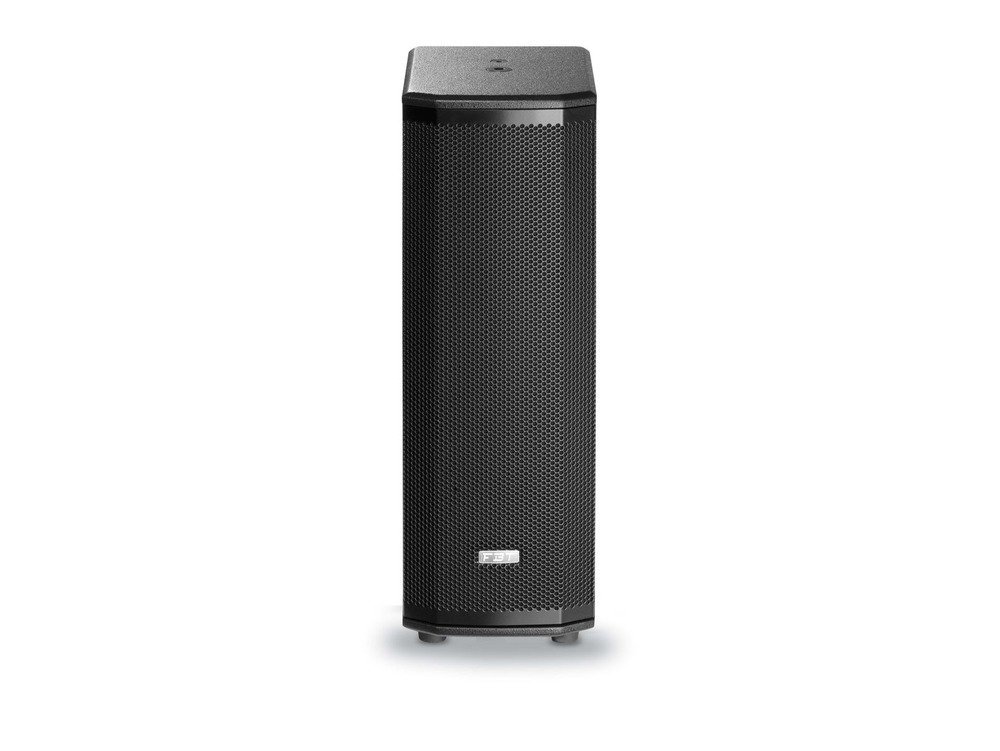

Ventis 206

2x 6.5″ + 1x 1″ 400w Passive Speaker

The Ventis 206 is part of the Ventis range which are ideal for portable performance or fixed installation. This passive speaker Features two 6.5″ woofer sand a 1″ rotatable horn.

Recommended amplifer of 400 W at 8? will deliver 129 dB SPL connections via 2x Speakon NL4 In + Thru. All housed in a 15mm Baltic birch ply cabinet with 35mm pole mount and a full length grille.

Optional brackets for installation are available.



£599.00

Description

PASSIVE REINFORCEMENT SPEAKER – 400W / 8OHM – 127DB SPL

For the VENTIS range, quality and flexibility are the watchwords. Based on a powerful combination of B&C compression drivers and FBT’s own custom, long excursion woofers, the 115, 112 and 110 models are two-way, bass reflex designs housed in 15mm birch plywood.

A full-grille design backed by specially treated acoustic cloth delivers the characteristic style for which FBT is known, while fully rotatable constant directivity horns ensure accurate coverage.

Features

  • Built-in passive crossover with soft-trip protection for the LF woofer and HF driver
  • Speakon NL-4 IN and LINK OUT connectors
  • 4 x M5 threaded rigging points and optional mounting hardware

Specifications

  • Configuration: 2 Way
  • Frequency response: 75Hz – 20kHz -6dB
  • Low frequency woofer: 2x 6.5
  • High frequency driver: 1x 1
  • Input connector: 2x Speakon
  • Net Dimension (WxHxD): 190 x 560 x 260mm
  • Net Weight: 11.8kg
  • Transport Dimension (WxHxD): 290 x 660 x 360mm
  • Transport Weight: 13.8kg
  • Recommended Amplifier: 400w RMS
  • Long term power: 200w
  • Short term power: 800w
  • Recommended HP filter: 60Hz 12-24dB/Oct
  • Maximum SPL continuous/peak: 123/127dB
  • Nominal Impedance: 8 Ohm
  • Sensitivity (@1W/1m): 97dB
  • Dispersion (H x V): 70? x 50? rotatable
