Description

The Virtuoso 2000 Fresnel RGBAL is a bright and compact lighting fixture featuring an advanced RGBAL LED system that is suitable for multiple applications. HSIC colour management allows you to create almost any colour, whilst the virtual colour wheel provides direct access to a range of colours along with a 2700K to 8000K colour temperature control. A motorised zoom with a 15° – 45° beam angle allows remote adjustment, providing designers with a very flexible fixture.

Features

• 2-year warranty
• 1 x 220W five-colour COB LED (RGBAL)
• Adjustable beam angle: 15°- 45°
• 15° – 12,871 Lux @ 2m (full on), 45° – 1,647 Lux @ 2m (full on)
• CRI ≥ 90
• Colour temperature: 2,700K-8,000K
• Refresh rate: 1.2kHz, 2.4kHz, 4kHz, 6kHz or 25kHz selectable
• DMX channels: 8/9/10/13 or 19 selectable
• RDM (Remote Device Management)
• 0 – 100% 8 or 16 bit dimming
• 4 dimming curves: Linear, square law, inverse square law and S-curve
• Variable strobe
• 4-button menu with LCD display
• Power consumption: 235W
• Power supply: 100~240V, 50/60Hz
• Fuse: T5A 250V

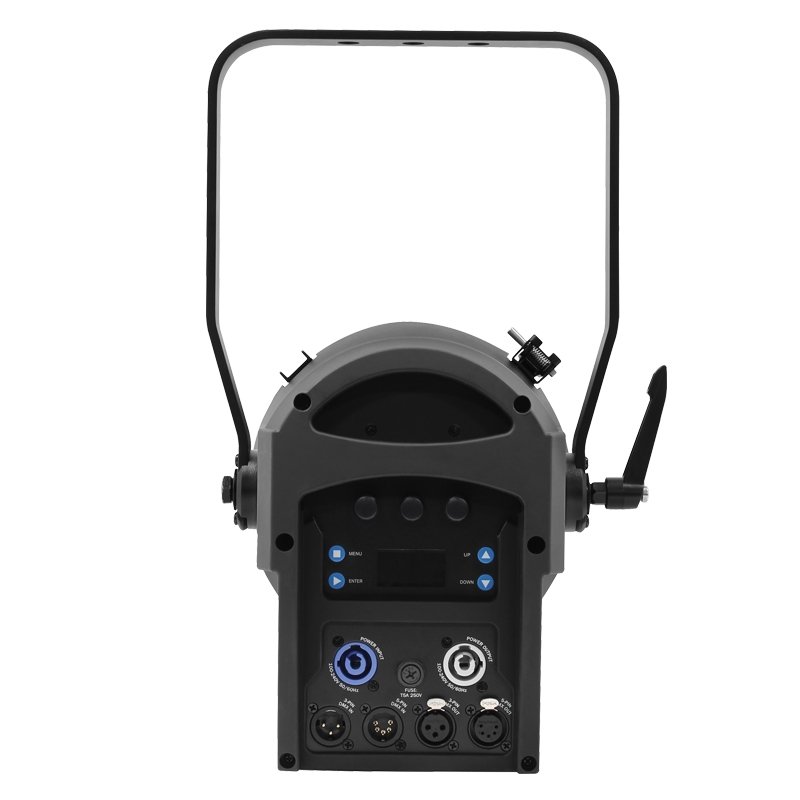

• PowerTwist TR1 input/output
• 5-Pin XLR input/output
• 3-Pin XLR input/output
• 3 selectable fan modes (live, power and studio)
• Rear handle
• Filter frame included

Dimensions

• Dimensions (HxWxD): 435 x 225 x 440mm
• Weight: 7.4kg
• Packed Dims (H x W x D): 34 x 57.5 x 35cm
• Packed Weight: 9.5kg

Downloads

• ELUM135_Manual

Additional information
