Description

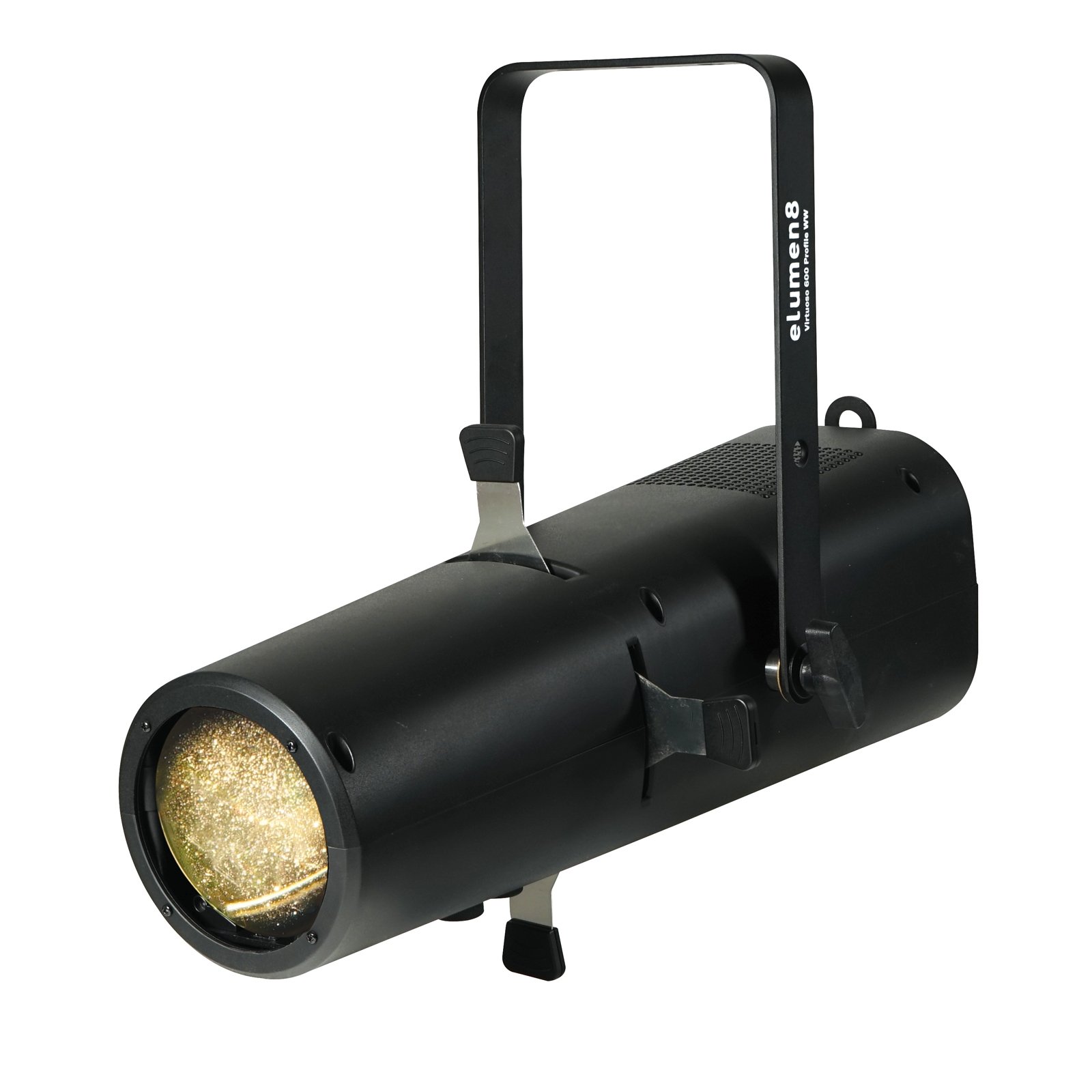

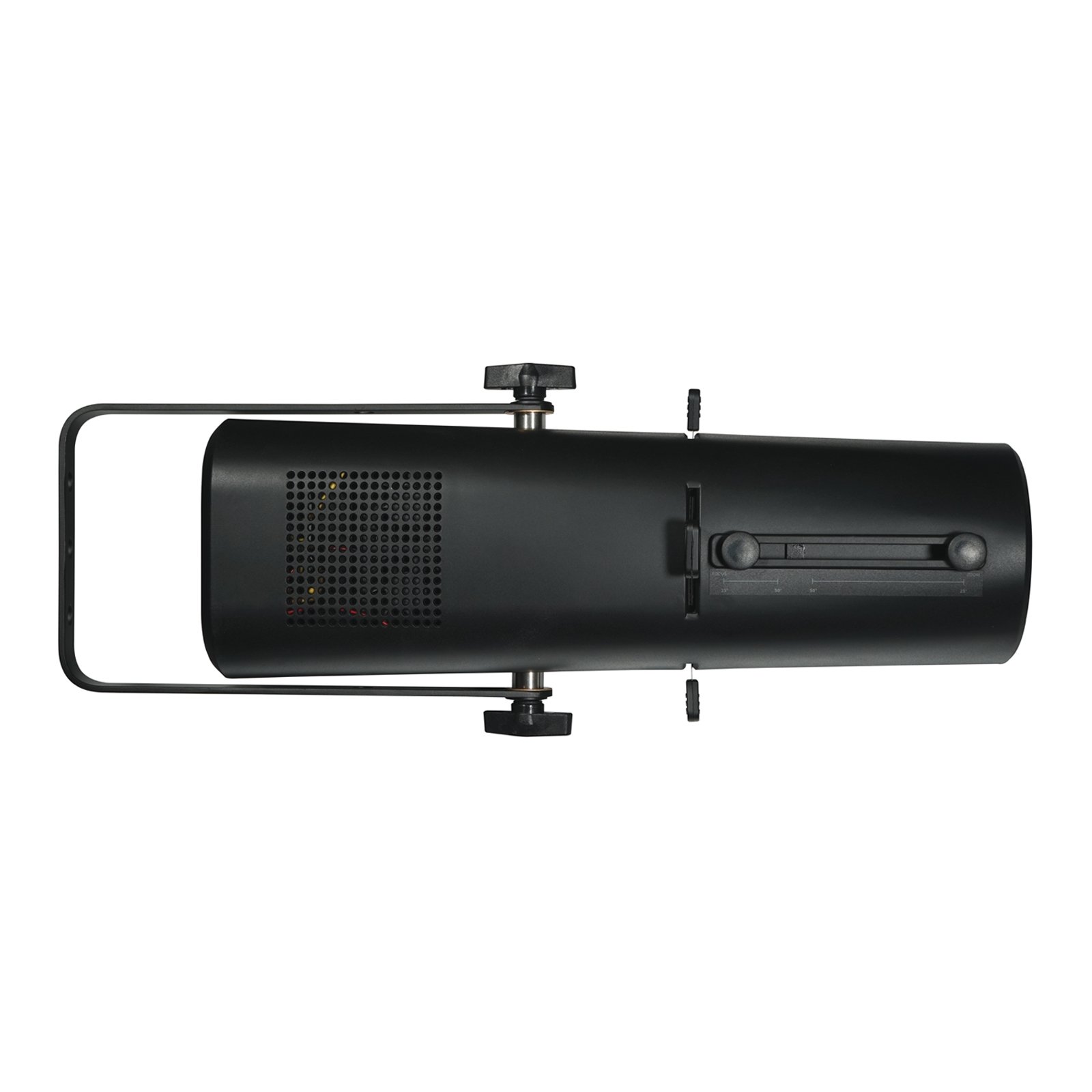

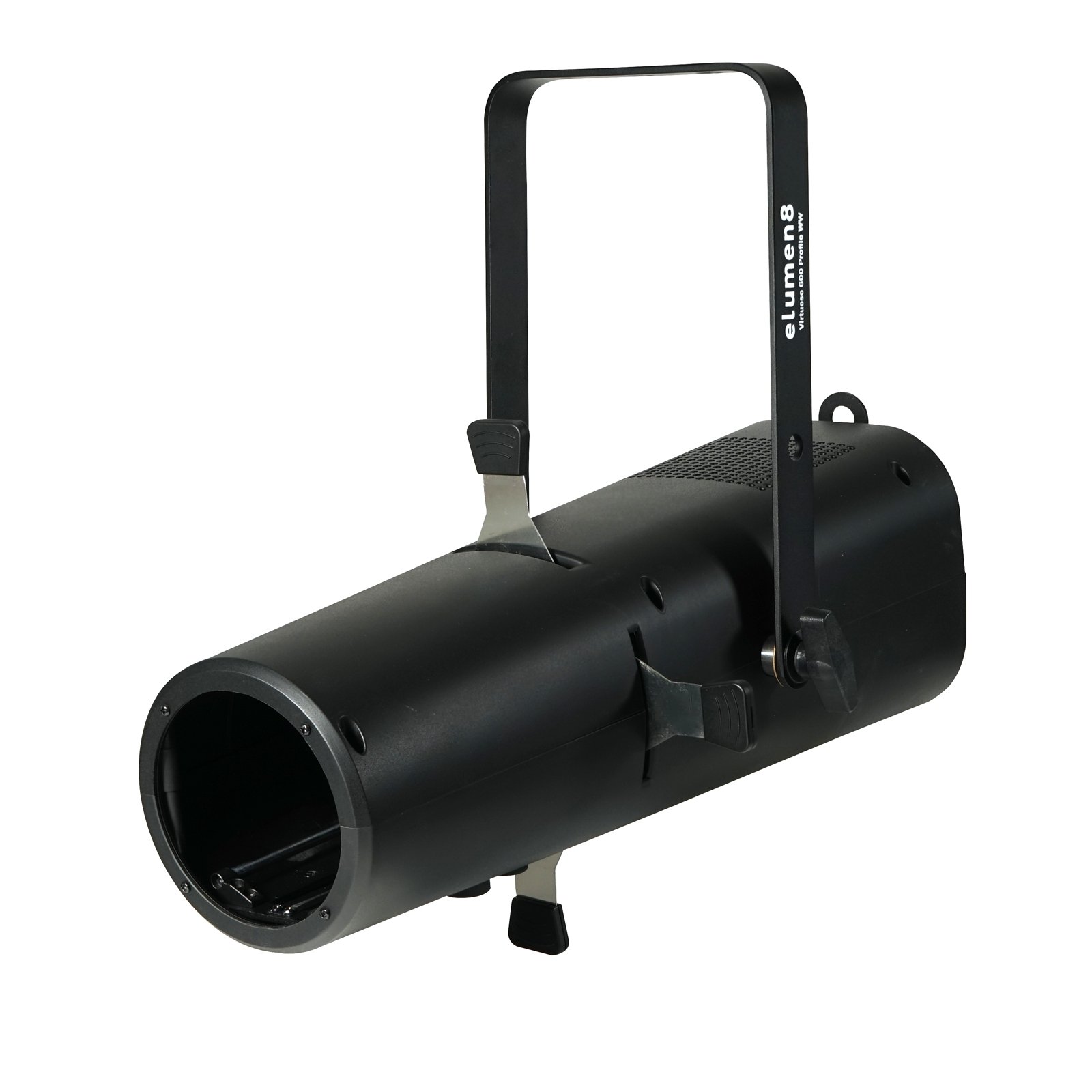

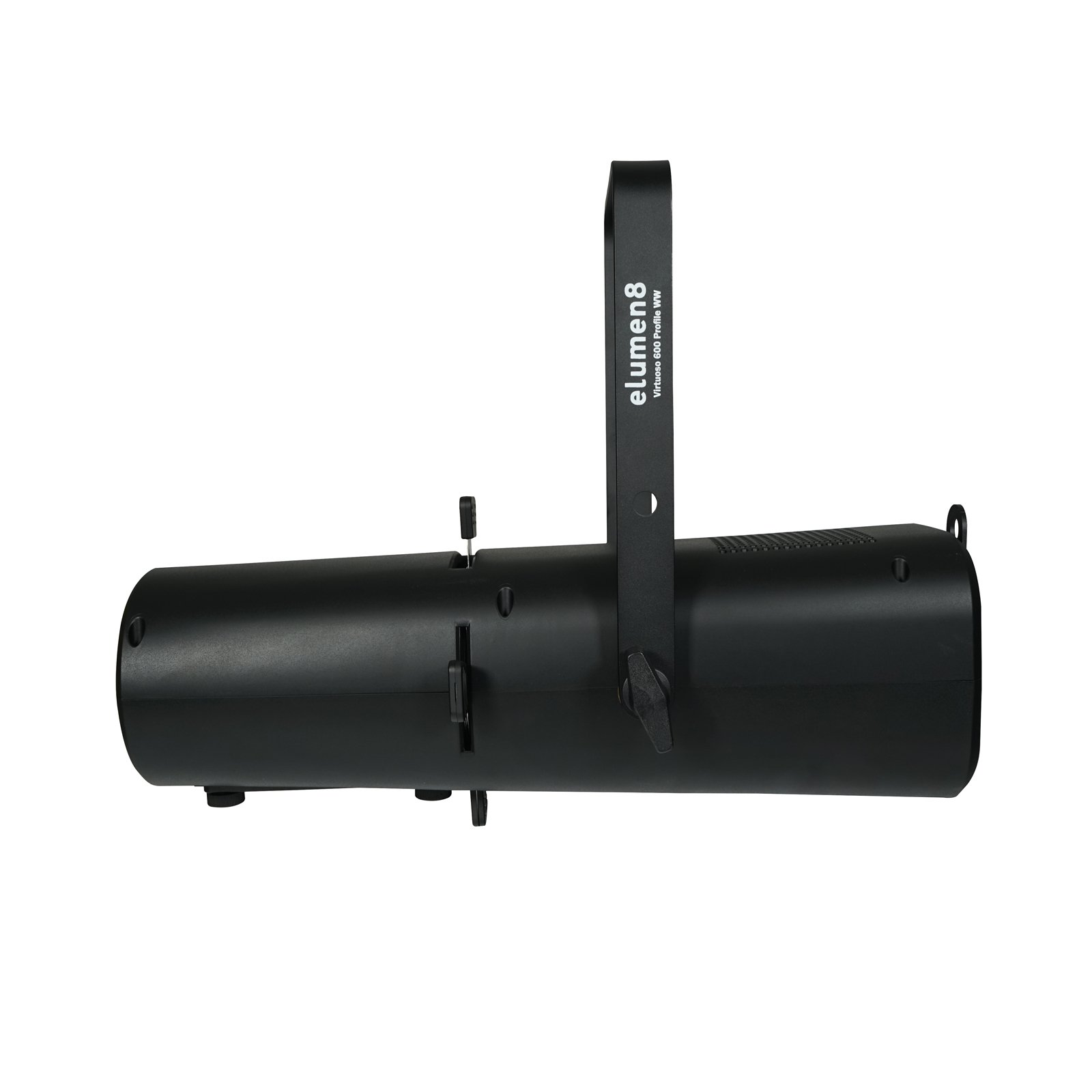

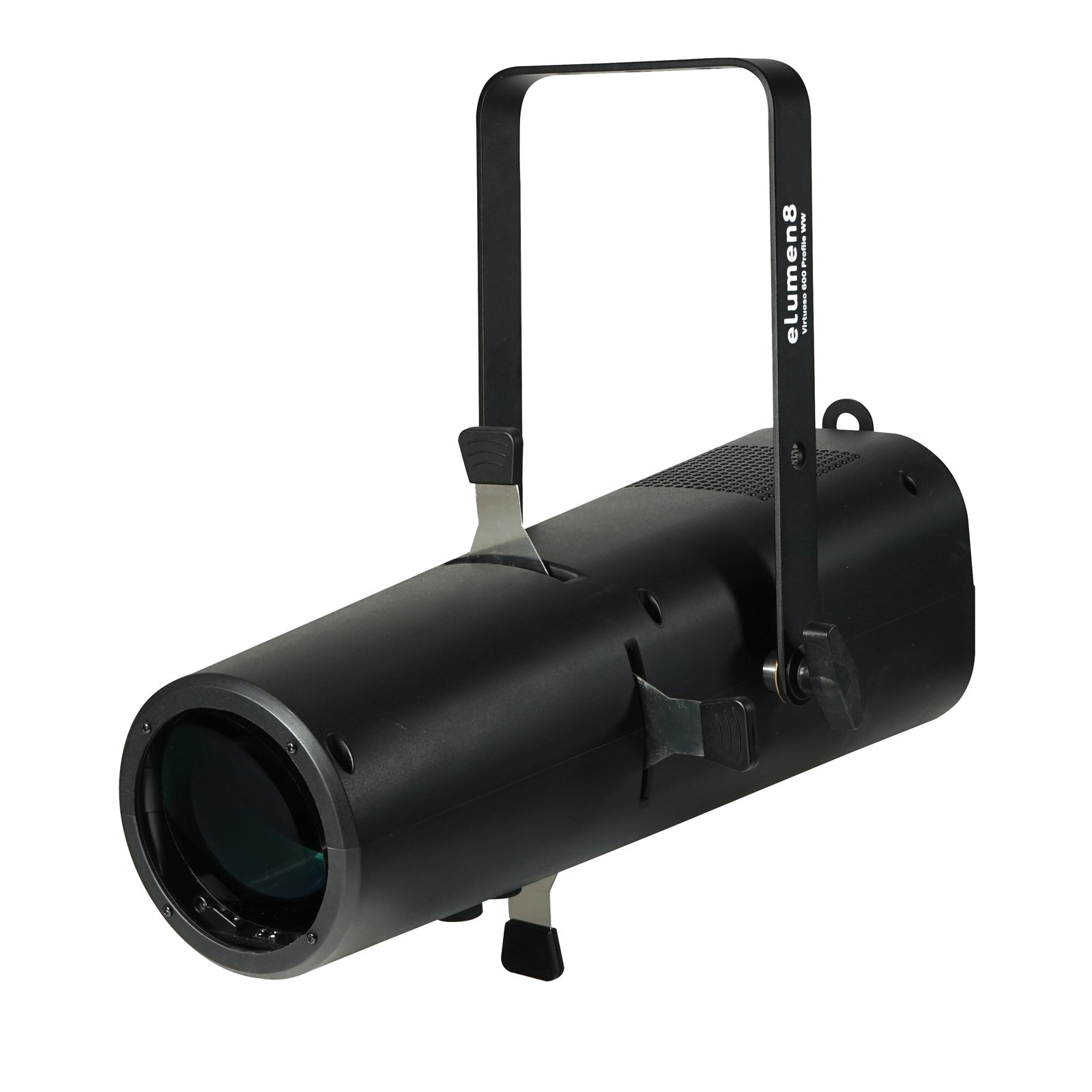

The Virtuoso 600 Profile WW is a compact Profile that features an advanced WW LED system, which excels in delivering super smooth dimming and is suitable for many applications. Focus the fixture without a DMX signal at the push of a button thanks to the ‘instant focus’ mode.

On board features include DMX, RDM and adjustable PWM rate. The fixture is enclosed in a compact, robust chassis and features four framing shutters plus an M-size gobo slot, further expanding the versatility of this fixture.

Features

• 2-year warranty
• 1 x 150W warm-white LED (3,200K)
• Manually adjustable beam angle: 25°- 50°
• 25° – 17,650 Lux @ 2m, 50° – 5,137 Lux @ 2m
• CRI: 98
• Refresh rate: 1.2kHz, 2.4kHz, 4kHz, 6kHz or 25kHz selectable

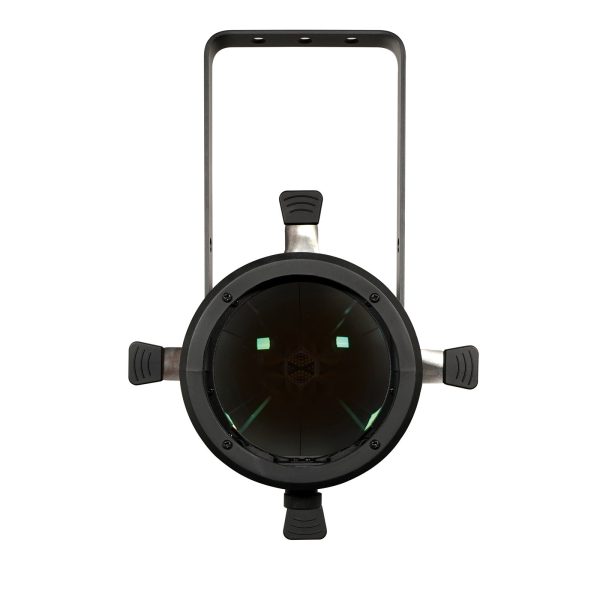

• Beam framing shutters
• M-size gobo slot
• DMX channels: 1/2 or 4 selectable
• RDM (Remote Device Management)
• Can be used with a traditional dimmer pack
• Manual and master/slave modes
• 0 – 100% 8 or 16 bit dimming
• Variable strobe
• 4-button menu with LCD display
• Power consumption: 172W
• Power supply: 100/240V, 50/60Hz (voltage selector switch)
• Fuse: T3.15A 250V

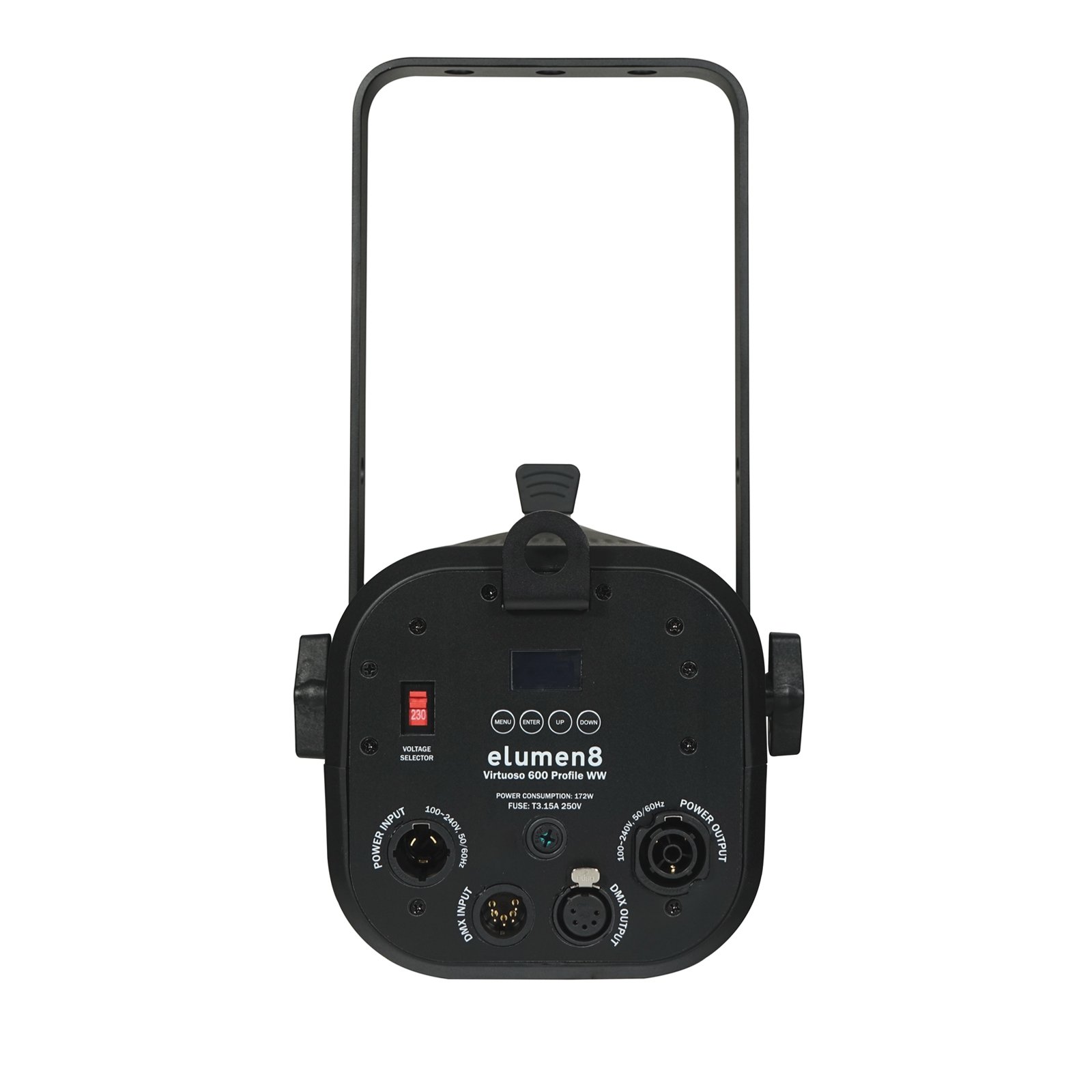

• powerCON TRUE1 input/output
• 5-Pin XLR input/output
• 3 selectable fan modes (live, power and studio)
• Instant fast focus mode

Dimensions

• Dimensions (HxWxD): 370 x 220 x 480mm
• Weight: 6.1kg
• Packed Dims (HxWxD): 27 x 64 x 30cm
• Packed Weight: 8.3kg

Downloads

• ELUM136_Manual
