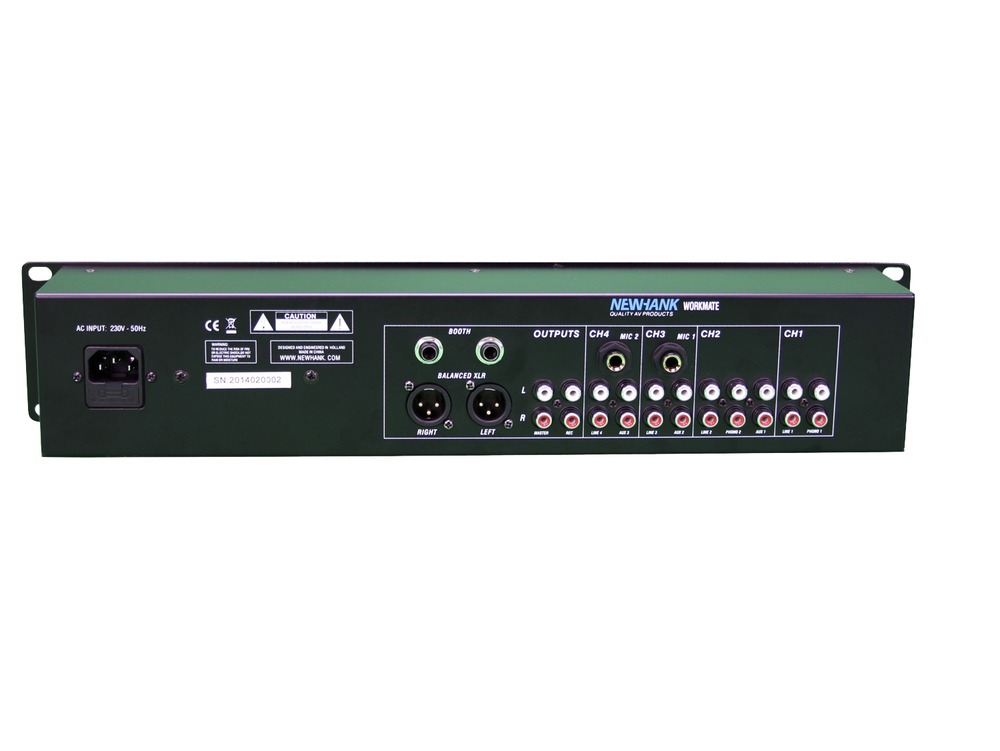

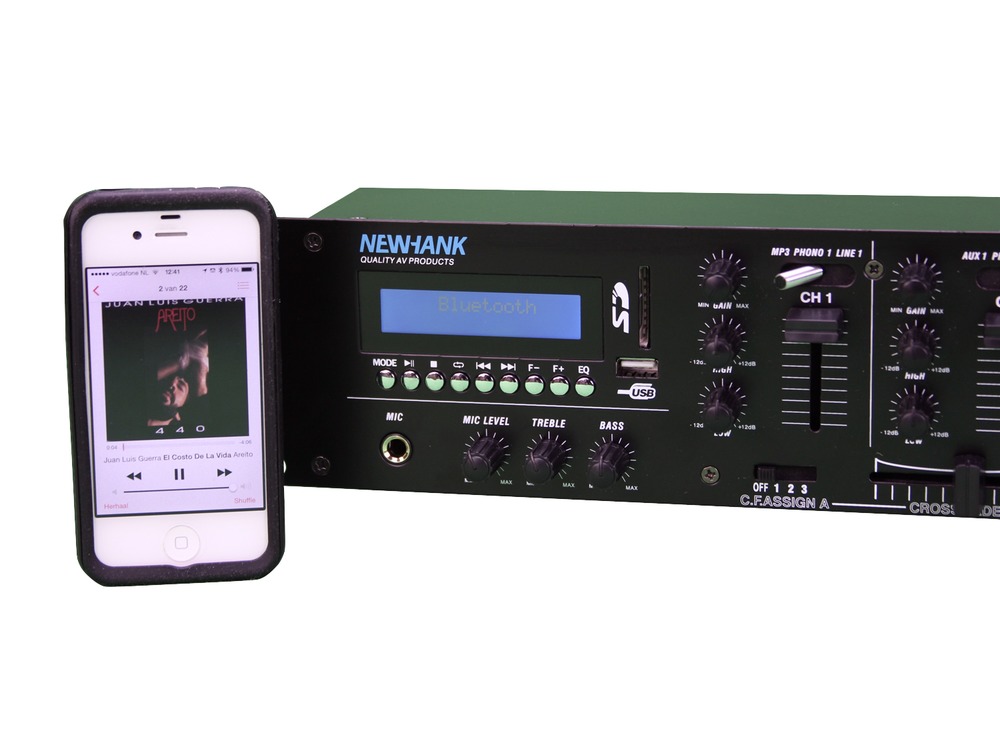

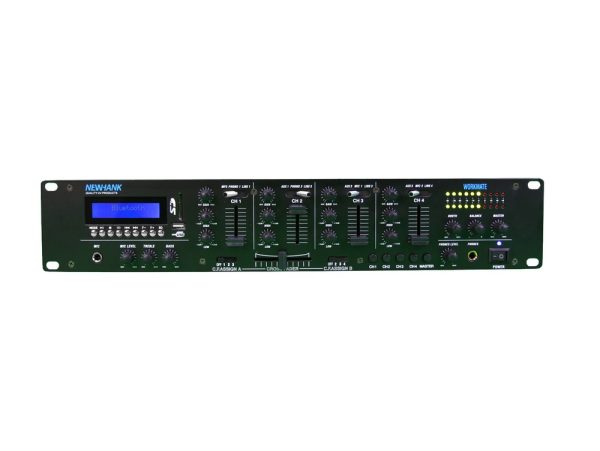

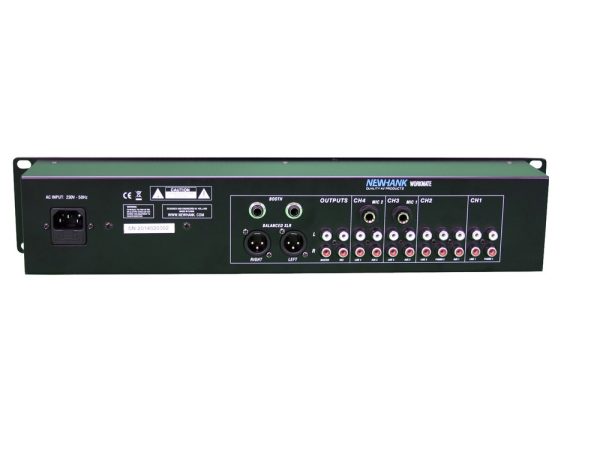

NewHank Workmate

NewHank Workmate is a complete stereo mixer/pre-amplifier and smart media player.

4 volume/channel faders and the possibility of connecting 9 external devices, including 2 record players. Switching between these devices is easily done thru Select Switches on the front.

£259.00

View your Basket

Description

Features

  • Compact 2u low noise audio design
  • 4 Line control channels plus a separate Mic section
  • 2 stereo phono, 7 stereo Line and 3 Mic inputs
  • 2-band equaliser per channel
  • Stereo Master audio out on both RCA and balanced XLR
  • Balanced stereo Booth output on 6.3MM connectors
  • Stereo record output on RCA connectors
  • Master balance control
  • CUE per channel plus gain control
  • The player section:
  • Smart Media Player
  • Select play from USB, SD (both max 32GB) and thru Bluetooth
  • Plays both WAV and MP3 files
  • All, Single, Repeat and Random Play

Specifications

  • Power Consumption: 12W typical, 21W w/ full headphone output.
  • Power Supply: Integrated transformer AC 230V-50Hz.
  • Weight: 3 kg
  • Mic: 600 ohm input impedance, unbalanced
  • Line: 9V rms max
  • Dimensions: 19\” 2he Rack mount, Front 483x88mm Rear
  • Line/Aux: 10Kohm input impedance
  • Package Dimension: 555 x 325 x 470 mm
  • Operating Temperature: 5 to 35 deg. CC
  • Humidity: 25 to 85%. (Non-condensing)
  • Storage Temperature: -20 to 60 deg. C

Download

DATA SHEET
User Guide
