Description

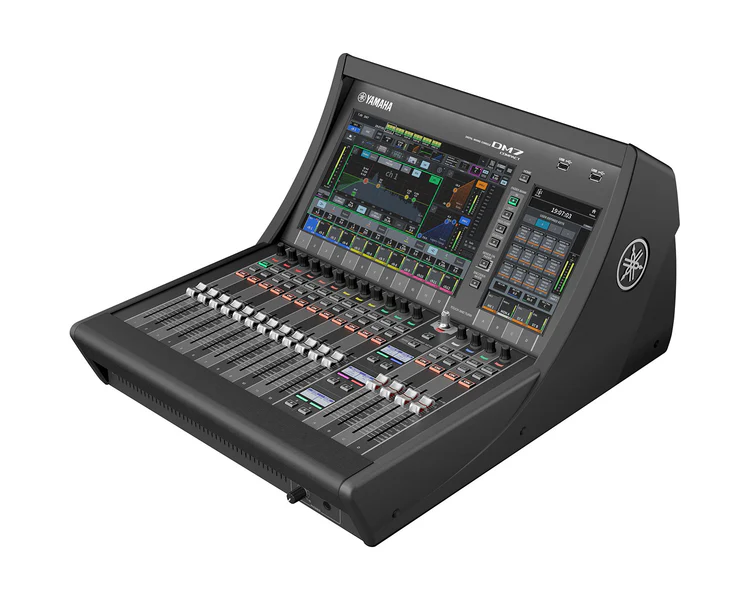

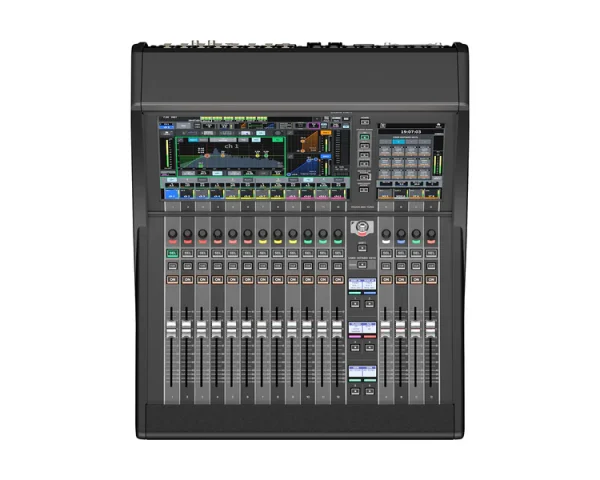

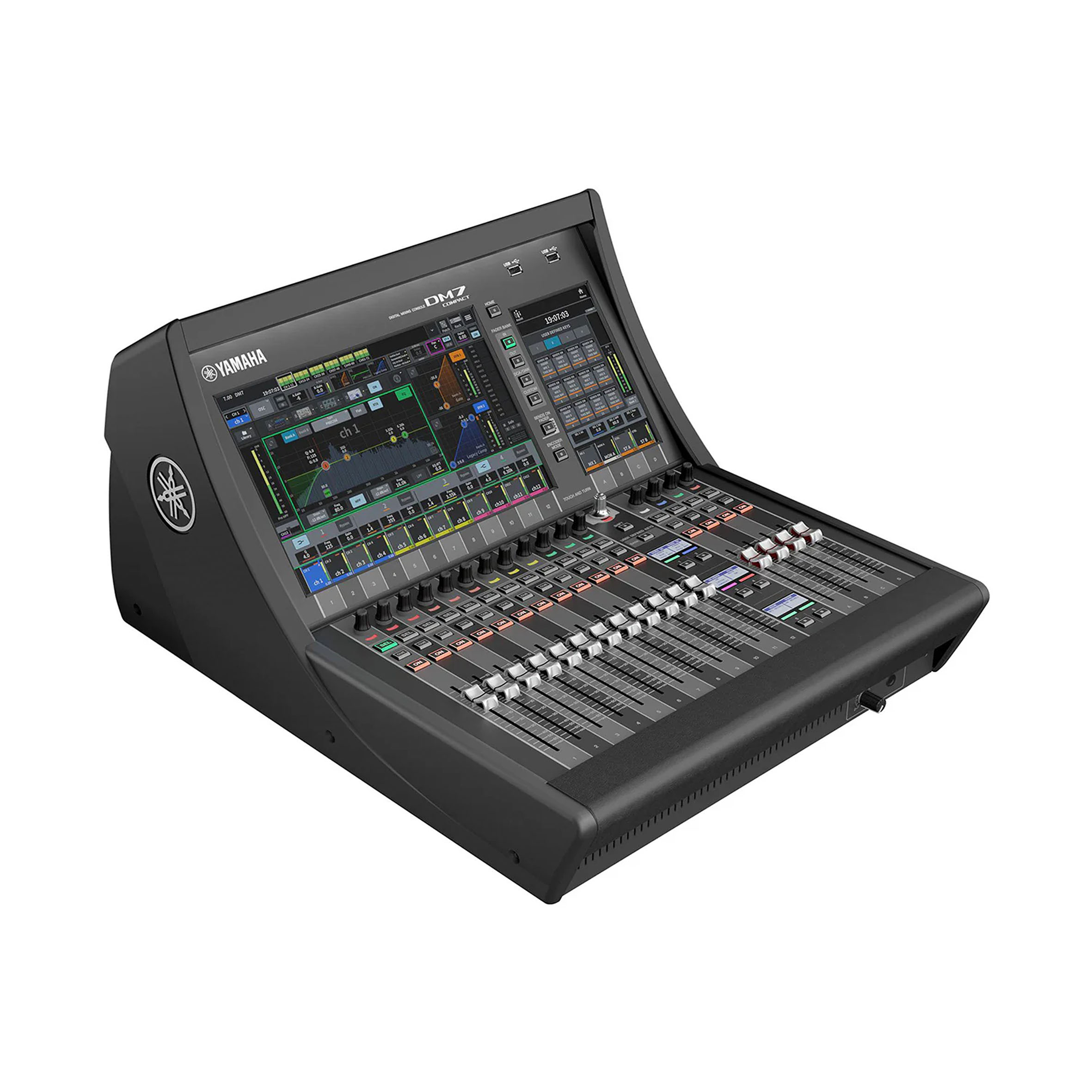

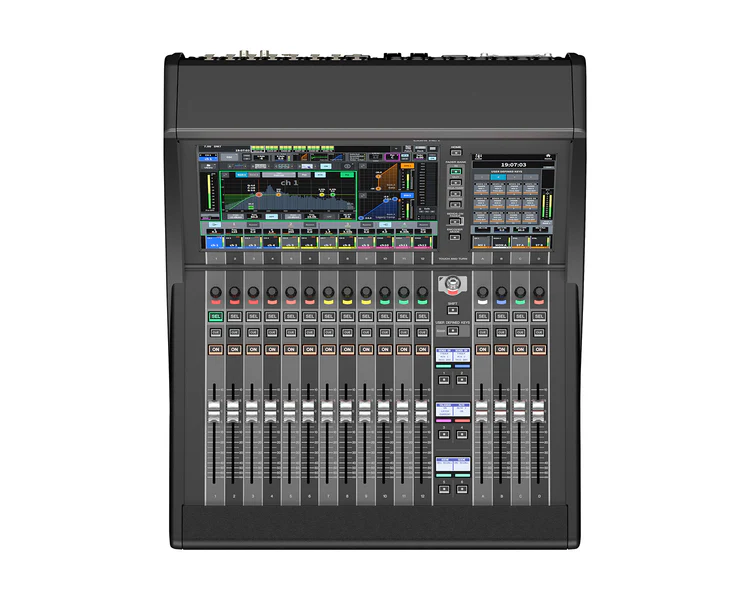

The Yamaha DM7C Compact Digital Mixer is a Dante-equipped versatile digital mixing console with unparalleled sound quality, ease of operation, and high reliability that make it perfect for a wide range of applications. The DM7 Compact is configured with 12 + 4 faders and a 1 x 12” + 1 x 7” multi-touch screen, and a rack-mountable with an optional RK1 rack mount kit.

Feature

• Dante-equipped
• Configured with 12 + 4 faders
• 1 x 12″ multi-touch screen
• 1 x 7″ multi-touch screen
• Rack-mountable with optional RK1 rack mount kit
• Optional RK1 rack mount kit

Specifications

• Input mixing channels: 72 mono
• Buses: 48 Mix + 12 Matrix + 2 Stereo
• Display: 12.1″ multi-touch screen x 1, 7″ multitouch screen x 1
• Faders: 16 (12 + 4)

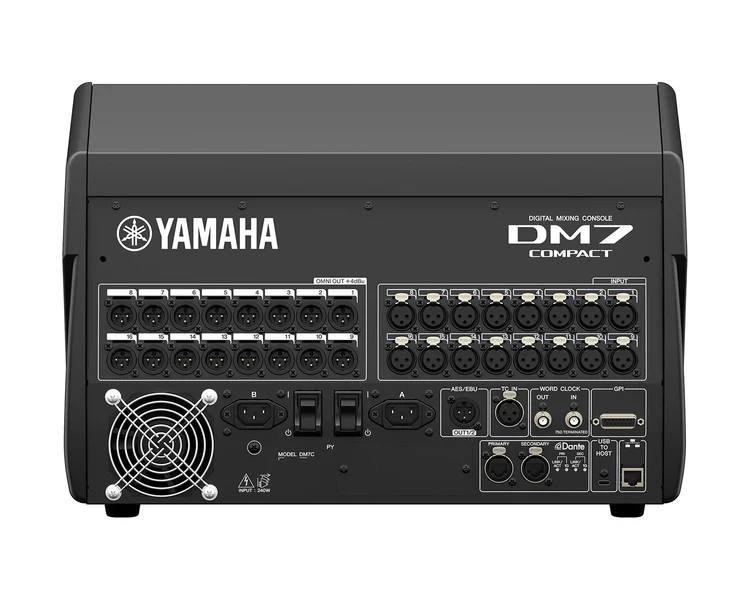

• Analog I/O: 16 inputs / 16 outputs
• Dante: 144 in / 144 out
• AES/EBU: 1 out
• Slot: PY Slot x 1
• USB Audio Interface: 18 in / 18 out
• Power supply: Redundant power supply built-in
• Power consumption: 240 W
• Dimensions (W x H x D): 468 mm x 324 mm x 564 mm (18.5″ x 12.8″ x 22.2″)
• Net Weight: 16.5 kg (36.4 lb)
