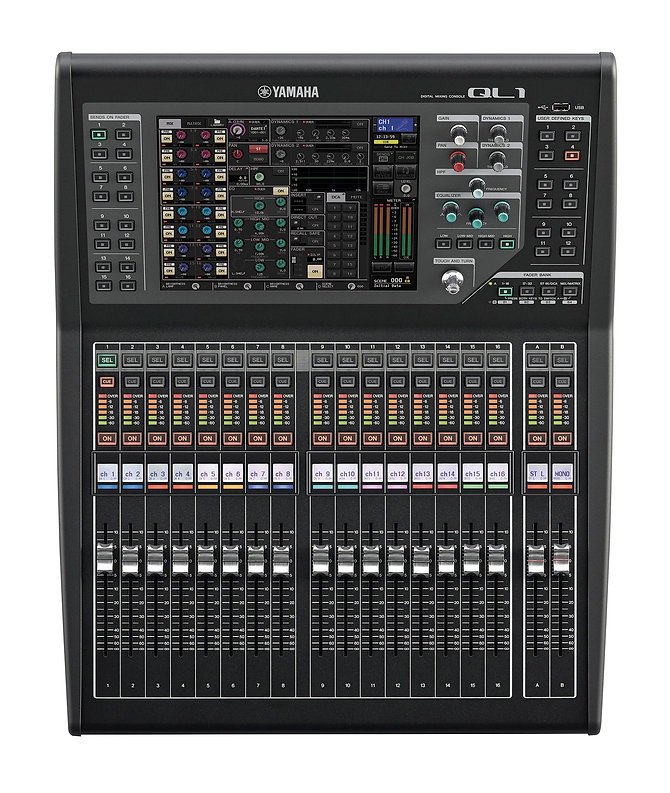

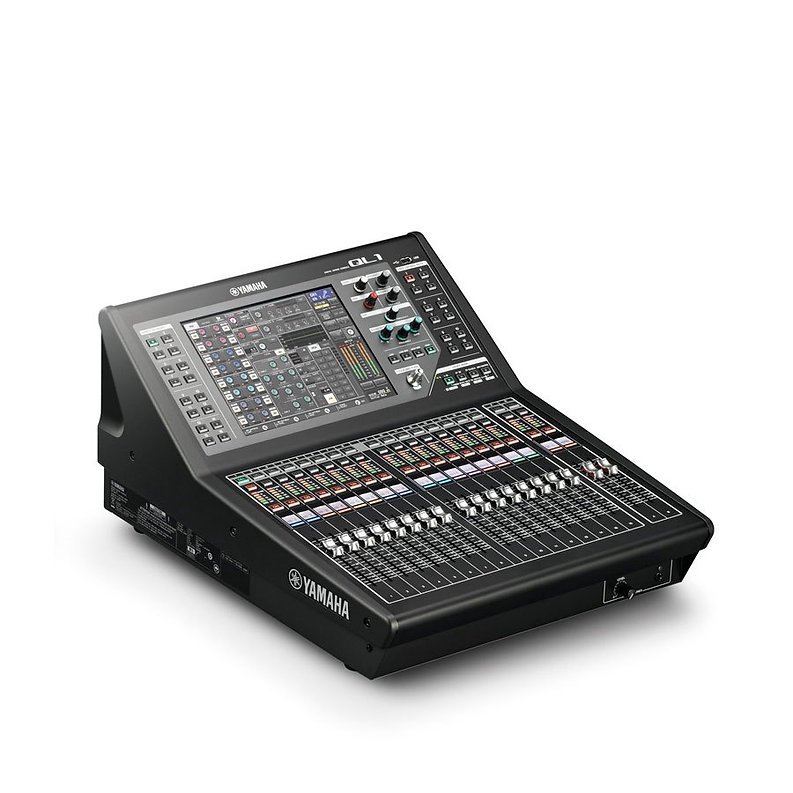

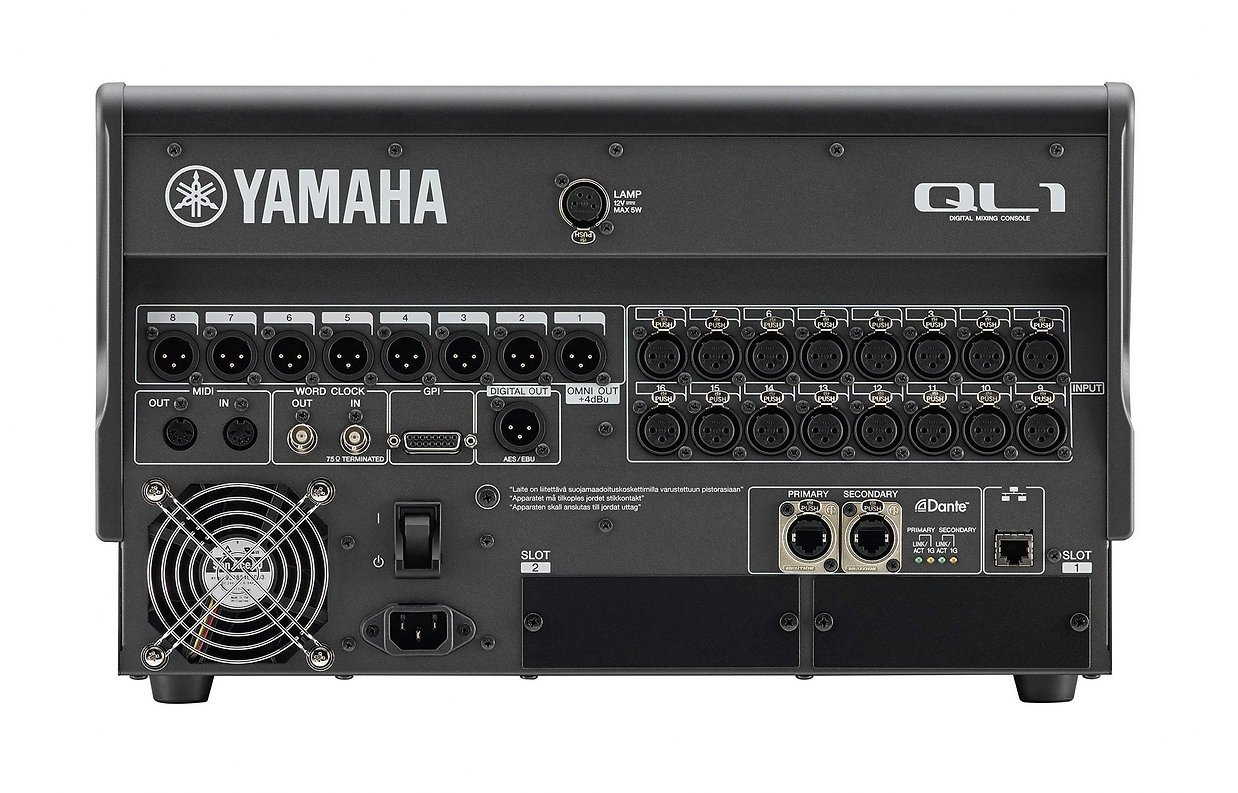

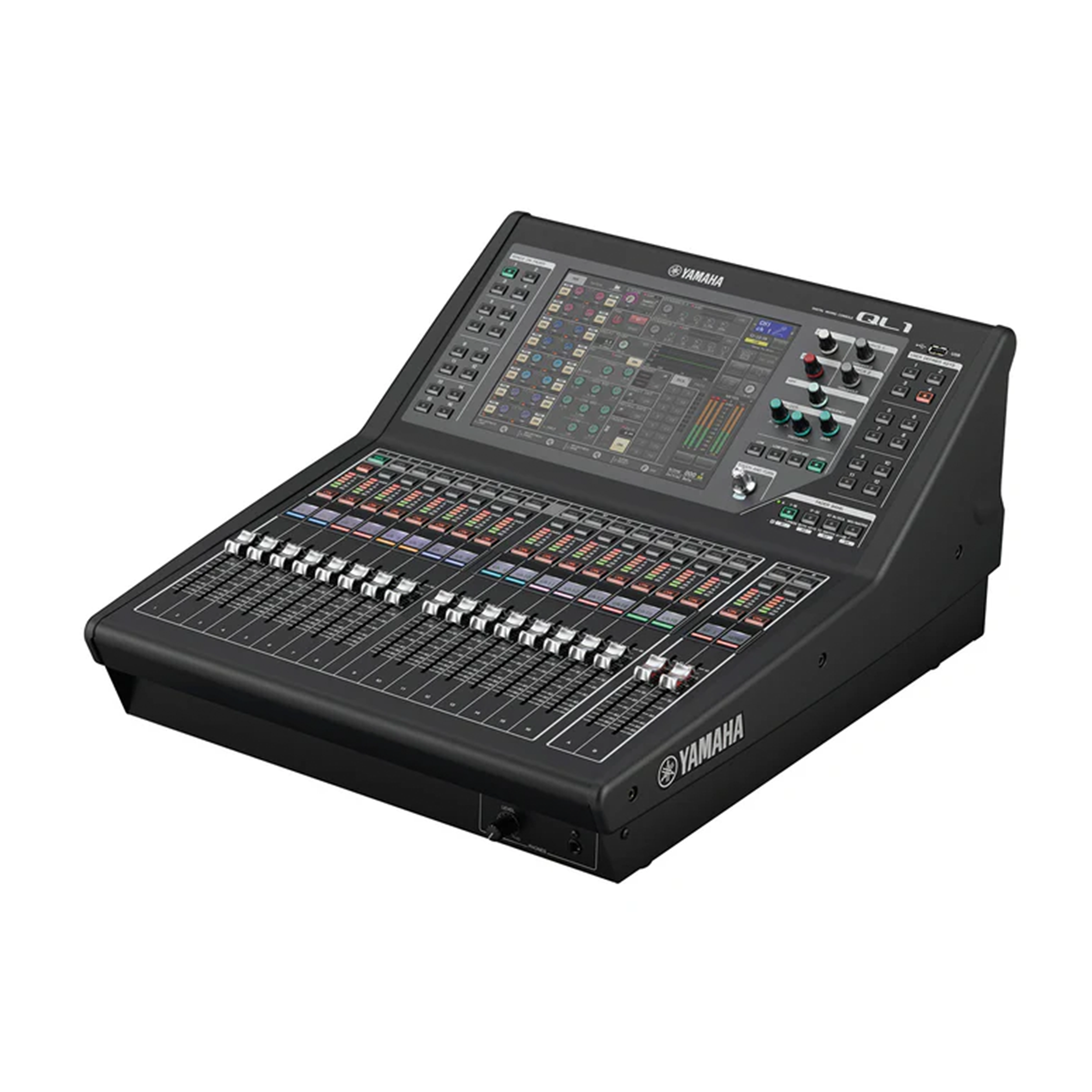

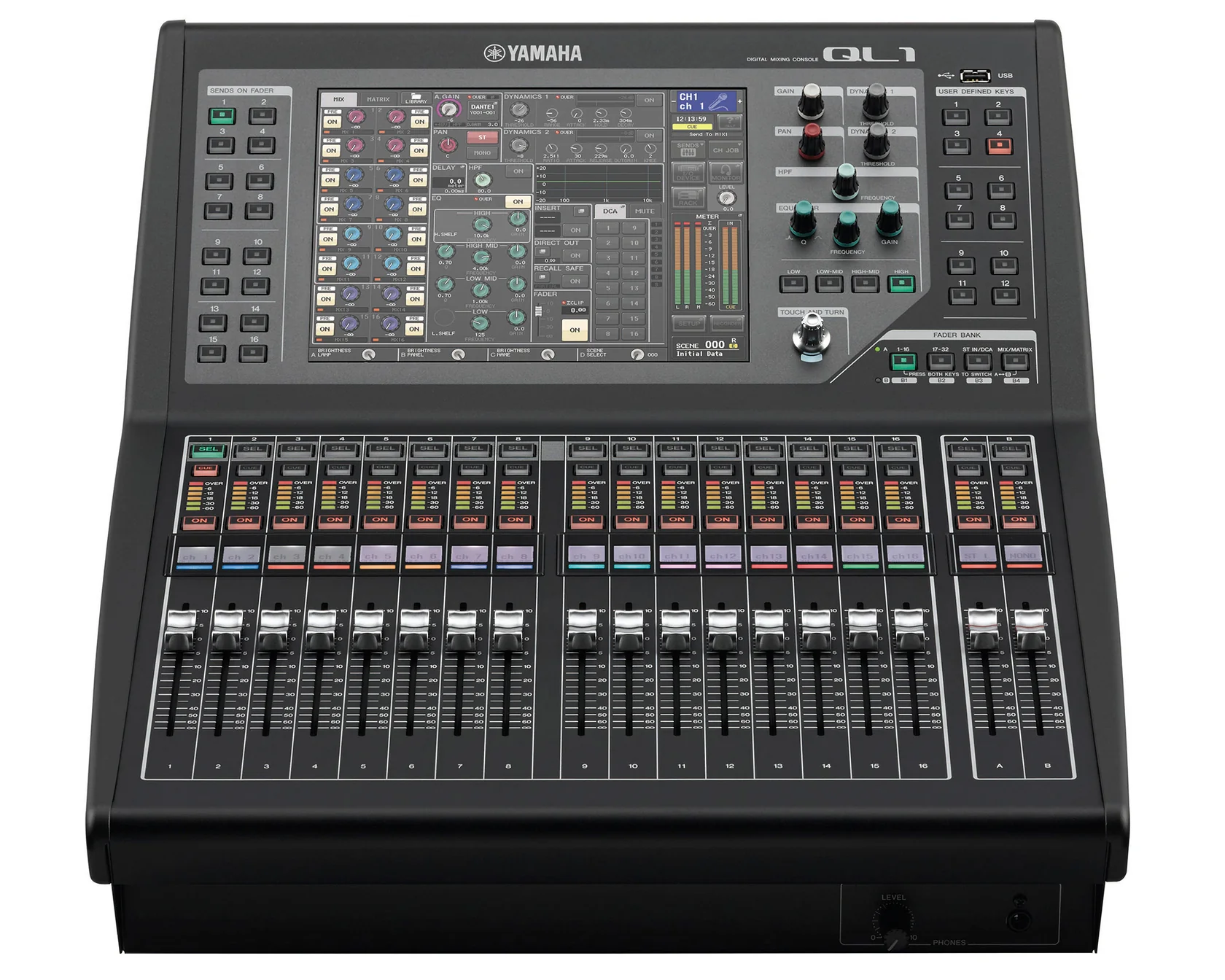

Yamaha QL1 Digital Mixer

QL1 32 Mono+8 Stereo i/p Digital Console with Built-in Dante

16 + 2 fader configuration in a compact, rack mountable unit.

The renowned CL series has set a new standard for live digital mixing consoles, combining exceptional sound quality and user-friendly operation while maintaining Yamaha’s industry-leading values.

Key features include advanced internal processing, adaptable operation for various environments, and built-in Dante networking for flexible system configurations.

These attributes have been compacted into the QL series, which provides all-in-one mixing, processing, and routing capabilities for small to medium-scale live events, corporate presentations, installations, and more.

Features

• Built-in Dante networking
• Facilitates flexible system configuration
• Condensed and concentrated
• Offers all-in-one mixing and processing
• Routing capability for small to medium scale live sound
• Corporate speech events, installations, and much more

Specifications

• Sampling frequency rate
  • Internal: 44.1kHz / 48kHz
  • External: 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm), 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm)
• Signal delay: Less than 2.5ms, INPUT to OMNI OUT, Fs= 48kHz
• Fader: 100mm motorized, Resolution=1024steps, +10dB to –138dB, –∞dB all faders
• Total harmonic distortion: Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, INPUT to OMNI OUT, Input Gain= Min.
• Frequency response: +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, INPUT to OMNI OUT
• Dynamic range: 112dB typ.: DA Converter / 108dB typ.: INPUT to OMNI OUT, Input Gain = Min.
• Hum & noise level
• Equivalent input noise: -128dBu typ., Equivalent Input Noise, Input Gain=Max
• Residual output noise: -88dBu, Residual output noise, ST master off
• Crosstalk: -100dB*1, adjacent INPUT/OMNI OUT channels, Input Gain = Min.
• Power requirements: 100-240V 50/60Hz
• Power consumption: 135W
