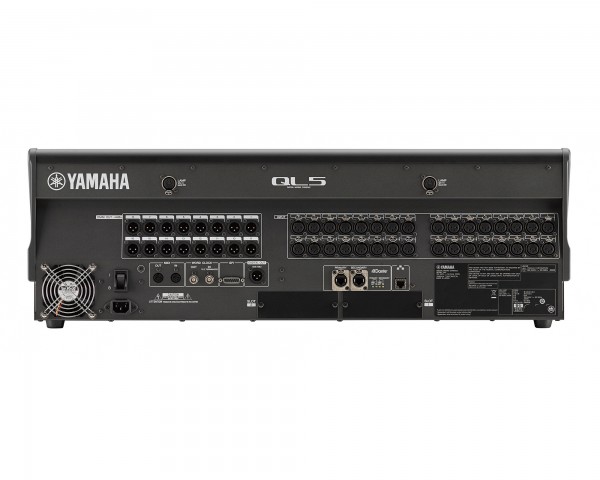

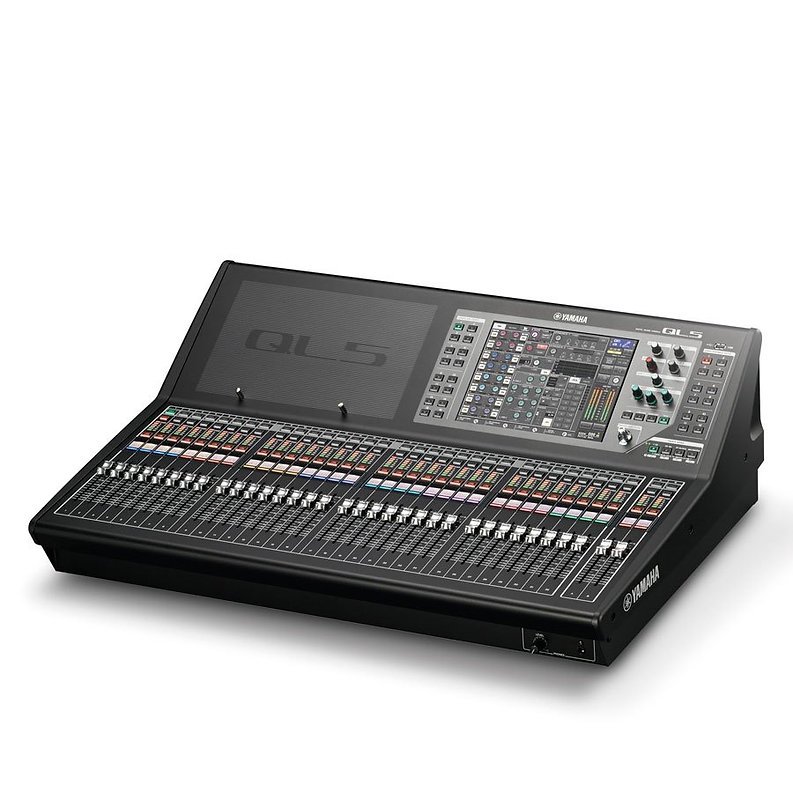

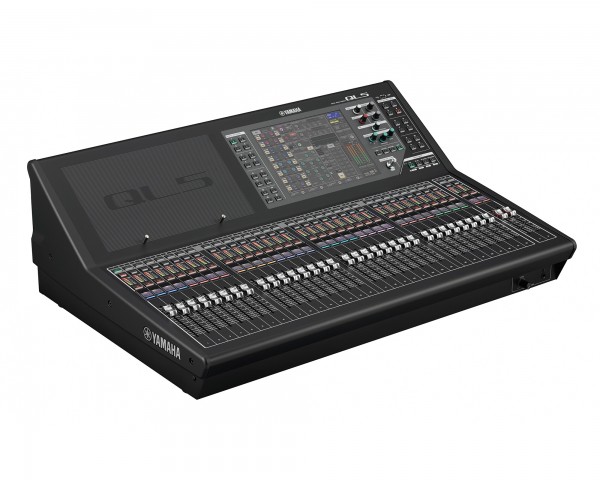

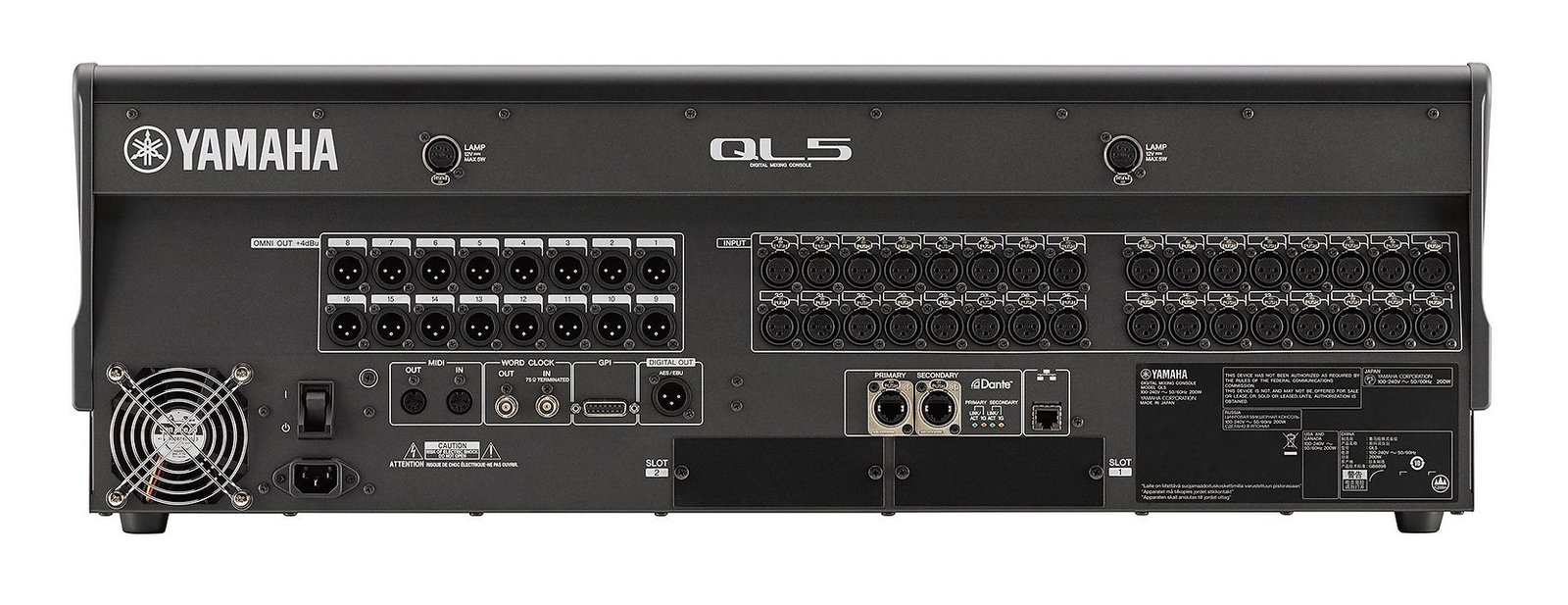

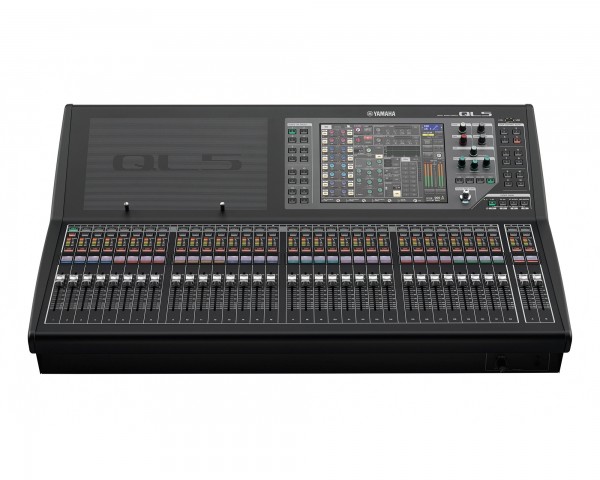

Yamaha QL5 Digital Mixer

QL5 64 Mono+8 Stereo i/p Digital Console with Built-in Dante

The CL series has elevated live digital mixing performance, offering superior sound quality and usability while maintaining Yamaha’s industry standards.

Key features from the CL series, including excellent internal processing and built-in Dante networking for flexible configuration, are now found in the compact QL series. These consoles provide all-in-one mixing, processing, and routing, making them ideal for small to medium-scale live sound, corporate events, and installations.

32 + 2 fader configuration adapts to a wide range of channel layouts. The QL5 is a compact console with large-scale capabilities.



£22,554.00

Description

Features

  • Built-in Dante networking
  • Facilitates flexible system configuration
  • Condensed and concentrated
  • Offers all-in-one mixing and processing
  • Routing capability for small to medium scale live sound
  • Corporate speech events, installations, and much more

Specifications

  • Sampling frequency rate
    • Internal: 44.1kHz / 48kHz
    • External: 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm), 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm)
  • Signal delay: Less than 2.5ms, INPUT to OMNI OUT, Fs= 48kHz
  • Fader: 100mm motorized, Resolution=1024steps, +10dB to –138dB, –∞dB all faders
  • Total harmonic distortion: Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, INPUT to OMNI OUT, Input Gain= Min.
  • Frequency response: +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, INPUT to OMNI OUT
  • Dynamic range: 112dB typ.: DA Converter / 108dB typ.: INPUT to OMNI OUT, Input Gain = Min.
  • Hum & noise level
  • Equivalent input noise: -128dBu typ., Equivalent Input Noise, Input Gain=Max
  • Residual output noise: -88dBu, Residual output noise, ST master off
  • Crosstalk: -100dB*1, adjacent INPUT/OMNI OUT channels, Input Gain = Min.
  • Power requirements: 100-240V 50/60Hz
  • Power consumption: 200W

Physical & Dimensions

  • Height: 272mm
  • Width: 828mm
  • Depth: 563mm
  • Weight: 21.8kg
