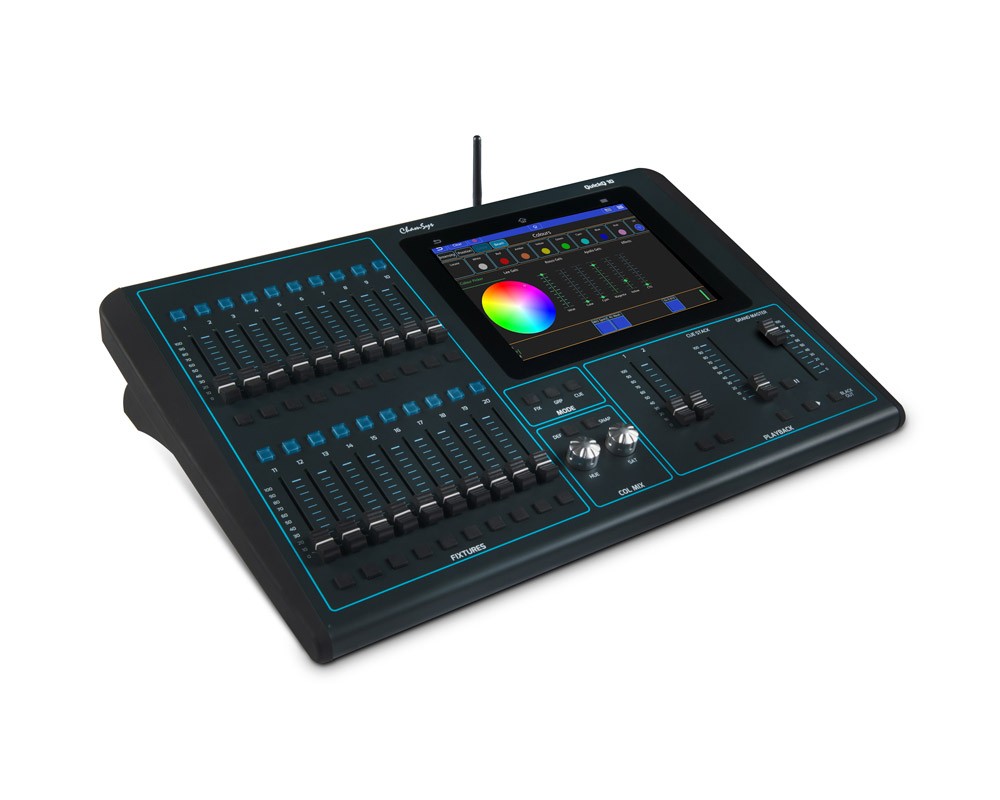

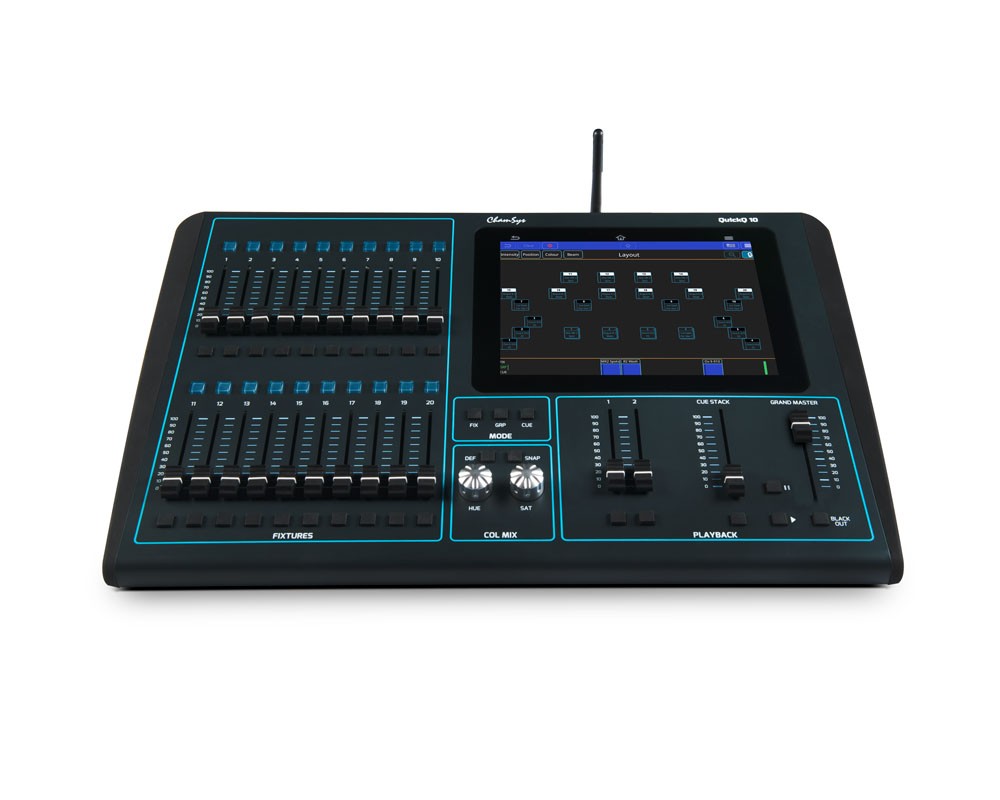

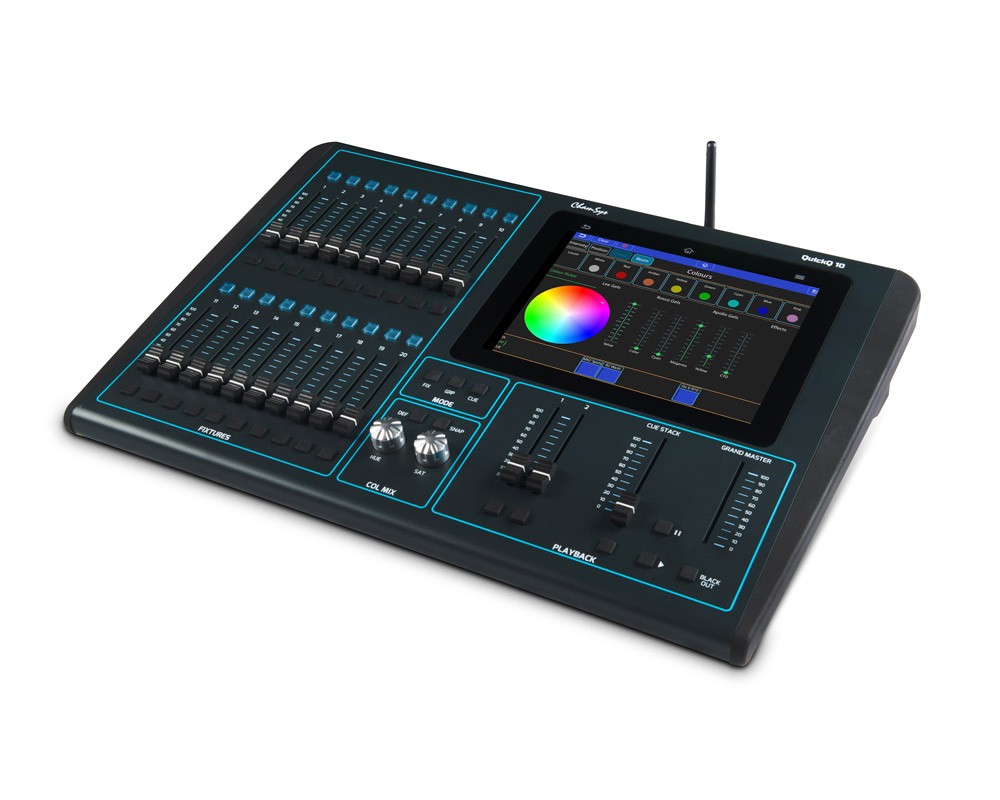

Description

Features

• 20 multi-function fixture faders with 3 different modes – Fixture, Group and Cue
• 3 multi-cue Playback faders: two Chase controllers and one Cue Stack, which are legended on screen
• The console features a dedicated Grand Master fader for overall level control
• Modelled on smartphone icon interfaces for ease of use
• Intuitive interface allowing simple control of all fixture attributes
• The interface supports gestures such pinch zoom and scrolling
• Easily connect to the remote app on iOS & Android devices via inbuilt Wi-Fi
• A dedicated “colour control area” with Hue and Saturation encoders
• Select from inbuilt palettes and gel libraries using the touch screen
• Built in colour picker for use with LED fixtures
• QuickQ supports output of DMX over network via ArtNet/sACN/Pathport
• Offline editor available for both Windows and Mac
• Regular software updates
• Easy Upgrades
• Automated Patching
• HSV Color Mixing
• Colour Picker
• On Screen Pan/Tilt Trackpad
• Built-in FX
• Chase Support
• Master Cue Stack
• Execute Window
• Audio Triggering
• Tap to Time

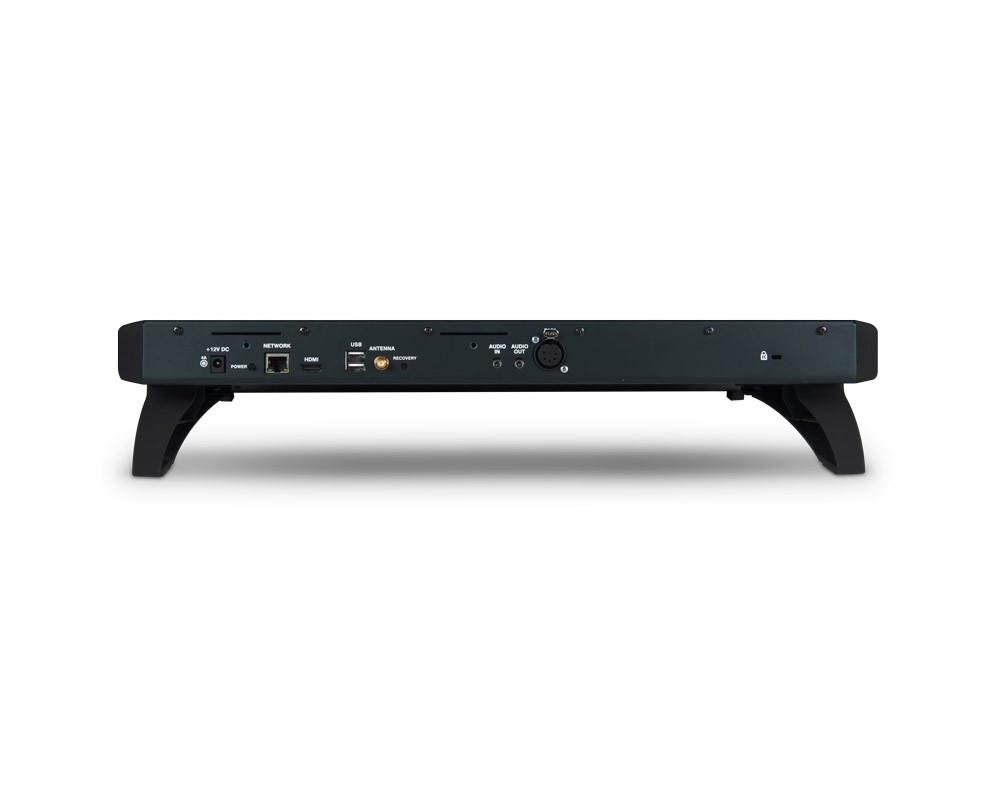

Hardware Specifications

• Universes supported:  1
• Direct DMX Outputs 5-Pin XLR:  1
• Master Playback Faders:  2 Chase, 1 Cue Stack
• Multi-Function Fixture Faders:  20
• Bump Buttons:  Yes
• Attribute Encoders:  0
• Dedicated Hue/Saturation Encoders:  Yes
• Inbuilt 9.7” Multi-touch Display:  Yes
• External Monitor:  1920 x 1080 HDMI
• Inbuilt Wi-Fi:  Yes
• Network Port:  1
• USB Ports:  2
• Audio Input:  1
• Audio Output:  1* Audio Out enabled via future software update
• MIDI Ports in/out:  No

Software Specifications

• Max Number of DMX Channels:  512
• Max Number of Fixtures Supported:  512
• Max Number of Cue Stacks:  1
• Max Number of Chases:  2
• Midi & Midi Timecode Supported:  No
• OSC Supported:  Yes
• RDM Autopatch for fast show patching
• Fixture library of over 30,000 fixture files
• Built in FX generator
• Colour picker and Gel inbuilt Gel library
• Offline designer software available for Windows and Mac

Console Weights and Dimensions

• Width:  525mm (20.7 inches)
• Depth:  350mm (13.8 inches)
• Height:  106mm (4.2 inches)
• Weight:  4.07kg (8.97 lb)

What’s in the Box?

• USB Desk light: 1
• Dust cover: 1
• Tablet stand: 1
• Wi-Fi Antenna: 1
• 12V power supply: 1
• IEC power cable: 1

Additional information
