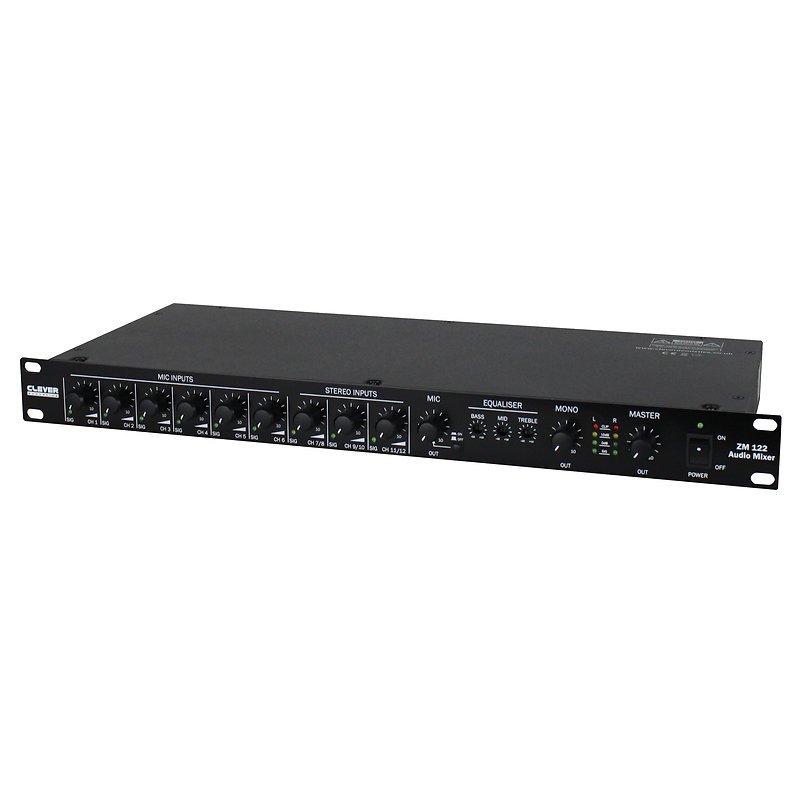

ZM 122 Audio Mixer

The ZM 122 rackmountable audio mixer from Clever Acoustics is ideal for public address and background music systems where multiple inputs are required. Suitable for use in a wide range of applications, the ZM 122 offers the user a clean, simple control surface while retaining a large number of features for complex audio systems.

The ZM 122 mixer has 9 input channels, each with adjustable volume controls. Six of the channels are microphone inputs with XLR 1/4” combo sockets, the other three are stereo line level inputs. Adding to the features, the ZM 122 has a 3 band EQ, mono out and microphone out all in a 1U 19” rack mount unit.



£154.96

Description

Features

  • 3 year warranty
  • Six mono channels with combo XLR/Jack input, each with Mic/Mic+ Phantom/Line selector
  • Three stereo line level inputs via phono sockets
  • Low distortion microphone pre-amplifiers with high dynamic range
  • Individual channel level control with signal LED to indicate input signal
  • Microphone 1 features adjustable priority override
  • Stereo line output via balanced XLRs
  • Mono output via 6.35mm (1/4”) unbalanced jack with volume control
  • Microphone mix output via 6.35mm (1/4”) unbalanced jack with volume control
  • Microphone mix output via 6.35mm (1/4”) unbalanced jack with volume control
  • Microphone mix output via 6.35mm (1/4”) unbalanced jack with volume control and on/off switch
  • Stereo record output via unbalanced phono sockets
  • 3-band EQ for low, mid, high
  • Master volume control
  • 4-segment LED signal level meters
  • AC 220V-240V and DC 24V operating voltage
  • 1U 19” rackmount chassis with brushed aluminium front panel

Specifications

  • Power supply: 220-240V~50/60Hz AC or 24V DC
  • Power consumption: 35W
  • Dimensions (H x W x D): 44 x 483 x 238mm
  • Weight: 3.9kg
