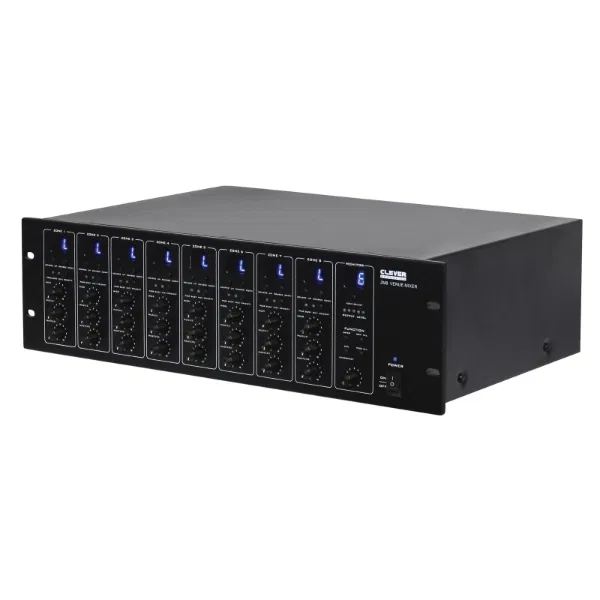

ZM 8 Zone Matrix System

The ZM 8 Zone Mixer allows 8 signal sources plus 2 dedicated paging microphones to be routed into 8 separate zones. With the addition of more ZM 8 zone mixers each system is expandable up to a total of 32 zones. Each zone can be controlled remotely via a wall plate which offers great flexibility, whilst control is also available centrally via the master front panel.

The ZM 8 zone mixer offers a complete solution for multi-zone, multi-functional venues such as entertainment establishments, hotels, shopping centres and airports. With digital LCD displays of program/local input selection and monitor selection, and LED indication for monitor output level, microphone priority and busy.



£869.00

View your Basket
View Your Wishlist

Description

Features

  • 3 year warranty

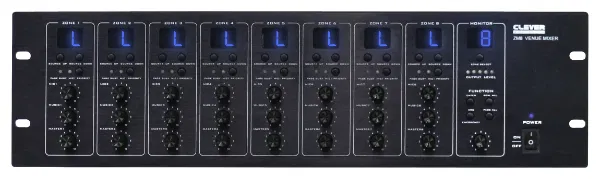

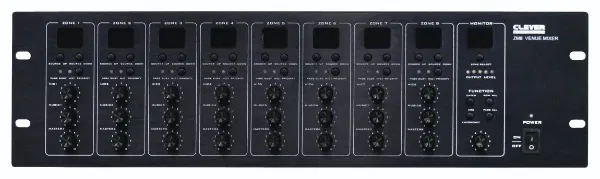

  • Each zone output features front panel operator controls for source select, priority mic override, paging mic level, music level and master volume control
  • Engineers controls include gain, HF/LF control, paging level control, wall plate enable/disable and remote source gain
  • Mic 1 features balanced XLR, gain control and LF and HF tone adjustment

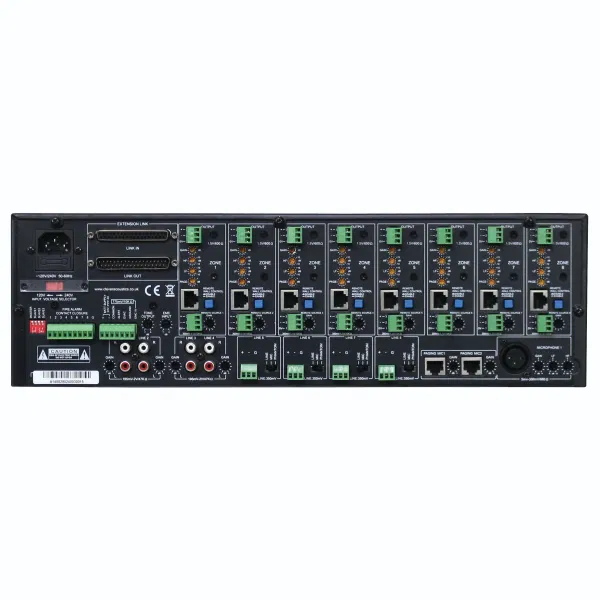

  • Paging mic inputs 1 and 2 located on rear panel feature audio input via RJ45 for use with the PM ZM8 paging microphone and gain control
  •  8 zone voice alarm contact closure to activate built-in tone voice alarm
  • Full fire alarm relay functions (alert, evacuation and alarm; three pre-recorded chimes are provided with tone control)
  • EMC and ground for external voice alarm generator input
  •  4 swift keys for direct all channel BGM and paging access
  • Priority from high to low: mic 1, fire alarm, remote paging console, remote control panel and background music
  • AC 220V-240V and DC 24V operating voltage
  • Monitor output with volume

Specifications

  • Outputs: 0.775V / 600Ω
  • Frequency response (MIC): 80Hz-18KHz (+1/-3dB)
  • Frequency response (Line): 20Hz-20KHz (+1/-3dB)
  • Power supply: 110V/60Hz and 240V/50Hz or DC 24V
  • Power consumption: 20W
  • Dimensions (H x W x D): 132 x 484 x 304mm
  • Weight: 10.3kg
