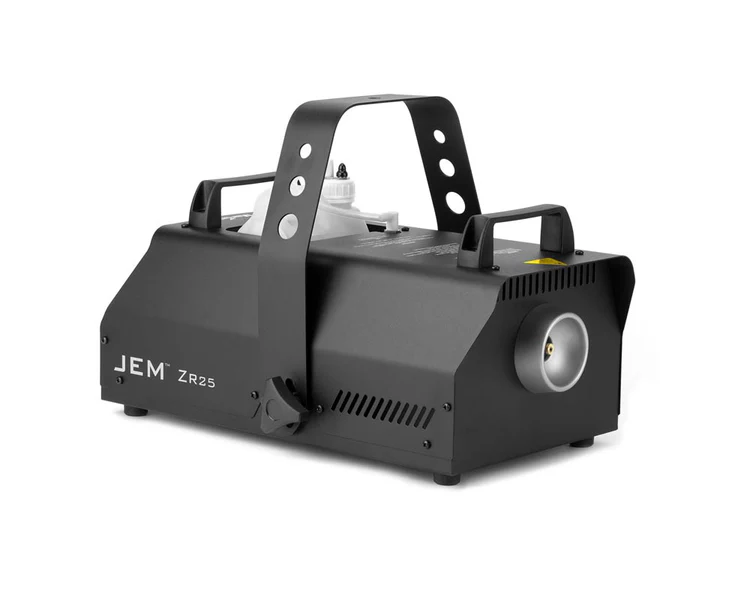

ZR25 Hi-Mass DMX Smoke Machine c/w Remote Control
ZR25 Hi-Mass DMX Smoke Machine c/w Remote Control - Image 2
ZR25 Hi-Mass DMX Smoke Machine c/w Remote Control - Image 3
SKU: JEMZR25 Categories: ,

ZR25 Hi-Mass DMX Smoke Machine c/w Remote Control

The JEM™ ZR25 is a small, yet powerful fog machine designed to deliver superior and uninterrupted performance in demanding professional applications. Via its 1,150 W heat exchanger, the JEM ZR25 produces large amounts of fog ideal for small to medium-sized venues and stages in both install and rental markets.

The JEM ZR25 features variable output control for more subtle effects and is fully up-to-date with digital remote, DMX and RDM.

The entire JEM ZR range is compatible with a wide range of JEM Pro fog fluids. As machines designed and built to last, the JEM ZRs will continue to perform with great output and low consumption.



£1,098.00

View your Basket
View Your Wishlist

Description

Features

  • Small but powerful fog machine
  • Exceptional performance and output for its size
  • Simple plug-and-play operation via remote control or DMX
  • 1,150 W heat exchanger
  • 40 ml in 30 seconds peak performance
  • 600 m³/min fog output
  • Variable output control for subtle effects
  • 7-8 minute warm-up time
  • Digital remote, DMX and RDM
  • Compatible with a wide range of JEM Pro fog fluids
  • Floor standing or truss mounting (bracket included)
  • PowerCON TRUE1
  • 2.5-liter bottle

Specifications

  • Length: 485 mm (19.1 in.)
  • Width: 335 mm (13.2 in.)
  • Height: 242 mm (9.6 in.)
  • Height including hanging bracket: 333 mm (13.2 in.)
  • Dry weight: 11.2 kg (24.7 lbs.)
  • Filled weight: 13.7 kg (30.2 lbs.)

Control and Programming

  • Control options: Integrated digital remote control, DMX, optional analog remote control, master/slave link mode
  • Control parameters: Continuous or timer-controlled output
  • Fog: Variable output control, 0-100%
  • DMX channels: 1
  • External fluid control: Fluid sensing
  • DMX compliance: ANSI E1.11 – USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20 RDM

Construction

  • Housing: Steel and aluminum
  • Hanging bracket: Integrated yoke with safety attachment point
  • Colour: Black
  • Heat exchanger: 1150 W, thermally protected
  • Fluid pump: Oscillating piston, high pressure
  • Fluid management: Fluid out sensing, sealed for transportation
  • Fluid reservoir: 2.5 l drop-in reservoir with quick-connect fitting
  • External fluid control: Fluid sensing

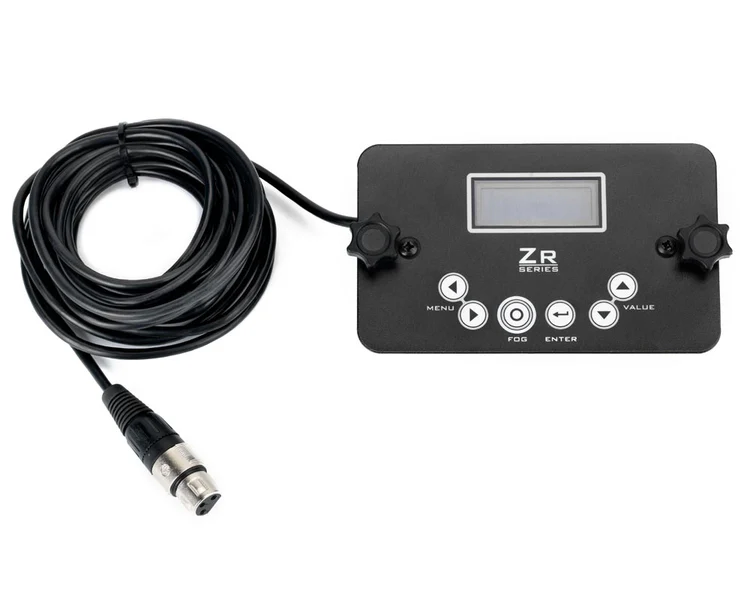

  • Remote control: Integrated Digital Remote with 3 m cable, 3-pin XLR

Installation

  • Mounting: Standing or hanging
  • Orientation: Up to +/-40° from horizontal
  • Clearance around machine: 100 mm (4 in.)

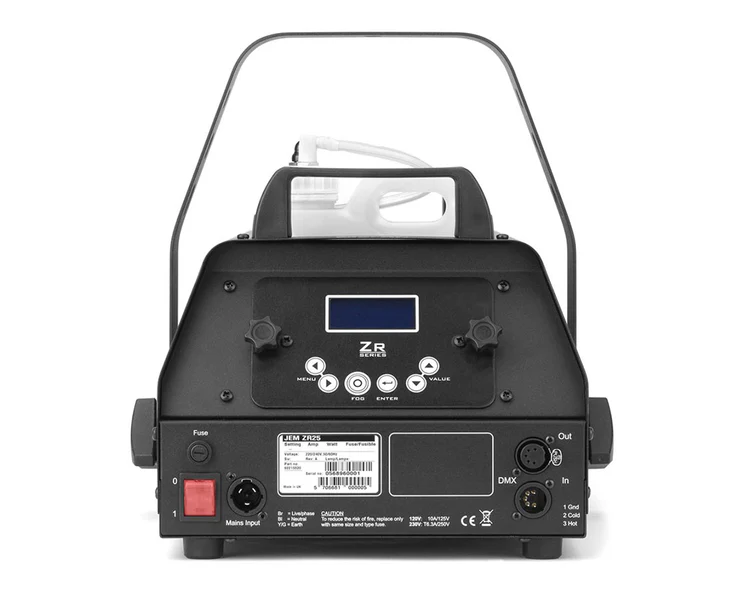

Connections

  • AC Power: Neutrik PowerCON TRUE1
  • DMX and link mode in/out: 5-pin locking XLR
  • Remote control: 3-pin locking XLR
  • Firmware: AVR socket
