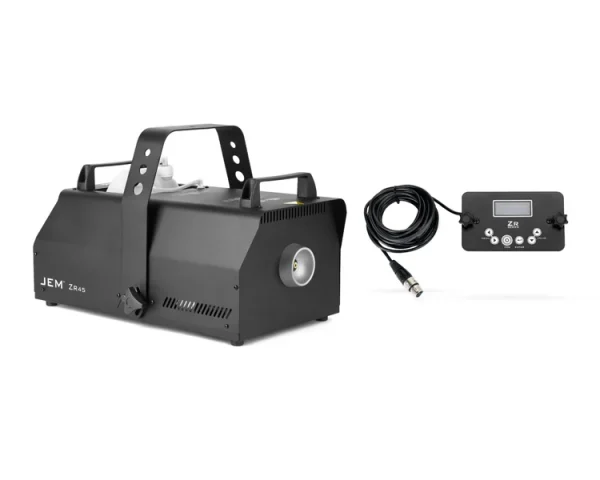

ZR45 Hi-Mass DMX Smoke Machine c/w Remote Control

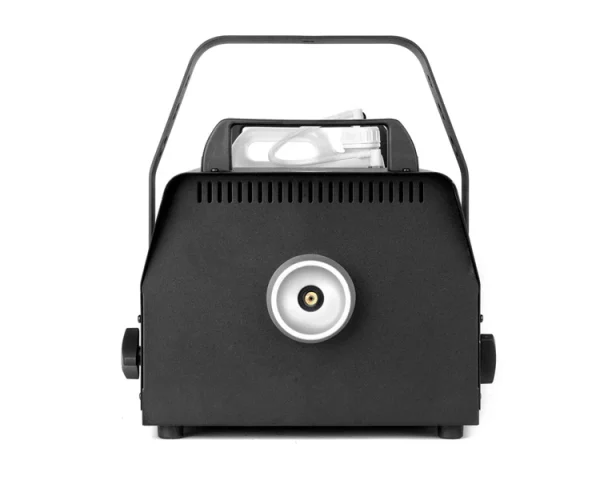

ZR45 Hi-Mass DMX Smoke Machine c/w Remote Control - Image 2
ZR45 Hi-Mass DMX Smoke Machine c/w Remote Control - Image 3
SKU: JEMZR45 Categories: ,

ZR45 Hi-Mass DMX Smoke Machine c/w Remote Control

The JEM™ ZR45 is a high-end fog machine designed to deliver superior and uninterrupted performance in demanding professional applications. Via its enhanced and powerful 2,000 W heat exchanger, the JEM ZR45 produces an exceptional peak output ideal for major venues and stages in both install and rental markets.

The rugged yet weight-optimized JEM ZR45 also features variable output control for more subtle effects and is fully up-to-date with digital remote, DMX and RDM.

The entire JEM ZR range is compatible with a wide range of JEM Pro fog fluids. As machines designed and built to last, the JEM ZRs will continue to perform with great output and low consumption.



£1,632.00

View your Basket
View Your Wishlist

Description

Features

  • High endurance high-end fog machine
  • Exceptional performance and output
  • Various control options via digital remote, DMX and RDM
  • 2,000 W (EU model) / 1,800 W (US model) heat exchanger
  • 80 ml in 30 seconds peak performance
  • 1300 m³/min fog output
  • Variable output control for subtle effects
  • 9-10 minute warm-up time
  • Digital remote, DMX and RDM
  • Compatible with a wide range of JEM Pro fog fluids
  • Floor standing or truss mounting (bracket included)
  • PowerCON TRUE1
  • 5-liter bottle

Specifications

  • Length: 602 mm (23.1 in.)
  • Width: 395 mm (15.6 in.)
  • Height: 306 mm (12.1 in.)
  • Height including hanging bracket: 393 mm (15.5 in.)
  • Dry weight: 17.7 kg (39.1 lb.)
  • Filled weight: 22.7 kg (50 lbs.)

Control and Programming

  • Control options: Integrated digital remote control, DMX, optional analog remote control, master/slave link mode
  • Control parameters: Continuous or timer-controlled output
  • Fog: Variable output control, 0-100%
  • DMX channels: 1
  • DMX compliance: ANSI E1.11 – USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20 RDM

Construction

  • Housing: Steel and aluminum
  • Hanging bracket: Integrated yoke w/safety attachment point
  • Color: Black
  • Heat exchanger (US model): 1800 W, thermally protected
  • Heat exchanger (EU model): 2000 W, thermally protected
  • Fluid pump: Dual oscillating piston, high pressure
  • Fluid management: Fluid out sensing, sealed for transportation
  • Fluid reservoir: 5 l drop-in reservoir with quick-connect fitting
  • External fluid control: Fluid sensing

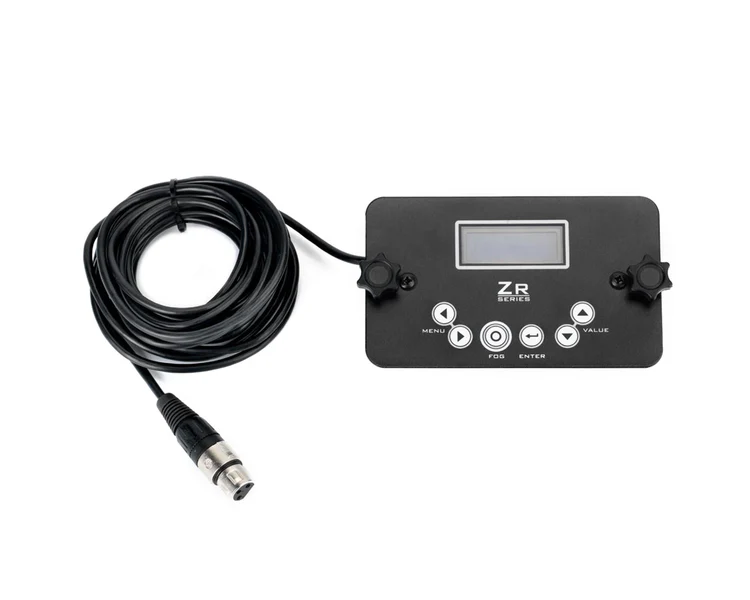

  • Remote control: Integrated Digital Remote with 3 m cable, 3-pin XLR

Installation

  • Mounting: Standing or hanging
  • Orientation: Up to +/- 40° from horizontal
  • Clearance around machine: 100 mm (4 in.)

Connections

  • AC Power: Neutrik PowerCON TRUE1
  • DMX, link mode in/out: 5-pin locking XLR
  • Remote control: 3-pin locking XLR
  • Firmware: AVR socket
