Description

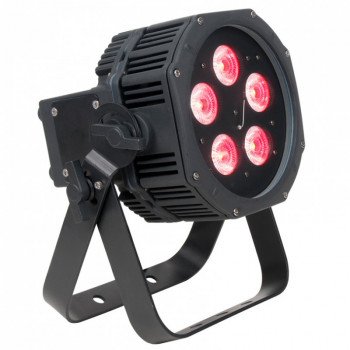

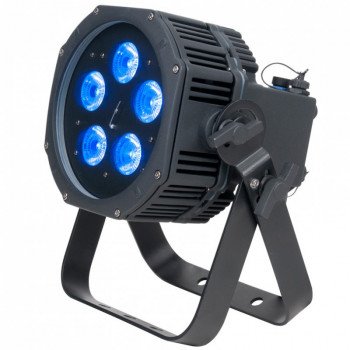

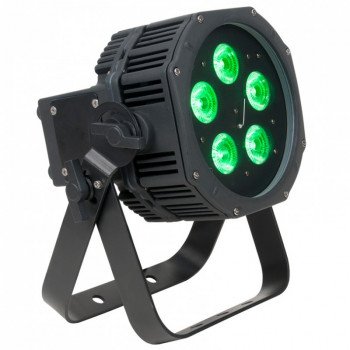

The ADJ WiFLY EXR HEX5 IP is an IP65 outdoor rated compact Wash Fixture with ADJ’s WiFLY Transceiver with wireless DMX built-in. It offers the power of 5x 10-Watt RGBWA+UV Hex LEDs (Red, Green, Blue, White, Amber, & UV) to create rich hues and smooth color mixing for stage or wall washing. ADJ’s WiFLY Transceiver will communicate up to 760m(open line of sight) with the WiFLY EXR HEX5 IP.

This fixture uses LEDs rated at 50,000 hours with a maximum power draw of 50W. DMX addressing may also be changed by the unit’s 4-button LED display, or controlled by a DMX Controller by DMX cabling or via ADJ’s stand alone WiFLY Transceiver.

Features

• Rechargeable Lithium battery powered, with wireless DMX
• IP65, Outdoor Rated, par fixture with five Hex RGBWA + UV LEDs (6in- LEDs)
• Built-in WiFLY wireless DMX: compatible with ADJ’s WiFLY Transceiver (sold separately)
• Variable RGBWA+UV color mixing offers a smooth, seemingly unlimited color palette – Great for Stage or Wall Washing
• LED pulse and strobe effect
• Flicker Free Operation
• Dual bracket yoke allows fixture to be hung or set on the ground
• Run all night – No duty cycle
• Energy Saving Mode

Specifications

• 5 DMX Channel modes: 6, 7, 8, 11 or 12 channel modes
• 6 Operational modes: Static Color; RGBWA+UV Dimmer Mode; Color Change; Color Fade; Auto Run (Program Run); and DMX Controlled
• 16 Color Change Modes
• 16 Color Fade Modes
• 63 built-in Color Macros
• Electronic Dimming: 0 – 100%
• Beam angle: 40-degree
• Linkable via 3-pin IP cable (In/Out)

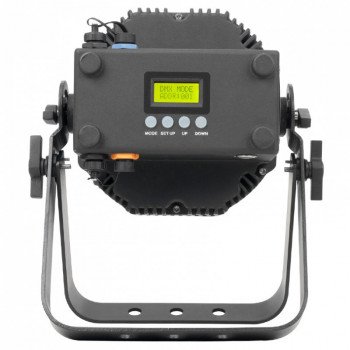

• 4-button DMX menu display on rear panel
• 4-Pin Power AC IN/OUT outlets on rear to daisy chain power (up to 10 units)
• LED Source: 5x 10-Watt Hex LEDs (6-in-1 RGBWA+UV- Red, Green, Blue, White, Amber, & UV LEDs, rated at approximately 50,000 hrs)
• Battery Charge Time: 5 Hours (With Power Switch Off)
• Battery Life: 5 Hours Full On, 8 Hours in Energy Save Mode (With Full Charge)
• Power Draw: 56W total (All LED @ Full On)
• Multi-voltage operation: AC 100-240V, 50/60Hz

Physical & Dimensions

• Length: 310mm
• Width: 280mm
• Height: 194mm
• Weight: 5.48kg
