Specifications

• Bypass: Relay (Hard Bypass in Case of Power Outage)
• Frequency Response:
• Dynamic Range: 107dB
• THD: 0.007 Typically @ +4dBu, 1kHz, Amplification 1
• Crosstalk:
• MIDI Interface: 5-Pole DIN Connectors In/Out/Thru
• DSP Converter: 24-Bit/96kHz
• Sample Rate: 96kHz
• Display: 3-Digit Numeric LED Display
• Power Consumption: Approx. 10W
• Power Connector: Standard IEC
• Dimensions: 44.5mm x 483mm x 217mm / 1.75” x 19” x 8.5” (H x W x D)
• Weight: 2kg / 4.4lbs

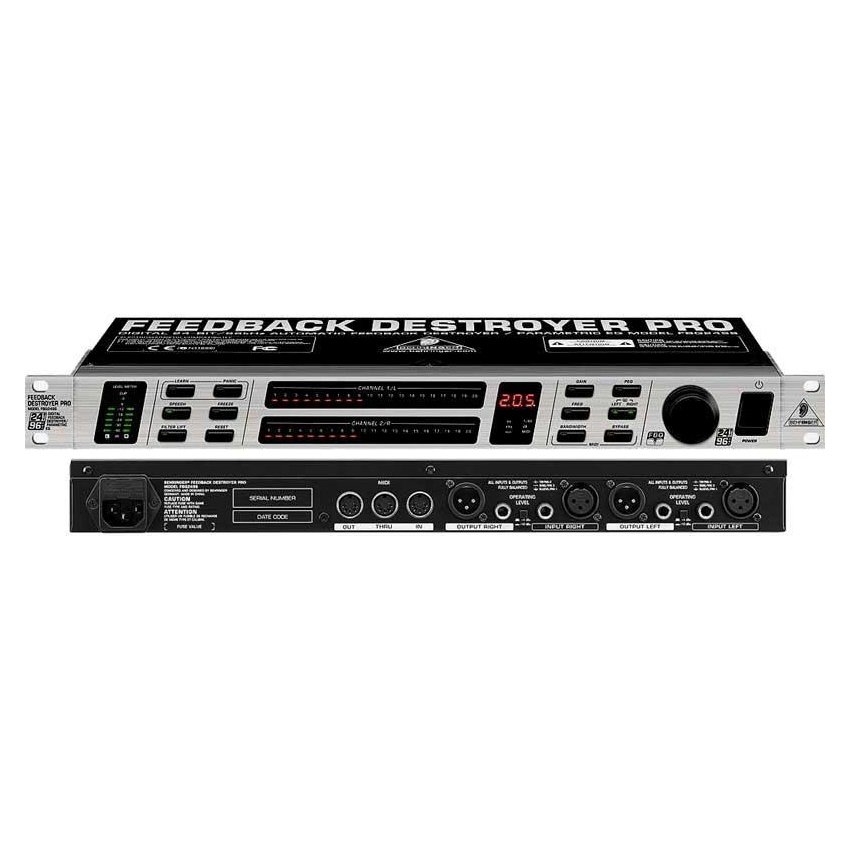

Feedback Destroyer (FBQ)

• Type: Digital Signal Analysis for Feedback Recognition Purposes
• Filter: 20 Digital Notch Filters Per Channel
• Frequency Range: 20Hz – 20kHz
• Bandwidth: 1/60th Octave
• Possible Value Range: 0dB to -36dB

Audio Inputs

• Connectors: XLR and 1/4” TRS Stereo Jack
• Type: Electronically Balanced Input
• Impedance: Approx. 20kΩ
• Nominal Input Level: -10dBV / +4dBu (Adjustable)
• Maximum Input Level:
  • +20dBu at +4dBu Nominal Level
  • +6dBV at -10dBV Nominal Level Typically -40dB

Audio Outputs

• Connectors: XLR and 1/4” TRS Stereo Jack
• Type: Balanced
• Impedance: Approx. 200Ω
• Maximum Output Level:
  • +20dBu at +4dBu Nominal Level
  • +6dBV at -10dBV Nominal Level

Parametric EQ (PEQ)

• Type: 20 Independent, Fully Parametric Filters Per Channel
• Frequency Range: 20Hz – 20kHz
• Bandwidth: 1/60th to 10 Octaves
• Possible Value Range: +15dB to -36dB
