Showtec Stage Blinder FLEX Blaze

Set of 8x 100 W LED blinders + controller

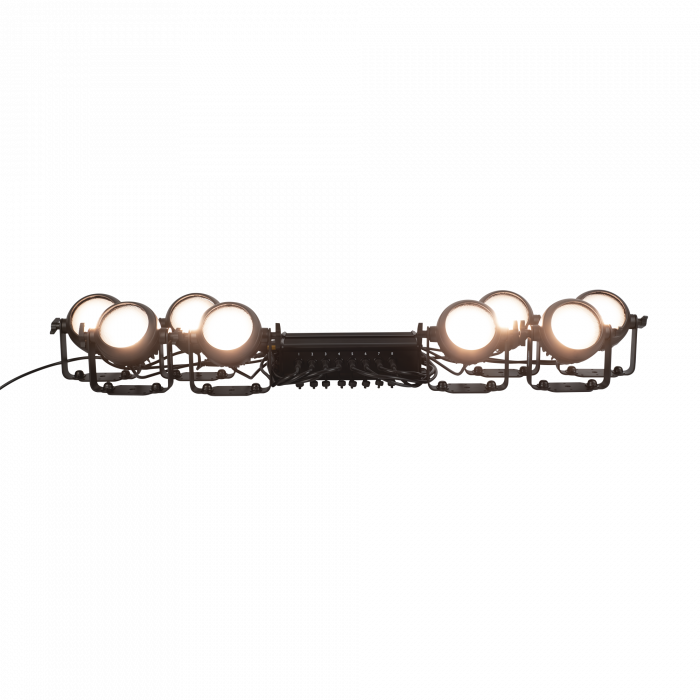

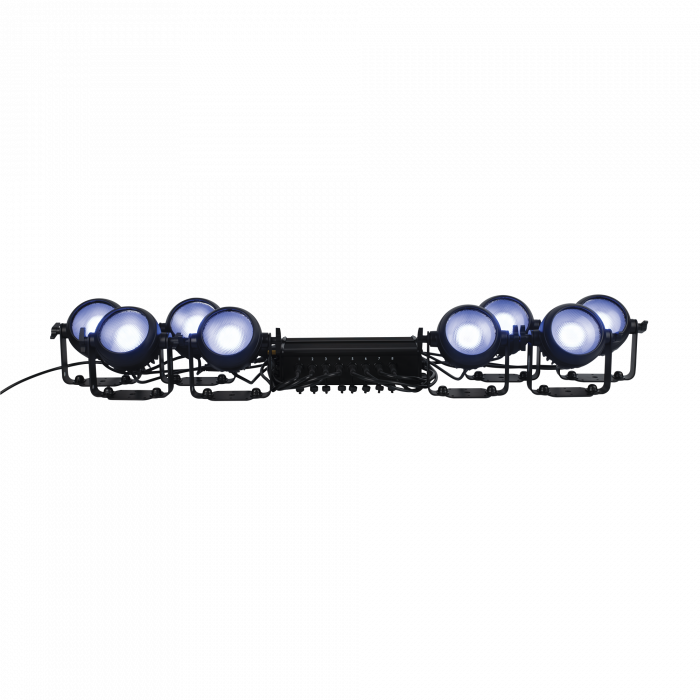

The Showtec Stage Blinder FLEX Blaze is a set of 8 high-power LED audience blinders of 100 W each and a dedicated controller.

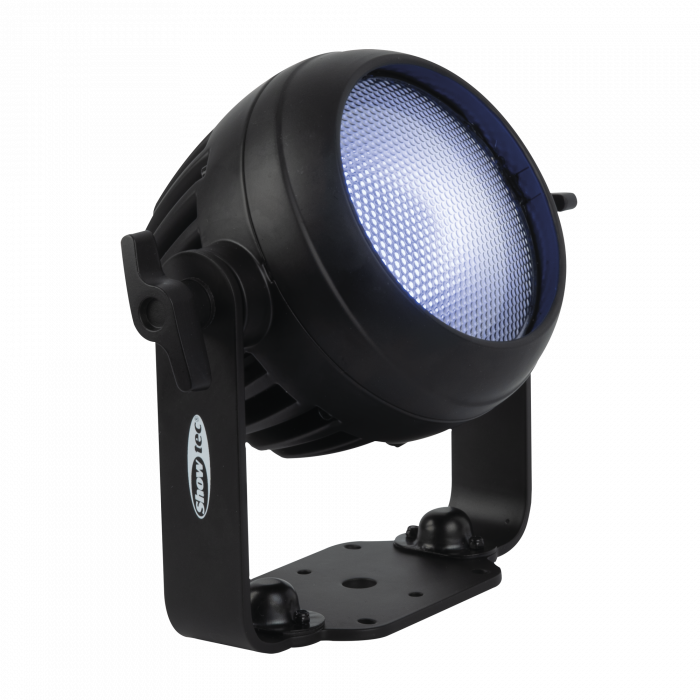

Each individual pod has a powerful warm white COB LED of 3000 K with integrated amber LEDs to perfectly mimic the tungsten dimming of traditional blinders.

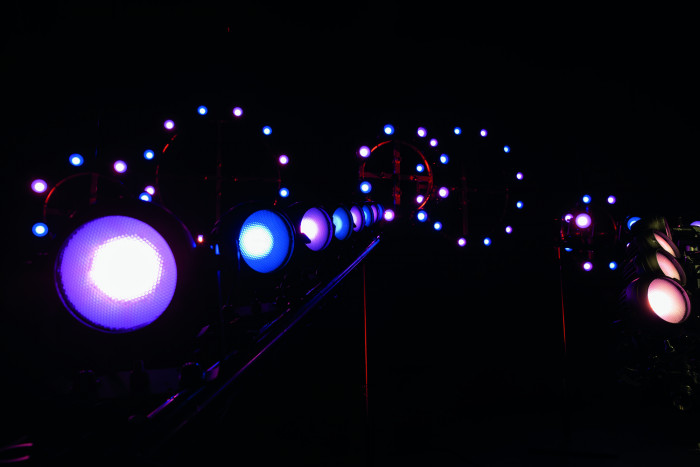

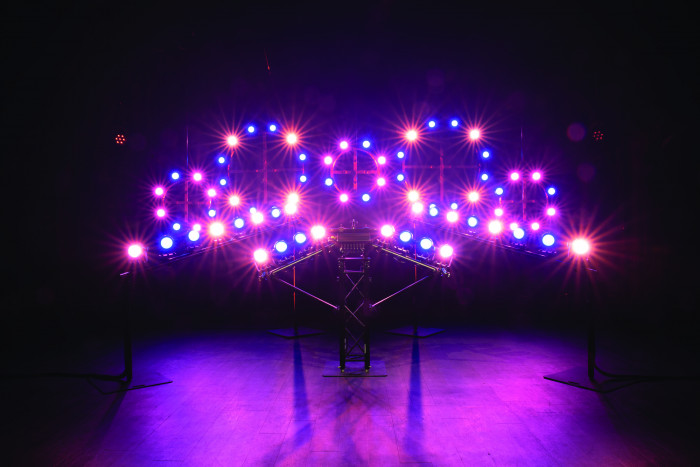

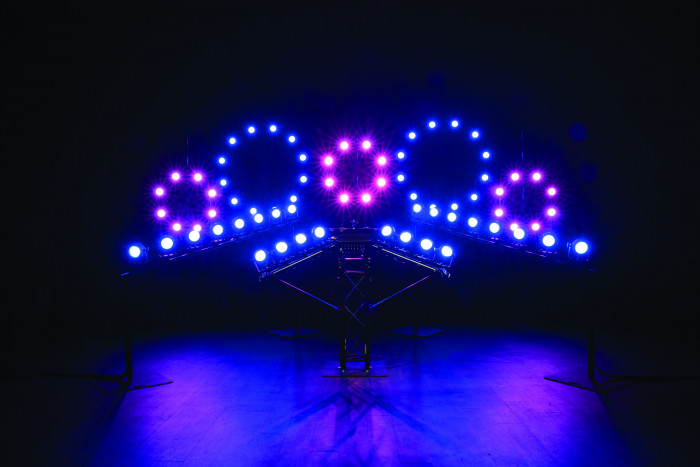

Integrated RGB LEDs light sources allow you to create unique full-colour blaze effects.



  • 8x 100 W LED blinders
  • Tungsten dimming simulation
  • RGB blaze effects
  • Dedicated controller
  • Warm white (3000 K)



£2,378.72

Description

The powerful LED light source combined with a strobe functionality allows you to use the Stage Blinder FLEX Blaze as a strobe light with interesting colour effects. The light effect can be controlled via DMX/RDM, Master/Slave, but can also run in stand-alone mode with several built-in programs.

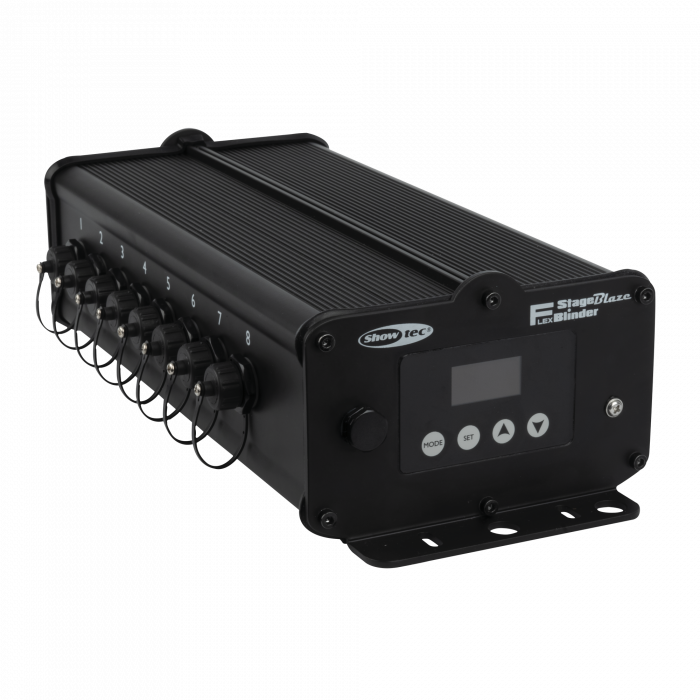

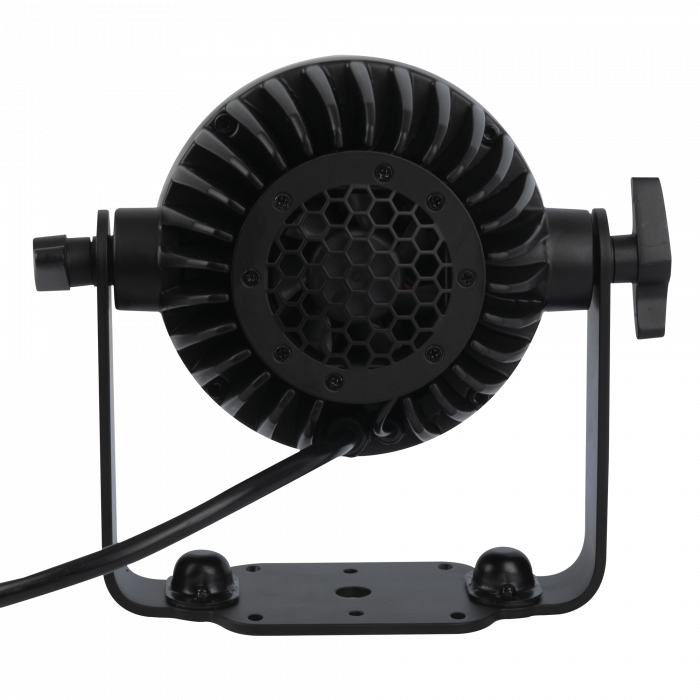

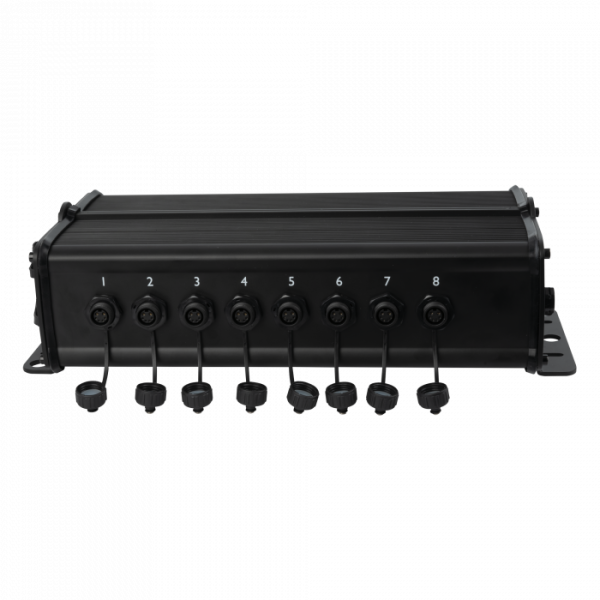

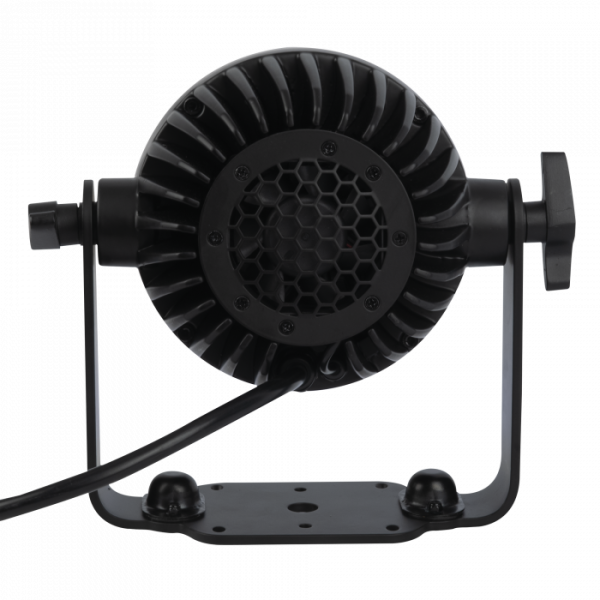

The blinder pods have a special mounting bracket with 4 holes at a 45-degree angle, so you don’t have to detach the pod from it to drill through the holes to mount it. The bracket also has a 12.5 mm hole, while the controller has two 12.5 mm holes and an M10 threaded insert for attaching a clamp. You can also attach a quick lock bracket to the controller and pods.

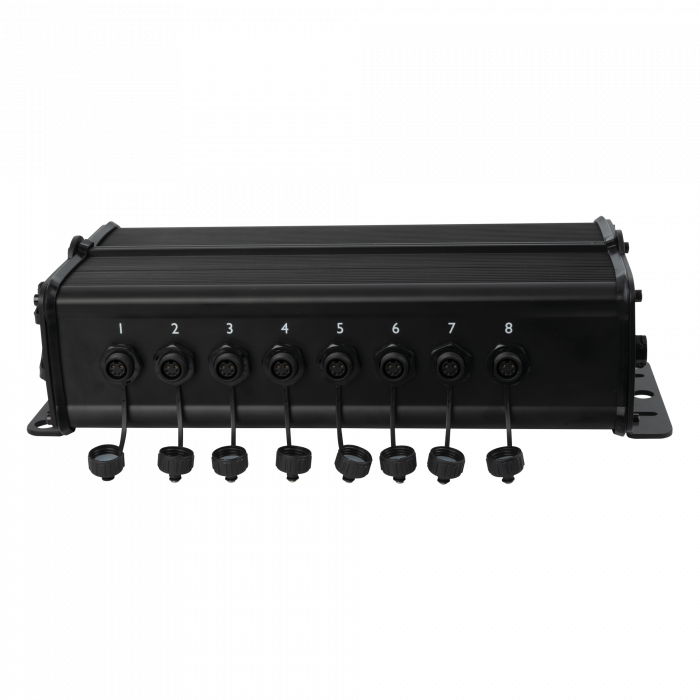

The blinders and controller have a robust IP65-rated aluminium enclosure and are ready for outdoor shows. Dedicated 4x 2.5 m and 4x 5 m cables with control signals and power are included.

Additional dedicated cables of various lengths are available separately (maximum length allowed: 30 m).

Specifications

Source

  • Light Source Type: LED
  • Light Source Quantity: 8
  • Light Source Power: 100 W
  • LED Colour Type: A, WW, RGB
  • Luminous Flux (Total): 5229 lm
  • CRI: 92

Optical

  • Beam Angle (Horizontal): 45 °
  • Beam Angle (Vertical): 45 °

Control and Programming

  • Control Mode: Built-in Program, DMX, Master Slave, Stand Alone, Static Dimmer
  • DMX Channels: 4, 5, 8, 32, 33, 40
  • Protocols: DMX, RDM
  • Display: OLED
  • Zone Control (Sections): 8

Dynamic Effects

  • Dimmer: 0-100 %
  • Strobe: 0-20 Hz

Electrical Specifications and Connections

  • Power Supply: 100-240 V AC 50/60 Hz
  • Power Consumption: 700 W
  • Power Connector In: Power Pro True
  • Power Connector Out: Power Pro True
  • DMX Connector: XLR 5P In/Out
  • DMX Connector In: XLR 5P
  • DMX Connector Out: XLR 5P

Mechanical Specifications

  • Length (mm): 216 mm (8.504″)
  • Width (mm): 115 mm (4.528″)
  • Height (mm): 195 mm (7.677″)
  • Controller Length: 372 mm (14.646″)
  • Controller Width: 171 mm (6.732″)
  • Controller Height: 103 mm (4.055″)
  • Weight: 1.47 kg (3.241 lb)
  • Controller Weight: 3.65 kg (8.047 lb)
  • IP Rating: IP65
  • Material: Aluminium, Metal
  • Housing: Aluminium die-cast
  • Colour: Black

Product Properties

  • Cooling: Forced Convection

Rigging

  • Mounting Options: Clamp, Quick-Lock
  • Safety Attachment: Yes

Thermal Specifications

  • Maximum Ambient Temperature: 45 °C (113 °F)
  • Minimum Operating Temperature: -20 °C (-4 °F)

Included Items

  • Included Cables: Dedicated IP65 Dataconnection, Power Pro True Cable
  • Included Accessories: Controller
  • Included Rigging: 1x Quick-Lock Bracket

Additional information

Weight 10 kg
