Name: ISCHL Distribution Box 63A 415V In 3x32A + 6x16A Out
SKU: CONN081
Price: 1065.00 GBP
Availability: InStock

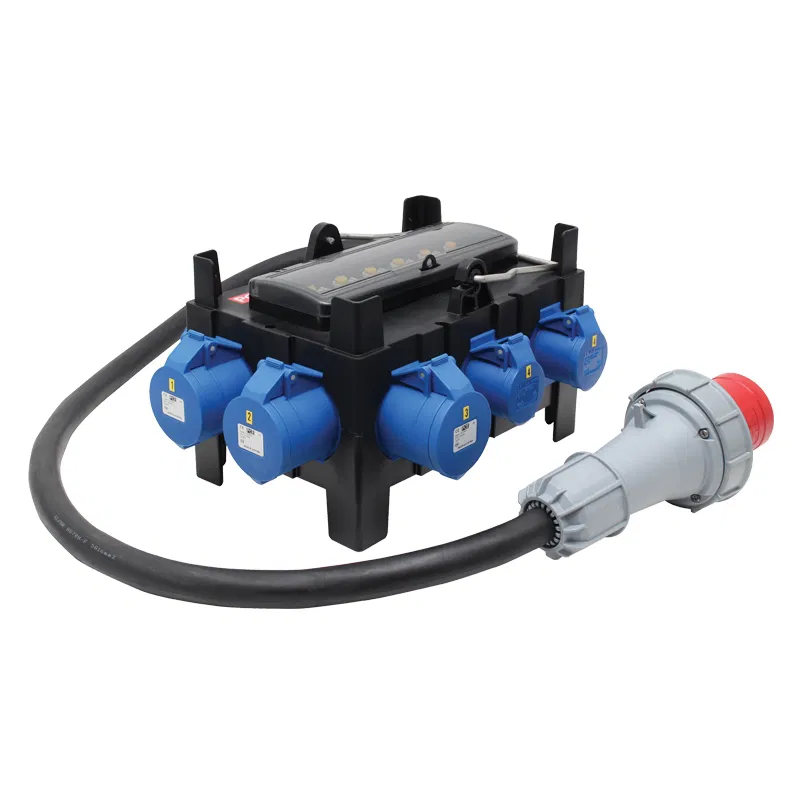

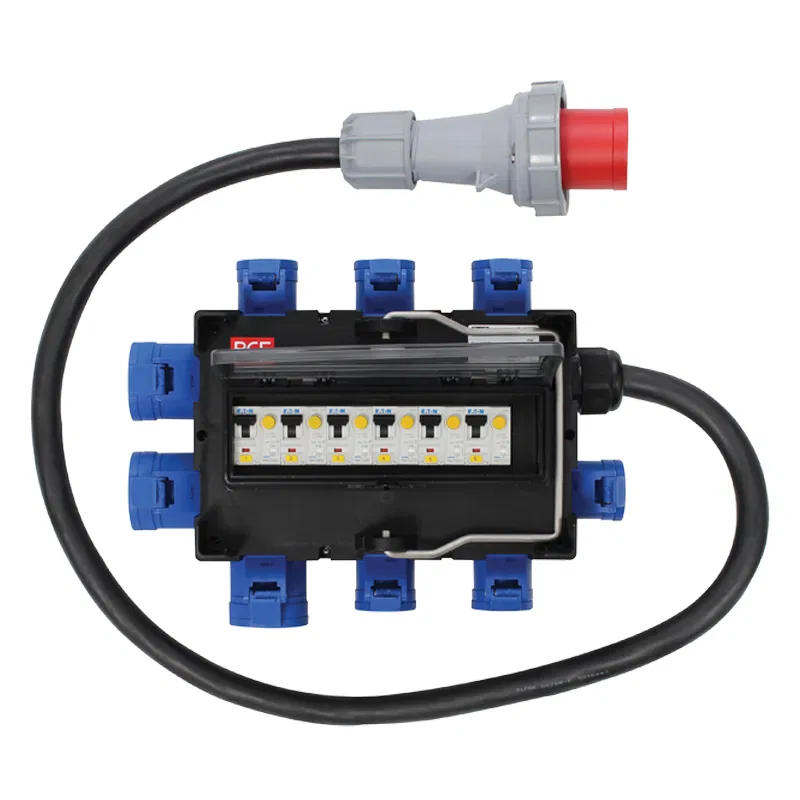

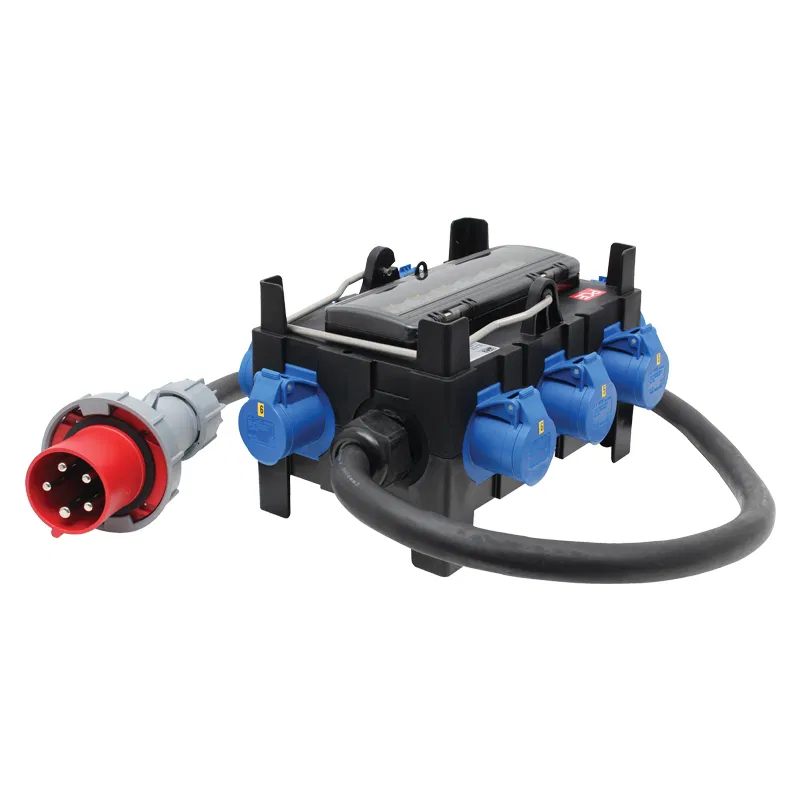

ISCHL Distribution Box 63A 415V In, 3x32A + 6x16A Out (9130023)

ISCHL Distribution Box 63A 415V In 3x32A + 6x16A Out (9130023)

These PCE ISCHL distribution boxes are compact, robust, lightweight and made of shock-resistant polyamide. Suitable for events and rental, they are IP44 splash proof rated.

£1,065.00

Description

These PCE ISCHL distribution boxes are compact, robust, lightweight and made of shock-resistant polyamide. Suitable for events and rental, they are IP44 splash proof rated.

Features

Handy, robust and lightweight distribution box made of shock-resistant polyamide

Number of modules: 12 (Can be increased to 13)

IP44 rated

Stackable design for space saving

Made in the EU

Specifications

Input: 63A 415V~50/60Hz 5-Pin 3P+N+E via 1.2m trailing cable (plug fitted)
Outputs: 3 x 32A 220-250V~50/60Hz 2P+E sockets and 6 x 16A 220-250V~50/60Hz 2P+E IP44 sockets each protected by a C type 30mA RCBO
Dimensions (H x W x D): 200 x 400 x 320mm
Weight: 7.8kg
