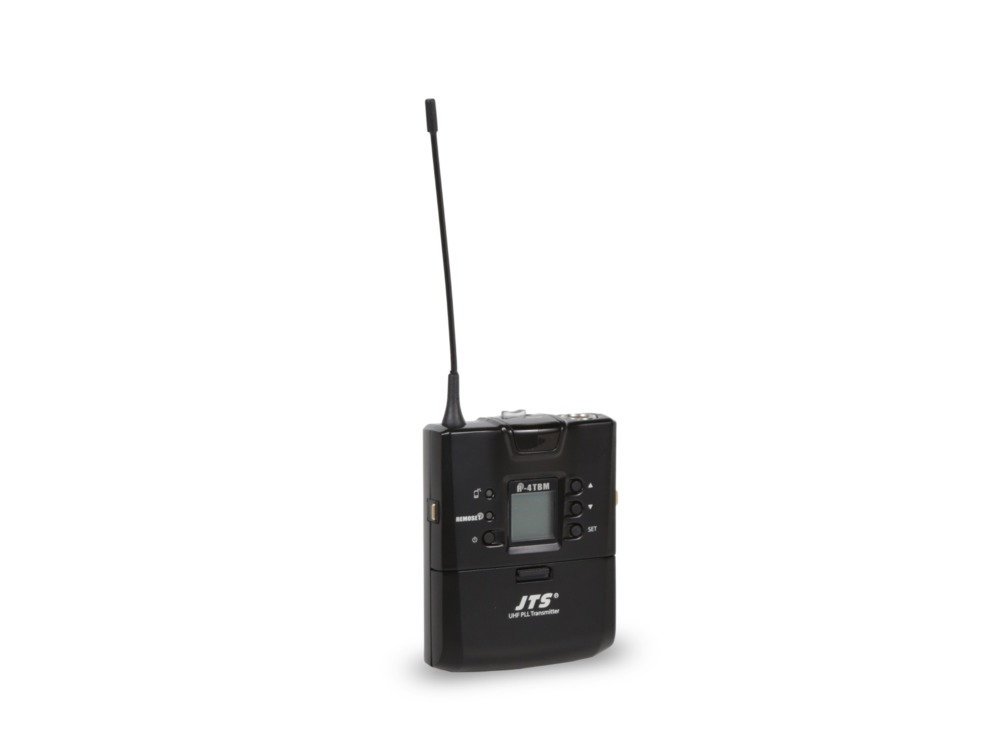

JTS R-4TBM

R-4TBM is a Small, discrete and excellent build quality are the requirments for any theatre, school, house of worship or performer needing a body pack transmitter for headsets or lavalier mics.

The R-4TBM is an impressive piece of engineering with a metal housing for first class reliability.

*Available in 606.5 – 638 MHz / 823-865 MHz*

£307.00

Description

R-4TBM

Small, discrete and excellent build quality are the requirments for any theatre, school, house of worship or performer needing a body pack transmitter for headsets or lavalier mics. The R-4TBM is an impressive piece of engineering with a metal housing for first class reliability.

Features

  • 2400 to 3000 selectable frequencies
  • Preset 15 groups each of up to 63 compatible channels
  • Phase-Locked Loop (PLL) synthesized tune
  • Extended dynamic range and smooth frequency response.
  • Adjustable transmission power between Low and High
  • The panel Lock-On function prevents tampering and RF interruption
  • Together with JTS various music instrument mics, headset mics and tie clip mics this bodypack is versatile for all applications.

Specifications

  • Net Dimension (WxHxD): 62 x 80.3 x 22.6mm
  • Net Weight: 93g
  • Frequency Preparation: PLL Synthesized Control
  • Controls: Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
  • Output Connector: 4 Pin mini XLR
  • RF Outputs: High/Low
  • Frequency Deviation: ±48KHz (Peak)
  • Spurious Emissions: < -50 dBC
  • Battery: UM3, AA x2
  • Carrier Frequency Range: Options of 606.5 – 638MHz or 823 – 865MHz
  • Audio Frequency Response: 50Hz – 18kHz
  • Stability: < ±10KHz
  • Chassis: Aluminium Alloy
  • LCD Display: Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust
