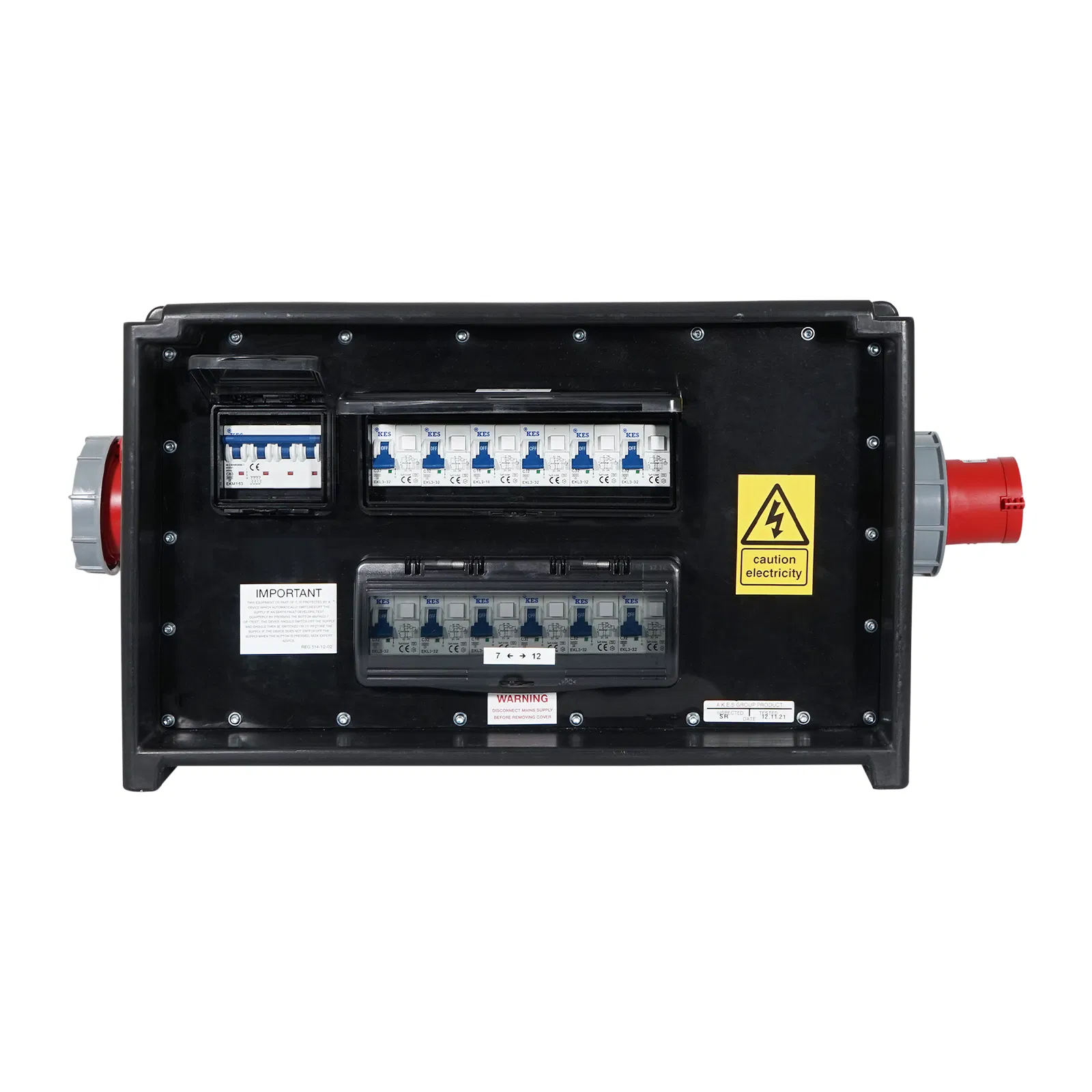

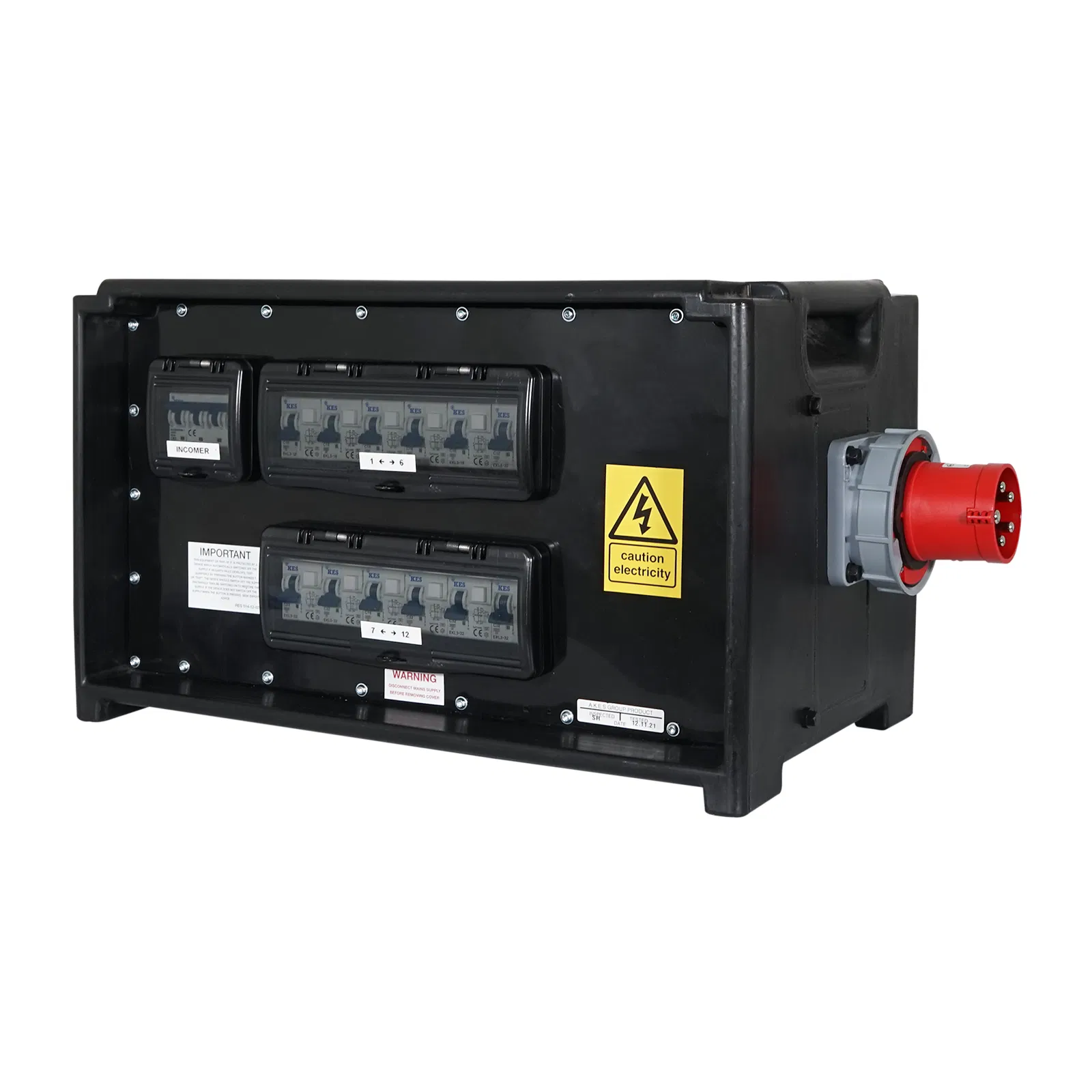

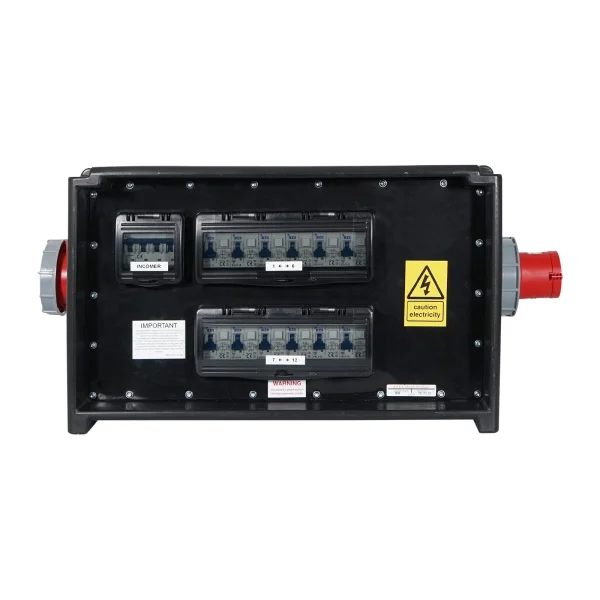

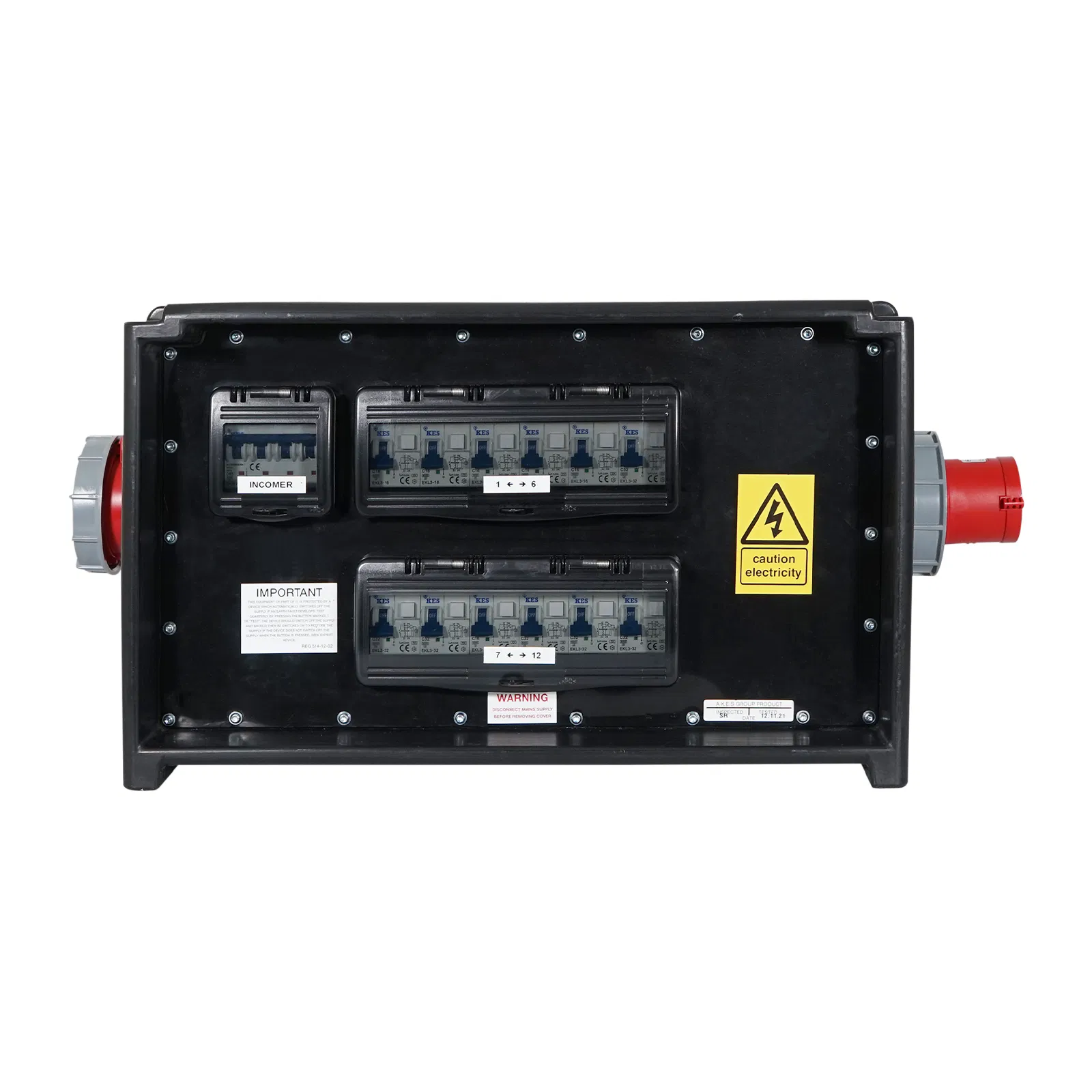

MERZ Distribution Box 63A 3PH In/Thru to 32A/16A RCBO

These PCE MERZ 63A distribution boxes are robust, lightweight and made of shock-resistant thermoplastic. Suitable for events and rental they are IP44 splash proof rated.

Manufactured with 63A 3phase input and pass through for onsite daisy chaining of multiple distribution units on one power run.

£1,825.00

Description

Features

Handy, robust and lightweight distribution box made of shock-resistant thermoplastic

IP44 rated

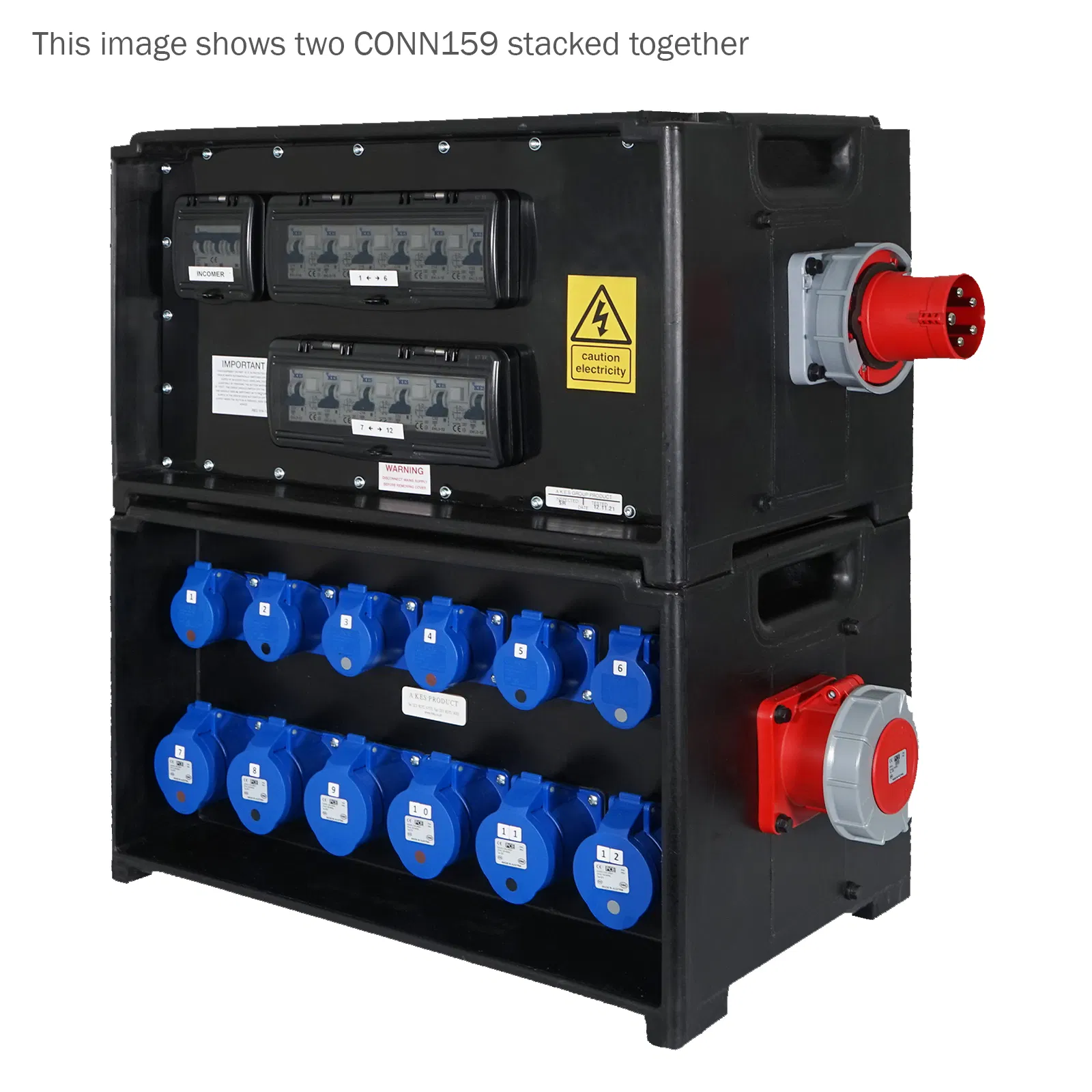

Stackable design for space saving

Made in the EU

Specifications

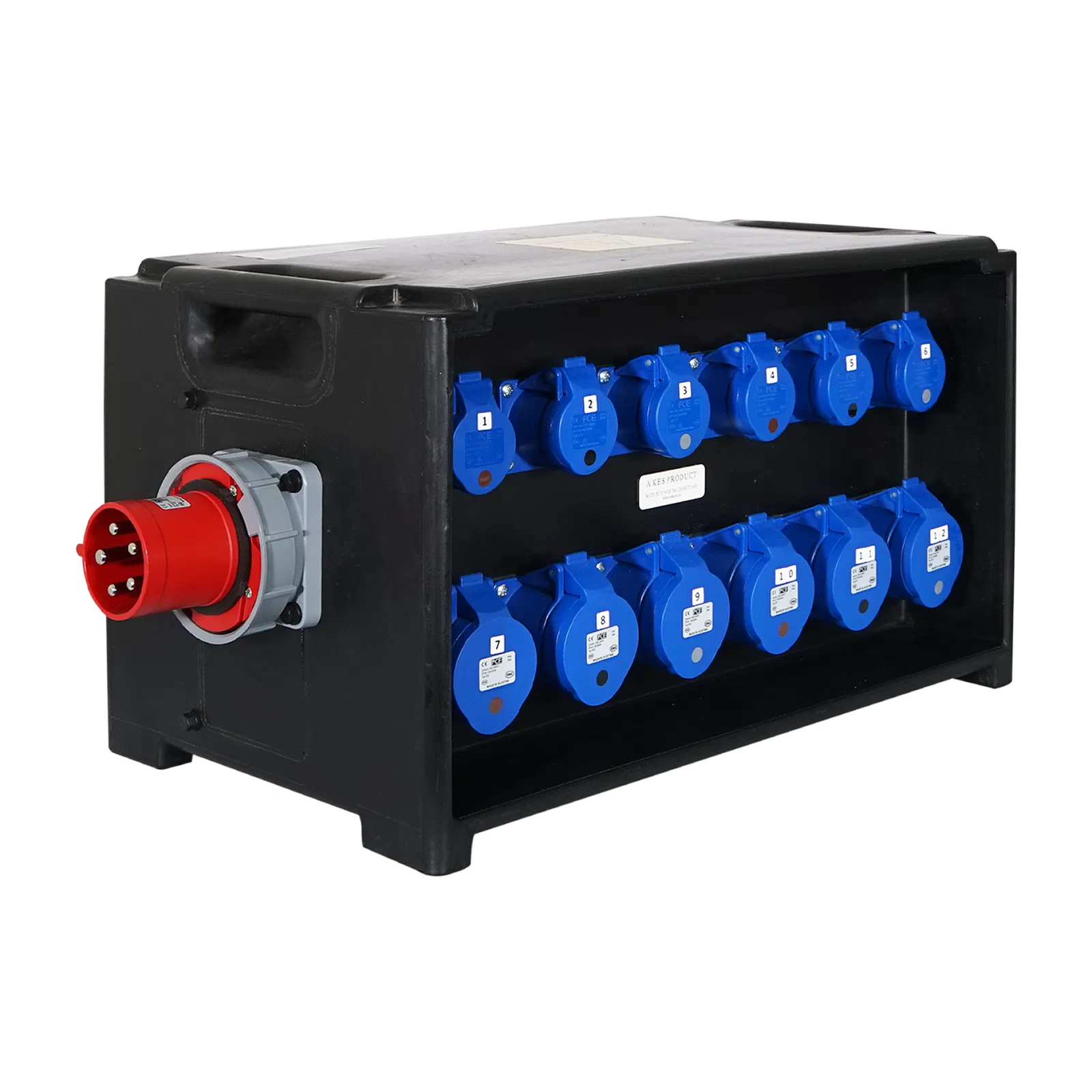

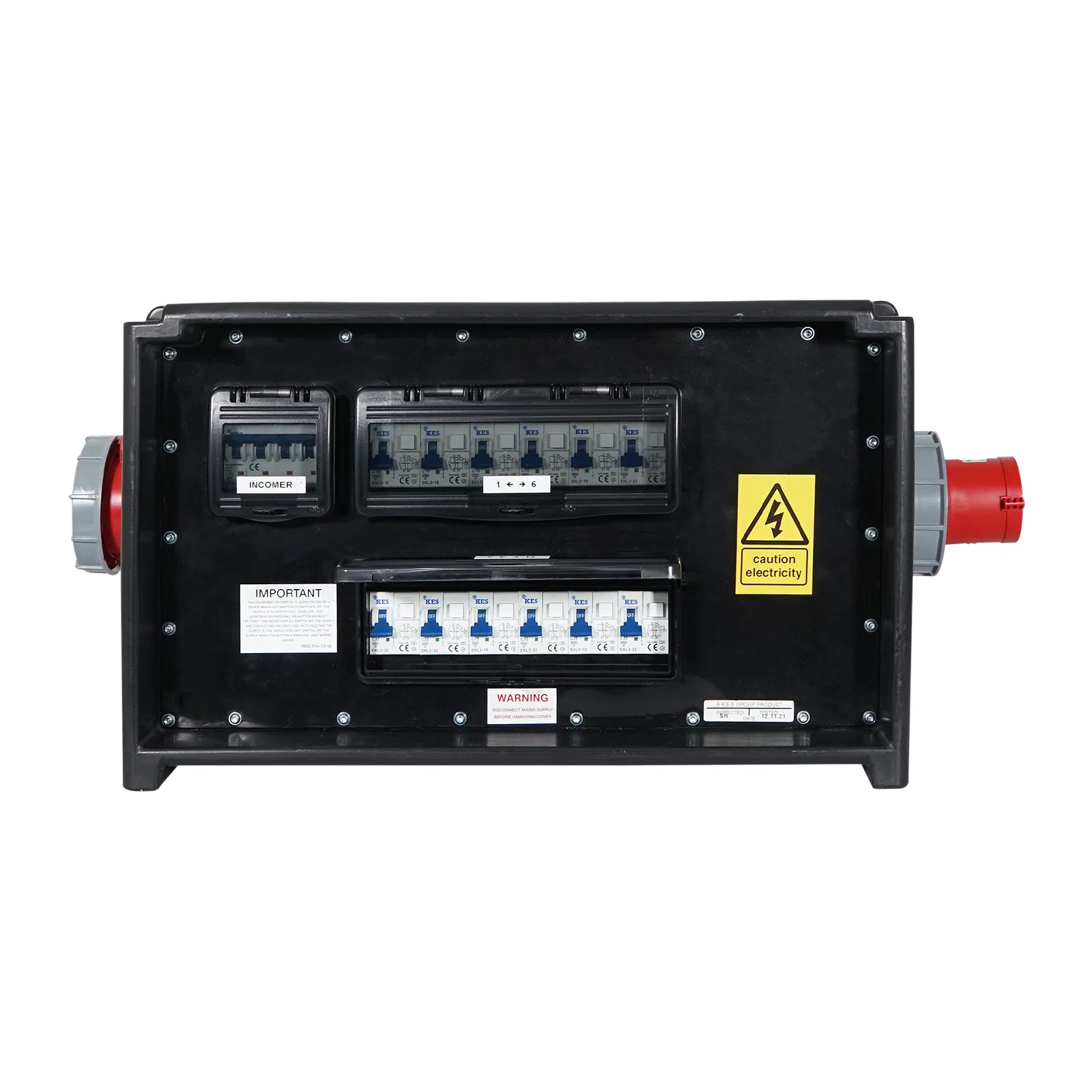

Input: 63A 415V~50/60Hz 5-Pin 3P+N+E IP44 chassis plug protected by a 4-Pole type C MCB
Pass Through: 63A 415V~50/60Hz 5-Pin 3P+N+E IP44 chassis socket

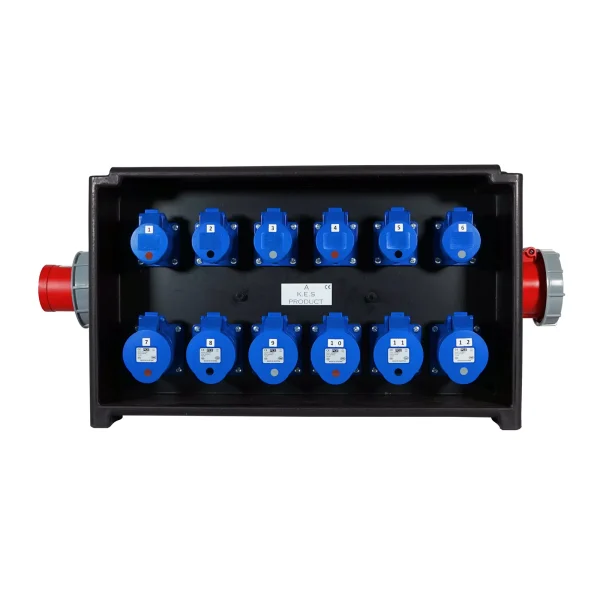

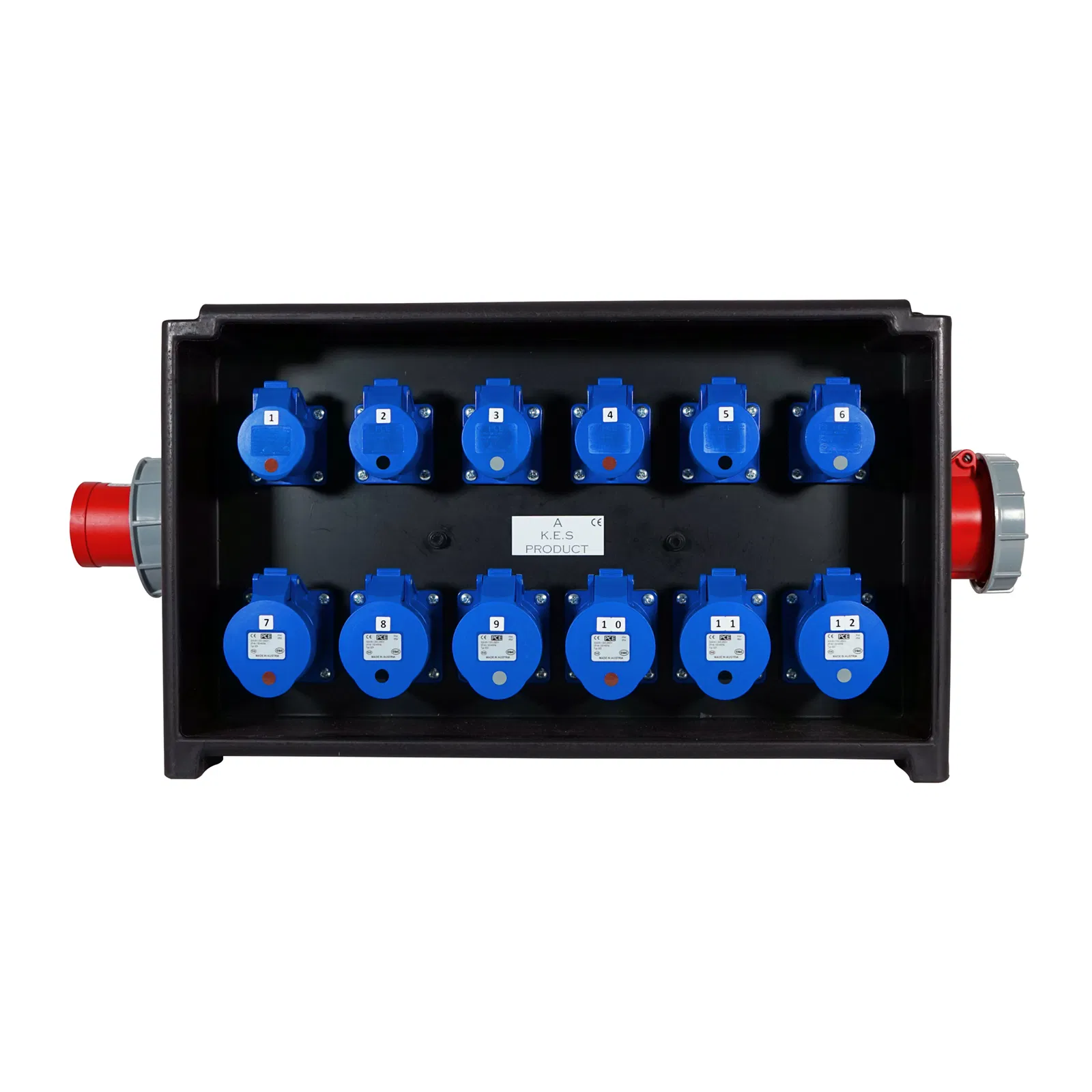

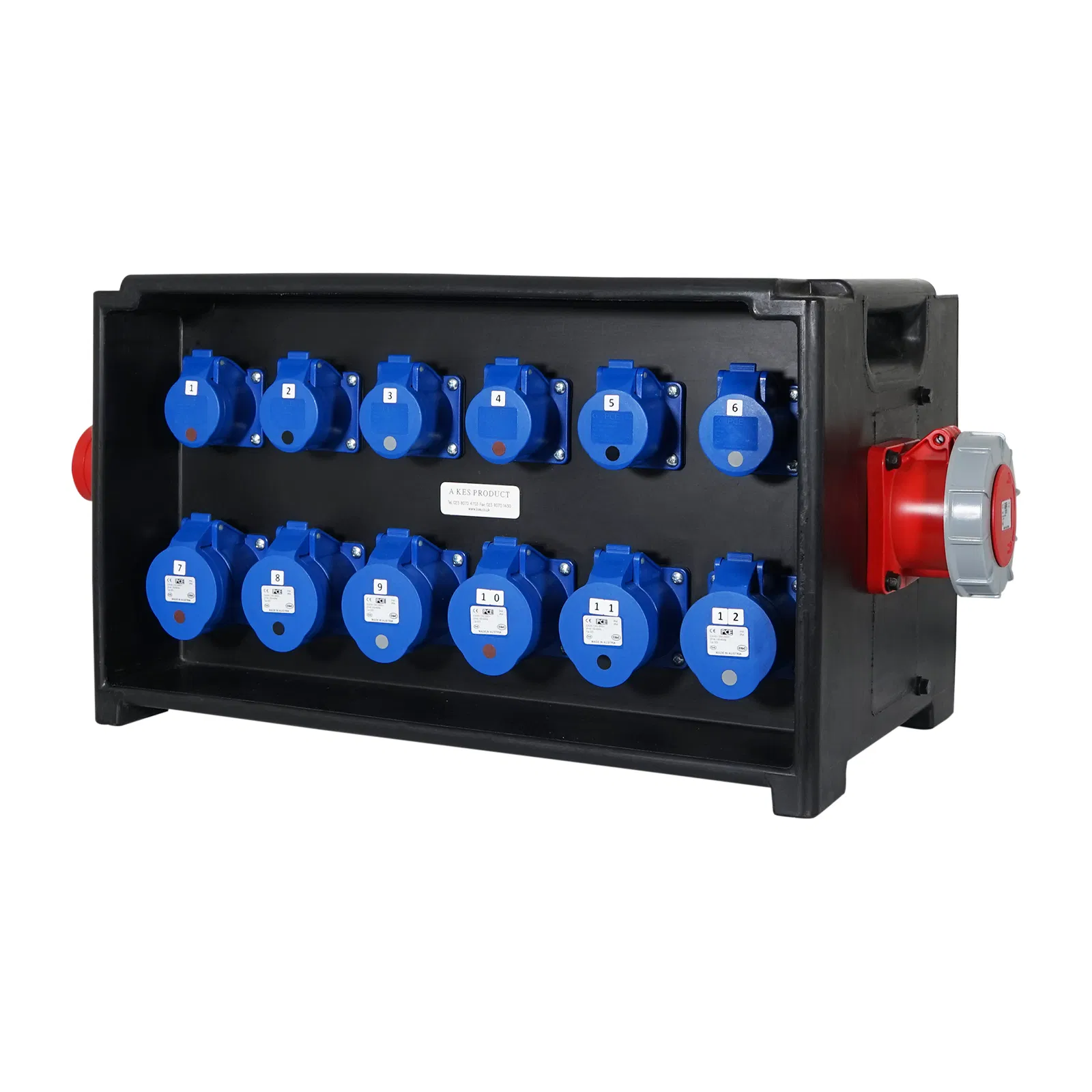

Outputs: 6 x 32A 220-250V~50/60Hz 2P+E sockets, 6 x 16A 220-250V~50/60Hz 2P+E sockets each protected by a C type dual pole RCBO
