Name: MERZ Distribution Box 63A 3PH In/Thru to 32A/16A RCBO - Crystal Sound and Light
SKU: CONN395
Price: 1799.00 GBP
Availability: InStock

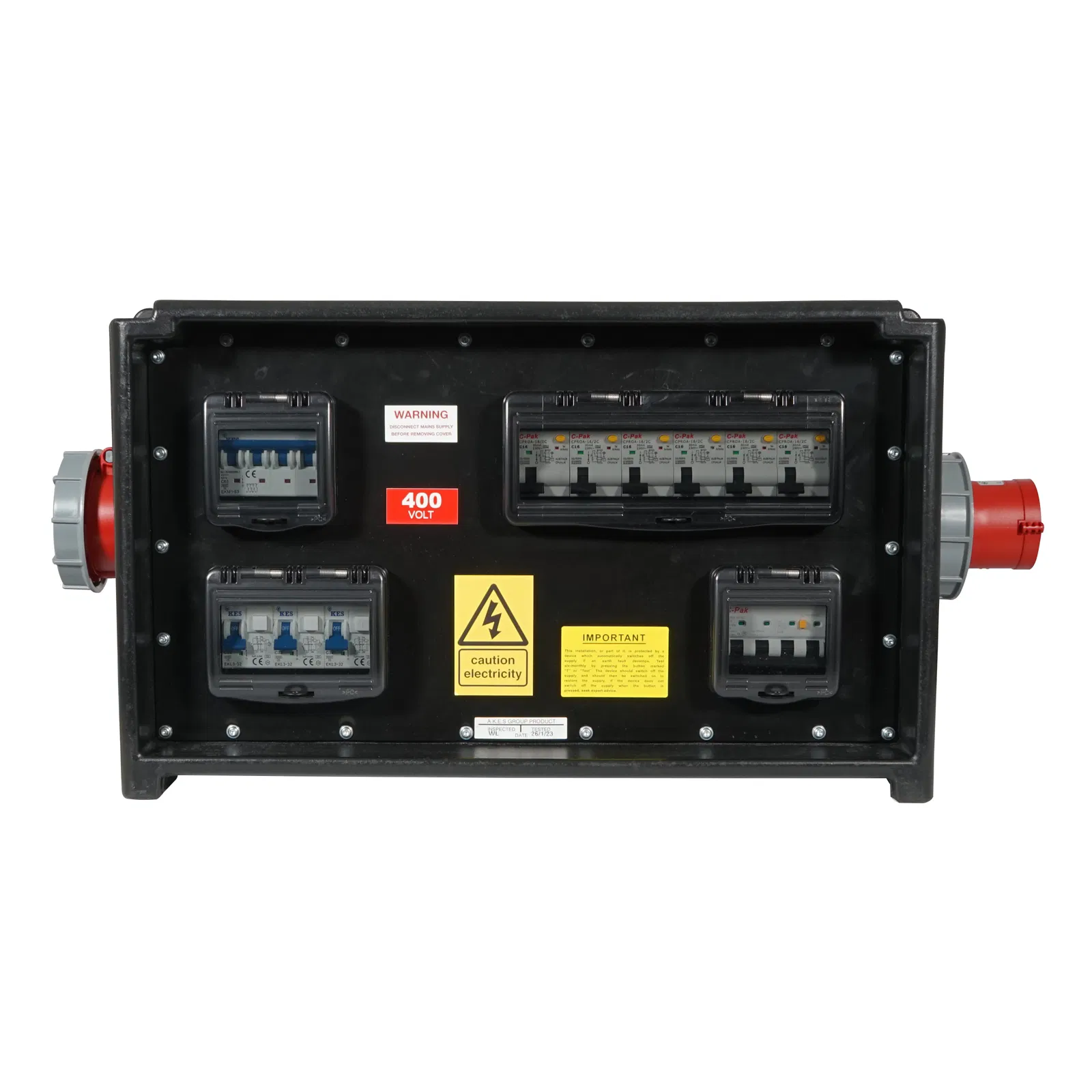

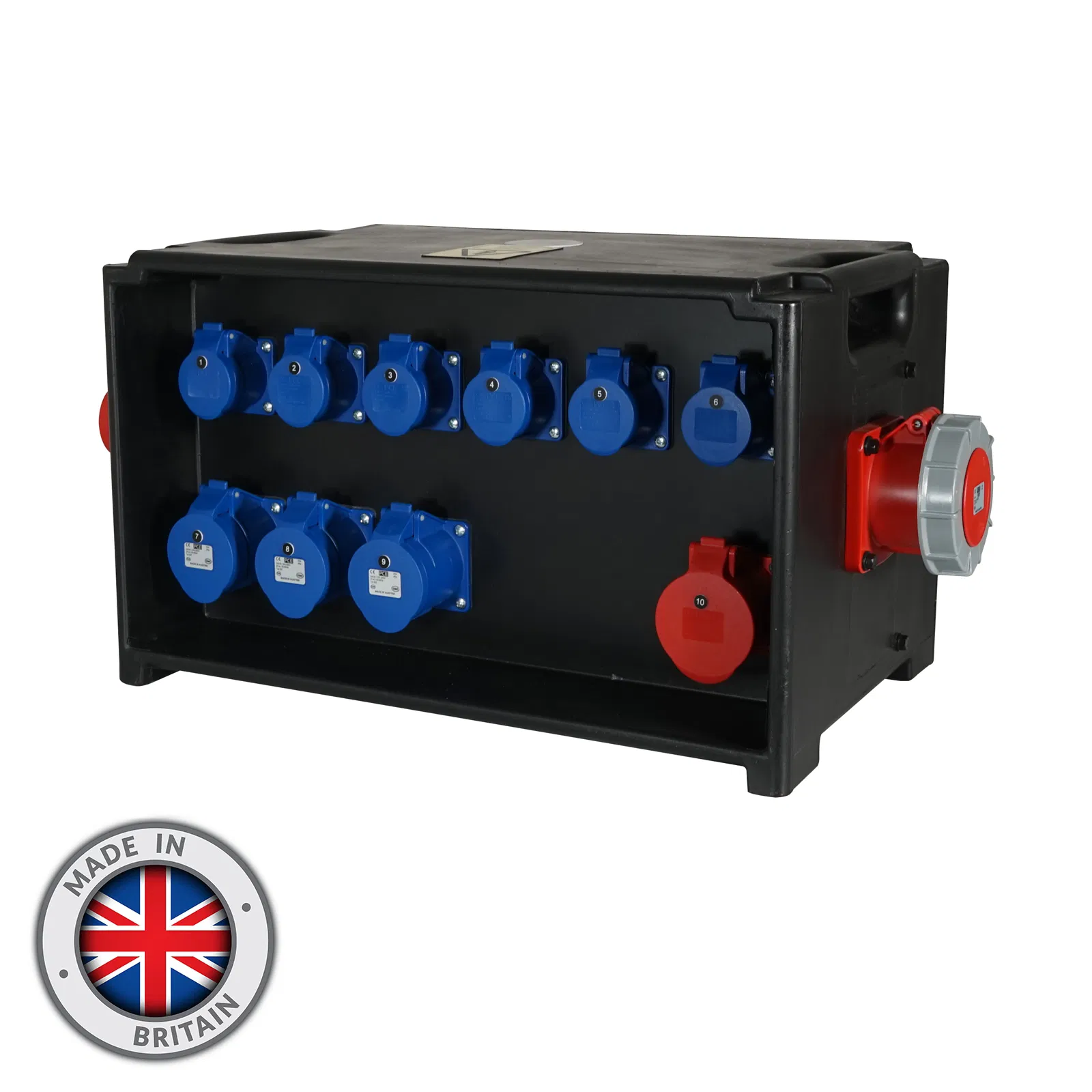

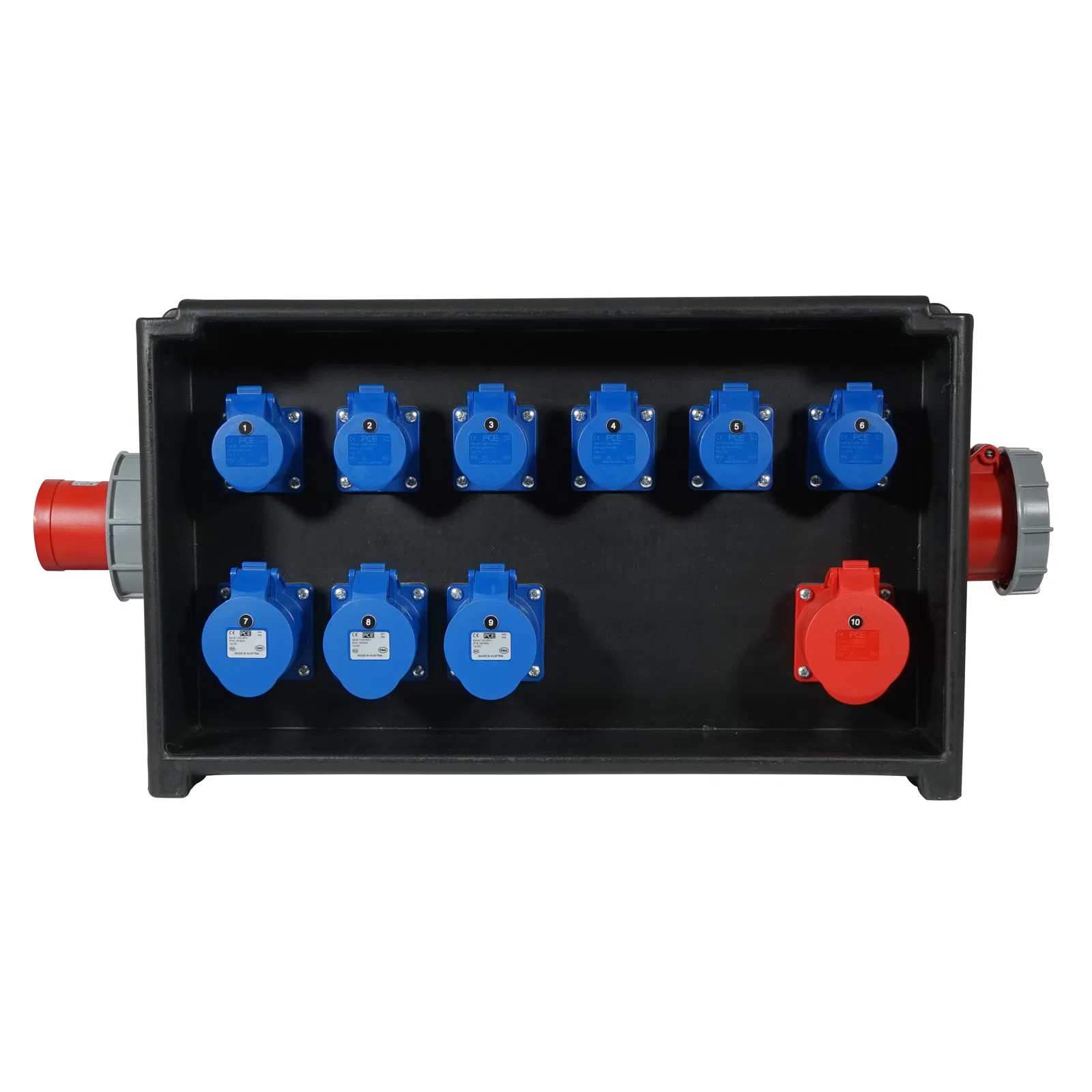

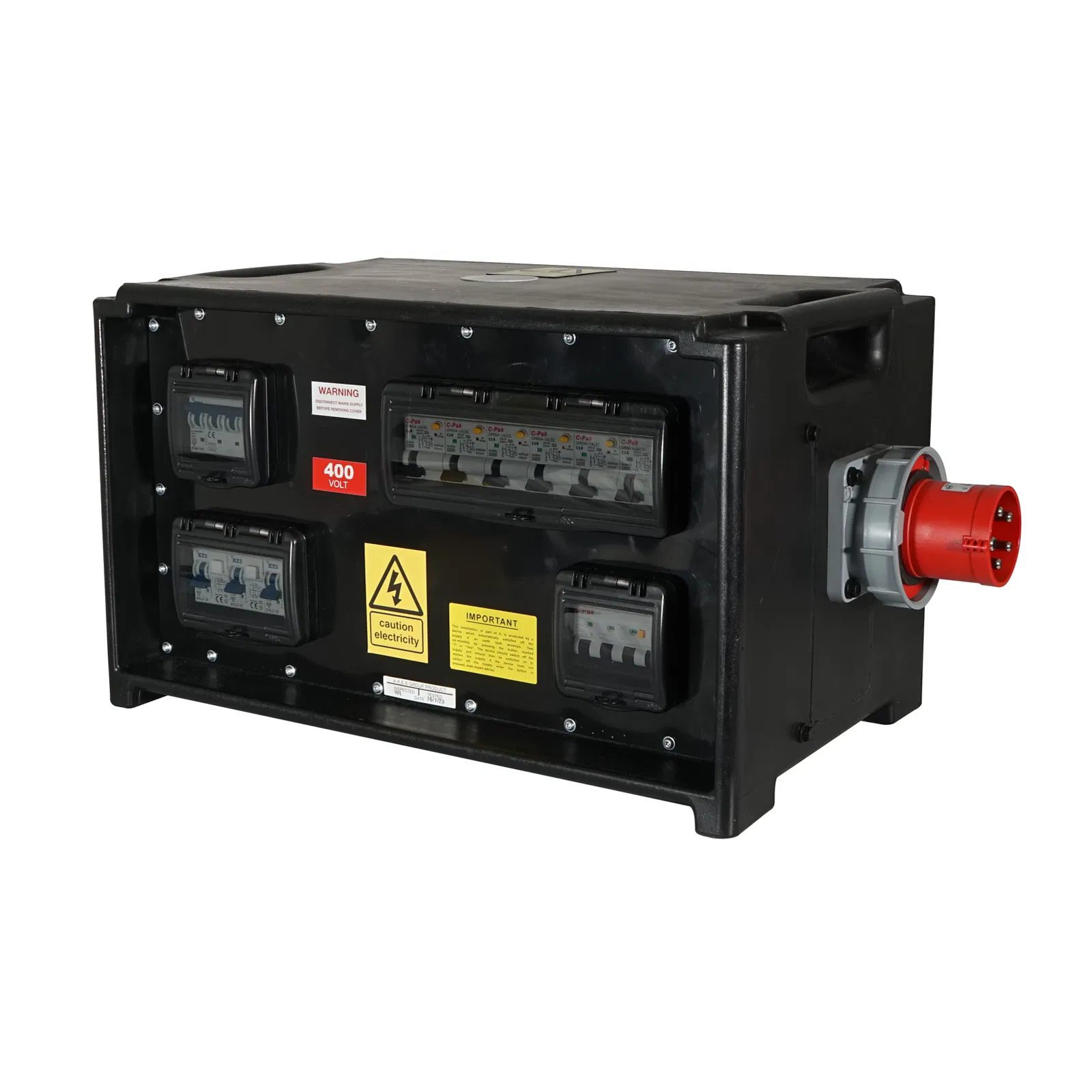

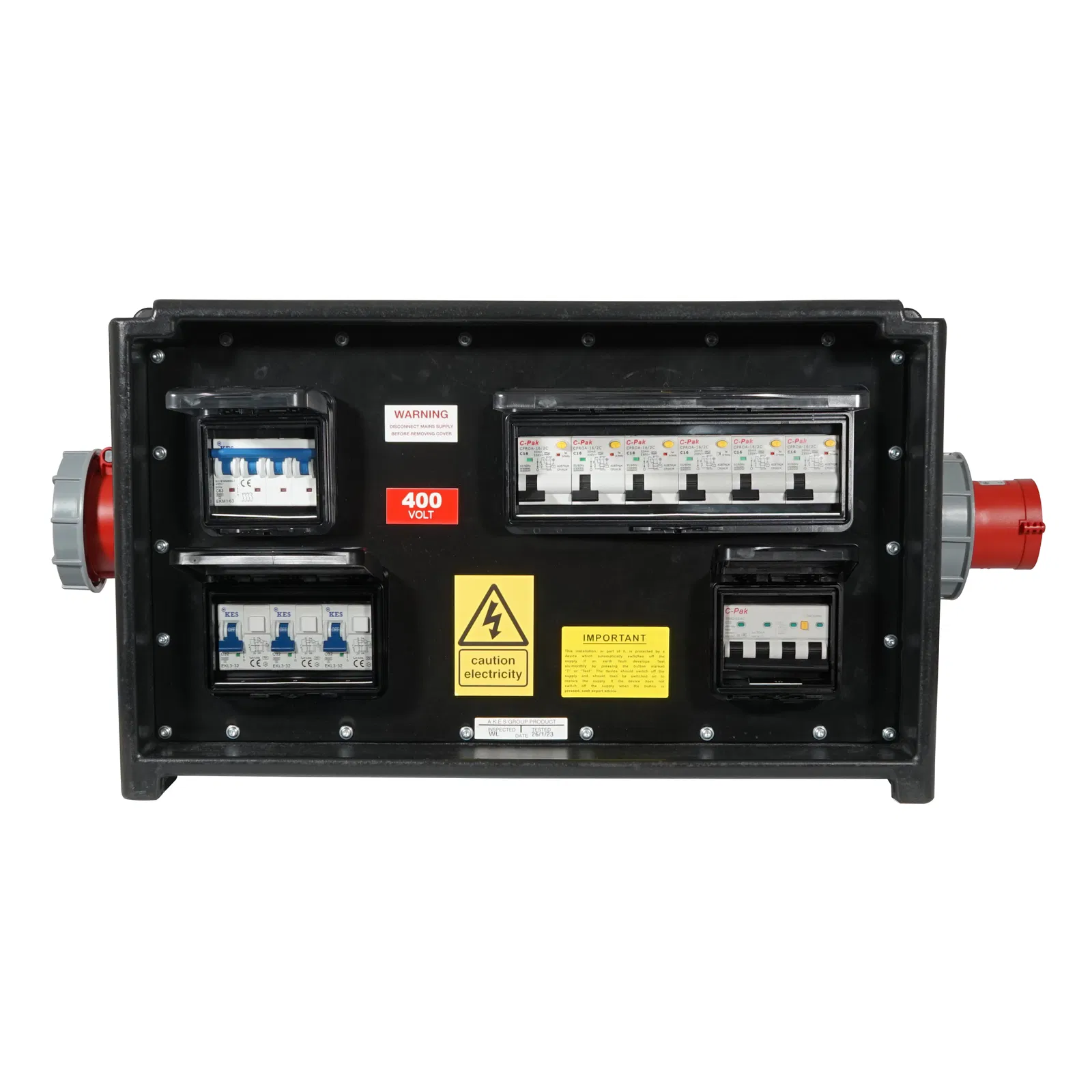

MERZ Distribution Box 63A 3PH In/Thru to 32A/16A RCBO

These PCE MERZ 63A distribution boxes are robust, lightweight and made of shock-resistant thermoplastic. Suitable for events and rental they are IP44 splash proof rated.

Manufactured with 63A 3phase input and pass through for onsite daisy chaining of multiple distribution units on one power run.

£1,799.00

Description

Features

Made in Britain

Handy, robust and lightweight distribution box made of shock-resistant thermoplastic

IP44 rated

Stackable design for space saving

Specifications

Input: 63A 415V~50/60Hz 5-Pin 3P+N+E IP67 chassis plug protected by a 4-Pole type C MCB
Pass Through: 63A 415V~50/60Hz 5-Pin 3P+N+E IP67 chassis socket
Outputs: 1 x 32A 400V~50/60Hz 3P+N+E IP44 sockets each protected by 32A 30mA 4-Pole RCBO, 3 x 32A 220-250V~50/60Hz 2P+E sockets each protected by a 32A 30mA 2-Pole RCBO, 6 x 16A 220-250V~50/60Hz 2P+E sockets each protected by a 16A 30mA 2-Pole RCBO
Dimensions (H x W x D): 340 x 765 x 350mm
Weight: 16.5kg
