SKU: CONN084 Category: Power Distribution

MERZ Distribution Box 63A 3PH RCBO (A80BLK)

Name: MERZ Distribution Box 63A 3PH RCBO (A80BLK)
SKU: CONN084
Price: 1409.00 GBP
Availability: InStock

These PCE MERZ distribution boxes are robust, lightweight and made of shock-resistant thermoplastic.

Suitable for events and rental they are IP44 splash proof rated.

Fitted with PCE Midnight black connectors to allow the distribution unit to blend into stage environments.

£1,409.00

View your Basket

Description

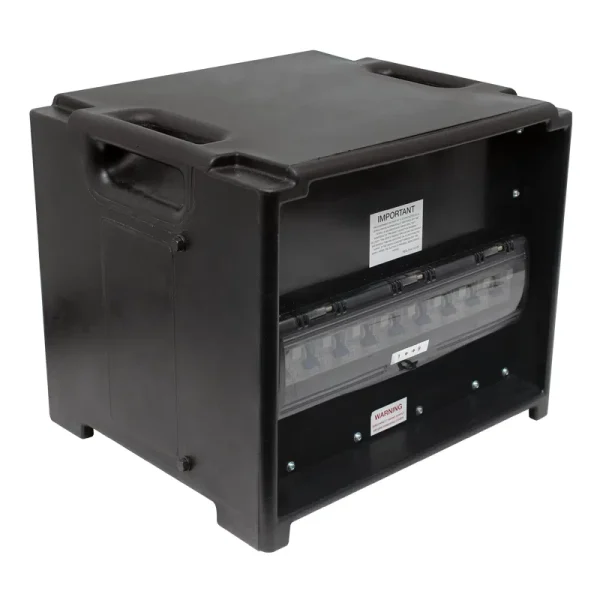

These PCE MERZ distribution boxes are robust, lightweight and made of shock-resistant thermoplastic.

Suitable for events and rental, they are IP44 splash proof rated.

Fitted with PCE Midnight black connectors to allow the distribution unit to blend into stage environments.

Handy, robust and lightweight distribution box made of shock-resistant thermoplastic
IP44 rated
PCE Midnight black connectors
Stackable design for space saving
Made in the EU

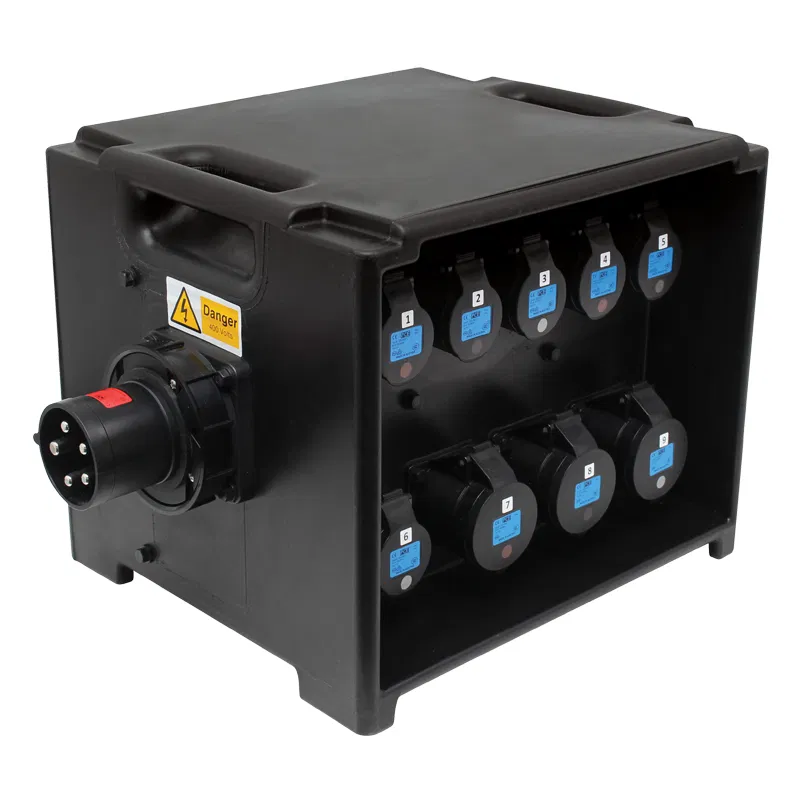

Input: 63A 415V~50/60Hz 5-Pin 3P+N+E IP44 chassis plug

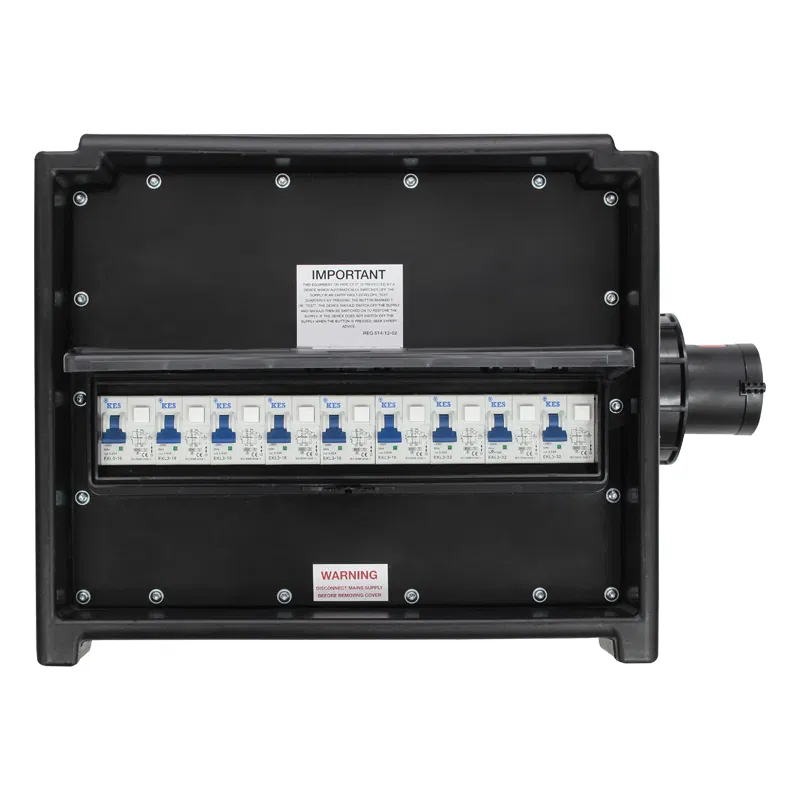

Outputs: 3 x 32A 220-250V~50/60Hz 2P+E sockets, 6 x 16A 220-250V~50/60Hz 2P+E sockets each protected by a C type dual pole RCBO
Dimensions (H x W x D): 345 x 520 x 350mm
Weight: 11.1kg

Weight	5 kg
