Description

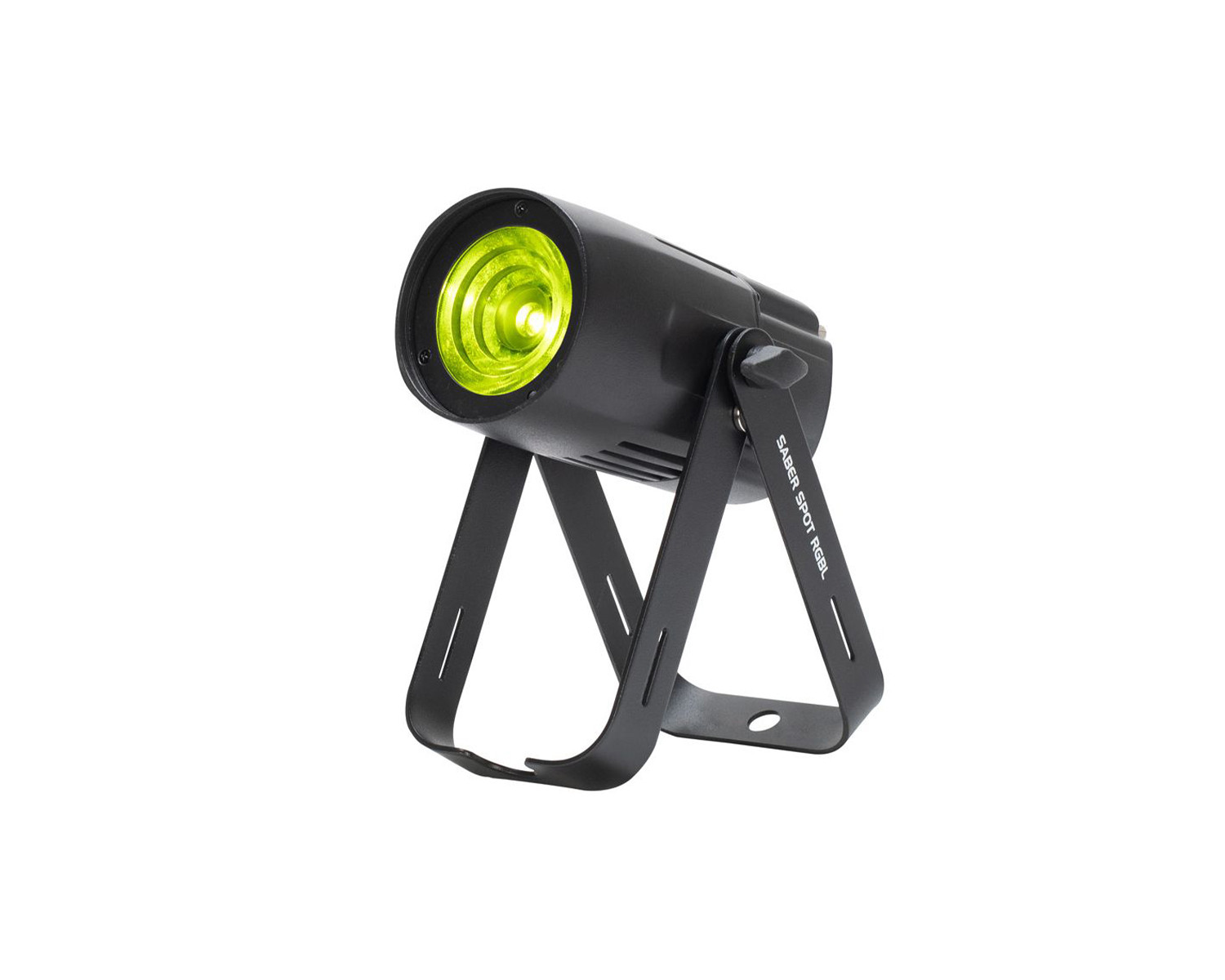

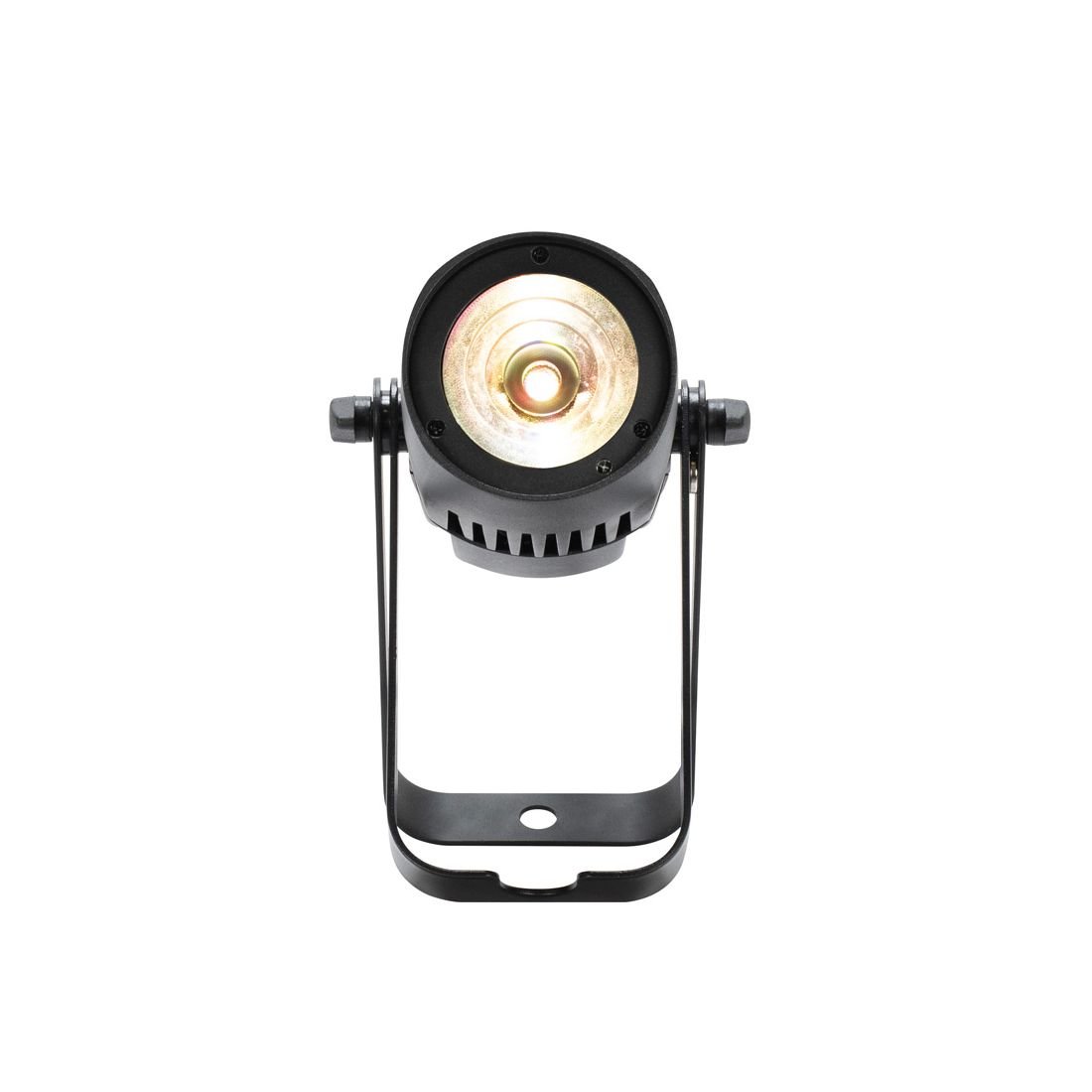

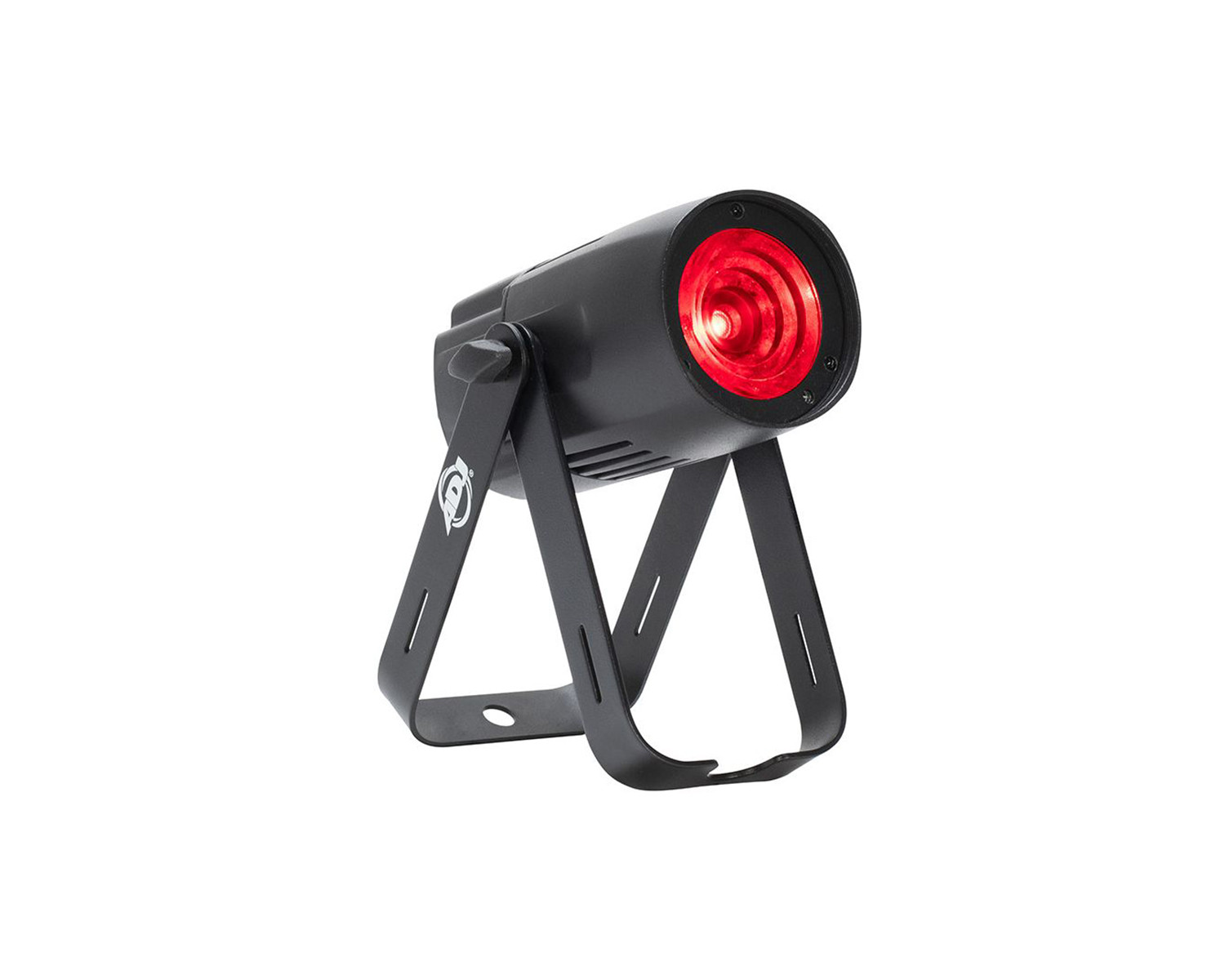

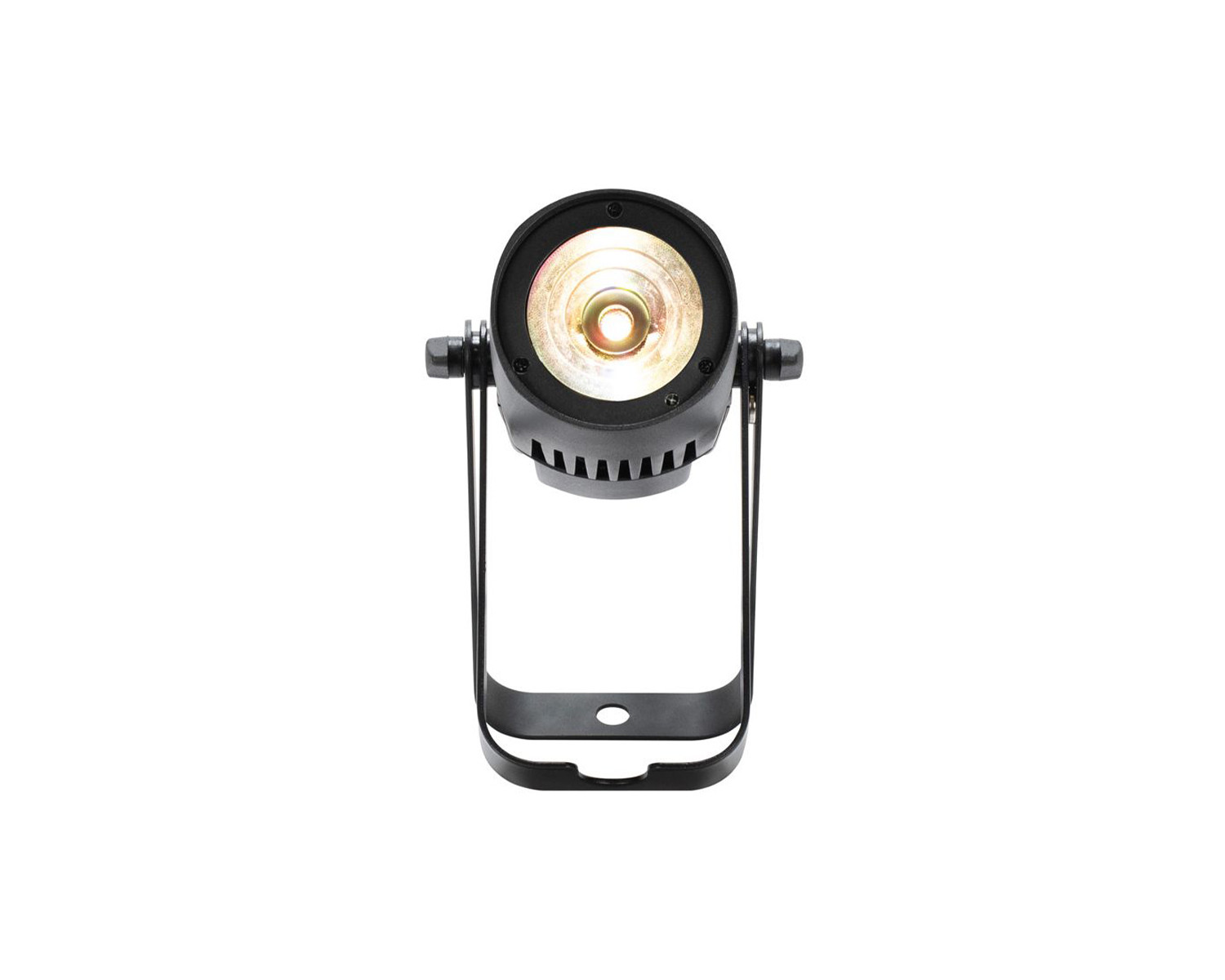

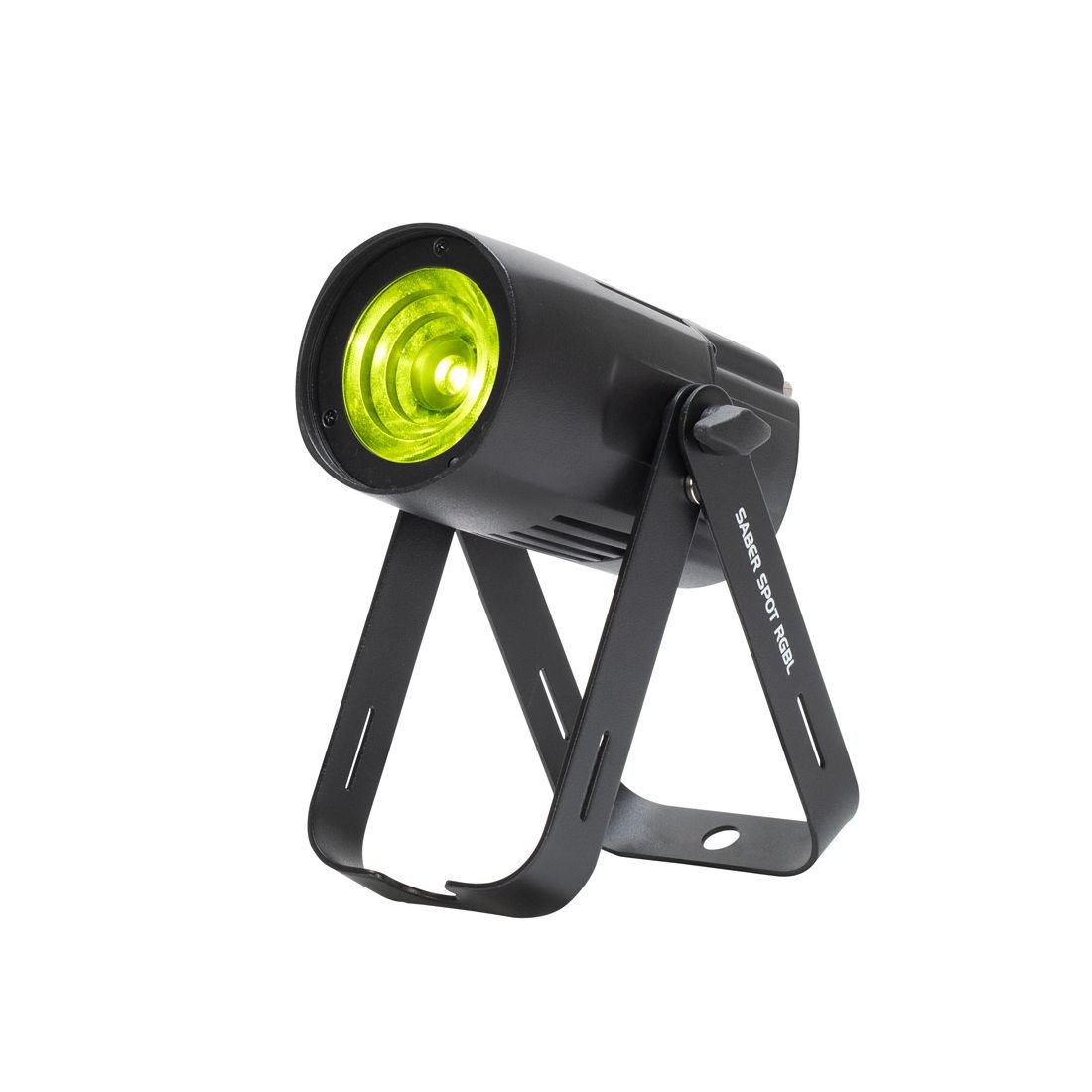

The ADJ Saber Spot RGBL Compact Pinspot with 20W RGBL LED  is ADJ Lighting next next-generation LED pinspot with a 20-Watt RGBL LED source, ACL lens for a tight 5.7-degree beam, is DMX and RDM compliant, and features built-in colour macros, colour changing programs, and white colour temperature presets ranging from 2700K to 7000K.

Features

• DMX and RDM Compliant
• 6 White Colour Temperature Settings: 2700K, 3200K, 4000K, 5600K, 6500K & 7000K
• 63 Built-in Colour Macros
• 13 Built-in Colour Changing Programs
• 4-button Digital Display for easy navigation
• Electronic Dimming 0 – 100%

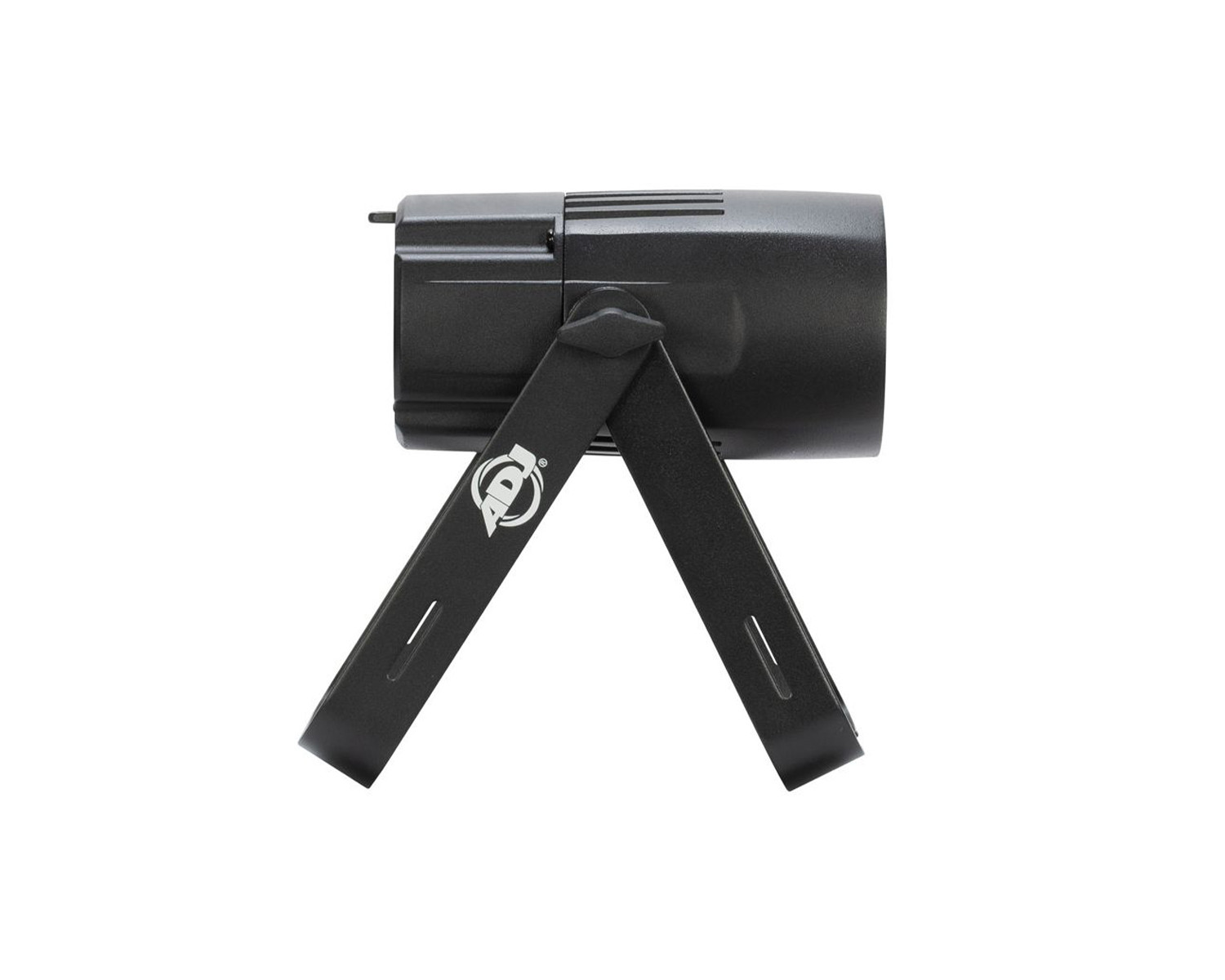

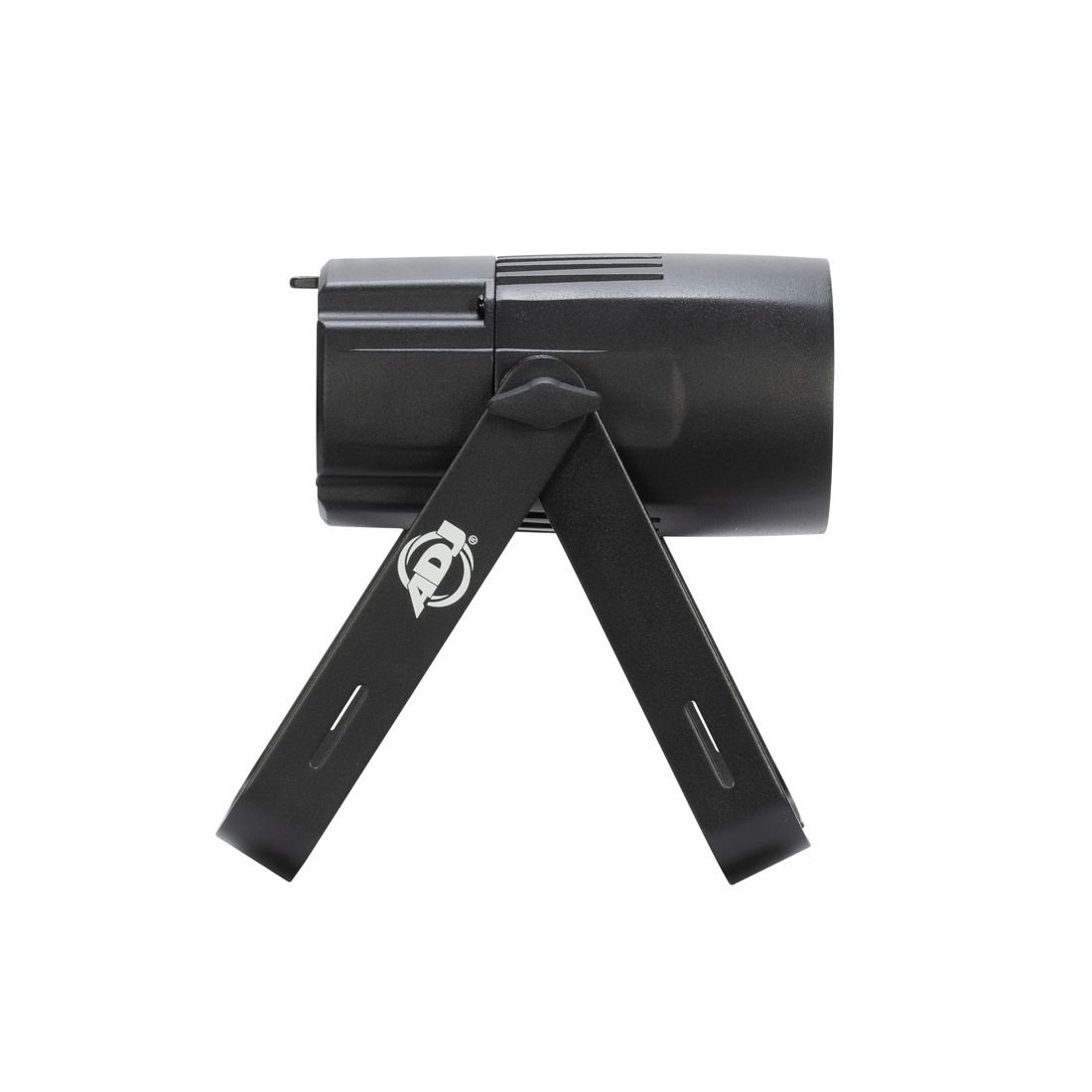

• Includes a scissor yoke to be hung, or set on the ground

Specifications

Optical

• Light Source: 20-Watt, RGBL LED
• LED Life Expectancy: 30,000 Hrs
• Beam Angle: 5.7°
• Includes 2 interchangeable frost filter lens (10-degree & 45-degree)
• LED Refresh Rate: 3.6KHz

Connections

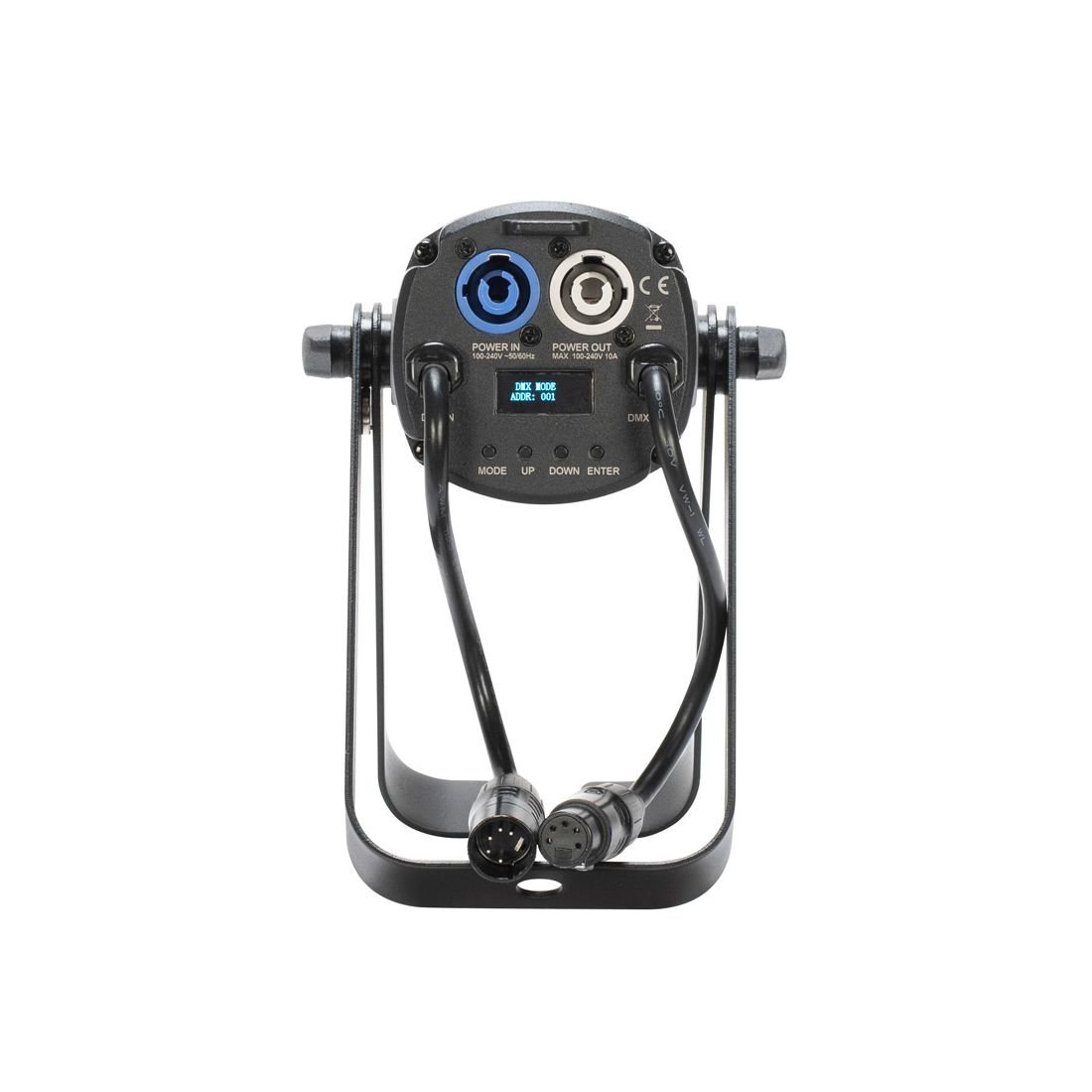

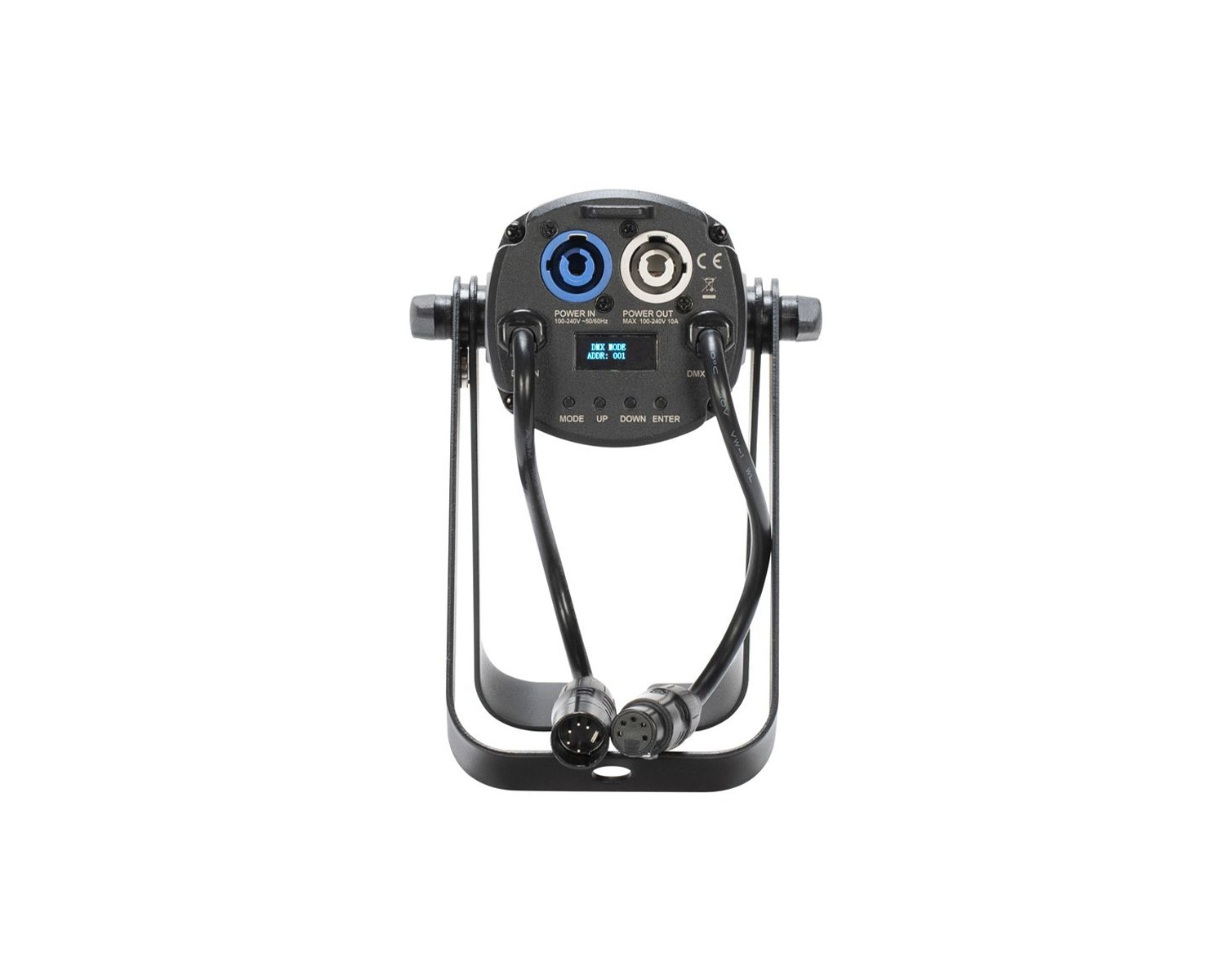

• Power Input: Indoor power locking
• Power Pass through: Indoor power locking
• Control: 5-pin DMX In/Out pigtails
• With Wired Digital Communication Network

Control

• 12 DMX Channel Modes: 3 HSI/4 RGBL/4 HSI+/5 RGBL/6 sRGBLI/6 RGBL/7 RGBL/8 RGBL/8 16bit/10 HSI/12 sRGBLI/13 RGBL
• RDM Compliant

Electrical

• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
• Power draw 120V 60Hz: 16.7W, 0.243 Amps
• Power draw 230V 50Hz: 16.7W, 0.147 Amps
• Power Output Current: 1.2A (14W)
• Power Linking: 57pcs @120V, 95pcs @230V

Physical

• Dimensions (LxWxH): 6.69” x 5.31” x 8.46″ (170 x 135 x 215mm)
• Weight: 3.2 lbs / 1.45 kg.
• Black Housing

Certifications & Ratings

• CE
• cETLus Approved (Control # 4010765)
• IP20

What’s in the Box?

• 1.83m Indoor locking power cord
• 2 frost filter lens (10-degree & 45-degree)
• Metal clip ring for frost filter lens
