IMST Distribution Box 32A 3PH to 32A/16A RCBO

IMST Distribution Box 32A 3PH to 32A/16A RCBO

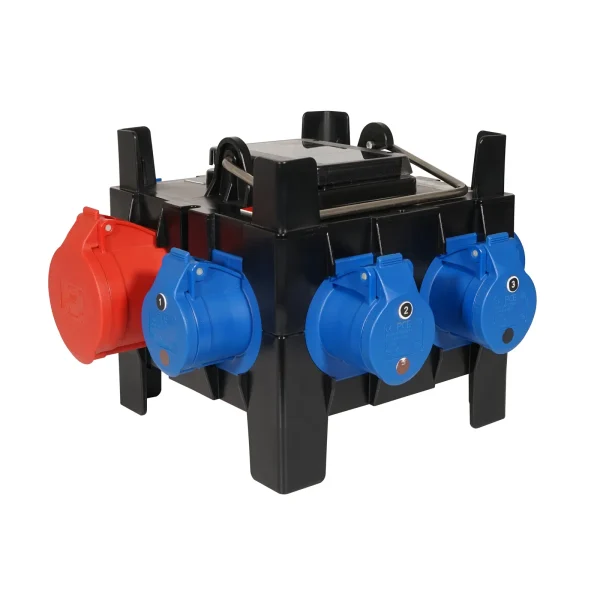

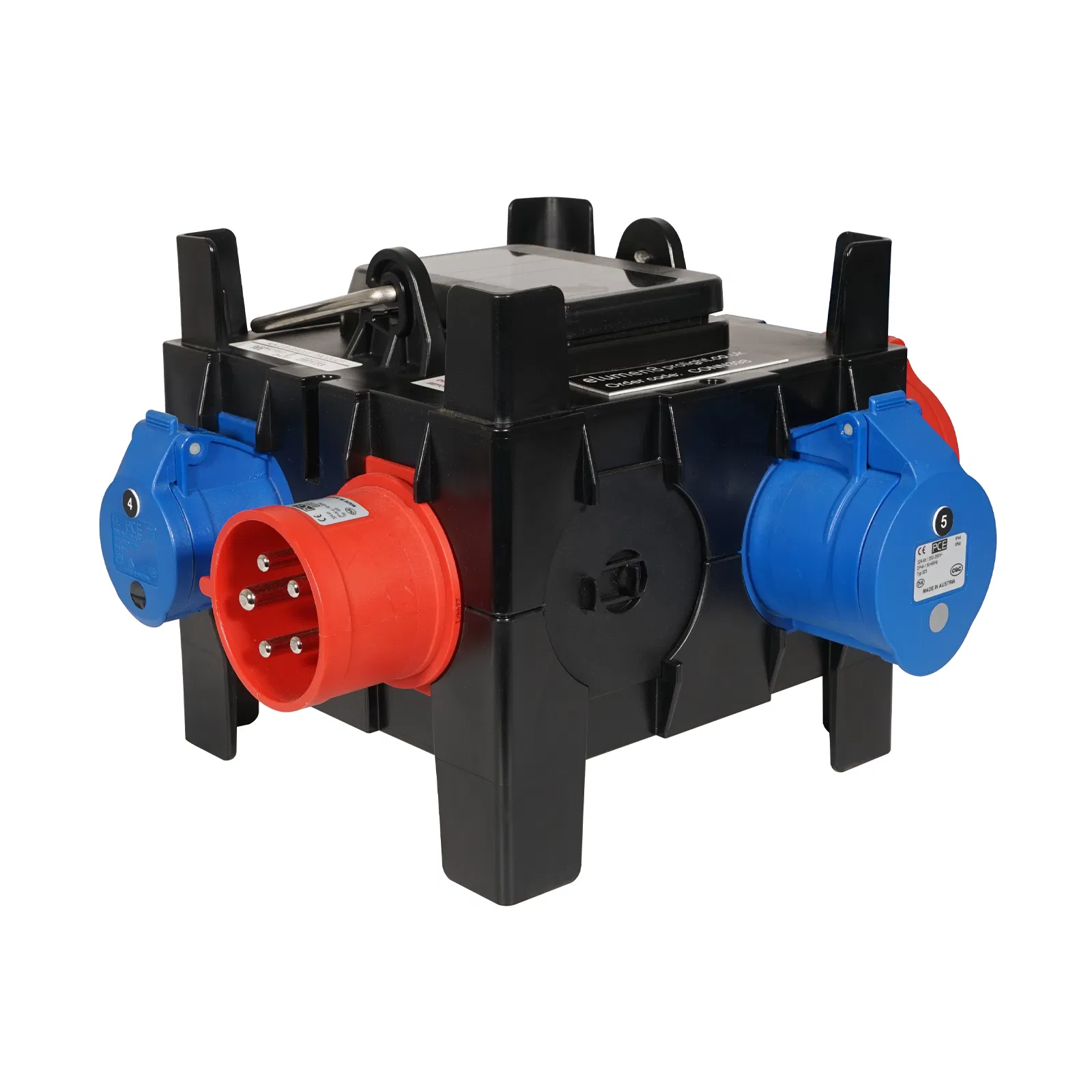

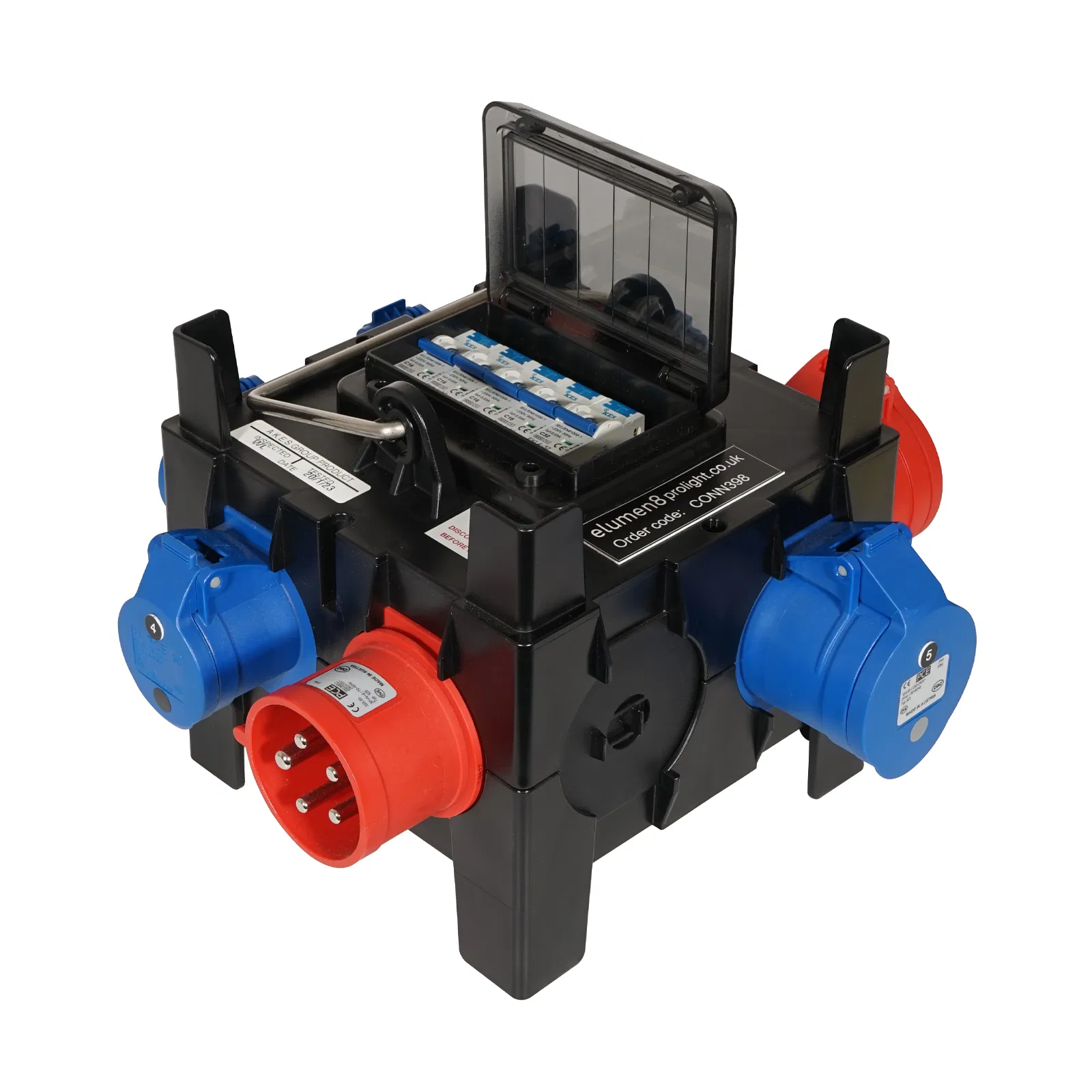

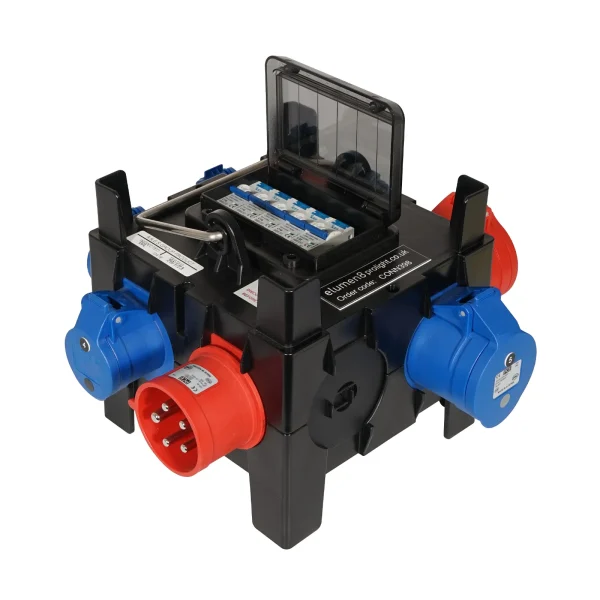

These PCE IMST 32A distribution boxes are handy, robust, lightweight and made of shock-resistant polyamide.

They feature a high-grade steel folding carry handle, have a stackable design, and are IP44 rated.



£475.00

Description

These PCE IMST 32A distribution boxes are handy, robust, lightweight and made of shock-resistant polyamide.

They feature a high-grade steel folding carry handle, have a stackable design, and are IP44 rated.

Features

  • Handy, robust and lightweight distribution box made of shock-resistant polyamide
  • High-grade steel folding carry handle
  • Number of modules: 5 (Can be increased to 6)
  • IP44 rated
  • Stackable design
  • Made in the EU

Specifications

  • Input: 32A 415V~50/60Hz 5-Pin 3P+N+E IP44 inlet
  • Pass Through: 32A 415V~50/60Hz 5-Pin 3P+N+E IP67 chassis socket

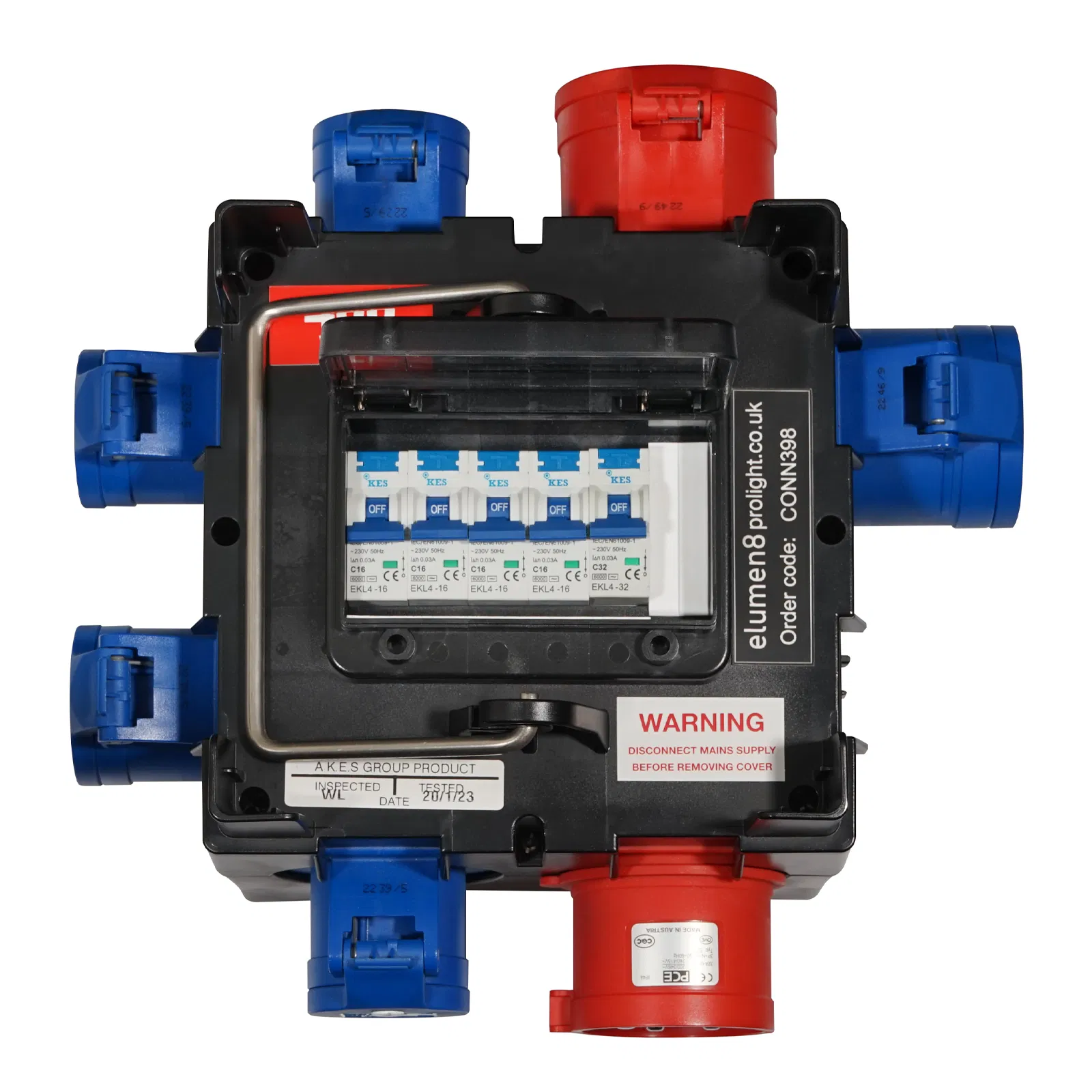

  • Outputs: 1 x 32A 220-250V~50/60Hz 2P+E IP44 sockets each protected by a 32A 30mA 2P RCBO, 4 x 16A 220-250V~50/60Hz 2P+E IP44 sockets each protected by a 16A 30mA 2P RCBO type C
  • Dimensions (H x W x D): 200 x 300 x 300mm
  • Weight: 2.9kg

Additional information

Weight 5 kg
