Description

The UBL9H takes linear wash lighting to the next level with its high CRI output and linear colour temperature control, ranging from 2,300K to 9,900K. The added lime chip enhances colour indexing, ensuring a superior visual experience with a CRI exceeding 90. This fixture empowers lighting designers and event producers to craft captivating displays on walls, floors, and ceilings.

Featuring a 17° beam angle and a pixel pitch of 85.5mm, the UBL12H offers smooth RGBAL+UV colour mixing and a unique Horizontal Magnetic Alignment feature allows for seamless colour output across multiple fixtures.

Control is at your fingertips with the OLED display and 4-buttons, offering linear colour temperature control and compatibility with the ADJ UC-IR24 remote. The UBL9H supports seven DMX channel modes and offers five operational modes, including Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode. This fixtures is RDM compatible.

Features

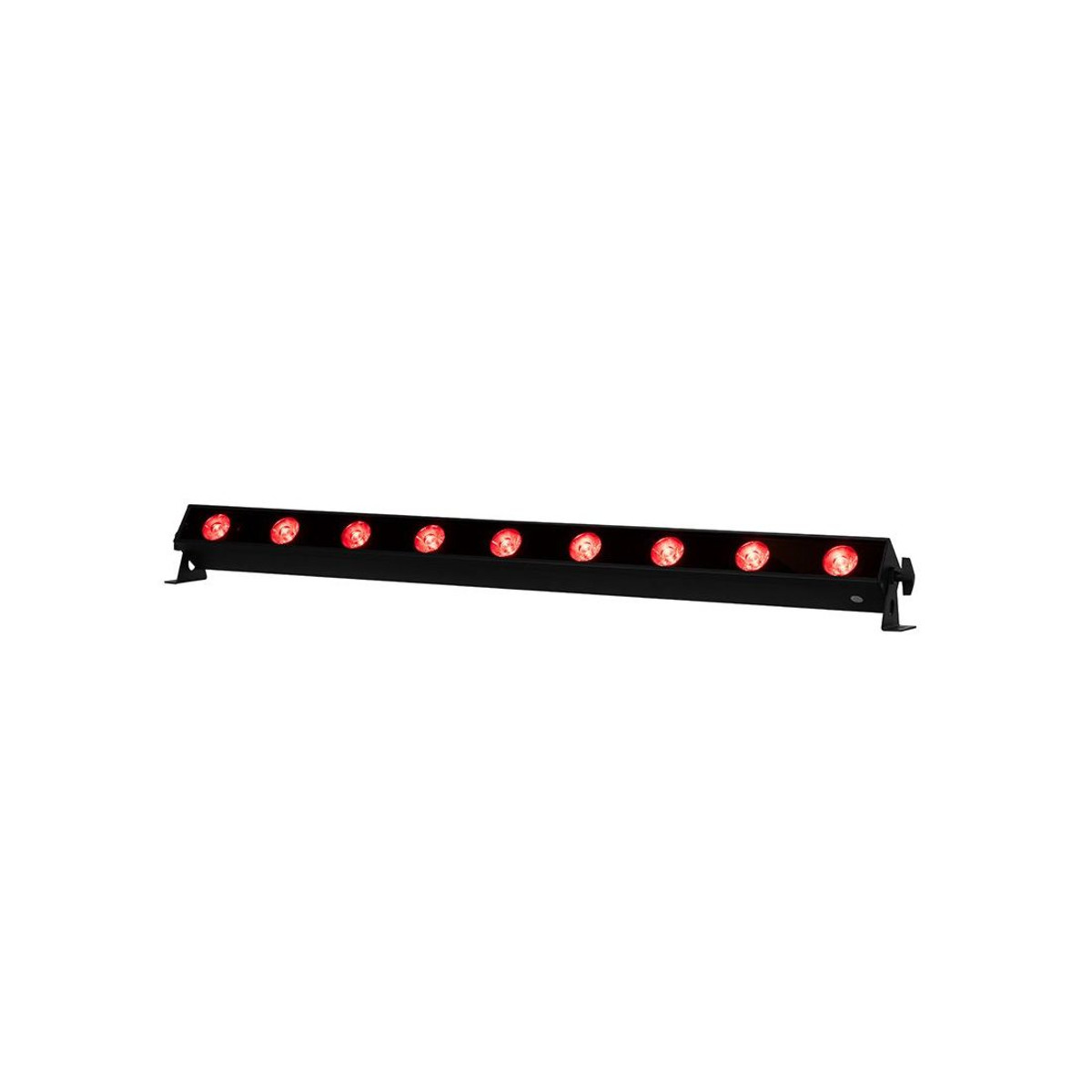

• 9 x 20W Ultra bright (RGBAL+UV) LEDs
• Linear Colour Temperature Control (2,300K to 9,900K)
• Smooth RGBAL+UV colour mixing

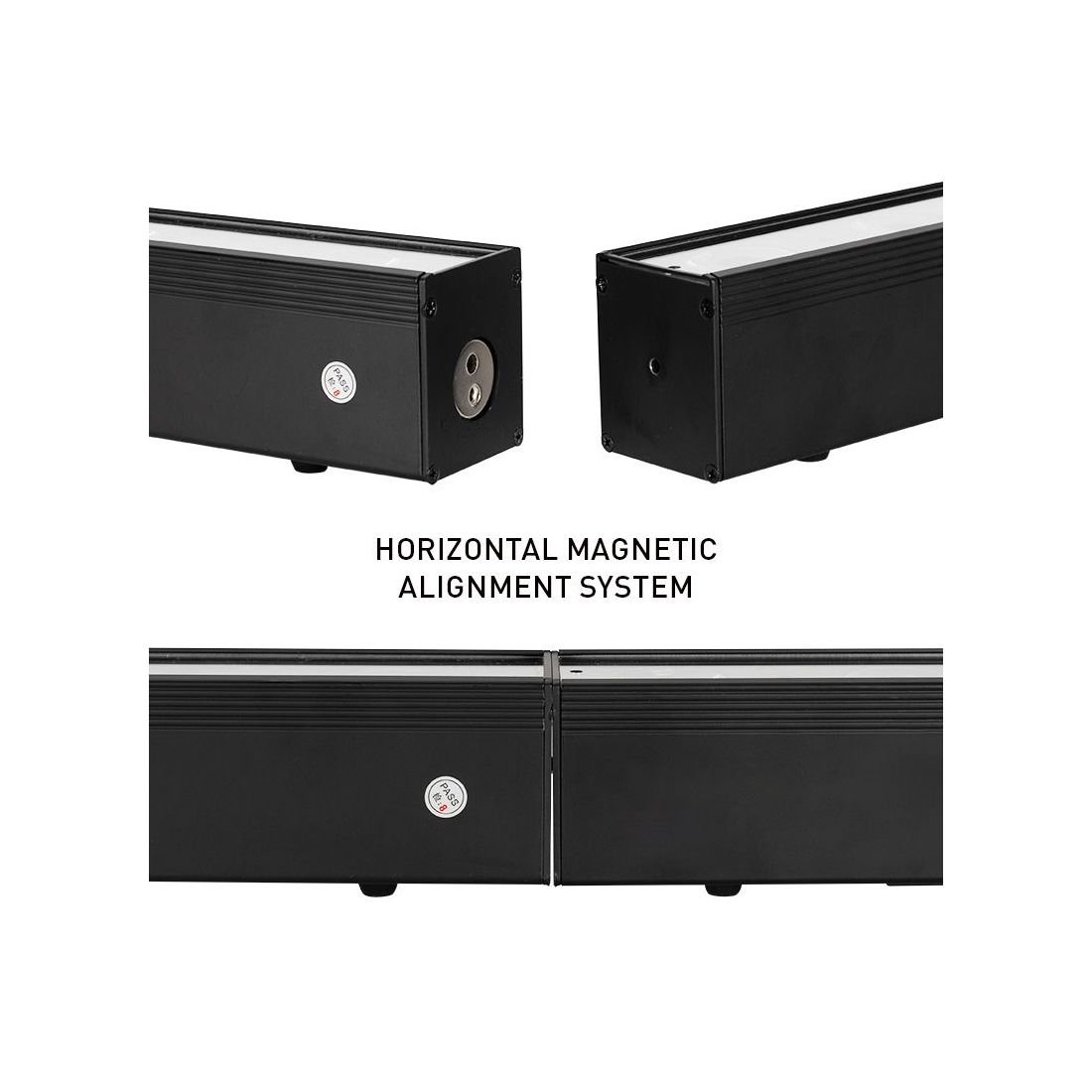

• Horizontal Magnetic Alignment feature (Built-In)
• Compatible with the ADJ UC-IR24 remote. Operates at a distance of up to 32.8 feet (10 meters)
• RDM Compatible

Specifications

Light Source

• 9 x 20W Ultra bright (Red, Green, Blue, Amber, Lime and UV) LEDs
• Long Life LEDs (Rated at approximately 50,000 hrs.)
• 17° beam angle
• CRI >90
• Pixel Pitch: 113mm

Control

• Linear Colour Temperature Control (2,300K to 9,900K)
• OLED Display with 4-buttons
• 7 DMX Channel Modes: 6, 11, 13, 16, 18, 25, & 28 Channels
• 3 Groups x3 RGBAL+UV LED pixels controllable via DMX in 18, 25 & 28 channel modes
• 5 operational modes: Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode
• LED Refresh Rate: 1.9KHz
• 64 built-in Color Macros
• 6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• 4 selectable Dim Curves (Square, Linear, Inv. Square & S. Curve)
• Built-In Microphone for sound trigger
• LED pulse and strobe effect
• Electronic Dimming: 0-100

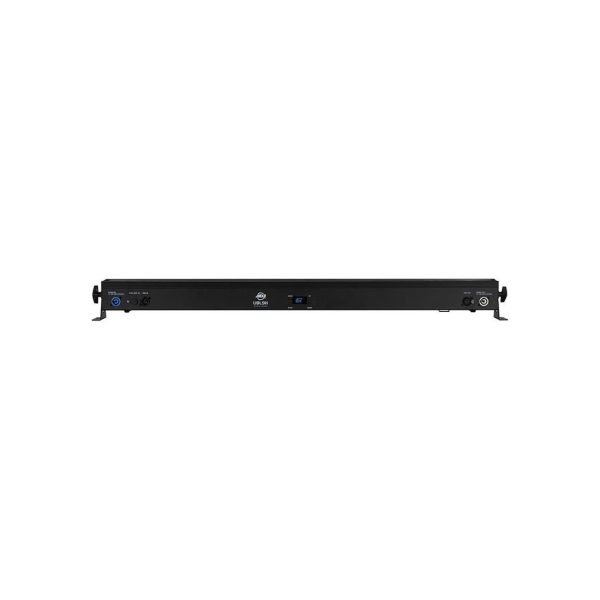

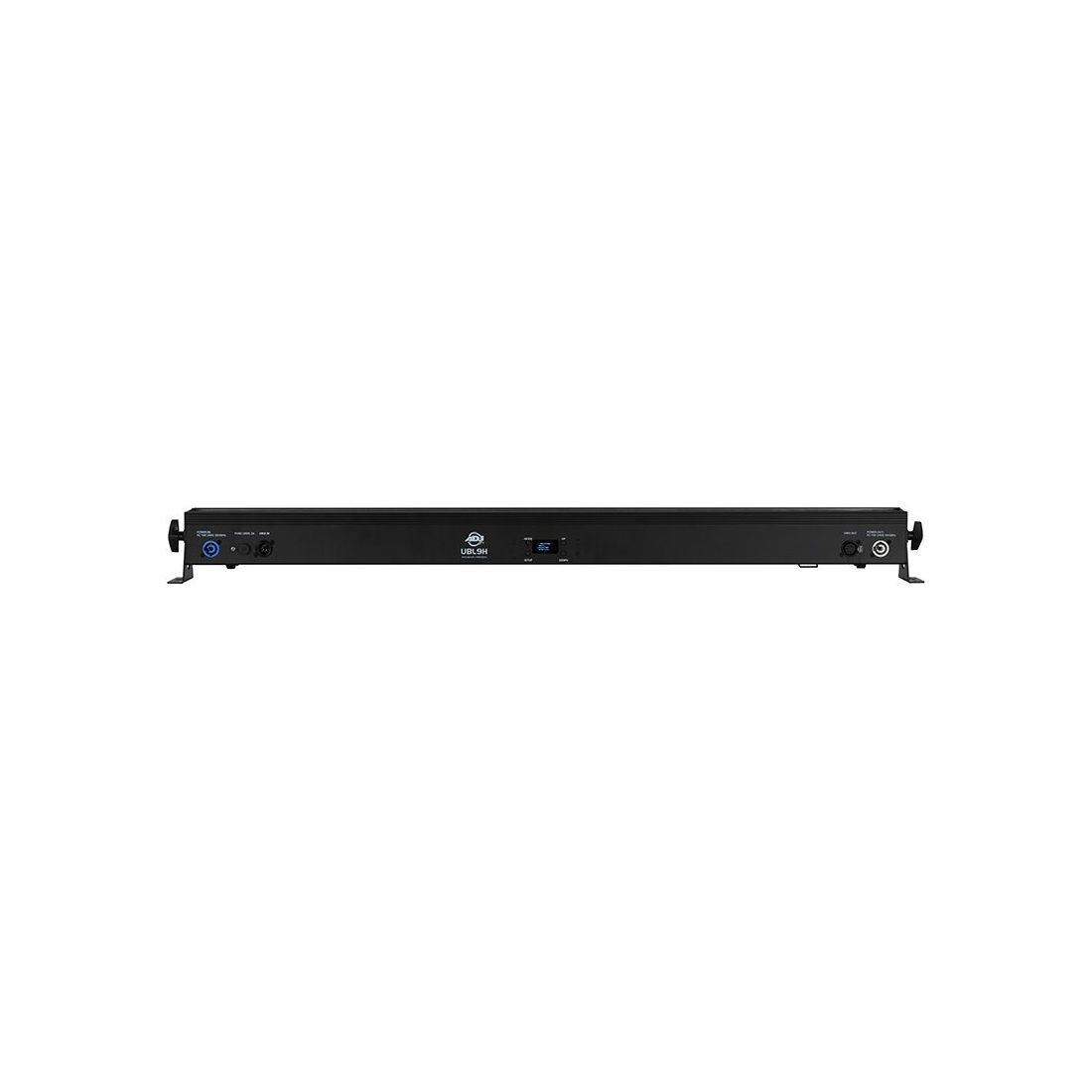

Connections

• Linkable: DMX via 5-pin XLR cable
• Locking power In/Out to daisy chain power

Electrical

• Multi-voltage operation: AC 100V-240V 50/60Hz
• Power Draw: 54W
• Daisy-chain power link (Up to 22 UBL9H’s can be linked @120V and up to 40 UBL9H’s can be linked @230V)

Environment

• Operational Temperature Range: -4°F ~ 113°F (-20°C ~ 45°C)
• Storage Temperature: -22°F ~ 113°F (-30°C ~ 45°C)

Certifications / IP Rating

• cETLus (Control # 4002034)
• CE
• FCC
• IP20

Dimensions / Weight

• Dimensions (LxWxH): 2.96″ x 42.60″ x 4.2″ (75x1082x106.7mm)
• Weight: 7.28 lbs./ 3.3kg

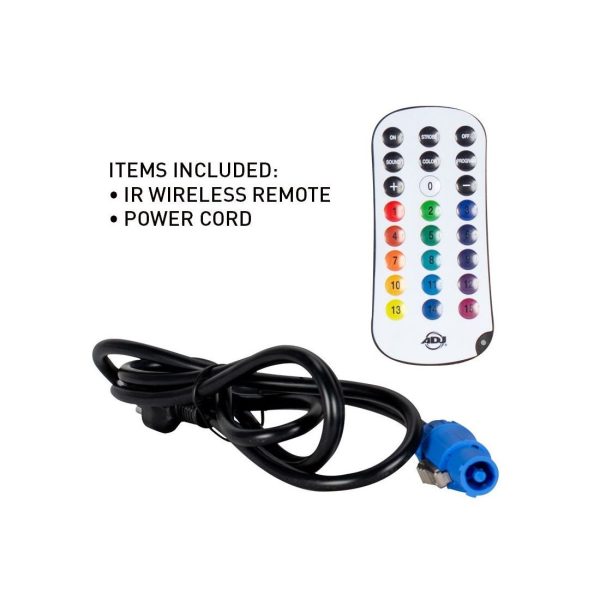

What’s in the Box?

• 1 x Indoor Locking Power Cord
• 1 x UC-IR24

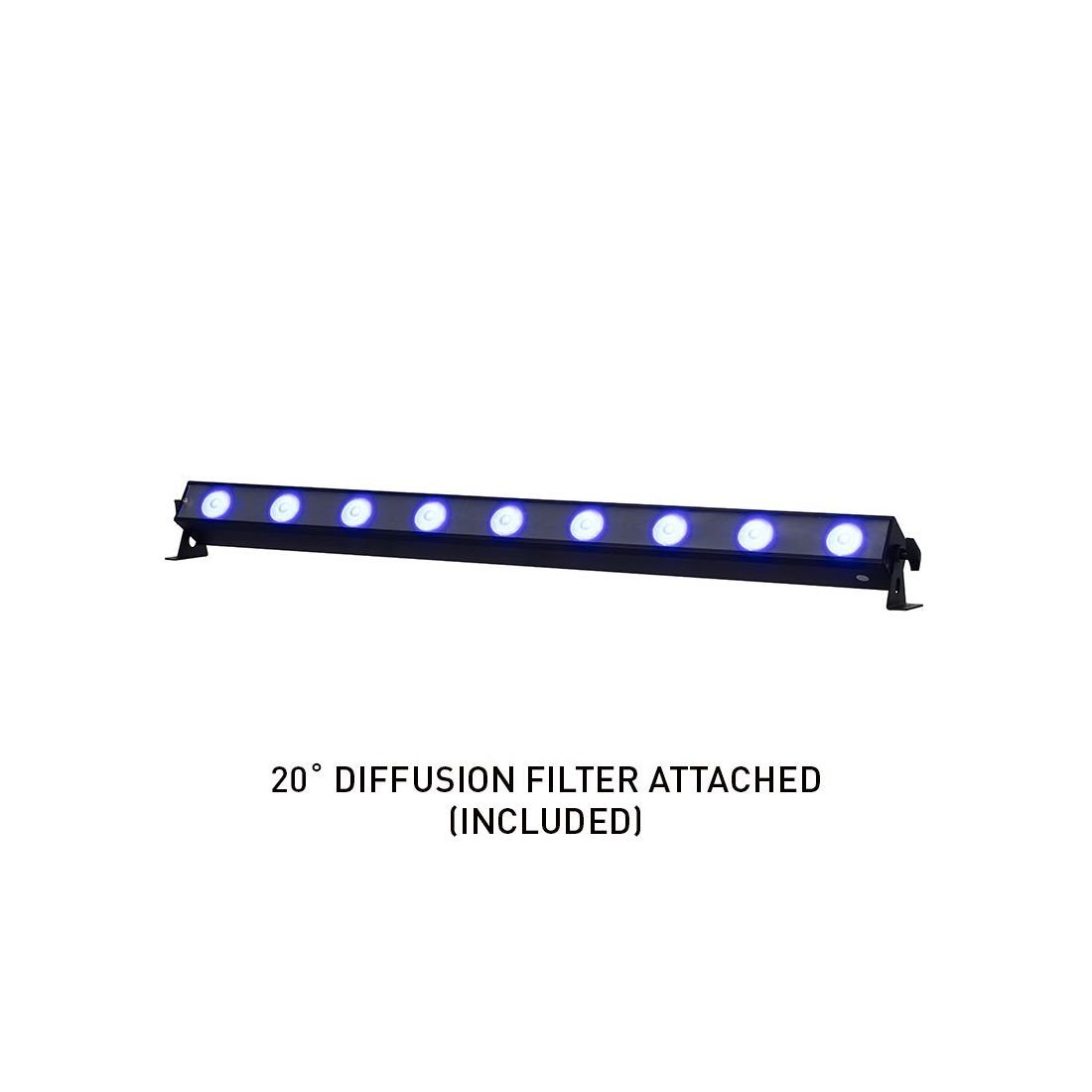

• 1 x 20° Diffusion Filter
• Includes mounting brackets to set on the ground or to mount a clamp for truss mounting
