Description

Featuring a 17° beam angle and a pixel pitch of 85.5mm, the UBL6H offers smooth RGBAL+UV colour mixing, and a unique Horizontal Magnetic Alignment feature allows for seamless colour output across multiple fixtures. Control is at your fingertips with the OLED display and 4 buttons, offering linear colour temperature control and compatibility with the ADJ UC-IR24 remote.

The UBL9H supports seven DMX channel modes and offers five operational modes, including Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode. This fixture is RDM compatible.

Features

• 6 x 20W Ultra bright (RGBAL+UV) LEDs
• Linear Colour Temperature Control (2,300K to 9,900K)

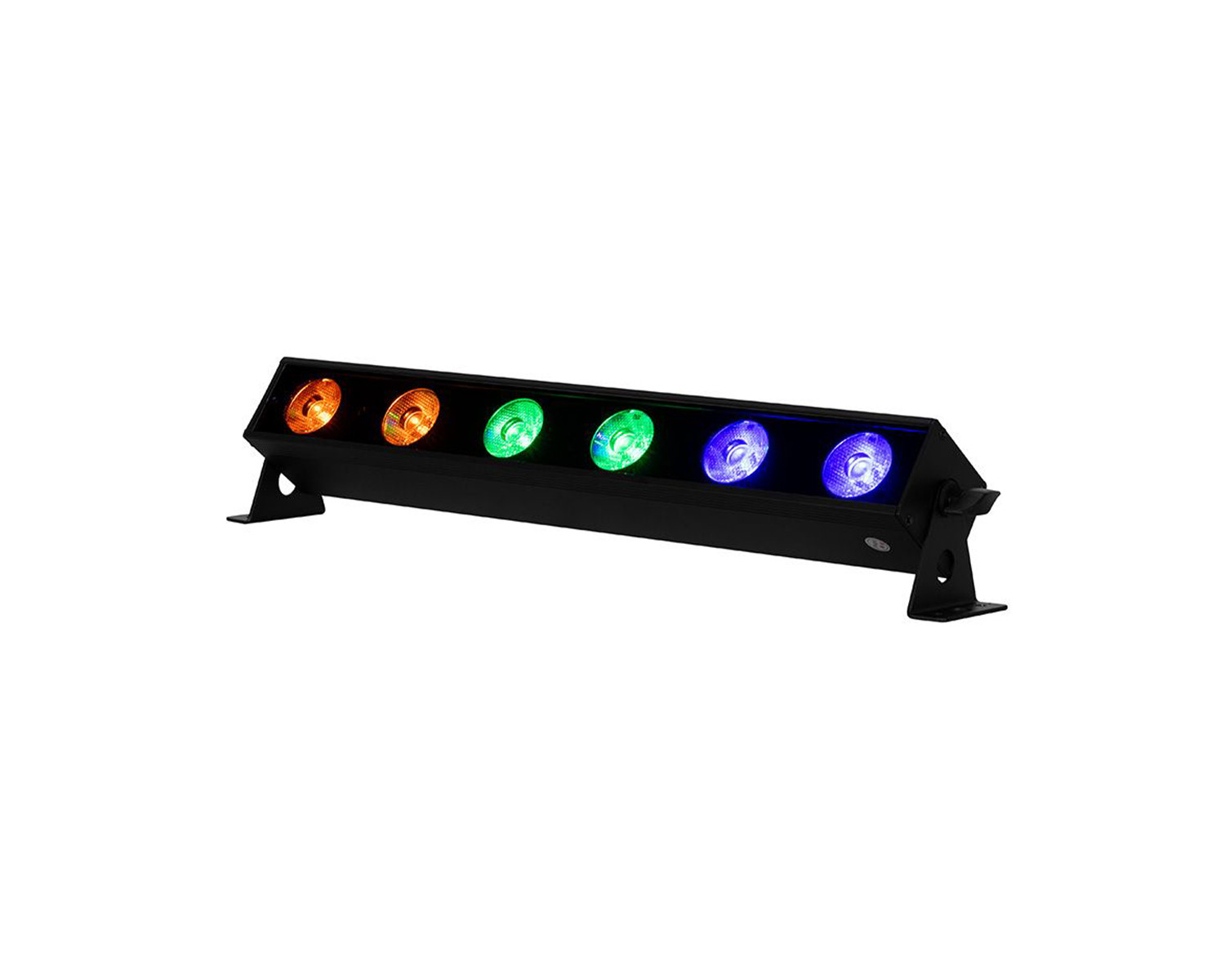

• Smooth RGBAL+UV colour mixing

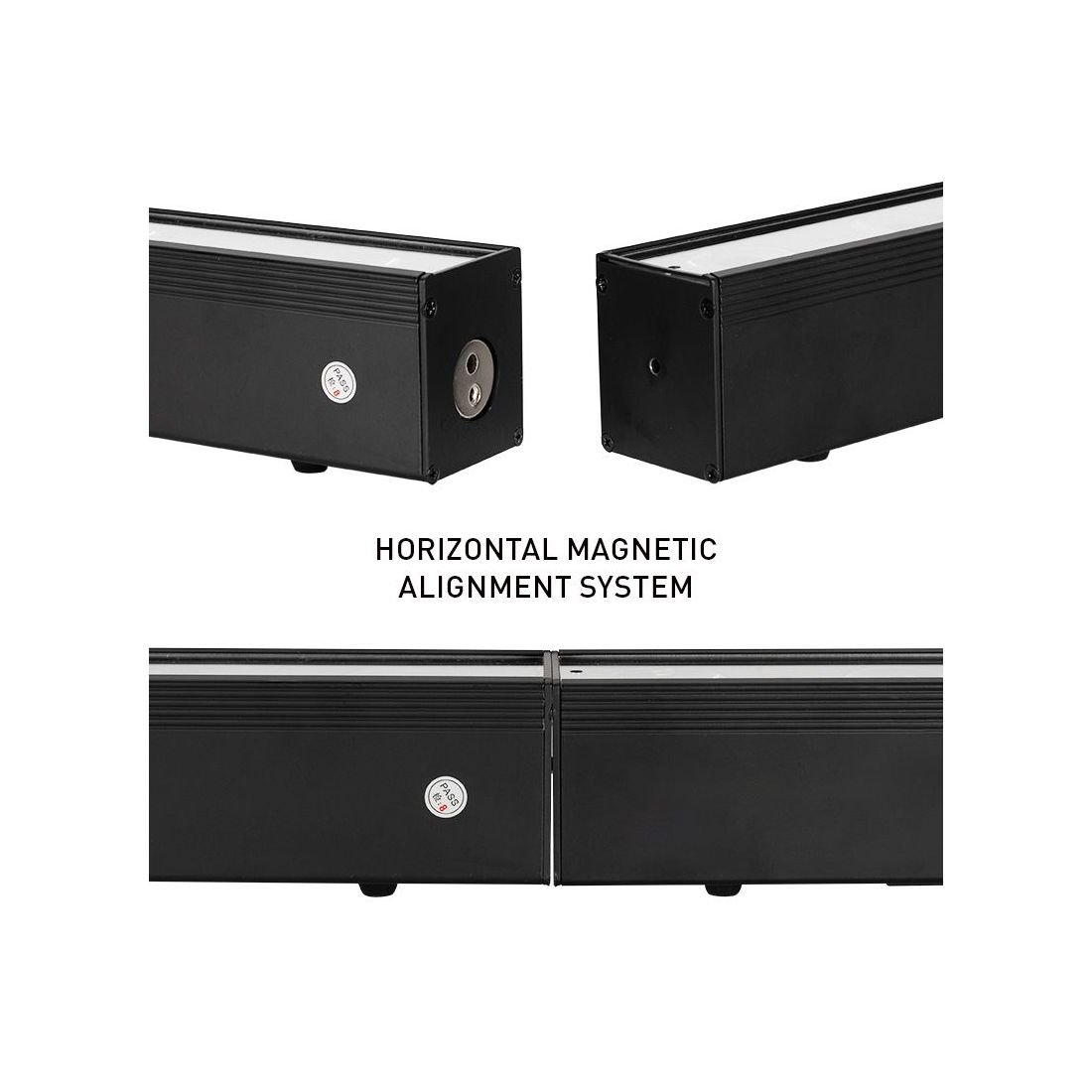

• Horizontal Magnetic Alignment feature (Built-In)
• Compatible with the ADJ UC-IR24 remote. Operates at a distance of up to 32.8 feet (10 meters)
• RDM Compatible

Specifications

Light Source

• 6 x 20W Ultra bright (Red, Green, Blue, Amber, Lime and UV) LEDs
• Long Life LEDs (Rated at approximately 50,000 hrs.)
• 17° beam angle
• CRI >90
• Pixel Pitch: 85.5mm

Control

• Linear Colour Temperature Control (2,300K to 9,900K)
• OLED Display with 4-buttons
• 7 DMX Channel Modes: 6, 11, 13, 16, 18, 25, & 28 Channels
• 3 Groups x2 RGBAL+UV LED pixels controllable via DMX in 18, 25 & 28 channel modes
• 5 operational modes: Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode
• LED Refresh Rate: 1.9KHz
• 64 built-in Colour Macros
• 6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• 4 selectable Dim Curves (Square, Linear, Inv. Square & S. Curve)
• Built-In Microphone for sound trigger
• LED pulse and strobe effect
• Electronic Dimming: 0-100%

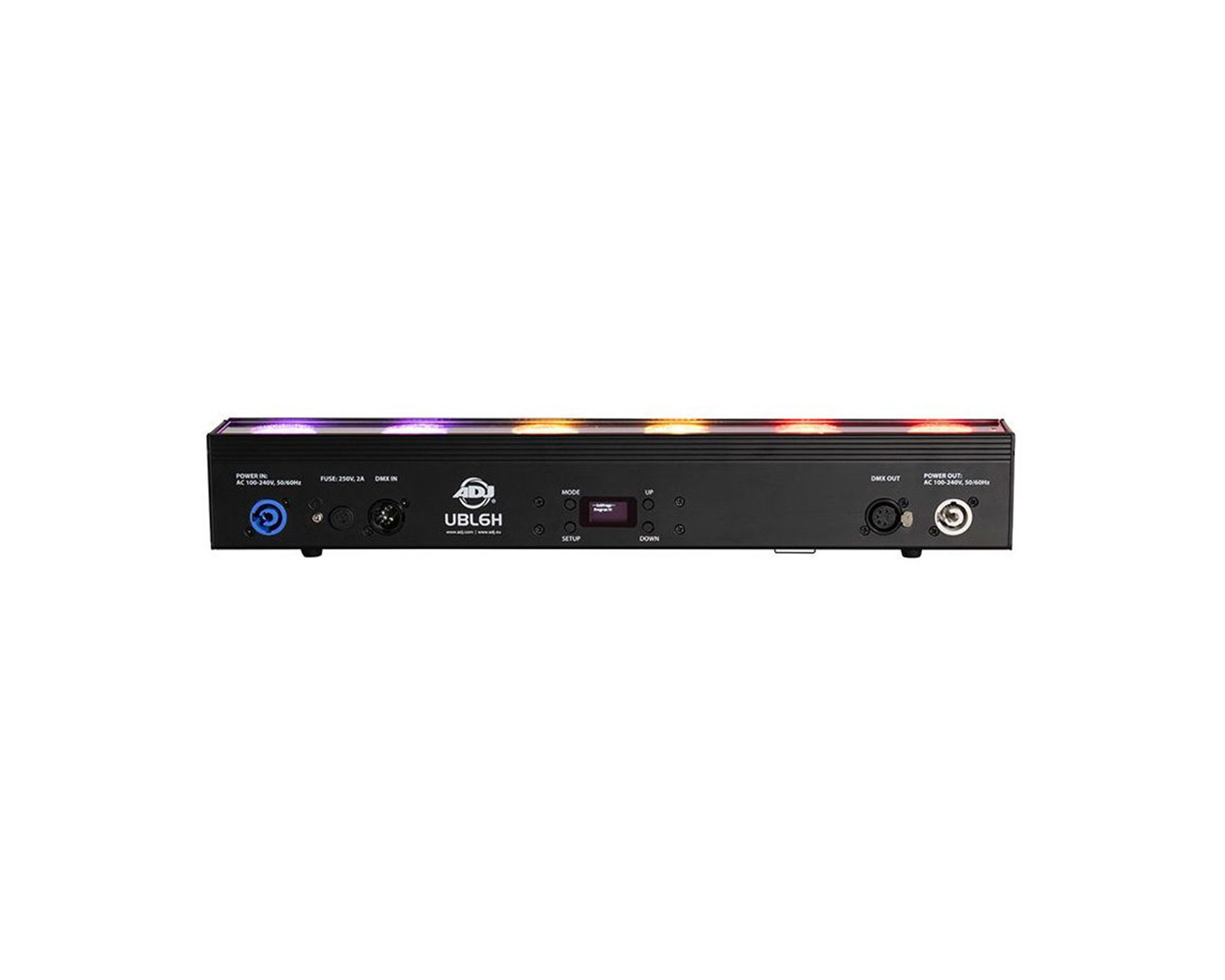

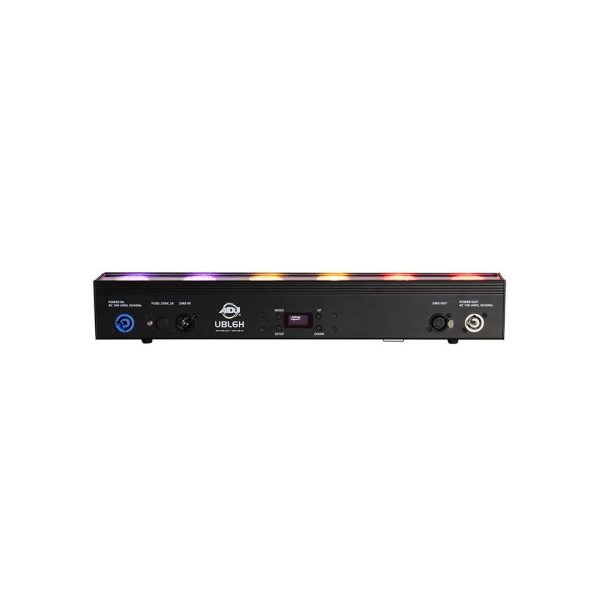

Connections

• Linkable: DMX via 5-pin XLR cable
• Locking power In/Out to daisy chain power

Electrical

• Multi-voltage operation: AC 100V-240V 50/60Hz
• Power Draw: 26W
• Daisy-chain power link (Up to 26 UBL6H’s can be linked @120V and up to 50 UBL6H’s can be linked @230V)

Environment

• Operational Temperature Range: -1°F ~ 113°F (-20°C ~ 45°C)
• Storage Temperature: -22°F ~ 113°F (-20°C ~ 45°C)

Certifications / IP Rating

• cETLus (Control # 4002034)
• CE
• FCC
• IP20

Dimensions / Weight

• Dimensions (LxWxH): 2.96″ x 22.40″ x 4.2″ (75×568.9×106.7mm)
• Weight: 4.41 lbs./ 2kg.

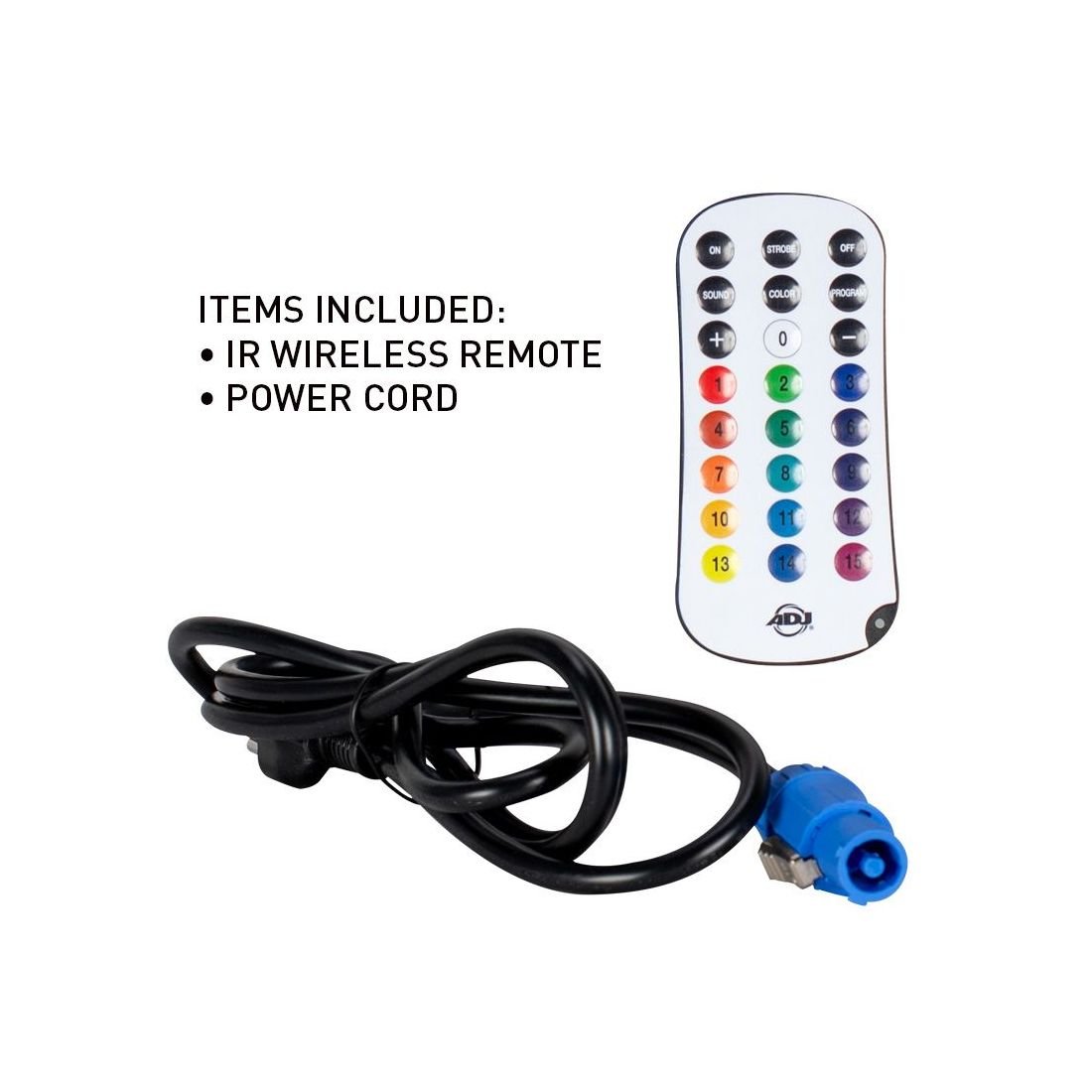

What’s in the Box?

• 1 x Indoor Locking Power Cord
• 1 x UC-IR24
• 1 x 20° Diffusion Filter
• Includes mounting brackets to set on the ground or to mount a clamp for truss mounting
